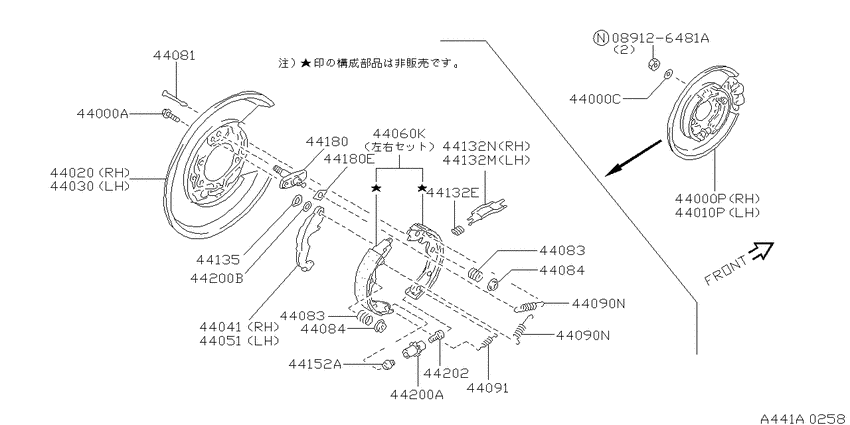

Rear brake (1997-08-01 ~ 1998-08-01; パーキング ブレーキ; RB20DE +RB25DE +RB25DET) Diagram Nissan STAGEA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB20DE
- drive
- 2WD
- transmission
- AT
- grade
- 20G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089126481A
|
089126481A
08912-6481A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-6481A |
— | ||
|
44000A
|
44000A
01141-00311 BOLT9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
01141-00311 |
US $1.73 |
||
|
44000C
|
44000C
01311-01291 WASHER9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
01311-01291 |
US $4.57 |
||
|
44000P
|
44000P
44000-85L20 Brake Assy-Parking, Rear Rh9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44000-85L20 |
US $341.26 |
||
|
44010P
|
44010P
44010-85L20
Brake Assy-Parking, Rear Lh
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44010-85L20 |
— | ||
|
44020
|
44020
44020-44F20 Plate Assy-Back, Rear Brake Rh9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44020-44F20 |
US $95.47 |
||
|
44030
|
44030
44030-44F20
Plate Assy-Back, Rear Brake Lh
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44030-44F20 |
— | ||
|
44041
|
44041
44041-44F10 Lever-Toggle, Rh9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44041-44F10 |
US $67.37 |
||
|
44051
|
44051
4405144F10 Lever-Toggle, Lh9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
4405144F10 |
US $67.37 |
||
|
44060K
|
44060K
44060-37P25 Shoe Set-Rear Brake9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET; [B102] |
44060-37P25 |
from US $100.70 |
||
|
44081
|
44081
4408144F11 Pin-Anti Shoe Rattle9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
4408144F11 |
US $17.74 |
||
|
44083
|
44083
4408332G10 Spring-Anti Shoe Rattle9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
4408332G10 |
from US $1.81 |
||
|
44083
|
44083
4408332G10 Spring-Anti Shoe Rattle9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
4408332G10 |
from US $1.81 |
||
|
44084
|
44084
44084-01A00
Retainer-Spring, Anti Shoe Rattle
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44084-01A00 |
— | ||
| replacement | |||||
|
44084
|
44084
4408401A0A Retainer-Spring, Anti Shoe Rattle9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
4408401A0A |
from US $1.67 |
||
|
44084
|
44084
44084-01A00
Retainer-Spring, Anti Shoe Rattle
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44084-01A00 |
— | ||
| replacement | |||||
|
44084
|
44084
4408401A0A Retainer-Spring, Anti Shoe Rattle9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
4408401A0A |
from US $1.67 |
||
|
44090N
|
44090N
44090-44F10 Spring-Return, Rear Brake Shoe9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44090-44F10 |
from US $5.33 |
||
|
44090N
|
44090N
44090-44F10 Spring-Return, Rear Brake Shoe9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44090-44F10 |
from US $5.33 |
||
|
44091
|
44091
44091-32G11 Spring-Return, Rear Brake Shoe9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44091-32G11 |
US $5.12 |
||
|
44132E
|
44132E
44039-32G11 Spring-Return, Strut9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44039-32G11 |
US $9.02 |
||
|
44132M
|
44132M
44048-44F11 Strut, Lh9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44048-44F11 |
US $12.20 |
||
|
44132N
|
44132N
44038-44F11 Strut, Rh9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44038-44F11 |
US $12.20 |
||
|
44135
|
44135
44222-M4900
Ring-Retaining
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44222-M4900 |
— | ||
| replacement | |||||
|
44135
|
44135
44222M490A Ring-Retaining9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44222M490A |
from US $0.81 |
||
|
44152A
|
44152A
44203-V0310
Sleeve-Adjuster
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44203-V0310 |
— | ||
| replacement | |||||
|
44152A
|
44152A
44203-AG000
Sleeve-Adjuster
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44203-AG000 |
— | ||
|
44180
|
44180
44080-44F12 Block-Anchor9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44080-44F12 |
US $57.31 |
||
|
44180
|
44180
44065-41L10 Plate-Shoe Guide9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44065-41L10 |
from US $1.63 |
||
|
44180E
|
44180E
44065-41L10 Plate-Shoe Guide9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44065-41L10 |
from US $1.63 |
||
|
44200A
|
44200A
44201-V0310
Nut-Adjuster
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44201-V0310 |
— | ||
| replacement | |||||
|
44200A
|
44200A
44201AG00A NUTADJUSTER9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44201AG00A |
US $13.86 |
||
|
44200B
|
44200B
44085-01A00
Washer-Lock
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44085-01A00 |
— | ||
| replacement | |||||
|
44200B
|
44200B
4408501A0A Washer-Lock9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
4408501A0A |
from US $0.76 |
||
|
44202
|
44202
44202-V0310
Screw-Adjuster
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44202-V0310 |
— | ||
| replacement | |||||
|
44202
|
44202
44202-AG000
Screw-Adjuster
9708--01 ~ 9808--01; RB20DE +RB25DE +RB25DET |
44202-AG000 |
— | ||
