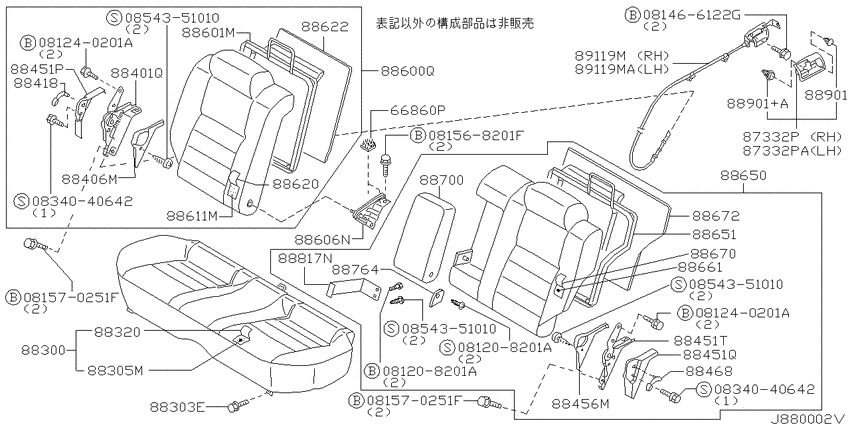

Rear seat (2000-06-01 ~ ; W) Diagram Nissan STAGEA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB20DE
- drive
- 2WD
- transmission
- AT
- grade
- 20G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201A
|
081208201A
081208201A
Bolt-hexagon
|
081208201A |
— | ||
|
081208201A
|
081208201A
081208201A
Bolt-hexagon
|
081208201A |
— | ||
|
081240201A
|
081240201A
08124-0201A
Bolt-hexagon
|
08124-0201A |
— | ||
|
081240201A
|
081240201A
08124-0201A
Bolt-hexagon
|
08124-0201A |
— | ||
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081568201F
|
081568201F
08156-8201F
BOLTHEXPP WW
|
08156-8201F |
— | ||
|
081570251F
|
081570251F
081570251F BOLT |
081570251F |
from US $0.80 |
||
|
081570251F
|
081570251F
081570251F BOLT |
081570251F |
from US $0.80 |
||
|
0834040642
|
0834040642
0834040642
ｽｸﾘﾕ-,ﾏｼﾝ
|
0834040642 |
— | ||
|
0834040642
|
0834040642
0834040642
ｽｸﾘﾕ-,ﾏｼﾝ
|
0834040642 |
— | ||
|
0854351010
|
0854351010
08543-51010
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51010 |
— | ||
|
0854351010
|
0854351010
08543-51010
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51010 |
— | ||
|
0854351010
|
0854351010
08543-51010
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51010 |
— | ||
|
66860P
|
66860P
73996-60U00 Fastener-Trim9708--01 ~ 9808--01; W |
73996-60U00 |
US $0.86 |
||
|
87332P
|
87332P
88930-0V001 Escutcheon9708--01 ~ 9808--01; W |
88930-0V001 |
US $15.41 |
||
|
87332P
|
87332P
88935-0V001 Escutcheon9708--01 ~ 9808--01; W |
88935-0V001 |
US $15.41 |
||
|
87332PA
|
87332PA
88935-0V001 Escutcheon9708--01 ~ 9808--01; W |
88935-0V001 |
US $15.41 |
||
|
88300
|
88300
88300-0V110 Cushion Assy-Rear Seat9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88300-0V110 |
US $3,808 |
||
|
88300
|
88300
88300-0V111 Cushion Assy-Rear Seat9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88300-0V111 |
US $3,808 |
||
|
88300
|
88300
88300-0V201 Cushion Assy-Rear Seat9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF); [D410] |
88300-0V201 |
US $2,632 |
||
|
88300
|
88300
88300-0V701 Cushion Assy-Rear Seat9808--01 ~ 9908--01; W.RB20DE +W.(25X+25XF+25TXF); [D410] |
88300-0V701 |
US $1,960 |
||
|
88303E
|
88303E
01121-06971
BOLT
9708--01 ~ 9808--01; W |
01121-06971 |
— | ||
|
88305M
|
88305M
88305-0V000 Pad & Frame Assy-Cushion, Rear Seat9708--01 ~ 9808--01; W |
88305-0V000 |
US $982.70 |
||
|
88320
|
88320
88320-0V110 Trim Assy-Rear Seat Cushion9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88320-0V110 |
US $1,512 |
||
|
88320
|
88320
88320-0V111 Trim Assy-Rear Seat Cushion9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88320-0V111 |
US $1,512 |
||
|
88320
|
88320
88320-0V201 Trim Assy-Rear Seat Cushion9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF); [D410] |
88320-0V201 |
US $1,062 |
||
|
88320
|
88320
88320-0V701 Trim Assy-Rear Seat Cushion9808--01 ~ 9908--01; W.RB20DE +W.(25X+25XF+25TXF); [D410] |
88320-0V701 |
US $876.50 |
||
|
88401Q
|
88401Q
88401-0V000 Device Assy-Reclining, Rh9708--01 ~ 9808--01; W |
88401-0V000 |
US $277.92 |
||
|
88406M
|
88406M
88406-0V000 Cover-Reclining Device, Inner Rh9708--01 ~ 9808--01; W |
88406-0V000 |
US $12.96 |
||
|
88406M
|
88406M
88406-0V001 Cover-Reclining Device, Inner Rh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88406-0V001 |
US $12.96 |
||
|
88418
|
88418
88418-0V000 Knob-Reclining Device Lever, Rh9708--01 ~ 9808--01; W |
88418-0V000 |
US $6.91 |
||
|
88418
|
88418
88418-0V001 Knob-Reclining Device Lever, Rh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88418-0V001 |
US $5.47 |
||
|
88418
|
88418
88418-0V760 Knob-Reclining Device Lever, Rh9908--01 ~ ; W.(20G+20X+25X+25XF+25TXF) |
88418-0V760 |
US $10.08 |
||
|
88451P
|
88451P
88405-0V000 Cover-Reclining Device, Outer Rh9708--01 ~ 9808--01; W |
88405-0V000 |
US $12.96 |
||
|
88451P
|
88451P
88405-0V001 Cover-Reclining Device, Outer Rh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88405-0V001 |
US $12.96 |
||
|
88451Q
|
88451Q
88455-0V000 Cover-Reclining Device, Outer Lh9708--01 ~ 9808--01; W |
88455-0V000 |
US $12.96 |
||
|
88451Q
|
88451Q
88455-0V001 Cover-Reclining Device, Outer Lh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88455-0V001 |
US $12.96 |
||
|
88451T
|
88451T
88451-0V000 Device Assy-Reclining, Lh9708--01 ~ 9808--01; W |
88451-0V000 |
US $277.92 |
||
|
88456M
|
88456M
88456-0V000 Cover-Reclining Device, Inner Lh9708--01 ~ 9808--01; W |
88456-0V000 |
US $12.96 |
||
|
88456M
|
88456M
88456-0V001 Cover-Reclining Device, Inner Lh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88456-0V001 |
US $12.96 |
||
|
88468
|
88468
88468-0V000 Knob-Reclining Device Lever, Lh9708--01 ~ 9808--01; W |
88468-0V000 |
US $6.91 |
||
|
88468
|
88468
88468-0V001 Knob-Reclining Device Lever, Lh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88468-0V001 |
US $5.47 |
||
|
88468
|
88468
88468-0V760 Knob-Reclining Device Lever, Lh9908--01 ~ ; W.(20G+20X+25X+25XF+25TXF) |
88468-0V760 |
US $10.08 |
||
|
88600Q
|
88600Q
88600-0V115 Back Assy-Rear Seat, Rh9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88600-0V115 |
US $2,506 |
||
|
88600Q
|
88600Q
88600-0V116 Back Assy-Rear Seat, Rh9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88600-0V116 |
US $2,506 |
||
|
88600Q
|
88600Q
88600-0V206 Back Assy-Rear Seat, Rh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF); [D410] |
88600-0V206 |
US $1,750 |
||
|
88600Q
|
88600Q
88600-0V701 Back Assy-Rear Seat, Rh9808--01 ~ 9908--01; W.RB20DE +W.(25X+25XF+25TXF); [D410] |
88600-0V701 |
US $1,329.62 |
||
|
88601M
|
88601M
88601-0V000 Frame Assy-Rear Seat Back, Rh9708--01 ~ 9808--01; W |
88601-0V000 |
US $253.44 |
||
|
88606N
|
88606N
88606-0V000 Bracket Assy-Rear Seat Back, Center9708--01 ~ 9808--01; W |
88606-0V000 |
US $54 |
||
|
88611M
|
88611M
88611-0V000 Pad-Rear Seat Back, Rh9708--01 ~ 9808--01; W |
88611-0V000 |
US $220.32 |
||
|
88620
|
88620
88620-0V110 Trim Assy-Rear Seat Back, Rh9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88620-0V110 |
US $1,019.52 |
||
|
88620
|
88620
88620-0V111 Trim Assy-Rear Seat Back, Rh9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88620-0V111 |
US $1,019.52 |
||
|
88620
|
88620
88620-0V201 Trim Assy-Rear Seat Back, Rh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF); [D410] |
88620-0V201 |
US $712.25 |
||
|
88620
|
88620
88620-0V701 Trim Assy-Rear Seat Back, Rh9808--01 ~ 9908--01; W.RB20DE +W.(25X+25XF+25TXF); [D410] |
88620-0V701 |
US $584.81 |
||
|
88622
|
88622
88622-0V001 Carpet-Seat Back9908--01 ~ ; W.(20G+20X+25X+25XF+25TXF) |
88622-0V001 |
US $140.54 |
||
|
88622
|
88622
88622-0V005 Carpet-Seat Back9708--01 ~ 9808--01; W |
88622-0V005 |
US $140.54 |
||
|
88622
|
88622
88622-0V006 Carpet-Seat Back9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88622-0V006 |
US $140.54 |
||
|
88650
|
88650
88650-0V115 Back Assy-Rear Seat, Lh9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88650-0V115 |
US $4,116 |
||
|
88650
|
88650
88650-0V116 Back Assy-Rear Seat, Lh9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88650-0V116 |
US $4,116 |
||
|
88650
|
88650
88650-0V206 Back Assy-Rear Seat, Lh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF); [D410] |
88650-0V206 |
US $2,884 |
||
|
88650
|
88650
88650-0V701 Back Assy-Rear Seat, Lh9808--01 ~ 9908--01; W.RB20DE +W.(25X+25XF+25TXF); [D410] |
88650-0V701 |
US $2,128 |
||
|
88651
|
88651
88651-0V000 Frame Assy-Rear Seat Back, Lh9708--01 ~ 9808--01; W |
88651-0V000 |
US $497.02 |
||
|
88661
|
88661
88661-0V000 Pad-Rear Seat Back, Lh9708--01 ~ 9808--01; W |
88661-0V000 |
US $397.90 |
||
|
88670
|
88670
88670-0V110 Trim Assy-Rear Seat Back, Lh9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88670-0V110 |
US $1,638 |
||
|
88670
|
88670
88670-0V111 Trim Assy-Rear Seat Back, Lh9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ[D410] |
88670-0V111 |
US $1,638 |
||
|
88670
|
88670
88670-0V201 Trim Assy-Rear Seat Back, Lh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF); [D410] |
88670-0V201 |
US $1,151.21 |
||
|
88670
|
88670
88670-0V701 Trim Assy-Rear Seat Back, Lh9808--01 ~ 9908--01; W.RB20DE +W.(25X+25XF+25TXF); [D410] |
88670-0V701 |
US $950.14 |
||
|
88672
|
88672
88672-0V001 Carpet-Rear Seat Back, Lh9908--01 ~ ; W.(20G+20X+25X+25XF+25TXF) |
88672-0V001 |
US $210.24 |
||
|
88672
|
88672
88672-0V005 Carpet-Rear Seat Back, Lh9708--01 ~ 9808--01; W |
88672-0V005 |
US $210.24 |
||
|
88672
|
88672
88672-0V006 Carpet-Rear Seat Back, Lh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88672-0V006 |
US $210.24 |
||
|
88700
|
88700
88700-0V110 Armrest Assy-Rear Seat9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ |
88700-0V110 |
US $608.88 |
||
|
88700
|
88700
88700-0V111 Armrest Assy-Rear Seat9708--01 ~ 9808--01; *W; ﾎﾝｶﾞﾜ+ｻﾌﾟﾗｰﾚ ｺﾝﾋﾞｼｰﾄ |
88700-0V111 |
US $608.88 |
||
|
88700
|
88700
88700-0V201 Armrest Assy-Rear Seat9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88700-0V201 |
US $283.68 |
||
|
88700
|
88700
88700-0V701 Armrest Assy-Rear Seat9908--01 ~ ; W.(20G+20X+25X+25XF+25TXF) |
88700-0V701 |
US $283.68 |
||
|
88764
|
88764
88764-0V000 Cover-Armrest Bracket, Lh9708--01 ~ 9808--01; W |
88764-0V000 |
US $6.91 |
||
|
88764
|
88764
88764-0V001 Cover-Armrest Bracket, Lh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88764-0V001 |
US $6.91 |
||
|
88817N
|
88817N
88714-0V000 Cover-Armrest Bracket, Rh9708--01 ~ 9808--01; W |
88714-0V000 |
US $6.91 |
||
|
88817N
|
88817N
88714-0V001 Cover-Armrest Bracket, Rh9708--01 ~ 9808--01; %W.RB20DE +W.(25G+25X+25GF+25XF+25TXF) |
88714-0V001 |
US $6.91 |
||
|
88901
|
88901
84953-0V200 Clip-Trim9708--01 ~ 9808--01; W |
84953-0V200 |
US $6.91 |
||
|
88901
|
88901
849530V210 Clip-Trim9708--01 ~ 9808--01; W |
849530V210 |
US $6.05 |
||
|
88901+A
|
88901+A
849530V210 Clip-Trim9708--01 ~ 9808--01; W |
849530V210 |
US $6.05 |
||
|
89119M
|
89119M
88920-0V015 Cable Assy-2Nd Seat9708--01 ~ 9808--01; W |
88920-0V015 |
US $93.02 |
||
|
89119M
|
89119M
88925-0V015 Cable Assy-2Nd Seat9708--01 ~ 9808--01; W |
88925-0V015 |
US $93.02 |
||
|
89119MA
|
89119MA
88925-0V015 Cable Assy-2Nd Seat9708--01 ~ 9808--01; W |
88925-0V015 |
US $93.02 |
