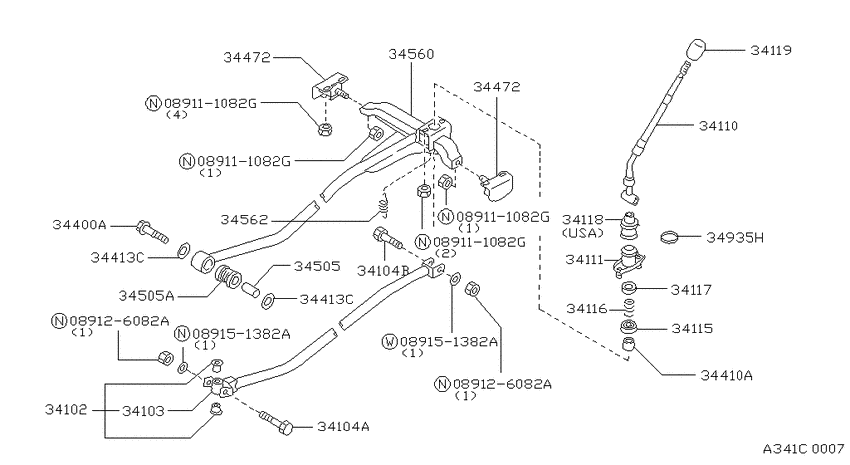

Transmission control & linkage (1985-03-01 ~ ; 2WD.MT.F5) Diagram Nissan STANZA
- Year
- 1982 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- drive
- 2WD
- transmission
- MT
- body
- S5
- trim lvl
- SGL
- emission
- FED
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089126082A
|
089126082A
08912-6082A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-6082A |
— | ||
|
089126082A
|
089126082A
08912-6082A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-6082A |
— | ||
|
089151382A
|
089151382A
08915-1382A
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-1382A |
— | ||
|
089151382A
|
089151382A
08915-1382A
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-1382A |
— | ||
|
34102
|
34102
34102-25R00 Device Assy-Transmission Control1987-08-01 ~ ; 2WD.CA20E.MT; , |
34102-25R00 |
US $175.68 |
||
|
34102
|
34102
34102-29R00
Device Assy-Transmission Control
1985-03-01 ~ 1987-08-01; 2WD.CA20E.MT; , |
34102-29R00 |
— | ||
|
34103
|
34103
34103-25R00 Rod Assy-Control1987-08-01 ~ ; 2WD.CA20E.MT; , |
34103-25R00 |
US $124.70 |
||
|
34103
|
34103
34103-29R00
Rod Assy-Control
1985-03-01 ~ 1987-08-01; 2WD.CA20E.MT; , |
34103-29R00 |
— | ||
|
34104A
|
34104A
34136-01E00 BOLT1985-03-01 ~ ; 2WD.CA20E.MT; , |
34136-01E00 |
US $10.80 |
||
|
34104B
|
34104B
34136-01E10 BOLT1985-03-01 ~ 1986-09-01; 2WD.CA20E.MT; , |
34136-01E10 |
US $4.18 |
||
|
34104B
|
34104B
34136-01E12 BOLT1986-09-01 ~ ; 2WD.CA20E.MT; , |
34136-01E12 |
US $11.95 |
||
|
34110
|
34110
34110-25R00 Lever Assy-Control1985-03-01 ~ 1987-08-01; 2WD.CA20E.MT; , |
34110-25R00 |
US $141.84 |
||
|
34110
|
34110
34110-25R10 Lever Assy-Control1987-08-01 ~ ; 2WD.CA20E.MT; , |
34110-25R10 |
US $81.65 |
||
|
34111
|
34111
34553-01E02 SOCKET ASSY-HAND LEVER1985-03-01 ~ ; 2WD.CA20E.MT; , |
34553-01E02 |
US $17.57 |
||
|
34115
|
34115
34116-01E02
BEARING-HAND LEVER
1985-03-01 ~ ; 2WD.CA20E.MT; , |
34116-01E02 |
— | ||
|
34116
|
34116
34117-01E02 SPRING-CONTROL ROD1985-03-01 ~ ; 2WD.CA20E.MT; , |
34117-01E02 |
US $3.46 |
||
|
34117
|
34117
34118-01E00 SEAT-SPRING1985-03-01 ~ ; 2WD.CA20E.MT; , |
34118-01E00 |
US $2.45 |
||
|
34118
|
34118
34118-25R00 Cover-Socket1987-07-01 ~ ; 2WD.CA20E.MT; , |
34118-25R00 |
US $12.24 |
||
|
34119
|
34119
32865-15L00 Knob-Control Lever1986-10-01 ~ ; 2WD.CA20E.MT; (T) |
32865-15L00 |
from US $28.14 |
||
|
34119
|
34119
32865-15L10 Knob-Control Lever1985-03-01 ~ ; 2WD.CA20E.MT; (B) |
32865-15L10 |
US $28.66 |
||
|
34119
|
34119
32865-29R00 Knob-Hand Lever1985-03-01 ~ ; 2WD.CA20E.MT; (C) |
32865-29R00 |
US $29.23 |
||
| replacement | |||||
|
34119
|
34119
32865-15L11
Knob-Control Lever
1985-03-01 ~ ; 2WD.CA20E.MT; (C) |
32865-15L11 |
— | ||
|
34400A
|
34400A
01121-00811 BOLT1985-03-01 ~ ; 2WD.CA20E.MT; , |
01121-00811 |
US $3.46 |
||
|
34400A
|
34400A
01121-02081 BOLT1985-03-01 ~ ; 2WD.CA20E.MT; , |
01121-02081 |
US $3.46 |
||
|
34410A
|
34410A
34552-D2700 Bush-Control Rod Support1985-03-01 ~ ; 2WD.CA20E.MT; , |
34552-D2700 |
US $5.04 |
||
|
34413C
|
34413C
01311-00192 WASHER1985-03-01 ~ ; 2WD.CA20E.MT; , |
01311-00192 |
US $6.34 |
||
|
34413C
|
34413C
01311-00192 WASHER1985-03-01 ~ ; 2WD.CA20E.MT; , |
01311-00192 |
US $6.34 |
||
|
34472
|
34472
34560-16A00 Holder-Rubber, Hand Lever1985-03-01 ~ ; 2WD.CA20E.MT; , |
34560-16A00 |
US $27.65 |
||
|
34472
|
34472
34560-16A00 Holder-Rubber, Hand Lever1985-03-01 ~ ; 2WD.CA20E.MT; , |
34560-16A00 |
US $27.65 |
||
|
34505
|
34505
34556-D2700
Tube-Control Rod Support Bush
1985-03-01 ~ ; 2WD.CA20E.MT; , |
34556-D2700 |
— | ||
|
34505
|
34505
34557-29R00
Bush
1985-08-01 ~ ; 2WD.CA20E.MT; , |
34557-29R00 |
— | ||
|
34505
|
34505
34557-D2700 Bush-Control Rod Support1985-03-01 ~ 1985-08-01; 2WD.CA20E.MT; , |
34557-D2700 |
US $12.05 |
||
|
34505A
|
34505A
34557-29R00
Bush
1985-08-01 ~ ; 2WD.CA20E.MT; , |
34557-29R00 |
— | ||
|
34505A
|
34505A
34557-D2700 Bush-Control Rod Support1985-03-01 ~ 1985-08-01; 2WD.CA20E.MT; , |
34557-D2700 |
US $12.05 |
||
|
34560
|
34560
34550-29R00
Support Assy-Link
1985-03-01 ~ 1987-08-01; 2WD.CA20E.MT; , |
34550-29R00 |
— | ||
|
34560
|
34560
34550-29R10
Support Assy-Link
1987-08-01 ~ ; 2WD.CA20E.MT; , |
34550-29R10 |
— | ||
|
34562
|
34562
34573-25R01 Spring-Return1985-09-01 ~ ; 2WD.CA20E.MT; , |
34573-25R01 |
US $7.49 |
||
|
34935H
|
34935H
24216-01E00 CLAMP-COVER1987-08-01 ~ ; 2WD.CA20E.MT; , |
24216-01E00 |
US $4.03 |
||
