Component List STANZA
Clutch & band servo (1985-03-01 ~ ; !LOW,HIGH & REVERSE CLUTCH RL4F02A; CA20E.AT)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
31510M	31510M 31510-21X00 Clutch Assy-Reverse 1985-03-01 ~ 1985-06-01; AT; ,	31510-21X00	US $434.71
31510M	31510M 31510-21X03 Clutch Assy-Reverse 1985-06-01 ~ 1988-02-01; AT; ,	31510-21X03	US $298.78
31510M	31510M 31510-21X06 Clutch Assy-Reverse 1988-02-01 ~ ; AT; ,	31510-21X06	US $298.78
31511M	31511M 31511-21X00 Drum-Reverse Clutch 1985-03-01 ~ ; AT; ,	31511-21X00	US $161.28
31514	31514 31514-21X01 Piston Assy-Clutch 1985-03-01 ~ ; AT; ,	31514-21X01	US $25.49
31516	31516 31516-21X01 Seal-Lip 1985-03-01 ~ ; AT; ,	31516-21X01	—
	replacement
31516	31516 C1516-21X01 Seal-lip 1985-03-01 ~ ; AT; ,	C1516-21X01	US $11.79
31517	31517 31517-21X00 Seal-Lathe Cut Ring 1985-03-01 ~ ; AT; ,	31517-21X00	US $6.77
31521	31521 3152121X00 Spring-Piston Return 1985-03-01 ~ ; AT; ,	3152121X00	US $1.73
31521	31521 3152121X00 Spring-Piston Return 1985-03-01 ~ ; AT; ,	3152121X00	US $1.73
31521	31521 31521-21X01 Spring-Piston Return 1985-03-01 ~ ; AT; ,	31521-21X01	US $1.73
31521N	31521N 3152121X00 Spring-Piston Return 1985-03-01 ~ ; AT; ,	3152121X00	US $1.73
31521P	31521P 31521-21X01 Spring-Piston Return 1985-03-01 ~ ; AT; ,	31521-21X01	US $1.73
31523	31523 31553-21X00 Ring-Snap 1985-03-01 ~ ; AT; ,	31553-21X00	US $4.03
31523	31523 31523-21X00 Ring-Snap 1985-03-01 ~ ; AT; ,	31523-21X00	US $2.45
31523N	31523N 31523-21X00 Ring-Snap 1985-03-01 ~ ; AT; ,	31523-21X00	US $2.45
31532	31532 31532-21X00 Plate Assy-Drive 1985-03-01 ~ ; AT; ,	31532-21X00	US $18.58
31532	31532 31532-21X00 Plate Assy-Drive 1985-03-01 ~ ; AT; ,	31532-21X00	US $18.58
31535	31535 31529-21X00 Plate-Dished 1985-06-01 ~ 1988-02-01; AT; ,	31529-21X00	US $15.26
31535	31535 31535-21X01 Plate-Dished 1985-03-01 ~ 1985-06-01; AT; ,	31535-21X01	US $15.26
31535	31535 31535-21X04 Plate-Dished 1988-02-01 ~ ; AT; ,	31535-21X04	US $15.98
31536	31536 31536-21X00 Plate-Driven 1985-03-01 ~ ; AT; ,	31536-21X00	US $13.39
31536	31536 31536-21X00 Plate-Driven 1985-03-01 ~ ; AT; ,	31536-21X00	US $13.39
31537	31537 31537-21X00 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=4.6	31537-21X00	US $55.58
31537	31537 31537-21X01 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=4.8	31537-21X01	US $55.58
31537	31537 31537-21X02 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=5.0	31537-21X02	US $55.58
31537	31537 31537-21X03 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=5.2	31537-21X03	US $55.58
31537	31537 31537-21X04 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=5.4	31537-21X04	US $54.43
31537	31537 31567-21X13 Plate-Retaining 1985-06-01 ~ ; AT; SELECT T=5.6	31567-21X13	US $53.42
31537	31537 31567-21X14 Plate-Retaining 1985-06-01 ~ ; AT; SELECT T=5.8	31567-21X14	US $53.42
31537	31537 31567-21X15 Plate-Retaining 1985-06-01 ~ ; AT; SELECT T=6.0	31567-21X15	US $54.43
31538	31538 31538-21X00 Ring-Snap 1985-03-01 ~ ; AT; ,	31538-21X00	US $4.03
31540M	31540M 31540-21X01 Clutch Assy-High 1985-03-01 ~ 1985-05-01; AT; ,	31540-21X01	US $451.70
31540M	31540M 31540-21X06 Clutch Assy-High 1985-05-01 ~ 1985-08-01; AT; ,	31540-21X06	US $379.49
31540M	31540M 31540-21X08 Clutch Assy-High 1985-08-01 ~ 1986-01-01; AT; ,	31540-21X08	US $372.41
31540M	31540M 31540-21X10 Clutch Assy-High 1986-01-01 ~ 1988-02-01; AT; ,	31540-21X10	US $379.49
31540M	31540M 31540-21X14 Clutch Assy-High 1985-05-01 ~ 1985-08-01; AT; ,	31540-21X14	US $379.49
31540M	31540M 31540-21X22 Clutch Assy-High 1988-02-01 ~ ; AT; ,	31540-21X22	US $379.49
31542M	31542M 31541-21X01 Drum-High Clutch 1985-03-01 ~ 1985-08-01; AT; ,	31541-21X01	US $178.56
31542M	31542M 31541-21X02 Drum-High Clutch 1985-08-01 ~ ; AT; ,	31541-21X02	US $178.56
31544M	31544M 31544-21X02 Piston Assy-High Clutch 1985-03-01 ~ 1986-01-01; AT; ,	31544-21X02	US $98.64
31544M	31544M 31544-21X03 Piston Assy-High Clutch 1986-01-01 ~ ; AT; ,	31544-21X03	US $82.80
31546	31546 31528-21X09 Seal-Lip 1986-01-01 ~ ; AT; ,	31528-21X09	US $11.52
31546	31546 31546-21X01 Seal-Lip 1985-03-01 ~ 1986-01-01; AT; ,	31546-21X01	US $11.52
31547	31547 3154721X00 Seal-Lathe Cut Ring 1985-03-01 ~ ; AT; ,	3154721X00	from US $5.76
31552	31552 31552-21X00 Retainer-Spring 1985-03-01 ~ ; AT; ,	31552-21X00	US $5.18
31552	31552 31552-21X01 Retainer-Spring 1985-03-01 ~ ; AT; ,	31552-21X01	US $5.18
31552	31552 31522-21X00 Retainer-Spring 1985-03-01 ~ ; AT; ,	31522-21X00	US $4.03
31552N	31552N 31522-21X00 Retainer-Spring 1985-03-01 ~ ; AT; ,	31522-21X00	US $4.03
31554	31554 31505-21X00 Spring-Return, Piston 1985-03-01 ~ 1985-08-01; AT; ,	31505-21X00	US $0.86
31554	31554 31505-21X01 Spring-Return, Piston 1985-08-01 ~ 1986-01-01; AT; ,	31505-21X01	US $0.86
31554	31554 31505-21X02 Spring-Return, Piston 1986-01-01 ~ ; AT; ,	31505-21X02	US $0.86
31555	31555 31407-21X00 Bearing-Needle, Thrust 1987-03-01 ~ ; AT; ,	31407-21X00	US $10.80
31555	31555 31428-X0100 Bearing-Needle, Thrust 1985-03-01 ~ 1987-03-01; AT; ,	31428-X0100	US $12.96
31556	31556 31429-21X00 Race-Bearing 1985-03-01 ~ ; AT; SELECT T=0.8	31429-21X00	US $5.18
31556	31556 31429-21X01 Race-Bearing 1985-03-01 ~ ; AT; SELECT T=1.0	31429-21X01	US $5.18
31556	31556 31429-21X02 Race-Bearing 1985-03-01 ~ ; AT; SELECT T=1.2	31429-21X02	US $5.18
31556	31556 31429-21X03 Race-Bearing 1985-03-01 ~ ; AT; SELECT T=1.4	31429-21X03	US $5.18
31556	31556 31429-21X04 Race-Bearing 1985-03-01 ~ ; AT; SELECT T=1.6	31429-21X04	US $5.18
31556	31556 31429-21X05 Race-Bearing 1985-03-01 ~ ; AT; SELECT T=1.8	31429-21X05	US $5.18
31556	31556 31429-21X06 Race-Bearing 1985-03-01 ~ ; AT; SELECT T=2.0	31429-21X06	US $5.18
31562	31562 31532-21X02 Plate Assy-Drive 1988-02-01 ~ ; AT; ,	31532-21X02	US $15.55
31562	31562 31532-21X03 Plate Assy-Drive 1985-08-01 ~ 1988-02-01; AT; INVOLUTE	31532-21X03	US $15.55
31562	31562 31562-21X00 Plate Assy-Drive 1985-03-01 ~ 1985-08-01; AT; SQUARE	31562-21X00	US $6.48
31562	31562 31532-21X02 Plate Assy-Drive 1988-02-01 ~ ; AT; ,	31532-21X02	US $15.55
31562	31562 31532-21X03 Plate Assy-Drive 1985-08-01 ~ 1988-02-01; AT; INVOLUTE	31532-21X03	US $15.55
31562	31562 31562-21X00 Plate Assy-Drive 1985-03-01 ~ 1985-08-01; AT; SQUARE	31562-21X00	US $6.48
31562	31562 31532-21X02 Plate Assy-Drive 1988-02-01 ~ ; AT; ,	31532-21X02	US $15.55
31562	31562 31532-21X03 Plate Assy-Drive 1985-08-01 ~ 1988-02-01; AT; INVOLUTE	31532-21X03	US $15.55
31562	31562 31562-21X00 Plate Assy-Drive 1985-03-01 ~ 1985-08-01; AT; SQUARE	31562-21X00	US $6.48
31566	31566 31566-21X00 Plate-Driven 1985-08-01 ~ 1988-02-01; AT; ,	31566-21X00	US $6.48
31566	31566 31566-21X02 Plate-Driven 1988-02-01 ~ ; AT; ,	31566-21X02	US $15.55
31566	31566 31566-21X00 Plate-Driven 1985-08-01 ~ 1988-02-01; AT; ,	31566-21X00	US $6.48
31566	31566 31566-21X02 Plate-Driven 1988-02-01 ~ ; AT; ,	31566-21X02	US $15.55
31566	31566 31566-21X00 Plate-Driven 1985-08-01 ~ 1988-02-01; AT; ,	31566-21X00	US $6.48
31566	31566 31566-21X02 Plate-Driven 1988-02-01 ~ ; AT; ,	31566-21X02	US $15.55
31566	31566 31566-21X00 Plate-Driven 1985-08-01 ~ 1988-02-01; AT; ,	31566-21X00	US $6.48
31566	31566 31566-21X02 Plate-Driven 1988-02-01 ~ ; AT; ,	31566-21X02	US $15.55
31566	31566 31566-21X00 Plate-Driven 1985-08-01 ~ 1988-02-01; AT; ,	31566-21X00	US $6.48
31566	31566 31566-21X02 Plate-Driven 1988-02-01 ~ ; AT; ,	31566-21X02	US $15.55
31566	31566 31566-21X00 Plate-Driven 1985-08-01 ~ 1988-02-01; AT; ,	31566-21X00	US $6.48
31566	31566 31566-21X02 Plate-Driven 1988-02-01 ~ ; AT; ,	31566-21X02	US $15.55
31567	31567 31567-21X00 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=3.6	31567-21X00	US $40.61
31567	31567 31567-21X01 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=3.8	31567-21X01	US $40.61
31567	31567 31567-21X02 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=4.0	31567-21X02	US $40.61
31567	31567 31567-21X03 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=4.2	31567-21X03	US $40.61
31567	31567 31567-21X04 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=4.4	31567-21X04	US $40.61
31567	31567 31567-21X05 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=4.6	31567-21X05	US $40.61
31567	31567 31567-21X06 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=4.8	31567-21X06	US $40.61
31567	31567 31567-21X10 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=5.0	31567-21X10	US $40.61
31567	31567 31567-21X11 Plate-Retaining 1985-03-01 ~ ; AT; SELECT T=5.2	31567-21X11	US $40.61
31567	31567 31567-21X12 Plate-Retaining 1985-08-01 ~ ; AT; SELECT T=5.4	31567-21X12	US $39.74
31568	31568 31538-01X00 Ring-Snap 1985-08-01 ~ ; AT; ,	31538-01X00	US $6.48
31568	31568 31568-21X00 Ring-Snap, Transfer Clutch Drum 1985-03-01 ~ 1985-08-01; AT; ,	31568-21X00	US $4.18
31570	31570 31570-21X01 Clutch Assy-Low 1985-03-01 ~ ; AT; ,	31570-21X01	US $399.31
31571	31571 31571-21X01 Drum Assy-Low Clutch 1985-03-01 ~ 1985-05-01; AT; ,	31571-21X01	US $399.31
31571	31571 31571-21X04 Drum Assy-Low Clutch 1985-05-01 ~ ; AT; ,	31571-21X04	US $78.91
31574	31574 31574-21X01 Piston Assy-Low Clutch 1985-03-01 ~ 1985-05-01; AT; ,	31574-21X01	US $34.85
31574	31574 31574-21X02 Piston Assy-Low Clutch 1985-05-01 ~ ; AT; ,	31574-21X02	US $34.85
31576	31576 31576-21X00 Seal-Lathe Cut Ring 1985-03-01 ~ ; AT; ,	31576-21X00	US $8.93
31577	31577 31577-21X00 Seal-O Ring, Low Clutch 1985-03-01 ~ ; AT; ,	31577-21X00	US $5.90
31582	31582 31582-21X00 Retainer-Spring, Low Clutch 1985-03-01 ~ ; AT; ,	31582-21X00	US $5.18
31583	31583 31583-21X00 Ring-Snap, Low Clutch 1985-03-01 ~ ; AT; ,	31583-21X00	US $1.73
31592	31592 31532-21X09 Plate Assy-Drive 1985-03-01 ~ ; AT; ,	31532-21X09	US $12.53
31592	31592 31592-21X00 Plate Assy-Drive 1985-03-01 ~ ; AT; ,	31592-21X00	US $14.40
31595M	31595M 31578-21X01 Plate-Dished 1987-08-01 ~ ; AT;	31578-21X01	US $15.55
31596	31596 31596-21X00 Plate-Driven 1985-03-01 ~ ; AT; ,	31596-21X00	US $8.21
31597M	31597M 31597-21X00 Plate-Retaining Clutch 1985-03-01 ~ ; AT; T=4.8	31597-21X00	US $35.42
31597M	31597M 31597-21X01 Plate-Retaining Clutch 1985-03-01 ~ ; AT; T=5.0	31597-21X01	US $35.42
31597M	31597M 31597-21X02 Plate-Retaining Clutch 1985-03-01 ~ ; AT; T=5.2	31597-21X02	US $36.14
31597M	31597M 31597-21X03 Plate-Retaining Clutch 1985-03-01 ~ ; AT; T=5.4	31597-21X03	US $35.42
31597M	31597M 31597-21X04 Plate-Retaining Clutch 1985-03-01 ~ ; AT; T=5.6	31597-21X04	US $47.81
31597M	31597M 31597-21X05 Plate-Retaining Clutch 1985-03-01 ~ ; AT; T=5.8	31597-21X05	US $48.96
31597M	31597M 31597-21X06 Plate-Retaining Clutch 1985-03-01 ~ ; AT; T=6.0	31597-21X06	US $47.81
31598	31598 31598-21X00 Ring-Snap, Clutch Drum 1985-03-01 ~ ; AT; ,	31598-21X00	US $2.45

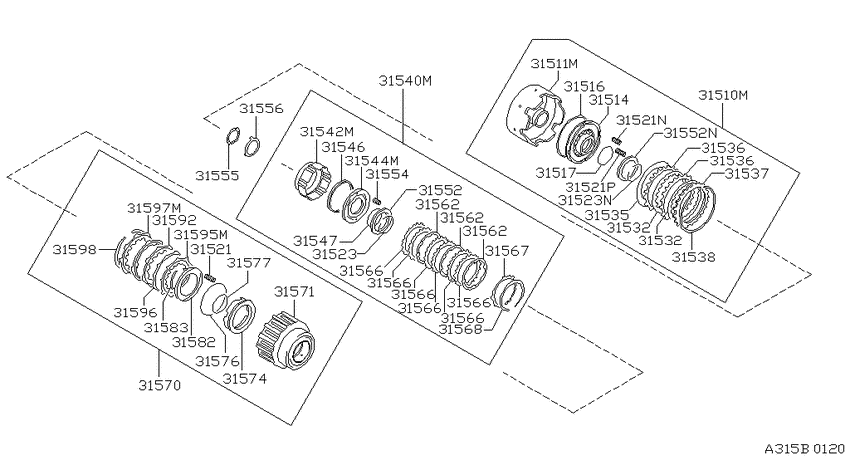

Clutch & band servo (1985-03-01 ~ ; !LOW,HIGH & REVERSE CLUTCH RL4F02A; CA20E.AT) Diagram Nissan STANZA U.S.A. 2303810-182152

Clutch & band servo (1985-03-01 ~ ; !LOW,HIGH & REVERSE CLUTCH RL4F02A; CA20E.AT) Diagram Nissan STANZA U.S.A. 2303810-182152
