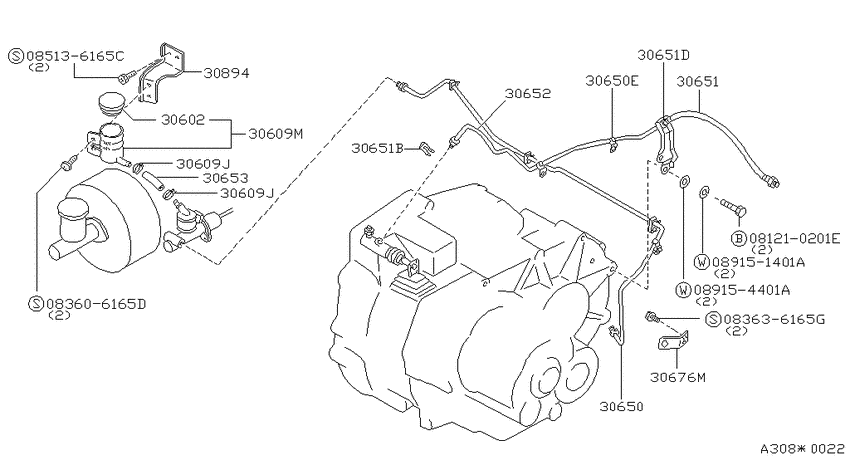

Clutch piping (1985-03-01 ~ ; ALL) Diagram Nissan STANZA
- Year
- 1982 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- drive
- 4WD
- transmission
- MT
- body
- V5
- trim lvl
- GL
- emission
- FED
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
083606165D
|
083606165D
083606165D Rope & Hook |
083606165D |
US $1.52 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
085136165C
|
085136165C
085136165C
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
085136165C |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089154401A
|
089154401A
089154401A
WASHERPLAIN
|
089154401A |
— | ||
|
30602
|
30602
46020N6000 Cap Assy-Reservoir1985-03-01 ~ ; CA20E.MT; , |
46020N6000 |
US $11.51 |
||
|
30609J
|
30609J
01555-00391
CLAMP-HOSE
1985-03-01 ~ ; CA20E.MT; , |
01555-00391 |
— | ||
| replacement | |||||
|
30609J
|
30609J
0155500841 CLIP1985-03-01 ~ ; CA20E.MT; , |
0155500841 |
from US $1.37 |
||
|
30609J
|
30609J
01555-00391
CLAMP-HOSE
1985-03-01 ~ ; CA20E.MT; , |
01555-00391 |
— | ||
| replacement | |||||
|
30609J
|
30609J
0155500841 CLIP1985-03-01 ~ ; CA20E.MT; , |
0155500841 |
from US $1.37 |
||
|
30609M
|
30609M
30640-29R00 Reservoir-Oil, Clutch1985-03-01 ~ ; CA20E.MT; , |
30640-29R00 |
US $21.31 |
||
|
30650
|
30650
30650-29R00
Tube Assy-Clutch
1985-08-01 ~ ; '(FED.S+CAL.S).4WD.CA20E.MT +FED.V.CA20E; , |
30650-29R00 |
— | ||
|
30650
|
30650
30874-29R01
Clip
1986-06-01 ~ ; CA20E.MT; , |
30874-29R01 |
— | ||
|
30650E
|
30650E
30874-29R01
Clip
1986-06-01 ~ ; CA20E.MT; , |
30874-29R01 |
— | ||
|
30651
|
30651
4621201A15 Hose Assy-Clutch1985-03-01 ~ ; CA20E.MT; SELECT USE NICHIRIN |
4621201A15 |
US $20.88 |
||
|
30651
|
30651
46212-79915 Hose Assy-Clutch1985-03-01 ~ ; CA20E.MT; SELECT USE HITACHI |
46212-79915 |
US $20.88 |
||
|
30651
|
30651
46206M0200 Spring-Lock1985-03-01 ~ ; CA20E.MT; , |
46206M0200 |
US $1.67 |
||
|
30651
|
30651
30820-06R00
Bracket-Clutch Hose
1985-08-01 ~ ; '(FED.S+CAL.S).4WD.CA20E.MT +FED.V.CA20E; , |
30820-06R00 |
— | ||
|
30651B
|
30651B
46206M0200 Spring-Lock1985-03-01 ~ ; CA20E.MT; , |
46206M0200 |
US $1.67 |
||
|
30651D
|
30651D
30820-06R00
Bracket-Clutch Hose
1985-08-01 ~ ; '(FED.S+CAL.S).4WD.CA20E.MT +FED.V.CA20E; , |
30820-06R00 |
— | ||
|
30652
|
30652
30850-06R00 Tube Assy-Clutch1985-08-01 ~ ; '(FED.S+CAL.S).4WD.CA20E.MT +FED.V.CA20E; , |
30850-06R00 |
US $10.94 |
||
|
30653
|
30653
30856-29R00
Hose Assy-Clutch
1985-03-01 ~ ; CA20E.MT; F/CLUTCH MASTER CYL |
30856-29R00 |
— | ||
| replacement | |||||
|
30653
|
30653
46113-J5404
Hose assy-clutch
1985-03-01 ~ ; CA20E.MT; F/CLUTCH MASTER CYL |
46113-J5404 |
— | ||
|
30676M
|
30676M
30635-29R00
Bracket-Clutch Hose
1985-03-01 ~ ; CA20E.MT; , |
30635-29R00 |
— | ||
|
30894
|
30894
30894-20R00
Bracket-Clutch Reservoir
1985-03-01 ~ ; CA20E.MT; , |
30894-20R00 |
— | ||
