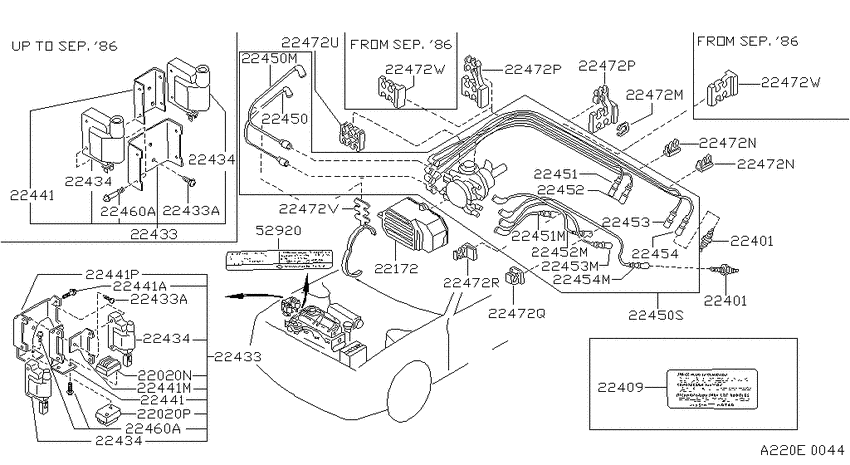

Ignition System (1985-03-01 ~ ; CA20E) Diagram Nissan STANZA
- Year
- 1982 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- drive
- 4WD
- transmission
- MT
- body
- V5
- trim lvl
- GL
- emission
- FED
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22020N
|
22020N
22020-29R10
Power Transistor Assy
1986-09-01 ~ ; CA20E; HANSIN |
22020-29R10 |
— | ||
|
22020P
|
22020P
22020-29R11
Power Transistor Assy-Exhaust
1986-09-01 ~ ; CA20E; HANSIN |
22020-29R11 |
— | ||
|
22172
|
22172
22172-D2200
Protector-Distributor
1985-06-01 ~ ; CA20E; , |
22172-D2200 |
— | ||
|
22401
|
22401
2240101P15 Plug-Spark1985-03-01 ~ ; CA20E; BCPR5ES-11 |
2240101P15 |
US $5.94 |
||
|
22401
|
22401
2240101P16 Plug-Spark1985-03-01 ~ ; CA20E; BCPR6ES-11 |
2240101P16 |
from US $2.89 |
||
|
22401
|
22401
22401-01P17 Plug-Spark1985-03-01 ~ ; CA20E; BCPR7ES-11 |
22401-01P17 |
US $7.49 |
||
|
22401
|
22401
2240101P15 Plug-Spark1985-03-01 ~ ; CA20E; BCPR5ES-11 |
2240101P15 |
US $5.94 |
||
|
22401
|
22401
2240101P16 Plug-Spark1985-03-01 ~ ; CA20E; BCPR6ES-11 |
2240101P16 |
from US $2.89 |
||
|
22401
|
22401
22401-01P17 Plug-Spark1985-03-01 ~ ; CA20E; BCPR7ES-11 |
22401-01P17 |
US $7.49 |
||
|
22409
|
22409
22409-U9600
Label-Caution, Spark Plug
1985-03-01 ~ ; CA20E; , |
22409-U9600 |
— | ||
|
22433
|
22433
22448-18R10
Coil Assy-Ignition
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22448-18R10 |
— | ||
|
22433
|
22433
22448-29R10
Coil Assy-Ignition
1986-09-01 ~ ; CA20E; HANSIN |
22448-29R10 |
— | ||
|
22433
|
22433
01461-00041 SCREW1985-03-01 ~ 1986-01-01; CA20E; , |
01461-00041 |
US $1.73 |
||
|
22433
|
22433
01461-00391 SCREW1986-01-01 ~ 1986-09-01; CA20E; , |
01461-00391 |
US $1.73 |
||
|
22433
|
22433
01466-00201 SCREW1986-09-01 ~ ; CA20E; , |
01466-00201 |
US $1.73 |
||
|
22433
|
22433
22448-18R10
Coil Assy-Ignition
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22448-18R10 |
— | ||
|
22433
|
22433
22448-29R10
Coil Assy-Ignition
1986-09-01 ~ ; CA20E; HANSIN |
22448-29R10 |
— | ||
|
22433
|
22433
01461-00041 SCREW1985-03-01 ~ 1986-01-01; CA20E; , |
01461-00041 |
US $1.73 |
||
|
22433
|
22433
01461-00391 SCREW1986-01-01 ~ 1986-09-01; CA20E; , |
01461-00391 |
US $1.73 |
||
|
22433
|
22433
01466-00201 SCREW1986-09-01 ~ ; CA20E; , |
01466-00201 |
US $1.73 |
||
|
22433A
|
22433A
01461-00041 SCREW1985-03-01 ~ 1986-01-01; CA20E; , |
01461-00041 |
US $1.73 |
||
|
22433A
|
22433A
01461-00391 SCREW1986-01-01 ~ 1986-09-01; CA20E; , |
01461-00391 |
US $1.73 |
||
|
22433A
|
22433A
01466-00201 SCREW1986-09-01 ~ ; CA20E; , |
01466-00201 |
US $1.73 |
||
|
22433A
|
22433A
01461-00041 SCREW1985-03-01 ~ 1986-01-01; CA20E; , |
01461-00041 |
US $1.73 |
||
|
22433A
|
22433A
01461-00391 SCREW1986-01-01 ~ 1986-09-01; CA20E; , |
01461-00391 |
US $1.73 |
||
|
22433A
|
22433A
01466-00201 SCREW1986-09-01 ~ ; CA20E; , |
01466-00201 |
US $1.73 |
||
|
22434
|
22434
22433-10G10 Coil-Ignition1986-09-01 ~ ; CA20E; HANSIN |
22433-10G10 |
US $177.12 |
||
|
22434
|
22434
22433-18R10
Ignition Coil
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22433-18R10 |
— | ||
|
22434
|
22434
22433-10G10 Coil-Ignition1986-09-01 ~ ; CA20E; HANSIN |
22433-10G10 |
US $177.12 |
||
|
22434
|
22434
22433-18R10
Ignition Coil
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22433-18R10 |
— | ||
|
22434
|
22434
22433-10G10 Coil-Ignition1986-09-01 ~ ; CA20E; HANSIN |
22433-10G10 |
US $177.12 |
||
|
22434
|
22434
22433-18R10
Ignition Coil
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22433-18R10 |
— | ||
|
22434
|
22434
22433-10G10 Coil-Ignition1986-09-01 ~ ; CA20E; HANSIN |
22433-10G10 |
US $177.12 |
||
|
22434
|
22434
22433-18R10
Ignition Coil
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22433-18R10 |
— | ||
|
22441
|
22441
22441-18R10
Band
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22441-18R10 |
— | ||
|
22441
|
22441
22441-29R10
Band
1986-09-01 ~ ; CA20E; HANSIN |
22441-29R10 |
— | ||
|
22441
|
22441
22467-29R10 Screw1986-09-01 ~ ; CA20E; , |
22467-29R10 |
US $2.45 |
||
|
22441
|
22441
22441-18R11
Band
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22441-18R11 |
— | ||
|
22441
|
22441
22441-29R11
Band
1986-09-01 ~ ; CA20E; HANSIN |
22441-29R11 |
— | ||
|
22441
|
22441
22441-29R12
Band-Coil Exhaust
1986-09-01 ~ ; CA20E; HANSIN |
22441-29R12 |
— | ||
|
22441
|
22441
22441-18R10
Band
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22441-18R10 |
— | ||
|
22441
|
22441
22441-29R10
Band
1986-09-01 ~ ; CA20E; HANSIN |
22441-29R10 |
— | ||
|
22441
|
22441
22467-29R10 Screw1986-09-01 ~ ; CA20E; , |
22467-29R10 |
US $2.45 |
||
|
22441
|
22441
22441-18R11
Band
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22441-18R11 |
— | ||
|
22441
|
22441
22441-29R11
Band
1986-09-01 ~ ; CA20E; HANSIN |
22441-29R11 |
— | ||
|
22441
|
22441
22441-29R12
Band-Coil Exhaust
1986-09-01 ~ ; CA20E; HANSIN |
22441-29R12 |
— | ||
|
22441A
|
22441A
22467-29R10 Screw1986-09-01 ~ ; CA20E; , |
22467-29R10 |
US $2.45 |
||
|
22441M
|
22441M
22441-18R11
Band
1985-03-01 ~ 1986-09-01; CA20E; HANSHIN |
22441-18R11 |
— | ||
|
22441M
|
22441M
22441-29R11
Band
1986-09-01 ~ ; CA20E; HANSIN |
22441-29R11 |
— | ||
|
22441P
|
22441P
22441-29R12
Band-Coil Exhaust
1986-09-01 ~ ; CA20E; HANSIN |
22441-29R12 |
— | ||
|
22450
|
22450
22450-29R00
Cable Assy-Ignition Coil To Distributor
1985-03-01 ~ ; CA20E; YAZAKI |
22450-29R00 |
— | ||
|
22450
|
22450
22450-29R10
Cable Assy-Ignition Coil To Distributor
1985-03-01 ~ ; CA20E; SUMITOMO |
22450-29R10 |
— | ||
|
22450
|
22450
22450-29R05
Cable Assy-Ignition Coil To Distributor
1985-03-01 ~ ; CA20E; YAZAKI |
22450-29R05 |
— | ||
|
22450
|
22450
22450-29R15
Cable Assy-Ignition Coil To Distributor
1985-03-01 ~ ; CA20E; SUMITOMO |
22450-29R15 |
— | ||
|
22450
|
22450
22450-29R25
Cable Set-High Tension
1985-03-01 ~ ; CA20E; , |
22450-29R25 |
— | ||
|
22450M
|
22450M
22450-29R05
Cable Assy-Ignition Coil To Distributor
1985-03-01 ~ ; CA20E; YAZAKI |
22450-29R05 |
— | ||
|
22450M
|
22450M
22450-29R15
Cable Assy-Ignition Coil To Distributor
1985-03-01 ~ ; CA20E; SUMITOMO |
22450-29R15 |
— | ||
|
22450S
|
22450S
22450-29R25
Cable Set-High Tension
1985-03-01 ~ ; CA20E; , |
22450-29R25 |
— | ||
|
22451
|
22451
22451-D3302 Cable Assy-High Tension, No 11985-03-01 ~ ; CA20E; YAZAKI |
22451-D3302 |
US $46.37 |
||
|
22451
|
22451
22451-D3312 Cable Assy-High Tension, No 11985-03-01 ~ ; CA20E; SUMITOMO |
22451-D3312 |
US $46.37 |
||
|
22451
|
22451
22451-D3307 Cable Assy-High Tension, No 11985-03-01 ~ ; CA20E; YAZAKI |
22451-D3307 |
US $46.37 |
||
|
22451
|
22451
22451-D3317 Cable Assy-High Tension, No 11985-03-01 ~ ; CA20E; SUMITOMO |
22451-D3317 |
US $46.37 |
||
|
22451M
|
22451M
22451-D3307 Cable Assy-High Tension, No 11985-03-01 ~ ; CA20E; YAZAKI |
22451-D3307 |
US $46.37 |
||
|
22451M
|
22451M
22451-D3317 Cable Assy-High Tension, No 11985-03-01 ~ ; CA20E; SUMITOMO |
22451-D3317 |
US $46.37 |
||
|
22452
|
22452
22452-D3302 Cable Assy-High Tension, No 21985-03-01 ~ ; CA20E; YAZAKI |
22452-D3302 |
US $41.04 |
||
|
22452
|
22452
22452-D3312 Cable Assy-High Tension, No 21985-03-01 ~ ; CA20E; SUMITOMO |
22452-D3312 |
US $41.04 |
||
|
22452
|
22452
22452-D3307 Cable Assy-High Tension, No 21985-03-01 ~ ; CA20E; YAZAKI |
22452-D3307 |
US $35.57 |
||
|
22452
|
22452
22452-D3317 Cable Assy-High Tension, No 21985-03-01 ~ ; CA20E; SUMITOMO |
22452-D3317 |
US $35.57 |
||
|
22452M
|
22452M
22452-D3307 Cable Assy-High Tension, No 21985-03-01 ~ ; CA20E; YAZAKI |
22452-D3307 |
US $35.57 |
||
|
22452M
|
22452M
22452-D3317 Cable Assy-High Tension, No 21985-03-01 ~ ; CA20E; SUMITOMO |
22452-D3317 |
US $35.57 |
||
|
22453
|
22453
22453-D3302
Cable Assy-High Tension, No 3
1985-03-01 ~ ; CA20E; YAZAKI |
22453-D3302 |
— | ||
|
22453
|
22453
22453-D3312
Cable Assy-High Tension, No 3
1985-03-01 ~ ; CA20E; SUMITOMO |
22453-D3312 |
— | ||
|
22453
|
22453
22453-D3307
Cable Assy-High Tension, No 3
1985-03-01 ~ ; CA20E; YAZAKI |
22453-D3307 |
— | ||
|
22453
|
22453
22453-D3317
Cable Assy-High Tension, No 3
1985-03-01 ~ ; CA20E; SUMITOMO |
22453-D3317 |
— | ||
|
22453M
|
22453M
22453-D3307
Cable Assy-High Tension, No 3
1985-03-01 ~ ; CA20E; YAZAKI |
22453-D3307 |
— | ||
|
22453M
|
22453M
22453-D3317
Cable Assy-High Tension, No 3
1985-03-01 ~ ; CA20E; SUMITOMO |
22453-D3317 |
— | ||
|
22454
|
22454
22454-D3302
Cable Assy-High Tension, No 4
1985-03-01 ~ ; CA20E; YAZAKI |
22454-D3302 |
— | ||
|
22454
|
22454
22454-D3312
Cable Assy-High Tension, No 4
1985-03-01 ~ ; CA20E; SUMITOMO |
22454-D3312 |
— | ||
|
22454
|
22454
22454-D3307 Cable Assy-High Tension, No 41985-03-01 ~ ; CA20E; YAZAKI |
22454-D3307 |
US $41.04 |
||
|
22454
|
22454
22454-D3317 Cable Assy-High Tension, No 41985-03-01 ~ ; CA20E; SUMITOMO |
22454-D3317 |
US $41.04 |
||
|
22454M
|
22454M
22454-D3307 Cable Assy-High Tension, No 41985-03-01 ~ ; CA20E; YAZAKI |
22454-D3307 |
US $41.04 |
||
|
22454M
|
22454M
22454-D3317 Cable Assy-High Tension, No 41985-03-01 ~ ; CA20E; SUMITOMO |
22454-D3317 |
US $41.04 |
||
|
22460A
|
22460A
22467-17F10 Screw1986-09-01 ~ ; CA20E; , |
22467-17F10 |
US $2.02 |
||
|
22460A
|
22460A
22467-29R10 Screw1986-08-01 ~ 1986-09-01; CA20E; HANSHIN |
22467-29R10 |
US $2.45 |
||
|
22460A
|
22460A
22467-F5985 Screw1985-03-01 ~ 1986-08-01; CA20E; HANSHIN |
22467-F5985 |
US $4.46 |
||
|
22460A
|
22460A
22467-17F10 Screw1986-09-01 ~ ; CA20E; , |
22467-17F10 |
US $2.02 |
||
|
22460A
|
22460A
22467-29R10 Screw1986-08-01 ~ 1986-09-01; CA20E; HANSHIN |
22467-29R10 |
US $2.45 |
||
|
22460A
|
22460A
22467-F5985 Screw1985-03-01 ~ 1986-08-01; CA20E; HANSHIN |
22467-F5985 |
US $4.46 |
||
|
22472M
|
22472M
22472-21010 Clamp-High Tension Cable1985-03-01 ~ ; CA20E; , |
22472-21010 |
from US $0.89 |
||
|
22472N
|
22472N
22472-D0108 Clamp-High Tension Cable1985-03-01 ~ ; CA20E; , |
22472-D0108 |
US $4.30 |
||
|
22472N
|
22472N
22472-D0108 Clamp-High Tension Cable1985-03-01 ~ ; CA20E; , |
22472-D0108 |
US $4.30 |
||
|
22472P
|
22472P
22472-06F00 Clamp-Hose, A1985-03-01 ~ 1986-09-01; CA20E; , |
22472-06F00 |
US $3.46 |
||
|
22472P
|
22472P
22472-06F00 Clamp-Hose, A1985-03-01 ~ 1986-09-01; CA20E; , |
22472-06F00 |
US $3.46 |
||
|
22472Q
|
22472Q
22472-D0109
Clamp-High Tension Cable
1985-03-01 ~ ; CA20E; , |
22472-D0109 |
— | ||
|
22472R
|
22472R
22472-D0110 Clamp-High Tension Cable1985-03-01 ~ ; CA20E; , |
22472-D0110 |
US $2.45 |
||
|
22472U
|
22472U
22472-W1100
Clamp-High Tension Cable
1985-03-01 ~ ; CA20E; , |
22472-W1100 |
— | ||
|
22472V
|
22472V
22472-V5201 Clamp-High Tension Cable1985-03-01 ~ ; CA20E; , |
22472-V5201 |
US $7.78 |
||
|
22472W
|
22472W
22472-D0107 Clamp-High Tension Cable1986-09-01 ~ ; CA20E; , |
22472-D0107 |
US $4.30 |
||
|
22472W
|
22472W
22472-D0107 Clamp-High Tension Cable1986-09-01 ~ ; CA20E; , |
22472-D0107 |
US $4.30 |
||
|
52920
|
52920
22409-18R00
Label-Caution, Spark Plug
1985-08-01 ~ ; CA20E; , |
22409-18R00 |
— |
