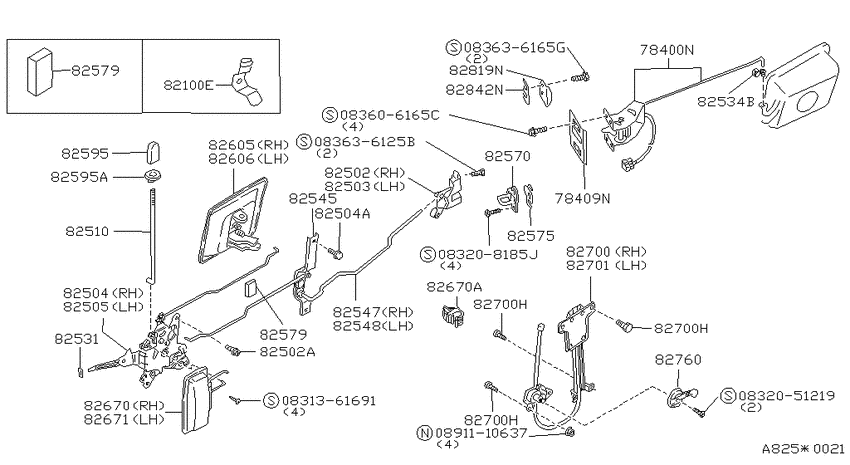

Rear door lock & handle (1985-03-01 ~ ; ALL) Diagram Nissan STANZA
- Year
- 1982 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- drive
- 4WD
- transmission
- MT
- body
- V5
- trim lvl
- GL
- emission
- FED
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831361691
|
0831361691
08313-61691
ｽｸﾘﾕ-,ﾏｼﾝ
|
08313-61691 |
— | ||
|
0832051219
|
0832051219
08320-51219
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-51219 |
— | ||
|
083208185J
|
083208185J
08320-8185J
Screw-machine
|
08320-8185J |
— | ||
|
083606165C
|
083606165C
08360-6165C ｽｸﾘﾕ-,ﾏｼﾝ |
08360-6165C |
US $2.36 |
||
|
083636125B
|
083636125B
08363-6125B
Bolt
|
08363-6125B |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
78400N
|
78400N
78400-01R00 ｽﾄﾂﾊﾟ- ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾄﾞｱ ﾌﾕ-ｴﾘﾝｸﾞ1985-03-01 ~ ; FED.S +CAL.S +FED.V; W/ROD |
78400-01R00 |
US $80.78 |
||
|
78409N
|
78409N
78409-01R00 ｶﾊﾞ-,ﾌﾕ-ｴﾙ ﾌｲﾗ-1985-03-01 ~ ; FED.S +CAL.S +FED.V; F/REAR FENDER RH |
78409-01R00 |
US $11.81 |
||
|
82100E
|
82100E
82534-29R01
Clip
1985-03-01 ~ ; FED.S +CAL.S +FED.V; RH |
82534-29R01 |
— | ||
|
82100E
|
82100E
82535-29R01
Clip
1985-03-01 ~ ; FED.S +CAL.S +FED.V; LH |
82535-29R01 |
— | ||
|
82502
|
82502
82502-01R01
Lock assy-rear door,rh
1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
82502-01R01 |
— | ||
|
82502
|
82502
01125-00092 SCREW1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
01125-00092 |
US $1.73 |
||
|
82502A
|
82502A
01125-00092 SCREW1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
01125-00092 |
US $1.73 |
||
|
82503
|
82503
82503-01R00
Lock assy-rear door,lh
1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
82503-01R00 |
— | ||
|
82503
|
82503
82503-01R01
Lock assy-rear door,lh
1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
82503-01R01 |
— | ||
|
82504
|
82504
82504-29R00
Remote control assy-door lock,rh
1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
82504-29R00 |
— | ||
|
82504
|
82504
01125-00092 SCREW1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
01125-00092 |
US $1.73 |
||
|
82504A
|
82504A
01125-00092 SCREW1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
01125-00092 |
US $1.73 |
||
|
82505
|
82505
82505-29R00
Remote control assy-door lock,lh
1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
82505-29R00 |
— | ||
|
82510
|
82510
82510-01R00 ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾛﾂｸ ﾉﾌﾞ rh1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
82510-01R00 |
US $8.21 |
||
|
82531
|
82531
82538-21R00
Sealing rubber
1985-09-01 ~ ; FED.S +CAL.S +FED.V; COVER CHILD LEVER |
82538-21R00 |
— | ||
|
82534B
|
82534B
78824-21R00 ｸﾞﾛﾒﾂﾄ1985-03-01 ~ ; FED.S +CAL.S +FED.V; F/ROD |
78824-21R00 |
US $6.91 |
||
|
82545
|
82545
82595-16R00
Bracket-rear door lock
1985-03-01 ~ ; FED.S +CAL.S +FED.V; F/RED |
82595-16R00 |
— | ||
|
82547
|
82547
82506-01R01
Rod-door lock,rh
1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
82506-01R01 |
— | ||
|
82548
|
82548
82507-01R02 ﾛﾂﾄﾞ,ﾄﾞｱ ﾛﾂｸ lh1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
82507-01R02 |
US $14.69 |
||
|
82570
|
82570
8257001R01 Striker Assy-Slide Door1985-03-01 ~ ; FED.S +CAL.S +FED.V; RH & LH |
8257001R01 |
US $15.70 |
||
|
82575
|
82575
82575-01R00 Shim-Striker, Door Lock1985-03-01 ~ ; FED.S +CAL.S +FED.V; T2.0 |
82575-01R00 |
US $5.33 |
||
|
82575
|
82575
82575-01R01 Shim-Striker, Door Lock1985-03-01 ~ ; FED.S +CAL.S +FED.V; T1.0 |
82575-01R01 |
US $5.33 |
||
|
82579
|
82579
80845-01R00
Spacer
1985-06-01 ~ ; FED.S +CAL.S +FED.V; R/C ROD |
80845-01R00 |
— | ||
| replacement | |||||
|
82579
|
82579
80845D0100 Insulator-Remote Control Rod1985-06-01 ~ ; FED.S +CAL.S +FED.V; R/C ROD |
80845D0100 |
from US $3.79 |
||
|
82579
|
82579
80845D0100 Insulator-Remote Control Rod1985-06-01 ~ ; FED.S +CAL.S +FED.V; R/C ROD |
80845D0100 |
from US $3.79 |
||
|
82579
|
82579
80845-01R00
Spacer
1985-06-01 ~ ; FED.S +CAL.S +FED.V; R/C ROD |
80845-01R00 |
— | ||
| replacement | |||||
|
82579
|
82579
80845D0100 Insulator-Remote Control Rod1985-06-01 ~ ; FED.S +CAL.S +FED.V; R/C ROD |
80845D0100 |
from US $3.79 |
||
|
82579
|
82579
80845D0100 Insulator-Remote Control Rod1985-06-01 ~ ; FED.S +CAL.S +FED.V; R/C ROD |
80845D0100 |
from US $3.79 |
||
|
82595
|
82595
80595-W1020 Knob-Door Lock1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
80595-W1020 |
US $4.32 |
||
|
82595
|
82595
80970-01R00 ｸﾞﾛﾒﾂﾄ,ﾉﾌﾞ1985-03-01 ~ ; FED.S +CAL.S +FED.V; (G) |
80970-01R00 |
US $4.32 |
||
|
82595A
|
82595A
80970-01R00 ｸﾞﾛﾒﾂﾄ,ﾉﾌﾞ1985-03-01 ~ ; FED.S +CAL.S +FED.V; (G) |
80970-01R00 |
US $4.32 |
||
|
82605
|
82605
82602-01R00 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh1985-03-01 ~ ; FED.S +CAL.S +FED.V; W/ESCUTCHEON |
82602-01R00 |
US $45.94 |
||
|
82606
|
82606
82603-01R00 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ lh1985-03-01 ~ ; FED.S +CAL.S +FED.V; W/ESCUTHEON |
82603-01R00 |
US $45.94 |
||
|
82670
|
82670
82670-14R00 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾄﾞｱ ｲﾝｻｲﾄﾞ rh1985-03-01 ~ ; FED.S +CAL.S +FED.V; (B) |
82670-14R00 |
US $47.95 |
||
|
82670
|
82670
82670-21R01 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾄﾞｱ ｲﾝｻｲﾄﾞ rh1985-03-01 ~ ; FED.S +CAL.S +FED.V; (C) |
82670-21R01 |
US $47.09 |
||
|
82670
|
82670
25052-25W02 Bracket-Clamp1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
25052-25W02 |
US $0.86 |
||
| replacement | |||||
|
82670
|
82670
01552-01121 CLIP1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
01552-01121 |
US $1.87 |
||
|
82670
|
82670
82548-29R00
Holder
1985-03-01 ~ ; FED.S +CAL.S +FED.V; F/WIRE |
82548-29R00 |
— | ||
|
82670A
|
82670A
25052-25W02 Bracket-Clamp1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
25052-25W02 |
US $0.86 |
||
| replacement | |||||
|
82670A
|
82670A
01552-01121 CLIP1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
01552-01121 |
US $1.87 |
||
|
82670A
|
82670A
82548-29R00
Holder
1985-03-01 ~ ; FED.S +CAL.S +FED.V; F/WIRE |
82548-29R00 |
— | ||
|
82671
|
82671
82671-14R00 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾄﾞｱ ｲﾝｻｲﾄﾞ lh1985-03-01 ~ ; FED.S +CAL.S +FED.V; (B) |
82671-14R00 |
US $47.09 |
||
|
82671
|
82671
82671-21R01 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ﾄﾞｱ ｲﾝｻｲﾄﾞ lh1985-03-01 ~ ; FED.S +CAL.S +FED.V; (C) |
82671-21R01 |
US $47.95 |
||
|
82700
|
82700
82700-01R02 ﾚｷﾞﾕﾚ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｳｲﾝﾄﾞｳ rh1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
82700-01R02 |
US $88.13 |
||
|
82700
|
82700
01125-00092 SCREW1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
01125-00092 |
US $1.73 |
||
|
82700H
|
82700H
01125-00092 SCREW1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
01125-00092 |
US $1.73 |
||
|
82700H
|
82700H
01125-00092 SCREW1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
01125-00092 |
US $1.73 |
||
|
82700H
|
82700H
01125-00092 SCREW1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
01125-00092 |
US $1.73 |
||
|
82701
|
82701
82701-01R02 ﾚｷﾞﾕﾚ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｳｲﾝﾄﾞｳ lh1985-03-01 ~ ; FED.S +CAL.S +FED.V; , |
82701-01R02 |
US $88.13 |
||
|
82760
|
82760
82760-14R00 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｳｲﾝﾄﾞｳ ﾚｷﾞﾕﾚ-ﾀ-1985-03-01 ~ ; FED.S +CAL.S +FED.V; (B) |
82760-14R00 |
US $40.46 |
||
|
82760
|
82760
82760-21R01 ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｳｲﾝﾄﾞｳ ﾚｷﾞﾕﾚ-ﾀ-1985-03-01 ~ ; FED.S +CAL.S +FED.V; (C) |
82760-21R01 |
US $40.46 |
||
|
82819N
|
82819N
82840-01R00 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾄﾞｱ ﾌﾕ-ｴﾘﾝｸﾞ ｽﾄﾂﾊﾟ-1985-03-01 ~ ; FED.S +CAL.S +FED.V; F/REAR DOOR SIDE RH |
82840-01R00 |
US $6.34 |
||
|
82842N
|
82842N
82842-01R00 ｼﾑ1985-03-01 ~ ; FED.S +CAL.S +FED.V; T=1.0 |
82842-01R00 |
US $5.18 |
||
|
82842N
|
82842N
82842-01R01 ｼﾑ1985-03-01 ~ ; FED.S +CAL.S +FED.V; T=2.9 |
82842-01R01 |
US $5.18 |
||
