Component List STANZA
Throttle chamber (1986-09-01 ~ ; CA20E)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0807061210	0807061210 08070-61210 Bolt-hexagon	08070-61210	—
0812061228	0812061228 0812061228 Bolt-hexagon	0812061228	from US $2.21
0836041025	0836041025 08360-41025 ｽｸﾘﾕ-,ﾏｼﾝ	08360-41025	US $2.36
0836061412	0836061412 08360-61412 ｽｸﾘﾕ-,ﾏｼﾝ	08360-61412	—
0891513600	0891513600 08915-13600 ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ	08915-13600	—
14060E	14060E 01555-00231 CLAMP 1986-09-01 ~ ; CA20E; ,	01555-00231	—
	replacement
14060E	14060E 0155500851 CLAMP 1986-09-01 ~ ; CA20E; ,	0155500851	from US $2.98
14060E	14060E 01555-00231 CLAMP 1986-09-01 ~ ; CA20E; ,	01555-00231	—
	replacement
14060E	14060E 0155500851 CLAMP 1986-09-01 ~ ; CA20E; ,	0155500851	from US $2.98
14060E	14060E 01555-00231 CLAMP 1986-09-01 ~ ; CA20E; ,	01555-00231	—
	replacement
14060E	14060E 0155500851 CLAMP 1986-09-01 ~ ; CA20E; ,	0155500851	from US $2.98
14060E	14060E 01555-00231 CLAMP 1986-09-01 ~ ; CA20E; ,	01555-00231	—
	replacement
14060E	14060E 0155500851 CLAMP 1986-09-01 ~ ; CA20E; ,	0155500851	from US $2.98
14060E	14060E 01555-00231 CLAMP 1986-09-01 ~ ; CA20E; ,	01555-00231	—
	replacement
14060E	14060E 0155500851 CLAMP 1986-09-01 ~ ; CA20E; ,	0155500851	from US $2.98
14060E	14060E 01555-00231 CLAMP 1986-09-01 ~ ; CA20E; ,	01555-00231	—
	replacement
14060E	14060E 0155500851 CLAMP 1986-09-01 ~ ; CA20E; ,	0155500851	from US $2.98
14060J	14060J 16439-N4202 Clamp-Hose 1986-09-01 ~ ; CA20E; ,	16439-N4202	US $6.66
14060J	14060J 16439-N4202 Clamp-Hose 1986-09-01 ~ ; CA20E; ,	16439-N4202	US $6.66
14061Q	14061Q 11827-D3500 Pipe-Air Regulator 1986-09-01 ~ ; CA20E; ,	11827-D3500	—
14087	14087 14060-D0306 Hose-3 Way Connector To Air Regulator 1986-09-01 ~ ; CA20E; ,	14060-D0306	US $13.39
14087	14087 01555-00211 CLAMP-HOSE 1985-02-01 ~ ; CA20E; *	01555-00211	—
	replacement
14087	14087 0155500811 CLAMP-HOSE 1985-02-01 ~ ; CA20E; *	0155500811	from US $3.03
14087	14087 08740-26041 HOSE-CONNECTOR TO CONTROL VALVE 1985-02-01 ~ ; CA20E; L=260 S/#A8742-20040	08740-26041	—
14087	14087 14060-D3511 Hose-Air Regulator 1986-09-01 ~ ; CA20E; ,	14060-D3511	—
14087	14087 16522-D0306 Hose 1985-03-01 ~ 1986-09-01; CA20E; ,	16522-D0306	US $18.72
14087N	14087N 14060-D3511 Hose-Air Regulator 1986-09-01 ~ ; CA20E; ,	14060-D3511	—
14087N	14087N 16522-D0306 Hose 1985-03-01 ~ 1986-09-01; CA20E; ,	16522-D0306	US $18.72
16130H	16130H 14060-D3500 Hose 1986-09-01 ~ ; CA20E; ,	14060-D3500	—
16182E	16182E 16145-V5260 Spring 1985-03-01 ~ ; CA20E; ,	16145-V5260	US $2.16
16182E	16182E 16160-02E00 SPRING 1986-09-01 ~ ; CA20E; ,	16160-02E00	US $2.02
16182F	16182F 16183-02E00 SCREW-DASHPOT 1986-09-01 ~ ; CA20E; ,	16183-02E00	US $4.03
	replacement
16182F	16182F 16183-N8410 Screw-Dashpot 1986-09-01 ~ ; CA20E; ,	16183-N8410	US $3.31
16182F	16182F 16183-V5260 Screw-Dashpot 1986-09-01 ~ ; CA20E; ,	16183-V5260	US $5.47
	replacement
16182F	16182F 16183-N8410 Screw-Dashpot 1986-09-01 ~ ; CA20E; ,	16183-N8410	US $3.31
16182N	16182N 16182-02E00 IDLE SPEED CONTROL-FI POT 1985-03-01 ~ 1986-09-01; CA20E.MT; ,	16182-02E00	US $65.52
16182N	16182N 16182-D3500 Idle Speed Control-Fi Pot 1986-09-01 ~ ; CA20E.MT; ,	16182-D3500	—
16182P	16182P 16258-D0300 Bracket 1985-03-01 ~ 1986-09-01; CA20E.MT; ,	16258-D0300	US $13.25
16251F	16251F 11392-D3500 Stud 1986-09-01 ~ ; CA20E; ,	11392-D3500	US $1.73
16251M	16251M 16250-D3500 Iaa Unit 1986-09-01 ~ ; CA20E.MT; HITACHI	16250-D3500	—
16251M	16251M 16250-D3510 Iaa Unit 1986-09-01 ~ ; CA20E.MT; TOKYO SOKUHAN	16250-D3510	—
16251M	16251M 16251-P9700 Iaa Unit 1985-08-01 ~ 1986-09-01; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; ,	16251-P9700	—
16253	16253 16253-D3500 Iacv-Iaa Unit Gasket 1986-09-01 ~ ; CA20E; ,	16253-D3500	—
16290	16290 16160-02E10 SPRING-THROTTLE RETURN 1986-09-01 ~ ; CA20E; ,	16160-02E10	US $6.05
16290	16290 16160-02E70 SPRING-THROTTLE RETURN 1986-09-01 ~ ; CA20E; ,	16160-02E70	US $6.05
16290	16290 16160-D0305 Spring-Throttle Return 1985-03-01 ~ 1986-09-01; CA20E.MT; ,	16160-D0305	US $8.21
16290M	16290M 16160-02E70 SPRING-THROTTLE RETURN 1986-09-01 ~ ; CA20E; ,	16160-02E70	US $6.05
16290M	16290M 16160-D0305 Spring-Throttle Return 1985-03-01 ~ 1986-09-01; CA20E.MT; ,	16160-D0305	US $8.21
16292	16292 16122-W1300 Bolt-Chamber 1986-09-01 ~ ; CA20E; ,	16122-W1300	US $3.46
16292	16292 16122-N8400 Bolt-Chamber 1986-09-01 ~ ; CA20E; ,	16122-N8400	US $2.45
16292M	16292M 16122-N8400 Bolt-Chamber 1986-09-01 ~ ; CA20E; ,	16122-N8400	US $2.45
16293	16293 16175-D0300 Gasket-Throttle Chamber 1986-09-01 ~ ; CA20E; ,	16175-D0300	US $17.71
16293	16293 16175-D0370 Gasket-Throttle Chamber 1986-09-01 ~ ; CA20E; ,	16175-D0370	—
16298	16298 16118-20R00 Throttle Body 1985-03-01 ~ 1986-09-01; CA20E.MT; ,	16118-20R00	—
16298	16298 16118-D3500 Throttle Body 1986-09-01 ~ ; CA20E.MT; ,	16118-D3500	—
16298	16298 16599-P9700 Cap-Connector 1985-03-01 ~ 1986-09-01; CA20E; ,	16599-P9700	—
16298	16298 01555-00231 CLAMP 1985-03-01 ~ ; CA20E; ,	01555-00231	—
	replacement
16298	16298 0155500851 CLAMP 1985-03-01 ~ ; CA20E; ,	0155500851	from US $2.98
16298	16298 14018-02E00 SUPPORT-THROTTLE CHAMBER 1985-03-01 ~ ; CA20E; ,	14018-02E00	US $10.80
16376M	16376M 16166-D0302 Bracket-Accelerator Cable 1986-09-01 ~ ; CA20E; ,	16166-D0302	US $4.32
16395	16395 16134-D0301 Lever-Throttle 1985-03-01 ~ ; CA20E.MT; ,	16134-D0301	US $10.22
22620	22620 22620-D3300 Throttle Position Switch 1986-09-01 ~ ; CA20E; ,	22620-D3300	—
23777	23777 23777-D3500 Connector-Aac Valve 1986-09-01 ~ ; CA20E; ,	23777-D3500	—
23781	23781 23781-D3501 Iacv-Aac Valve 1986-09-01 ~ ; CA20E.MT; TOKYO SOKUHAN	23781-D3501	—
23781	23781 23781-D3511 Iacv-Aac Valve 1986-09-01 ~ ; CA20E.MT; ATUGI	23781-D3511	—
23785	23785 23785-D3500 Iacv-Aac Valve Gasket 1986-09-01 ~ ; CA20E; ,	23785-D3500	—
23785	23785 23785-D5700 Iacv-Aac Valve Gasket 1986-09-01 ~ ; CA20E; ,	23785-D5700	—
23785	23785 23785-D3510 Iacv-Aac Valve Gasket 1986-09-01 ~ ; CA20E; ,	23785-D3510	—
23785	23785 23785-D5710 Iacv-Aac Valve Gasket 1986-09-01 ~ ; CA20E; ,	23785-D5710	—
23785R	23785R 23785-D3510 Iacv-Aac Valve Gasket 1986-09-01 ~ ; CA20E; ,	23785-D3510	—
23785R	23785R 23785-D5710 Iacv-Aac Valve Gasket 1986-09-01 ~ ; CA20E; ,	23785-D5710	—

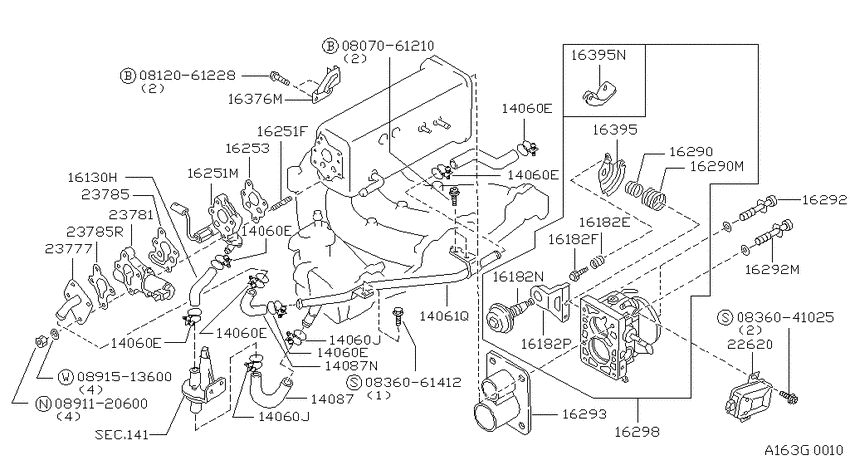

Throttle chamber (1986-09-01 ~ ; CA20E) Diagram Nissan STANZA U.S.A. 2303739-182155

Throttle chamber (1986-09-01 ~ ; CA20E) Diagram Nissan STANZA U.S.A. 2303739-182155
