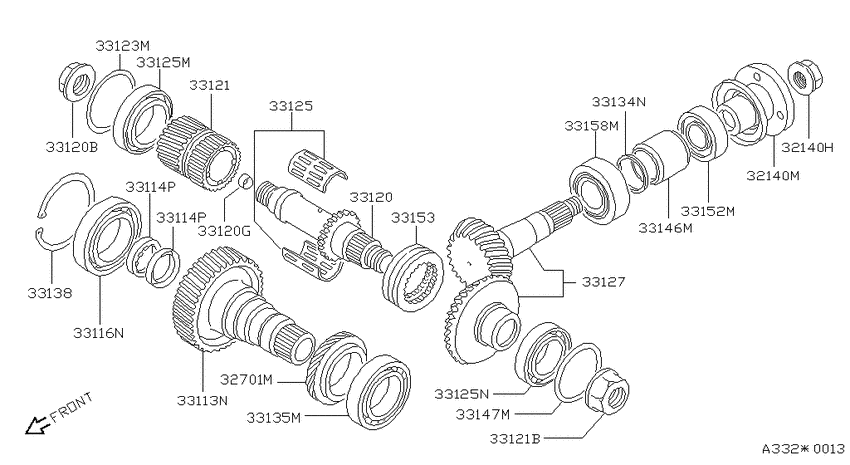

Transfer gear (1985-03-01 ~ ; ALL) Diagram Nissan STANZA
- Year
- 1982 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- drive
- 4WD
- transmission
- MT
- body
- V5
- trim lvl
- GL
- emission
- FED
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32140H
|
32140H
38216-U3000
Nut
1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
38216-U3000 |
— | ||
| replacement | |||||
|
32140H
|
32140H
38216-U301A Nut-Drive Pinion1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
38216-U301A |
US $4.99 |
||
|
32140M
|
32140M
38210-10R00 Flange Assy-Companion1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
38210-10R00 |
US $91.58 |
||
| replacement | |||||
|
32140M
|
32140M
38210-78N01 Flange Assy-Companion1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
38210-78N01 |
US $103.68 |
||
|
32701M
|
32701M
32701-06R00 Gear-Drive, Speedometer1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
32701-06R00 |
US $8.06 |
||
|
33113N
|
33113N
33113-10R01
Gear-Ring, Transfer
1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33113-10R01 |
— | ||
|
33114P
|
33114P
33114-06R00 Seal-Oil, Drive Shaft Rh1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33114-06R00 |
US $9.07 |
||
|
33114P
|
33114P
33114-06R00 Seal-Oil, Drive Shaft Rh1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33114-06R00 |
US $9.07 |
||
|
33116N
|
33116N
33116-06R00 Bearing-Ball, Ring Gear Rh1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33116-06R00 |
US $82.94 |
||
|
33120
|
33120
33120-10R02 Shaft-Counter, Transfer1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33120-10R02 |
US $195.84 |
||
|
33120
|
33120
3314306R00 Nut1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
3314306R00 |
US $7.63 |
||
|
33120
|
33120
33129-06R00 Plug1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33129-06R00 |
US $1.73 |
||
|
33120B
|
33120B
3314306R00 Nut1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
3314306R00 |
US $7.63 |
||
|
33120G
|
33120G
33129-06R00 Plug1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33129-06R00 |
US $1.73 |
||
|
33121
|
33121
33124-10R01 Gear-Counter, Transfer1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33124-10R01 |
US $115.92 |
||
|
33121
|
33121
33115-06R00 Nut-Hypoid Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33115-06R00 |
US $9.94 |
||
|
33121B
|
33121B
33115-06R00 Nut-Hypoid Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33115-06R00 |
US $9.94 |
||
|
33123M
|
33123M
33123-06R00 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.40 |
33123-06R00 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R01 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.44 |
33123-06R01 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R02 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.48 |
33123-06R02 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R03 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.52 |
33123-06R03 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R04 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.56 |
33123-06R04 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R05 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.60 |
33123-06R05 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R06 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.64 |
33123-06R06 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R07 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.68 |
33123-06R07 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R08 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.72 |
33123-06R08 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R09 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.76 |
33123-06R09 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R10 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.92 |
33123-06R10 |
US $4.18 |
||
|
33123M
|
33123M
33123-06R11 Shim-Adjust, Counter Shaft1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=1.32 |
33123-06R11 |
US $5.18 |
||
|
33125
|
33125
33125-10R00 Bearing-Counter Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33125-10R00 |
US $85.10 |
||
|
33125
|
33125
33136-06R00 Bearing-Counter Shaft, Rh1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33136-06R00 |
US $79.06 |
||
|
33125
|
33125
38440-D2100 Bearing-Counter Shaft, Lh1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
38440-D2100 |
US $35.14 |
||
|
33125M
|
33125M
33136-06R00 Bearing-Counter Shaft, Rh1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33136-06R00 |
US $79.06 |
||
|
33125N
|
33125N
38440-D2100 Bearing-Counter Shaft, Lh1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
38440-D2100 |
US $35.14 |
||
|
33127
|
33127
33127-10R00 Gear Set-Hypoid, Transfer1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33127-10R00 |
US $214.56 |
||
|
33134N
|
33134N
38125-P0102 Washer-Adjust, Drive Pinion Bearing1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
38125-P0102 |
US $5.55 |
||
|
33135M
|
33135M
33135-06R01 Bearing-Ball, Ring Gear Lh1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33135-06R01 |
US $85.10 |
||
|
33138
|
33138
33138-10R00 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.00 |
33138-10R00 |
US $30.82 |
||
|
33138
|
33138
33138-10R01 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.04 |
33138-10R01 |
US $30.82 |
||
|
33138
|
33138
33138-10R02 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.08 |
33138-10R02 |
US $30.82 |
||
|
33138
|
33138
33138-10R03 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.12 |
33138-10R03 |
US $30.82 |
||
|
33138
|
33138
33138-10R04 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.16 |
33138-10R04 |
US $30.82 |
||
|
33138
|
33138
33138-10R05 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.20 |
33138-10R05 |
US $30.82 |
||
|
33138
|
33138
33138-10R06 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.24 |
33138-10R06 |
US $30.82 |
||
|
33138
|
33138
33138-10R07 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.28 |
33138-10R07 |
US $30.82 |
||
|
33138
|
33138
33138-10R08 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.32 |
33138-10R08 |
US $30.82 |
||
|
33138
|
33138
33138-10R09 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.36 |
33138-10R09 |
US $30.82 |
||
|
33138
|
33138
33138-10R10 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.40 |
33138-10R10 |
US $30.82 |
||
|
33138
|
33138
33138-10R11 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.44 |
33138-10R11 |
US $30.82 |
||
|
33138
|
33138
33138-10R12 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.48 |
33138-10R12 |
US $30.82 |
||
|
33138
|
33138
33138-10R13 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.52 |
33138-10R13 |
US $30.82 |
||
|
33138
|
33138
33138-10R14 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.56 |
33138-10R14 |
US $30.82 |
||
|
33138
|
33138
33138-10R15 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.60 |
33138-10R15 |
US $30.82 |
||
|
33138
|
33138
33138-10R16 Ring-Snap, Ring Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=3.64 |
33138-10R16 |
US $30.82 |
||
|
33146M
|
33146M
38165P0102 Spacer-Drive Pinion Bearing1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
38165P0102 |
from US $14 |
||
|
33147M
|
33147M
33147-06R00 Shim-Adjust, Hypoid Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.40 |
33147-06R00 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R01 Shim-Adjust, Hypoid Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.44 |
33147-06R01 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R02 Shim-Adjust, Hypoid Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.48 |
33147-06R02 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R03 Shim-Adjust, Hypoid Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.60 |
33147-06R03 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R04 Shim-Adjust, Hypoid Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.64 |
33147-06R04 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R05 Shim-Adjust, Hypoid Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.76 |
33147-06R05 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R06 Shim-Adjust, Hypoid Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.68 |
33147-06R06 |
US $4.18 |
||
|
33147M
|
33147M
33147-06R07 Shim-Adjust, Hypoid Gear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; SELECT T=0.72 |
33147-06R07 |
US $4.18 |
||
|
33152M
|
33152M
38140-61000 Bearing-Drive Pinion, Front1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
38140-61000 |
US $26.85 |
||
|
33153
|
33153
33153-10R00 Sleeve-Coupling1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
33153-10R00 |
US $73.58 |
||
|
33158M
|
33158M
3812061000 Bearing-Drive Pinion, Rear1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
3812061000 |
from US $32.66 |
||
