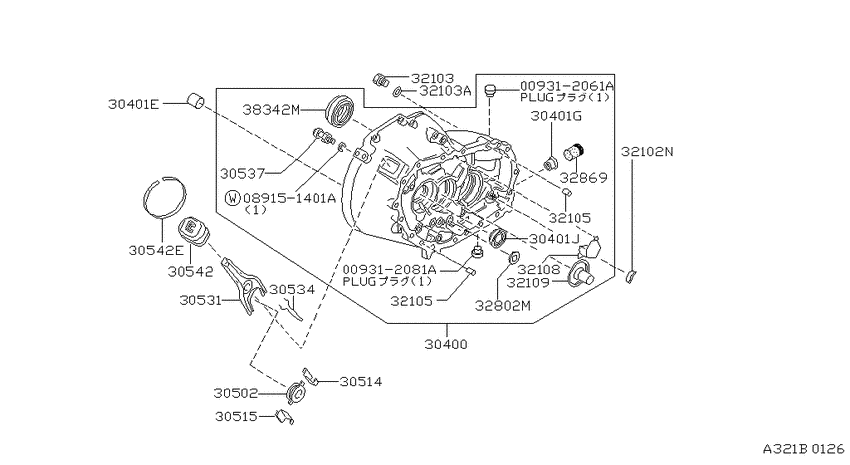

Transmission case & clutch release (1985-03-01 ~ ; CLUTCH HOUSING RS5F50A; MT) Diagram Nissan STANZA
- Year
- 1982 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- drive
- 4WD
- transmission
- MT
- body
- V5
- trim lvl
- GL
- emission
- FED
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312061A
|
009312061A
00931-2061A
PLUGTAPER
|
00931-2061A |
— | ||
|
009312081A
|
009312081A
009312081A Plug-Drain |
009312081A |
from US $1.87 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30400
|
30400
30400-06R00 Housing Assy-Clutch1985-08-01 ~ 1987-02-01; 4WD.CA20E.MT; , |
30400-06R00 |
US $801.46 |
||
| replacement | |||||
|
30400
|
30400
30400-06R02
Housing assy-clutch
1985-08-01 ~ 1987-02-01; 4WD.CA20E.MT; , |
30400-06R02 |
— | ||
|
30400
|
30400
30400-06R01 Housing Assy-Clutch1987-02-01 ~ ; 4WD.CA20E.MT; , |
30400-06R01 |
US $801.46 |
||
| replacement | |||||
|
30400
|
30400
30400-06R02
Housing assy-clutch
1987-02-01 ~ ; 4WD.CA20E.MT; , |
30400-06R02 |
— | ||
|
30401E
|
30401E
1102221000 Dowel-Block To Transmission1985-08-01 ~ ; 4WD.CA20E.MT; , |
1102221000 |
from US $1.83 |
||
|
30401G
|
30401G
3285806R00 Seal-Oil, Striking Rod1985-08-01 ~ ; 4WD.CA20E.MT; , |
3285806R00 |
from US $13.45 |
||
|
30401J
|
30401J
32113-03E00 SEAL-OIL,INPUT1985-08-01 ~ ; 4WD.CA20E.MT; , |
32113-03E00 |
from US $4.01 |
||
|
30502
|
30502
30502-03E18 BEARING-CLUTCH RELEASE1985-08-01 ~ ; 4WD.CA20E.MT; , |
30502-03E18 |
US $75.60 |
||
|
30502
|
30502
30502-28E18 BEARING-CLUTCH RELEASE1985-08-01 ~ ; 4WD.CA20E.MT; , |
30502-28E18 |
US $75.60 |
||
|
30514
|
30514
30514-03E01 SPRING-HOLDER,CLUTCH RELEASE BEARING1985-08-01 ~ ; 4WD.CA20E.MT; , |
30514-03E01 |
US $4.03 |
||
|
30514
|
30514
3051403E10 SPRING-HOLDER,CLUTCH RELEASE BEARING1985-08-01 ~ ; 4WD.CA20E.MT; , |
3051403E10 |
from US $2.04 |
||
|
30515
|
30515
3051403E11 SPRING-HOLDER,CLUTCH RELEASE BEARING1985-08-01 ~ ; 4WD.CA20E.MT; , |
3051403E11 |
from US $2.09 |
||
|
30515
|
30515
30515-03E01 SPRING-HOLDER,BEARING SLEEVE1985-08-01 ~ ; 4WD.CA20E.MT; , |
30515-03E01 |
US $4.90 |
||
|
30534
|
30534
3053403E00 SPRING-RETAINER,WITHDRAWAL LEVER1985-08-01 ~ ; 4WD.CA20E.MT; , |
3053403E00 |
from US $1.85 |
||
|
30537
|
30537
3053703E00 PIN-BALL,WITHDRAWAL LEVER1987-06-01 ~ ; 4WD.CA20E.MT; , |
3053703E00 |
US $5.81 |
||
|
30537
|
30537
30537-21010 Pin-Ball, Withdrawal Lever1985-08-01 ~ 1987-06-01; 4WD.CA20E.MT; , |
30537-21010 |
US $4.42 |
||
|
30542
|
30542
30542-06R00 Cover-Dust, Withdrawal Lever1985-08-01 ~ ; 4WD.CA20E.MT; , |
30542-06R00 |
US $13.39 |
||
|
30542
|
30542
30543-31G00 Clip-Dust Cover, Clutch1985-08-01 ~ ; 4WD.CA20E.MT; , |
30543-31G00 |
US $4.18 |
||
|
30542
|
30542
3054331G10 Clip-Dust Cover, Clutch1985-08-01 ~ ; 4WD.CA20E.MT; , |
3054331G10 |
from US $4.57 |
||
|
30542E
|
30542E
30543-31G00 Clip-Dust Cover, Clutch1985-08-01 ~ ; 4WD.CA20E.MT; , |
30543-31G00 |
US $4.18 |
||
|
30542E
|
30542E
3054331G10 Clip-Dust Cover, Clutch1985-08-01 ~ ; 4WD.CA20E.MT; , |
3054331G10 |
from US $4.57 |
||
|
32102N
|
32102N
32105-03E01 MAGNET-TRANSAXLE1985-08-01 ~ ; 4WD.CA20E.MT; , |
32105-03E01 |
US $3.46 |
||
|
32103
|
32103
32103-03E01 Plug-Drain1985-08-01 ~ ; 4WD.CA20E.MT; , |
32103-03E01 |
US $4.18 |
||
|
32103
|
32103
18151-10600 Washer-Drain Plug1985-08-01 ~ ; 4WD.CA20E.MT; , |
18151-10600 |
US $1.73 |
||
|
32103
|
32103
3210406R01
Plug-Drain
1985-08-01 ~ ; 5(FED.S+CAL.S).4WD.CA20E.MT +4WD.CA20E.AT +FED.V.CA20E; , |
3210406R01 |
— | ||
|
32103A
|
32103A
18151-10600 Washer-Drain Plug1985-08-01 ~ ; 4WD.CA20E.MT; , |
18151-10600 |
US $1.73 |
||
|
32105
|
32105
32105-C6900 Pin1985-08-01 ~ ; 4WD.CA20E.MT; , |
32105-C6900 |
US $4.18 |
||
|
32105
|
32105
32105-C6900 Pin1985-08-01 ~ ; 4WD.CA20E.MT; , |
32105-C6900 |
US $4.18 |
||
|
32108
|
32108
32108-03E00 POCKET-OIL,CLUTCH HOUSING1985-08-01 ~ ; 4WD.CA20E.MT; , |
32108-03E00 |
US $2.45 |
||
|
32109
|
32109
32109-03E00 CHANNEL-OIL,MAIN SHAFT FRONT1985-08-01 ~ ; 4WD.CA20E.MT; , |
32109-03E00 |
US $1.67 |
||
|
32109
|
32109
32106-03E02 Channel-Oil, Input Shaft Rear1985-08-01 ~ ; 4WD.CA20E.MT; , |
32106-03E02 |
US $2.36 |
||
|
32869
|
32869
3286906R00 Boot-Oil Seal, Striking Rod1985-08-01 ~ ; 4WD.CA20E.MT; , |
3286906R00 |
US $8.73 |
||
|
38342M
|
38342M
38342-06R00 Seal-Oil, Differential Transmission Case1985-08-01 ~ 1987-02-01; 4WD.CA20E.MT; , |
38342-06R00 |
US $11.09 |
||
|
38342M
|
38342M
3834206R01 Seal-Oil, Differential Converter Housing1987-02-01 ~ ; 4WD.CA20E.MT; , |
3834206R01 |
from US $6.85 |
||
