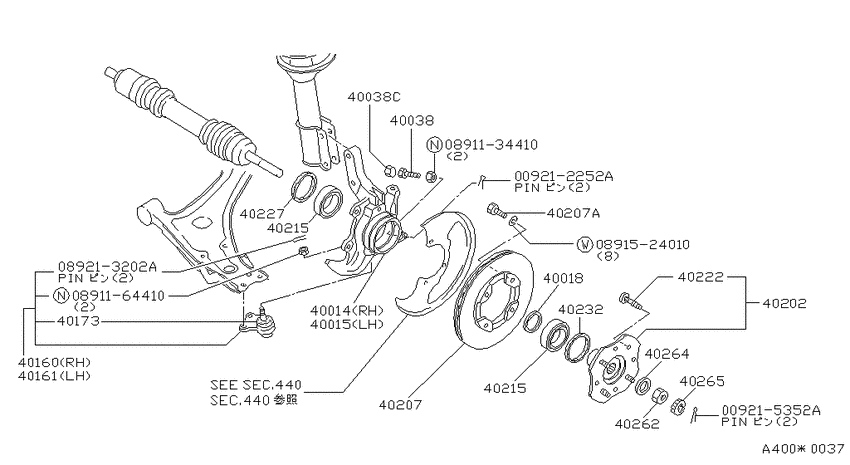

Front axle (1981-08-01 ~ ; ALL) Diagram Nissan STANZA
- Year
- 1981 - 1983
- Sales region
- U.S.A.
- Engine
- CA20S
- transmission
- AT
- body
- 3HB
- trim lvl
- SGL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009212252A
|
009212252A
00921-2252A
ﾋﾟﾝ,ｽﾌﾟﾘﾂﾄ ｺﾂﾀ-
|
00921-2252A |
— | ||
|
009215352A
|
009215352A
009215352A
PINCOTTER SPLI
|
009215352A |
— | ||
|
0891134410
|
0891134410
08911-34410
NUT
|
08911-34410 |
— | ||
| replacement | |||||
|
0891134410
|
0891134410
08911-3441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-3441A |
— | ||
|
0891164410
|
0891164410
08911-64410
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-64410 |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
40014
|
40014
40014-D0100 Spindle-Knuckle, Rh1981-08-01 ~ ; CA20S +CA20E; , |
40014-D0100 |
US $260.64 |
||
|
40015
|
40015
40015-D0100 Spindle-Knuckle, Lh1981-08-01 ~ ; CA20S +CA20E; , |
40015-D0100 |
US $260.64 |
||
|
40018
|
40018
40270-D0100 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=3.925 |
40270-D0100 |
US $5.04 |
||
|
40018
|
40018
40270-D0101 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=3.985 |
40270-D0101 |
US $5.04 |
||
|
40018
|
40018
40270-D0102 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.045 |
40270-D0102 |
US $5.04 |
||
|
40018
|
40018
40270-D0103 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.105 |
40270-D0103 |
US $5.04 |
||
|
40018
|
40018
40270-D0104 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.165 |
40270-D0104 |
US $5.04 |
||
|
40018
|
40018
40270-D0105 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.225 |
40270-D0105 |
US $5.04 |
||
|
40018
|
40018
40270-D0106 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.285 |
40270-D0106 |
US $5.04 |
||
|
40018
|
40018
40270-D0107 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.345 |
40270-D0107 |
US $5.04 |
||
|
40018
|
40018
40270-D0108 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.405 |
40270-D0108 |
US $5.04 |
||
|
40018
|
40018
40270-D0109 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.465 |
40270-D0109 |
US $5.04 |
||
|
40018
|
40018
40270-D0110 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.525 |
40270-D0110 |
US $5.04 |
||
|
40018
|
40018
40270-D0111 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.585 |
40270-D0111 |
US $5.04 |
||
|
40018
|
40018
40270-D0112 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.645 |
40270-D0112 |
US $5.04 |
||
|
40018
|
40018
40270-D0113 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.705 |
40270-D0113 |
US $5.04 |
||
|
40018
|
40018
40270-D0114 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.765 |
40270-D0114 |
US $5.04 |
||
|
40018
|
40018
40270-D0115 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.825 |
40270-D0115 |
US $5.04 |
||
|
40018
|
40018
40270-D0116 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.885 |
40270-D0116 |
US $5.04 |
||
|
40018
|
40018
40270-D0117 Collar-Spindle1981-08-01 ~ ; CA20S +CA20E; T=4.945 |
40270-D0117 |
US $5.04 |
||
|
40038
|
40038
40038-D0101 Bolt-Stopper1981-08-01 ~ ; CA20S +CA20E; , |
40038-D0101 |
US $5.47 |
||
| replacement | |||||
|
40038
|
40038
40038D016C
ﾎﾞﾙﾄ
1981-08-01 ~ ; CA20S +CA20E; , |
40038D016C |
— | ||
|
40038
|
40038
40038-D0102 Bolt-Stopper1981-08-01 ~ ; CA20S +CA20E; , |
40038-D0102 |
US $5.47 |
||
| replacement | |||||
|
40038
|
40038
40038D016C
ﾎﾞﾙﾄ
1981-08-01 ~ ; CA20S +CA20E; , |
40038D016C |
— | ||
|
40038
|
40038
40039D0100 Cap-Stopper Bolt1981-08-01 ~ ; CA20S +CA20E; , |
40039D0100 |
from US $0.72 |
||
|
40038C
|
40038C
40039D0100 Cap-Stopper Bolt1981-08-01 ~ ; CA20S +CA20E; , |
40039D0100 |
from US $0.72 |
||
|
40160
|
40160
40160-D0125 Joint Assy-Ball, Lower Rh1981-08-01 ~ ; CA20S +CA20E; , |
40160-D0125 |
US $89.42 |
||
|
40160
|
40160
40179-D0100 Bolt1981-08-01 ~ ; CA20S +CA20E; FIX TO BALL JOINT |
40179-D0100 |
US $13.97 |
||
|
40160
|
40160
40180-D0100 Bolt1981-08-01 ~ ; CA20S +CA20E; FIX TO BALL JOINT |
40180-D0100 |
US $13.97 |
||
|
40161
|
40161
40161-D0125 Joint Assy-Ball, Lower Lh1981-08-01 ~ ; CA20S +CA20E; , |
40161-D0125 |
US $89.42 |
||
|
40173
|
40173
40192-D0101 Cover-Dust, Ball Joint Lower Inner1981-08-01 ~ ; CA20S +CA20E; , |
40192-D0101 |
US $9.07 |
||
|
40202
|
40202
40202-D0100 Hub Assy-Road Wheel, Front Rh1981-08-01 ~ 1984-04-01; CA20S +CA20E; , |
40202-D0100 |
US $318.60 |
||
|
40202
|
40202
40202-D0101 Hub Assy-Road Wheel, Front Rh1984-04-01 ~ ; CA20S +CA20E; , |
40202-D0101 |
US $314.35 |
||
|
40207
|
40207
40206-D0360 Rotor-Disc Brake, Front1981-08-01 ~ ; CA20S +CA20E; , |
40206-D0360 |
US $247.68 |
||
|
40207
|
40207
40209-D0100 Bolt-Rotor1981-08-01 ~ ; CA20S +CA20E; , |
40209-D0100 |
US $2.45 |
||
|
40207A
|
40207A
40209-D0100 Bolt-Rotor1981-08-01 ~ ; CA20S +CA20E; , |
40209-D0100 |
US $2.45 |
||
|
40215
|
40215
40215-D0100 Bearing Assy-Front Wheel1981-08-01 ~ ; CA20S +CA20E; , |
40215-D0100 |
US $77.33 |
||
|
40215
|
40215
40215-D0100 Bearing Assy-Front Wheel1981-08-01 ~ ; CA20S +CA20E; , |
40215-D0100 |
US $77.33 |
||
|
40222
|
40222
40222-D0100 Bolt-Hub1981-08-01 ~ 1983-07-01; CA20S +CA20E; , |
40222-D0100 |
US $2.45 |
||
|
40222
|
40222
40222-D0160 Bolt-Hub1981-08-01 ~ ; CA20S +CA20E; , |
40222-D0160 |
US $2.45 |
||
|
40227
|
40227
40227-D0101 Seal-Dust1981-08-01 ~ 1986-02-01; CA20S +CA20E; , |
40227-D0101 |
US $11.09 |
||
|
40227
|
40227
40227-D0102
Seal-Dust
1981-08-01 ~ ; CA20S +CA20E; , |
40227-D0102 |
— | ||
|
40232
|
40232
40232-D0111 Seal-Grease, Front Hub1981-08-01 ~ 1985-10-01; CA20S +CA20E; , |
40232-D0111 |
US $11.09 |
||
|
40232
|
40232
40232-D0112 Seal-Grease, Front Hub1985-10-01 ~ ; CA20S +CA20E; , |
40232-D0112 |
US $11.09 |
||
|
40262
|
40262
40262-D0101 Nut-Lock, Front Wheel Bearing1981-08-01 ~ ; CA20S +CA20E; , |
40262-D0101 |
US $4.18 |
||
|
40262
|
40262
40262-D0102
Nut-Lock, Front Wheel Bearing
1981-08-01 ~ ; CA20S +CA20E; , |
40262-D0102 |
— | ||
|
40264
|
40264
40037M5600 Washer-Lock1981-08-01 ~ ; CA20S +CA20E; , |
40037M5600 |
US $4.18 |
||
|
40265
|
40265
40263-D0100 Cap-Adjusting1981-08-01 ~ ; CA20S +CA20E; , |
40263-D0100 |
US $3.46 |
||
