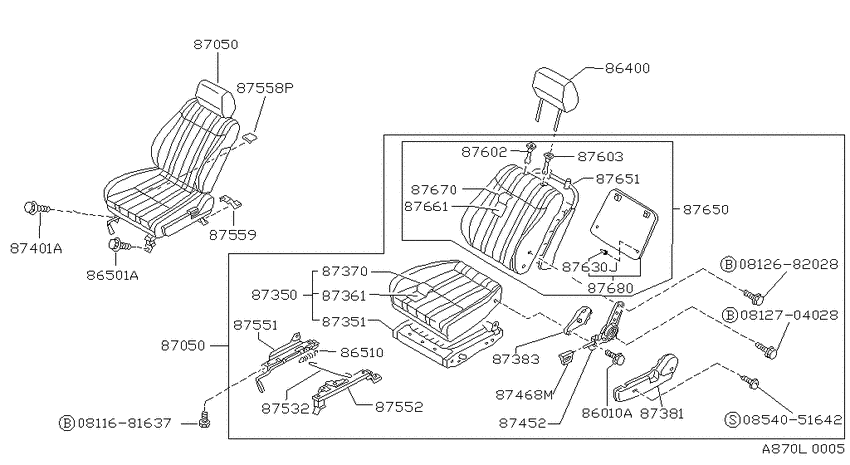

Front seat (1986-01-01 ~ ; LH (W/OUT SEAT LIFTER); SEDAN) Diagram Nissan STANZA
- Year
- 1986 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- MT
- body
- S
- trim lvl
- E
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811681637
|
0811681637
08116-81637
Bolt-hexagon
|
08116-81637 |
— | ||
|
0812682028
|
0812682028
08126-82028
Bolt-hexagon
|
08126-82028 |
— | ||
|
0812704028
|
0812704028
08127-04028
Bolt-hexagon
|
08127-04028 |
— | ||
|
86010A
|
86010A
86403-01E00 BOLT1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
86403-01E00 |
US $2.45 |
||
|
86400
|
86400
86400-D3861
Head rest assy-front seat
1988-07-01 ~ ; FED.S.E +CAL.S.E; (K) |
86400-D3861 |
— | ||
|
86400
|
86400
86400-D3862
Head rest assy-front seat
1988-07-01 ~ ; FED.S.E +CAL.S.E; (B) |
86400-D3862 |
— | ||
|
86400
|
86400
86400-D4701
Head rest assy-front seat
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (K) |
86400-D4701 |
— | ||
|
86400
|
86400
86400-D4702
Head rest assy-front seat
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (B) |
86400-D4702 |
— | ||
|
86501A
|
86501A
01141-00211
Bolt
1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
01141-00211 |
— | ||
|
86510
|
86510
87560-D4400 Spring-Return1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
87560-D4400 |
US $9.94 |
||
|
87050
|
87050
87050-D3861
Seat assy-front,lh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (K) |
87050-D3861 |
— | ||
|
87050
|
87050
87050-D3862
Seat assy-front,lh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (B) |
87050-D3862 |
— | ||
|
87050
|
87050
87050-D4506
Seat assy-front,lh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (K) |
87050-D4506 |
— | ||
|
87050
|
87050
87050-D4507
Seat assy-front,lh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (B) |
87050-D4507 |
— | ||
|
87050
|
87050
87050-D3861
Seat assy-front,lh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (K) |
87050-D3861 |
— | ||
|
87050
|
87050
87050-D3862
Seat assy-front,lh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (B) |
87050-D3862 |
— | ||
|
87050
|
87050
87050-D4506
Seat assy-front,lh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (K) |
87050-D4506 |
— | ||
|
87050
|
87050
87050-D4507
Seat assy-front,lh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (B) |
87050-D4507 |
— | ||
|
87350
|
87350
87350-D3861
Cushion assy-seat,lh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (K) |
87350-D3861 |
— | ||
|
87350
|
87350
87350-D3862
Cushion assy-seat,lh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (B) |
87350-D3862 |
— | ||
|
87350
|
87350
87350-D4506
Cushion assy-seat,lh
1987-09-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (A) |
87350-D4506 |
— | ||
|
87350
|
87350
87350-D4507
Cushion assy-seat,lh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (B) |
87350-D4507 |
— | ||
|
87351
|
87351
87351-D4500
Frame assy-front seat cushion,lh
1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
87351-D4500 |
— | ||
|
87361
|
87361
87311-16E20
ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ rh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; , |
87311-16E20 |
— | ||
|
87361
|
87361
87311-D5610
ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ rh
1988-07-01 ~ ; FED.S.E +CAL.S.E; , |
87311-D5610 |
— | ||
|
87370
|
87370
87370-D3861
Trim assy-cushion,front seat lh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (K) |
87370-D3861 |
— | ||
|
87370
|
87370
87370-D3862
Trim assy-cushion,front seat lh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (B) |
87370-D3862 |
— | ||
|
87370
|
87370
87370-D4506
Trim assy-cushion,front seat lh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (K) |
87370-D4506 |
— | ||
|
87370
|
87370
87370-D4507
Trim assy-cushion,front seat lh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (B) |
87370-D4507 |
— | ||
|
87381
|
87381
87380-D4506
Finisher assy-cushion,front seat lh
1986-01-01 ~ ; FED.S.E +CAL.S.E; (K) |
87380-D4506 |
— | ||
|
87381
|
87381
87380-D4507
Finisher assy-cushion,front seat lh
1986-01-01 ~ ; FED.S.E +CAL.S.E; (B) |
87380-D4507 |
— | ||
|
87383
|
87383
87452-01F00 Cover-Reclining Device, Inner Lh1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
87452-01F00 |
US $5.18 |
||
|
87401A
|
87401A
01141-00261 BOLT1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
01141-00261 |
US $4.16 |
||
|
87452
|
87452
87451-38E00
Device-reclining,lh seat outside
1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
87451-38E00 |
— | ||
|
87468M
|
87468M
87468-D4411
ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ
1986-01-01 ~ ; FED.S.E +CAL.S.E; (K) LH |
87468-D4411 |
— | ||
|
87468M
|
87468M
87468-D4412
ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ
1986-01-01 ~ ; FED.S.E +CAL.S.E; (B) LH |
87468-D4412 |
— | ||
|
87532
|
87532
87532-D4600 ﾜｲﾔ,ﾚﾘ-ｽﾞ1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
87532-D4600 |
US $0.86 |
||
|
87551
|
87551
87552-D4600
Slide-lh seat,inside
1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
87552-D4600 |
— | ||
|
87552
|
87552
87551-D4600 ｽﾗｲﾄﾞ,lh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
87551-D4600 |
US $67.39 |
||
|
87558P
|
87558P
87558-D4601
Cover-seat slide inner,lh
1986-01-01 ~ ; FED.S.E +CAL.S.E; (K) INR |
87558-D4601 |
— | ||
|
87558P
|
87558P
87558-D4602
Cover-seat slide inner,lh
1986-01-01 ~ ; FED.S.E +CAL.S.E; (B) INR |
87558-D4602 |
— | ||
|
87559
|
87559
87559-D4401 Cover-End, Seat Frame Lh1986-01-01 ~ ; FED.S.E +CAL.S.E; (K) OTR |
87559-D4401 |
US $6.91 |
||
|
87559
|
87559
87559-D4402 Cover-End, Seat Frame Lh1986-01-01 ~ ; FED.S.E +CAL.S.E; (B) OTR |
87559-D4402 |
US $5.18 |
||
| replacement | |||||
|
87559
|
87559
87559-28E00
Cover-seat slide outer,lh
1986-01-01 ~ ; FED.S.E +CAL.S.E; (B) OTR |
87559-28E00 |
— | ||
|
87602
|
87602
87602-08F00 ｽﾄﾂﾊﾟ- ｱﾂｾﾝﾌﾞﾘ-,ﾍﾂﾄﾞ ﾚｽﾄ1986-01-01 ~ ; FED.S.E +CAL.S.E; (K) LOCK |
87602-08F00 |
US $4.18 |
||
|
87602
|
87602
87602-V5000 Stopper Assy-Head Rest1986-01-01 ~ ; FED.S.E +CAL.S.E; (B) LOCK |
87602-V5000 |
US $4.03 |
||
|
87603
|
87603
87603-08F00
ｽﾄﾂﾊﾟ- ｱﾂｾﾝﾌﾞﾘ-,ﾍﾂﾄﾞ ﾚｽﾄ
1986-01-01 ~ ; FED.S.E +CAL.S.E; (K) FREE |
87603-08F00 |
— | ||
|
87603
|
87603
87603-V5000 Stopper Assy-Head Rest1986-01-01 ~ ; FED.S.E +CAL.S.E; (B) FREE |
87603-V5000 |
US $4.03 |
||
|
87630J
|
87630J
84997-W2811
Clip-rivetting
1986-01-01 ~ ; FED.S.E +CAL.S.E; (B) |
84997-W2811 |
— | ||
|
87630J
|
87630J
84997-W2812 Clip-Rivetting1986-01-01 ~ ; FED.S.E +CAL.S.E; (K) |
84997-W2812 |
US $3.46 |
||
|
87650
|
87650
87650-D3861
Back assy-front seat,lh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (K) |
87650-D3861 |
— | ||
|
87650
|
87650
87650-D3862
Back assy-front seat,lh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (B) |
87650-D3862 |
— | ||
|
87650
|
87650
87650-D4506
Back assy-front seat,lh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (K) |
87650-D4506 |
— | ||
|
87650
|
87650
87650-D4507
Back assy-front seat,lh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (B) |
87650-D4507 |
— | ||
|
87651
|
87651
87651-D4505
Frame Assy-Back, Front Seat Lh
1987-09-01 ~ 1988-07-01; FED.S.E +CAL.S.E; |
87651-D4505 |
— | ||
|
87661
|
87661
87611-38E15
Pad-front seat back,rh
1986-01-01 ~ ; FED.S.E +CAL.S.E; , |
87611-38E15 |
— | ||
|
87670
|
87670
87620-D3861
Trim assy-back,front seat rh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (K) |
87620-D3861 |
— | ||
|
87670
|
87670
87620-D3862
Trim assy-back,front seat rh
1988-07-01 ~ ; FED.S.E +CAL.S.E; (B) |
87620-D3862 |
— | ||
|
87670
|
87670
87620-D4506
Trim assy-back,front seat rh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (K) |
87620-D4506 |
— | ||
|
87670
|
87670
87620-D4507
Trim assy-back,front seat rh
1986-01-01 ~ 1988-07-01; FED.S.E +CAL.S.E; (B) |
87620-D4507 |
— | ||
|
87680
|
87680
87640-D4701
ﾎﾞ-ﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾊﾞﾂｸ rh
1986-01-01 ~ ; FED.S.E +CAL.S.E; (K) |
87640-D4701 |
— | ||
|
87680
|
87680
87640-D4702
ﾎﾞ-ﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾊﾞﾂｸ rh
1986-01-01 ~ ; FED.S.E +CAL.S.E; (B) |
87640-D4702 |
— | ||
