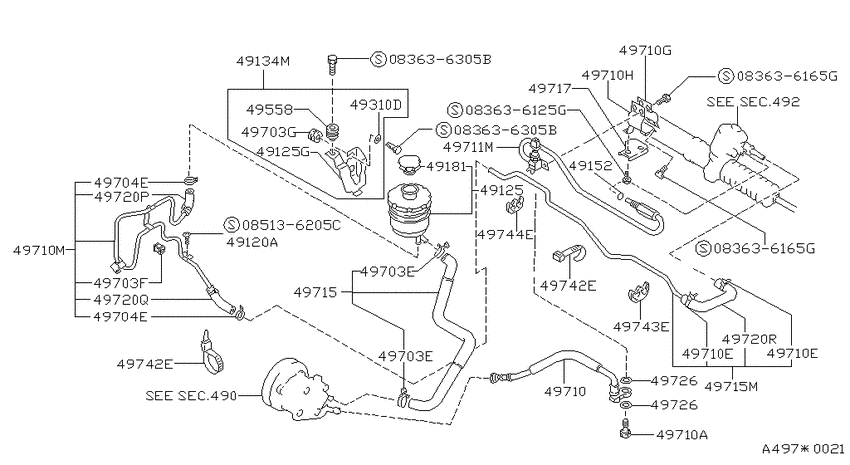

Power steering piping (1986-01-01 ~ ; ALL) Diagram Nissan STANZA
- Year
- 1986 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- MT
- body
- S
- trim lvl
- E
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636305B
|
083636305B
08363-6305B
SCREWMACHINE
|
08363-6305B |
— | ||
|
083636305B
|
083636305B
08363-6305B
SCREWMACHINE
|
08363-6305B |
— | ||
|
085136205C
|
085136205C
08513-6205C
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-6205C |
— | ||
|
49120A
|
49120A
01456-00361 SCREW-BRACKET,POWER STEERING1986-01-01 ~ ; CA20E; , |
01456-00361 |
US $1.73 |
||
|
49125
|
49125
49115-03E02 TANK ASSY-RESERVOIR1986-01-01 ~ 1987-09-01; CA20E; , |
49115-03E02 |
US $154.08 |
||
|
49125
|
49125
49180-03E02 TANK ASSY-RESERVOIR1987-09-01 ~ ; CA20E; , |
49180-03E02 |
US $160.78 |
||
|
49125
|
49125
49116-03E00 BRACKET-ADJUST,POWER STEERING PUMP1986-01-01 ~ ; CA20E; , |
49116-03E00 |
US $38.30 |
||
|
49125
|
49125
49116-03E01
BRACKET-RESERVOIR TANK
1986-01-01 ~ ; CA20E; , |
49116-03E01 |
— | ||
|
49125G
|
49125G
49116-03E00 BRACKET-ADJUST,POWER STEERING PUMP1986-01-01 ~ ; CA20E; , |
49116-03E00 |
US $38.30 |
||
|
49125G
|
49125G
49116-03E01
BRACKET-RESERVOIR TANK
1986-01-01 ~ ; CA20E; , |
49116-03E01 |
— | ||
|
49134M
|
49134M
49116-03E00 BRACKET-ADJUST,POWER STEERING PUMP1986-01-01 ~ ; CA20E; , |
49116-03E00 |
US $38.30 |
||
|
49152
|
49152
4974501E00 SEAL-O RING1986-01-01 ~ ; CA20E; |
4974501E00 |
US $2.78 |
||
|
49181
|
49181
49181-03E00 CAP ASSY-PUMP1986-01-01 ~ ; CA20E; , |
49181-03E00 |
US $8.45 |
||
|
49310D
|
49310D
49726-D0301 Washer-Lock1986-01-01 ~ 1986-10-01; CA20E; , |
49726-D0301 |
US $2.74 |
||
|
49310D
|
49310D
49728-55S00
Collar
1986-10-01 ~ ; CA20E; |
49728-55S00 |
— | ||
| replacement | |||||
|
49310D
|
49310D
49728-55S0A Collar-Insulator1986-10-01 ~ ; CA20E; |
49728-55S0A |
US $2.64 |
||
|
49558
|
49558
64840-H9200 Bush1986-01-01 ~ ; CA20E; , |
64840-H9200 |
US $5.33 |
||
|
49703E
|
49703E
01555-00241 CLIP1986-01-01 ~ ; CA20E; , |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49703E
|
49703E
0155500861 CLIP1986-01-01 ~ ; CA20E; , |
0155500861 |
US $2.45 |
||
|
49703E
|
49703E
01555-00241 CLIP1986-01-01 ~ ; CA20E; , |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49703E
|
49703E
0155500861 CLIP1986-01-01 ~ ; CA20E; , |
0155500861 |
US $2.45 |
||
|
49703F
|
49703F
49733-55M00 Insulator1986-01-01 ~ ; CA20E; , |
49733-55M00 |
US $4.57 |
||
|
49703G
|
49703G
18316S3260 Bush1986-01-01 ~ ; CA20E; , |
18316S3260 |
from US $3.64 |
||
|
49704E
|
49704E
01555-00211
CLAMP-HOSE
1986-01-01 ~ 1987-05-01; CA20E; , |
01555-00211 |
— | ||
| replacement | |||||
|
49704E
|
49704E
0155500811 CLAMP-HOSE1986-01-01 ~ 1987-05-01; CA20E; , |
0155500811 |
US $3.06 |
||
|
49704E
|
49704E
0155500691 CLAMP1987-05-01 ~ ; CA20E; , |
0155500691 |
from US $2.11 |
||
|
49704E
|
49704E
01555-00211
CLAMP-HOSE
1986-01-01 ~ 1987-05-01; CA20E; , |
01555-00211 |
— | ||
| replacement | |||||
|
49704E
|
49704E
0155500811 CLAMP-HOSE1986-01-01 ~ 1987-05-01; CA20E; , |
0155500811 |
US $3.06 |
||
|
49704E
|
49704E
0155500691 CLAMP1987-05-01 ~ ; CA20E; , |
0155500691 |
from US $2.11 |
||
|
49710
|
49710
49720-D4000 Hose Assy-Pump1986-01-01 ~ ; CA20E; F/PRESS |
49720-D4000 |
US $366.74 |
||
|
49710
|
49710
49720D4300 Hose Assy-Pump1986-01-01 ~ ; CA20E; F/PRESS |
49720D4300 |
US $240.48 |
||
|
49710
|
49710
0161900011 BOLT1987-01-01 ~ ; CA20E; , |
0161900011 |
from US $3.74 |
||
|
49710
|
49710
49590-R8200 Bolt-Connector1986-01-01 ~ 1987-01-01; CA20E; , |
49590-R8200 |
US $13.39 |
||
|
49710
|
49710
0155500691 CLAMP1986-01-01 ~ ; CA20E; |
0155500691 |
from US $2.11 |
||
|
49710
|
49710
49781-D4005 Bracket-Hose1986-01-01 ~ ; CA20E; , |
49781-D4005 |
US $7.34 |
||
|
49710
|
49710
49780-D4005 Bracket-Hose1986-01-01 ~ ; CA20E; , |
49780-D4005 |
US $10.08 |
||
|
49710
|
49710
49726-36E00
HOSE-TUBE TO PUMP
1986-01-01 ~ ; CA20E; F/RETURN |
49726-36E00 |
— | ||
|
49710
|
49710
49726-D4500
Hose-Tube To Pump
1985-12-01 ~ 1986-01-01; CA20E; F/RETURN |
49726-D4500 |
— | ||
|
49710A
|
49710A
0161900011 BOLT1987-01-01 ~ ; CA20E; , |
0161900011 |
from US $3.74 |
||
|
49710A
|
49710A
49590-R8200 Bolt-Connector1986-01-01 ~ 1987-01-01; CA20E; , |
49590-R8200 |
US $13.39 |
||
|
49710E
|
49710E
0155500691 CLAMP1986-01-01 ~ ; CA20E; |
0155500691 |
from US $2.11 |
||
|
49710E
|
49710E
0155500691 CLAMP1986-01-01 ~ ; CA20E; |
0155500691 |
from US $2.11 |
||
|
49710G
|
49710G
49781-D4005 Bracket-Hose1986-01-01 ~ ; CA20E; , |
49781-D4005 |
US $7.34 |
||
|
49710H
|
49710H
49780-D4005 Bracket-Hose1986-01-01 ~ ; CA20E; , |
49780-D4005 |
US $10.08 |
||
|
49710M
|
49710M
49726-36E00
HOSE-TUBE TO PUMP
1986-01-01 ~ ; CA20E; F/RETURN |
49726-36E00 |
— | ||
|
49710M
|
49710M
49726-D4500
Hose-Tube To Pump
1985-12-01 ~ 1986-01-01; CA20E; F/RETURN |
49726-D4500 |
— | ||
|
49711M
|
49711M
49713-D4010
Tube Assy-Power Steering
1986-01-01 ~ ; CA20E; F/PRESS |
49713-D4010 |
— | ||
| replacement | |||||
|
49711M
|
49711M
D9713-D4010
Tube-power steering hose
1986-01-01 ~ ; CA20E; F/PRESS |
D9713-D4010 |
— | ||
|
49715
|
49715
49723-D4000 Hose-Pump To Reservoir Tank1986-01-01 ~ ; CA20E; F/SUCTION |
49723-D4000 |
US $72.58 |
||
|
49715
|
49715
49726-D4505
Tube-Hose To Power Steering Hose
1986-01-01 ~ ; CA20E; F/RETURN |
49726-D4505 |
— | ||
|
49715M
|
49715M
49726-D4505
Tube-Hose To Power Steering Hose
1986-01-01 ~ ; CA20E; F/RETURN |
49726-D4505 |
— | ||
|
49717
|
49717
49788-D4005 Plate Assy-Power Steering1986-01-01 ~ ; CA20E; , |
49788-D4005 |
US $4.32 |
||
|
49720P
|
49720P
4972101E01 HOSE-RETURN,POWER STEERING1986-01-01 ~ ; CA20E; , |
4972101E01 |
US $15.66 |
||
|
49720Q
|
49720Q
49721-36E00
HOSE ASSY-RETURN POWER STEERING
1986-01-01 ~ ; CA20E; , |
49721-36E00 |
— | ||
|
49720R
|
49720R
49721-D4505
Hose-Return Power Steering
1986-01-01 ~ ; CA20E; , |
49721-D4505 |
— | ||
|
49726
|
49726
49726Y0100 Washer-Copper1986-01-01 ~ ; CA20E; , |
49726Y0100 |
from US $1.72 |
||
|
49726
|
49726
49726Y0100 Washer-Copper1986-01-01 ~ ; CA20E; , |
49726Y0100 |
from US $1.72 |
||
|
49742E
|
49742E
01552-00043
CLIP
1986-01-01 ~ ; CA20E; , |
01552-00043 |
— | ||
| replacement | |||||
|
49742E
|
49742E
2421610Y80 Clamp1986-01-01 ~ ; CA20E; , |
2421610Y80 |
from US $4.42 |
||
|
49742E
|
49742E
01552-00411
CLAMP-HOSE
1986-01-01 ~ ; CA20E; , |
01552-00411 |
— | ||
| replacement | |||||
|
49742E
|
49742E
2421610Y80 Clamp1986-01-01 ~ ; CA20E; , |
2421610Y80 |
from US $4.42 |
||
|
49742E
|
49742E
01552-00043
CLIP
1986-01-01 ~ ; CA20E; , |
01552-00043 |
— | ||
| replacement | |||||
|
49742E
|
49742E
2421610Y80 Clamp1986-01-01 ~ ; CA20E; , |
2421610Y80 |
from US $4.42 |
||
|
49742E
|
49742E
01552-00411
CLAMP-HOSE
1986-01-01 ~ ; CA20E; , |
01552-00411 |
— | ||
| replacement | |||||
|
49742E
|
49742E
2421610Y80 Clamp1986-01-01 ~ ; CA20E; , |
2421610Y80 |
from US $4.42 |
||
|
49743E
|
49743E
49738-13E01
CLAMP
1986-01-01 ~ ; CA20E; , |
49738-13E01 |
— | ||
|
49744E
|
49744E
49738-13E00
CLAMP
1986-01-01 ~ ; CA20E; , |
49738-13E00 |
— | ||
