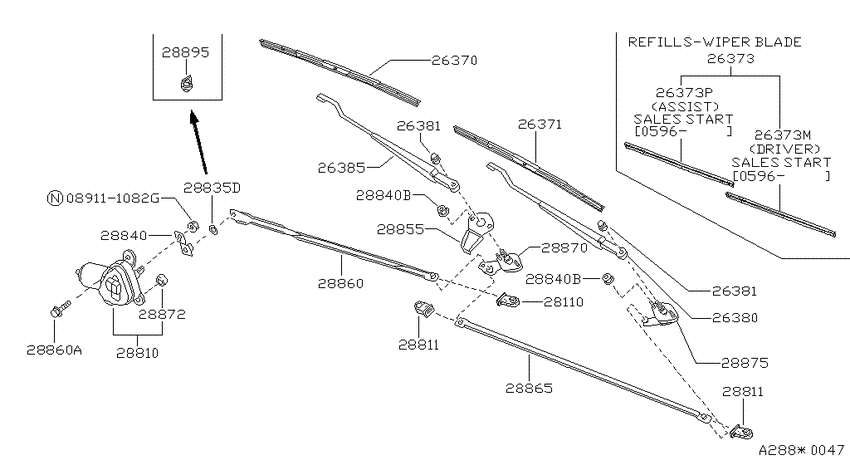

Windshield wiper (1986-01-01 ~ ; ALL) Diagram Nissan STANZA
- Year
- 1986 - 2011
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- MT
- body
- S
- trim lvl
- E
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
26370
|
26370
28890-34E00
BLADE ASSY-WINDSHIELD WIPER
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28890-34E00 |
— | ||
|
26371
|
26371
28890-34E00
BLADE ASSY-WINDSHIELD WIPER
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28890-34E00 |
— | ||
|
26373
|
26373
B8891-47085
Refill-Wiper Blade
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
B8891-47085 |
— | ||
|
26373
|
26373
28895-34E00
REFILL-WIPER BLADE,DRIVER
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28895-34E00 |
— | ||
|
26373
|
26373
28895-34E00
REFILL-WIPER BLADE,DRIVER
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28895-34E00 |
— | ||
|
26373M
|
26373M
28895-34E00
REFILL-WIPER BLADE,DRIVER
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28895-34E00 |
— | ||
|
26373P
|
26373P
28895-34E00
REFILL-WIPER BLADE,DRIVER
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28895-34E00 |
— | ||
|
26380
|
26380
28881-34E00
ARM ASSY-WINDSHIELD WIPER
1986-01-01 ~ 1988-07-01; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28881-34E00 |
— | ||
|
26380
|
26380
28881-D4560
Arm Assy-Windshield Wiper
1988-07-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; |
28881-D4560 |
— | ||
| replacement | |||||
|
26380
|
26380
28880-13E60
ARM ASSY-WINDSHIELD WIPER
1988-07-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; |
28880-13E60 |
— | ||
|
26381
|
26381
28889-41L00 Nut-Wiper Arm1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28889-41L00 |
US $3.46 |
||
|
26381
|
26381
28889-41L00 Nut-Wiper Arm1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28889-41L00 |
US $3.46 |
||
|
26385
|
26385
28885-13E60
ARM ASSY-WINDSHIELD WIPER
1988-07-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; |
28885-13E60 |
— | ||
|
26385
|
26385
28886-34E00
ARM ASSY-WINDSHIELD WIPER
1986-01-01 ~ 1988-07-01; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28886-34E00 |
— | ||
|
28110
|
28110
28852-D4000 Boot1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; (NO.1) |
28852-D4000 |
US $4.03 |
||
|
28810
|
28810
28810-D4710
Motor Assy-Windshield Wiper
1988-07-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28810-D4710 |
— | ||
| replacement | |||||
|
28810
|
28810
28810-13E10
MOTOR ASSY-WINDSHIELD WIPER
1988-07-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28810-13E10 |
— | ||
|
28810
|
28810
28815-15E00
MOTOR ASSY-WINDSHIELD WIPER
1986-01-01 ~ 1986-09-01; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28815-15E00 |
— | ||
| replacement | |||||
|
28810
|
28810
B8815-15E00
Motor assy-windshield wiper
1986-01-01 ~ 1986-09-01; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
B8815-15E00 |
— | ||
|
28810
|
28810
28815-D4510
Motor Assy-Windshield Wiper
1986-09-01 ~ 1988-07-01; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28815-D4510 |
— | ||
| replacement | |||||
|
28810
|
28810
B8815-15E00
Motor assy-windshield wiper
1986-09-01 ~ 1988-07-01; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
B8815-15E00 |
— | ||
|
28811
|
28811
28852-D4000 Boot1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; (NO.2) |
28852-D4000 |
US $4.03 |
||
|
28811
|
28811
28852-D4010
Dust Cover
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; (NO.2) |
28852-D4010 |
— | ||
|
28811
|
28811
28852-D4000 Boot1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; (NO.2) |
28852-D4000 |
US $4.03 |
||
|
28811
|
28811
28852-D4010
Dust Cover
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; (NO.2) |
28852-D4010 |
— | ||
|
28835D
|
28835D
28827-01L10 Ring-Retainer1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28827-01L10 |
US $12.67 |
||
|
28840
|
28840
28825-13E10 ARM ASSY-WIPER MOTOR1988-07-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28825-13E10 |
US $7.34 |
||
|
28840
|
28840
28825-D4500
Arm Assy-Wiper Motor
1986-01-01 ~ 1988-07-01; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28825-D4500 |
— | ||
|
28840
|
28840
01225-00181 NUT1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
01225-00181 |
US $3.46 |
||
|
28840B
|
28840B
01225-00181 NUT1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
01225-00181 |
US $3.46 |
||
|
28840B
|
28840B
01225-00181 NUT1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
01225-00181 |
US $3.46 |
||
|
28855
|
28855
28864-01E00 ESCUTCHEON-WIPER PIVOT1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28864-01E00 |
US $4.18 |
||
|
28860
|
28860
28841-13E25
LINK ASSY-CONNECTING,NO 1
1988-07-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28841-13E25 |
— | ||
|
28860
|
28860
28841-15E00
LINK ASSY-CONNECTING,NO 1
1986-01-01 ~ 1988-07-01; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28841-15E00 |
— | ||
|
28860
|
28860
01436-00301 SCREW1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
01436-00301 |
US $1.73 |
||
|
28860A
|
28860A
01436-00301 SCREW1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
01436-00301 |
US $1.73 |
||
|
28865
|
28865
28842-01E00 LINK ASSY-CONNECTING,NO 21986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28842-01E00 |
US $11.38 |
||
|
28870
|
28870
28850-D4500
Pivot Assy-Wiper, No 1
1986-01-01 ~ 1988-07-01; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28850-D4500 |
— | ||
|
28870
|
28870
28850-D4700
Pivot Assy-Wiper, No 1
1988-07-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28850-D4700 |
— | ||
|
28872
|
28872
28818-50A00 Seat-Rubber1986-09-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28818-50A00 |
US $2.45 |
||
|
28875
|
28875
28860-D4000 Pivot Assy-Wiper, No 21986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28860-D4000 |
US $43.92 |
||
| replacement | |||||
|
28875
|
28875
B8860-D4000
Pivot assy-wiper,no 2
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
B8860-D4000 |
— | ||
|
28895
|
28895
28851-F5000
Retainer-Ball
1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28851-F5000 |
— | ||
| replacement | |||||
|
28895
|
28895
28851-V0100 Retainer-Ball1986-01-01 ~ ; FED.S +FED.5HB +CAL.S +CAL.5HB; , |
28851-V0100 |
US $4.57 |
||
