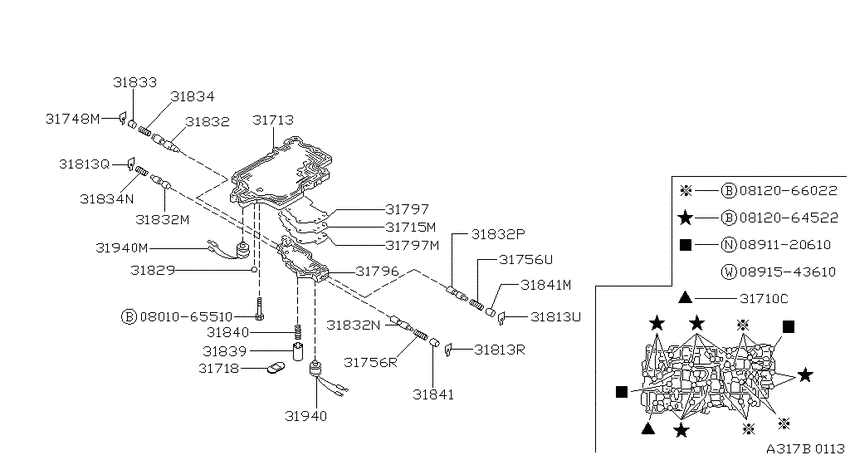

Control valve (atm) (1986-01-01 ~ ; LOWER (RL4F02A); AT.F4) Diagram Nissan STANZA
- Year
- 1986 - 1987
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- AT
- body
- 5HB
- trim lvl
- XE
- emission
- CAL
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0801065510
|
0801065510
08010-65510
Bolt-hexagon
|
08010-65510 |
— | ||
|
0812064522
|
0812064522
08120-64522
Bolt-hexagon
|
08120-64522 |
— | ||
|
0812066022
|
0812066022
08120-66022
Bolt-hexagon
|
08120-66022 |
— | ||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
31710C
|
31710C
01111-00771 BOLT1986-01-01 ~ ; AT; , |
01111-00771 |
US $1.73 |
||
|
31713
|
31713
31713-21X01 Body-Lower, Control Valve1986-01-01 ~ ; AT; , |
31713-21X01 |
US $78.91 |
||
|
31715M
|
31715M
31826-21X03 Plate-Separator Lock Up1986-01-01 ~ ; AT; , |
31826-21X03 |
US $8.93 |
||
|
31718
|
31718
31718-01X00 Plate-Support, Accumulator1986-01-01 ~ ; AT; , |
31718-01X00 |
US $2.45 |
||
|
31748M
|
31748M
31748-21X00 Plate-Retainer1986-01-01 ~ ; AT; , |
31748-21X00 |
US $0.86 |
||
|
31756R
|
31756R
31835-21X03 Spring-4Th & 2Nd Timing1986-01-01 ~ ; AT; , |
31835-21X03 |
US $0.86 |
||
|
31756U
|
31756U
31738-21X00 Spring-Timing1986-01-01 ~ ; AT; , |
31738-21X00 |
US $0.86 |
||
|
31796
|
31796
31831-21X01 Body-Control Valve, Lock Up1986-01-01 ~ ; AT; , |
31831-21X01 |
US $74.74 |
||
|
31797
|
31797
31827-21X01 Gasket-Body, Lock Up1986-01-01 ~ ; AT; , |
31827-21X01 |
US $4.18 |
||
|
31797
|
31797
31828-21X01 Gasket-Body, Lock Up1986-01-01 ~ ; AT; , |
31828-21X01 |
US $4.18 |
||
|
31797M
|
31797M
31828-21X01 Gasket-Body, Lock Up1986-01-01 ~ ; AT; , |
31828-21X01 |
US $4.18 |
||
|
31813Q
|
31813Q
31813-21X00 Plate-Retainer1986-01-01 ~ ; AT; , |
31813-21X00 |
US $0.86 |
||
|
31813R
|
31813R
31813-21X00 Plate-Retainer1986-03-01 ~ ; AT; , |
31813-21X00 |
US $0.86 |
||
|
31813U
|
31813U
31813-21X00 Plate-Retainer1986-03-01 ~ ; AT; , |
31813-21X00 |
US $0.86 |
||
|
31829
|
31829
31829-68300 Ball-Steel1986-01-01 ~ ; AT; , |
31829-68300 |
US $1.73 |
||
|
31832
|
31832
31832-21X06 Valve-Lock Up Control1986-01-01 ~ ; AT; , |
31832-21X06 |
US $10.37 |
||
|
31832
|
31832
31772-21X00 Valve-Spool1986-01-01 ~ ; AT; , |
31772-21X00 |
US $6.94 |
||
|
31832
|
31832
31772-21X00 Valve-Spool1986-01-01 ~ ; AT; , |
31772-21X00 |
US $6.94 |
||
|
31832
|
31832
31772-21X00 Valve-Spool1986-01-01 ~ ; AT; , |
31772-21X00 |
US $6.94 |
||
|
31832M
|
31832M
31772-21X00 Valve-Spool1986-01-01 ~ ; AT; , |
31772-21X00 |
US $6.94 |
||
|
31832N
|
31832N
31772-21X00 Valve-Spool1986-01-01 ~ ; AT; , |
31772-21X00 |
US $6.94 |
||
|
31832P
|
31832P
31772-21X00 Valve-Spool1986-01-01 ~ ; AT; , |
31772-21X00 |
US $6.94 |
||
|
31833
|
31833
31833-21X05 Sleeve-Lock Up Control1986-01-01 ~ ; AT; , |
31833-21X05 |
US $6.91 |
||
|
31834
|
31834
31834-21X02 Spring-Lock Up Control1986-01-01 ~ ; AT; L=36.0 |
31834-21X02 |
US $1.73 |
||
|
31834
|
31834
31736-01X02 Spring-Top Reducing1986-01-01 ~ ; AT; , |
31736-01X02 |
US $0.86 |
||
|
31834N
|
31834N
31736-01X02 Spring-Top Reducing1986-01-01 ~ ; AT; , |
31736-01X02 |
US $0.86 |
||
|
31839
|
31839
31839-21X00 Piston-Accumulator Lock Up1986-01-01 ~ ; AT; , |
31839-21X00 |
US $13.39 |
||
|
31840
|
31840
31840-21X01 Spring-Accumulator Lock Up1986-01-01 ~ ; AT; , |
31840-21X01 |
US $4.18 |
||
|
31841
|
31841
31841-21X03 Spacer-Valve1986-01-01 ~ ; AT; , |
31841-21X03 |
US $1.73 |
||
|
31841
|
31841
31841-21X03 Spacer-Valve1986-01-01 ~ ; AT; , |
31841-21X03 |
US $1.73 |
||
|
31841
|
31841
31841-21X02 Spacer-Valve1986-01-01 ~ ; AT; , |
31841-21X02 |
US $1.73 |
||
|
31841M
|
31841M
31841-21X03 Spacer-Valve1986-01-01 ~ ; AT; , |
31841-21X03 |
US $1.73 |
||
|
31940
|
31940
31940-21X04 Torque Converter Clutch Solenoid Valve1986-01-01 ~ ; AT; , |
31940-21X04 |
US $97.34 |
||
|
31940
|
31940
31707-21X00 Clip-Harness1986-01-01 ~ 1987-12-01; AT; , |
31707-21X00 |
US $7.20 |
||
|
31940
|
31940
31707-21X07 Clip-Harness1987-12-01 ~ ; AT; , |
31707-21X07 |
US $7.20 |
||
|
31940
|
31940
31707-21X08 Clip-Harness1987-12-01 ~ ; AT; , |
31707-21X08 |
US $7.20 |
||
|
31940
|
31940
31707-21X06 Clamp-Harness1986-01-01 ~ ; AT; , |
31707-21X06 |
US $6.34 |
||
|
31940
|
31940
31707-21X04 Clip-Harness1986-01-01 ~ ; AT; , |
31707-21X04 |
US $6.34 |
||
|
31940
|
31940
31707-21X05 Clip-Harness1986-01-01 ~ ; AT; , |
31707-21X05 |
US $6.34 |
||
|
31940
|
31940
31940-21X02 Solenoid Assy-Overdrive1986-01-01 ~ 1990-03-01; AT; , |
31940-21X02 |
US $95.90 |
||
|
31940
|
31940
31940-21X05 Solenoid Assy-Overdrive1990-03-01 ~ ; AT; , |
31940-21X05 |
US $95.90 |
||
|
31940M
|
31940M
31940-21X02 Solenoid Assy-Overdrive1986-01-01 ~ 1990-03-01; AT; , |
31940-21X02 |
US $95.90 |
||
|
31940M
|
31940M
31940-21X05 Solenoid Assy-Overdrive1990-03-01 ~ ; AT; , |
31940-21X05 |
US $95.90 |
