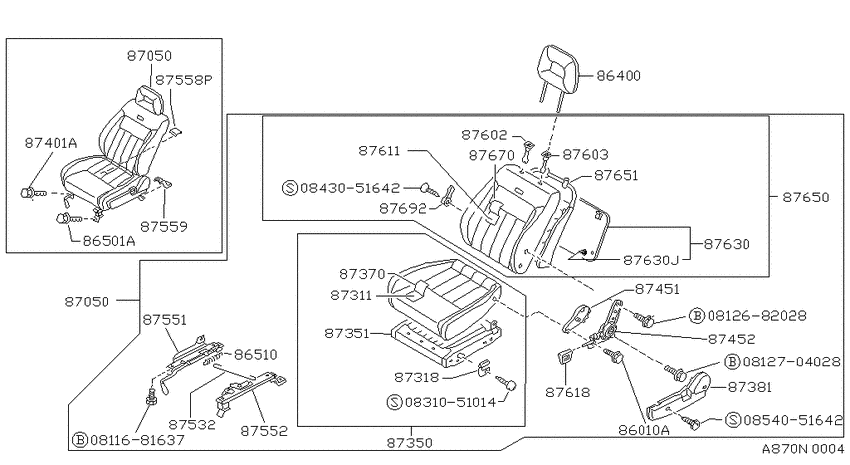

Front seat (1986-01-01 ~ 1987-08-01; LH; 5HB) Diagram Nissan STANZA
- Year
- 1986 - 1987
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- AT
- body
- 5HB
- trim lvl
- XE
- emission
- CAL
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811681637
|
0811681637
08116-81637
Bolt-hexagon
|
08116-81637 |
— | ||
|
0812682028
|
0812682028
08126-82028
Bolt-hexagon
|
08126-82028 |
— | ||
|
0812704028
|
0812704028
08127-04028
Bolt-hexagon
|
08127-04028 |
— | ||
|
0831051014
|
0831051014
08310-51014
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51014 |
— | ||
|
0843051642
|
0843051642
08430-51642
SCREWMACHINE
|
08430-51642 |
— | ||
|
86010A
|
86010A
86403-01E00 BOLT1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
86403-01E00 |
US $2.45 |
||
|
86400
|
86400
86400-D4511
Head rest assy-front seat
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
86400-D4511 |
— | ||
|
86400
|
86400
86400-D4512
Head rest assy-front seat
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
86400-D4512 |
— | ||
|
86501A
|
86501A
01141-00211
Bolt
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
01141-00211 |
— | ||
|
86510
|
86510
87560-D4400 Spring-Return1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
87560-D4400 |
US $9.94 |
||
|
87050
|
87050
87050-D4511
Seat assy-front,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87050-D4511 |
— | ||
|
87050
|
87050
87050-D4512
Seat assy-front,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87050-D4512 |
— | ||
|
87050
|
87050
87050-D4511
Seat assy-front,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87050-D4511 |
— | ||
|
87050
|
87050
87050-D4512
Seat assy-front,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87050-D4512 |
— | ||
|
87311
|
87311
87311-D4510
Pad-front seat cushion,rh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
87311-D4510 |
— | ||
|
87318
|
87318
87368-D4401
Lever-lifter
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87368-D4401 |
— | ||
|
87318
|
87318
87368-D4402
Lever-lifter
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87368-D4402 |
— | ||
|
87350
|
87350
87350-D4511
Cushion assy-seat,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87350-D4511 |
— | ||
|
87350
|
87350
87350-D4512
Cushion assy-seat,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87350-D4512 |
— | ||
|
87351
|
87351
87351-D4600
Frame assy-front seat cushion,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
87351-D4600 |
— | ||
|
87370
|
87370
87370-D4511
Trim assy-cushion,front seat lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87370-D4511 |
— | ||
|
87370
|
87370
87370-D4512
Trim assy-cushion,front seat lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87370-D4512 |
— | ||
|
87381
|
87381
87380-D4501
Finisher assy-cushion,front seat lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87380-D4501 |
— | ||
|
87381
|
87381
87380-D4502
Finisher assy-cushion,front seat lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87380-D4502 |
— | ||
|
87401A
|
87401A
01141-00261 BOLT1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
01141-00261 |
US $4.16 |
||
|
87451
|
87451
87452-01F00 Cover-Reclining Device, Inner Lh1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
87452-01F00 |
US $5.18 |
||
|
87452
|
87452
87451-38E00
Device-reclining,lh seat outside
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
87451-38E00 |
— | ||
|
87532
|
87532
87532-D4600 ﾜｲﾔ,ﾚﾘ-ｽﾞ1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
87532-D4600 |
US $0.86 |
||
|
87551
|
87551
87552-D4600
Slide-lh seat,inside
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
87552-D4600 |
— | ||
|
87552
|
87552
87551-D4600 ｽﾗｲﾄﾞ,lh ｼ-ﾄ ｱｳﾄｻｲﾄﾞ1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
87551-D4600 |
US $67.39 |
||
|
87558P
|
87558P
87558-D4601
Cover-seat slide inner,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87558-D4601 |
— | ||
|
87558P
|
87558P
87558-D4602
Cover-seat slide inner,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87558-D4602 |
— | ||
|
87559
|
87559
87559-D4401 Cover-End, Seat Frame Lh1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87559-D4401 |
US $6.91 |
||
|
87559
|
87559
87559-D4402 Cover-End, Seat Frame Lh1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87559-D4402 |
US $5.18 |
||
| replacement | |||||
|
87559
|
87559
87559-28E00
Cover-seat slide outer,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87559-28E00 |
— | ||
|
87602
|
87602
87602-08F00 ｽﾄﾂﾊﾟ- ｱﾂｾﾝﾌﾞﾘ-,ﾍﾂﾄﾞ ﾚｽﾄ1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) LOCK TYPE |
87602-08F00 |
US $4.18 |
||
|
87602
|
87602
87602-V5000 Stopper Assy-Head Rest1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) LOCK TYPE |
87602-V5000 |
US $4.03 |
||
|
87603
|
87603
87603-08F00
ｽﾄﾂﾊﾟ- ｱﾂｾﾝﾌﾞﾘ-,ﾍﾂﾄﾞ ﾚｽﾄ
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) FREE TYPE |
87603-08F00 |
— | ||
|
87603
|
87603
87603-V5000 Stopper Assy-Head Rest1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) FREE TYPE |
87603-V5000 |
US $4.03 |
||
|
87611
|
87611
87611-D4510
Pad-front seat back,rh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
87611-D4510 |
— | ||
|
87618
|
87618
87418-D4411
ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) RH |
87418-D4411 |
— | ||
|
87618
|
87618
87418-D4412
ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) RH |
87418-D4412 |
— | ||
|
87618
|
87618
87418-D4413
ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (A) RH |
87418-D4413 |
— | ||
|
87618
|
87618
87468-D4411
ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) LH |
87468-D4411 |
— | ||
|
87618
|
87618
87468-D4412
ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) LH |
87468-D4412 |
— | ||
|
87618
|
87618
87468-D4413
ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (A) LH |
87468-D4413 |
— | ||
|
87630
|
87630
87640-D4401
Board assy-seat back,rh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87640-D4401 |
— | ||
|
87630
|
87630
87640-D4402
Board assy-seat back,rh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87640-D4402 |
— | ||
|
87630
|
87630
84997-W2811
Clip-rivetting
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
84997-W2811 |
— | ||
|
87630
|
87630
84997-W2812 Clip-Rivetting1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
84997-W2812 |
US $3.46 |
||
|
87630J
|
87630J
84997-W2811
Clip-rivetting
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
84997-W2811 |
— | ||
|
87630J
|
87630J
84997-W2812 Clip-Rivetting1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
84997-W2812 |
US $3.46 |
||
|
87650
|
87650
87650-D4511
Back assy-front seat,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87650-D4511 |
— | ||
|
87650
|
87650
87650-D4512
Back assy-front seat,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87650-D4512 |
— | ||
|
87651
|
87651
87651-D4500
Frame assy-front seat back,lh
1986-01-01 ~ 1986-04-01; FED.5HB +CAL.5HB; , |
87651-D4500 |
— | ||
|
87651
|
87651
87651-D4510
Frame assy-front seat back,lh
1986-04-01 ~ 1987-08-01; FED.5HB +CAL.5HB; , |
87651-D4510 |
— | ||
|
87670
|
87670
87670-D4511
Trim assy-seat back,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87670-D4511 |
— | ||
|
87670
|
87670
87670-D4512
Trim assy-seat back,lh
1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87670-D4512 |
— | ||
|
87692
|
87692
87610-08F00 ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞﾊﾞｲｽ ﾄﾞﾗｲﾊﾞ- ｼ-ﾄ1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (K) |
87610-08F00 |
US $6.05 |
||
|
87692
|
87692
87610-V5000 Lever-Front Seat Back1986-01-01 ~ 1987-08-01; FED.5HB +CAL.5HB; (B) |
87610-V5000 |
US $2.74 |
||
