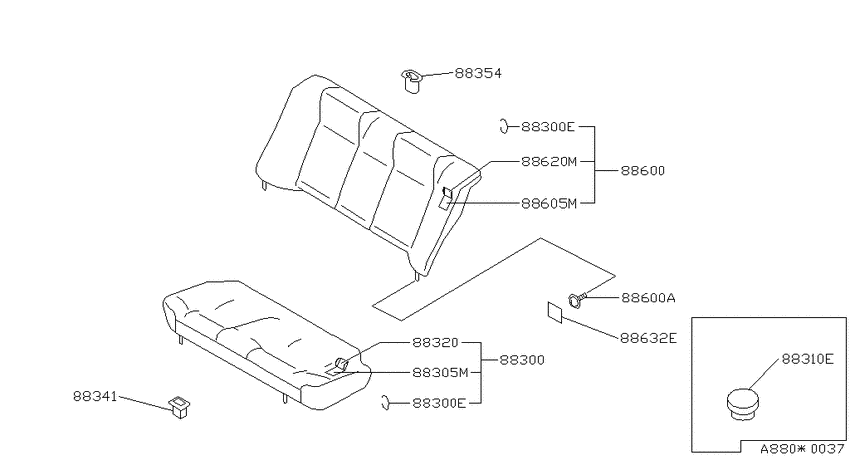

Rear seat (1988-02-01 ~ ; BENCH SEAT(W/O ARMREST); E+XE) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- XE/SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88300
|
88300
88300-65E05
Cushion assy-rear seat
1991-06-01 ~ ; *S.XE; (G) W/ARMREST |
88300-65E05 |
— | ||
|
88300
|
88300
88300-65E06
Cushion assy-rear seat
1991-06-01 ~ ; *S.XE; (B) W/ARMREST |
88300-65E06 |
— | ||
|
88300
|
88300
88300-65E07
Cushion assy-rear seat
1991-06-01 ~ ; *S.XE; (C) W/ARMREST |
88300-65E07 |
— | ||
|
88300
|
88300
88300-65E10
Cushion assy-rear seat
1989-07-01 ~ ; S.XE; (G) |
88300-65E10 |
— | ||
|
88300
|
88300
88300-65E11
Cushion assy-rear seat
1989-07-01 ~ ; S.XE; (B) |
88300-65E11 |
— | ||
|
88300
|
88300
88300-65E12
Cushion assy-rear seat
1989-07-01 ~ ; S.XE; (C) |
88300-65E12 |
— | ||
|
88300
|
88300
88300-65E15
Cushion assy-rear seat
1989-07-01 ~ 1991-06-01; *S.XE; (G) W/ARMREST |
88300-65E15 |
— | ||
|
88300
|
88300
88300-65E16
Cushion assy-rear seat
1989-07-01 ~ 1991-06-01; *S.XE; (B) W/ARMREST |
88300-65E16 |
— | ||
|
88300
|
88300
88300-65E17
Cushion assy-rear seat
1989-07-01 ~ 1991-06-01; *S.XE; (C) W/ARMREST |
88300-65E17 |
— | ||
|
88300
|
88300
88300-65E20
Cushion assy-rear seat
1991-06-01 ~ ; *S.XE; (G) SE |
88300-65E20 |
— | ||
|
88300
|
88300
8690132200 Clip1989-07-01 ~ ; S.XE; , |
8690132200 |
from US $0.22 |
||
|
88300
|
88300
88796-53E00
ｸﾞﾛﾒﾂﾄ,ｽｸﾘﾕ-
1989-07-01 ~ ; *S.XE; (B) W/ARMREST |
88796-53E00 |
— | ||
|
88300
|
88300
88796-53E02
ｸﾞﾛﾒﾂﾄ,ｽｸﾘﾕ-
1989-07-01 ~ ; *S.XE; (G) W/ARMREST |
88796-53E02 |
— | ||
|
88300
|
88300
88796-53E03
ｸﾞﾛﾒﾂﾄ,ｽｸﾘﾕ-
1989-07-01 ~ ; *S.XE; (C) W/ARMREST |
88796-53E03 |
— | ||
| replacement | |||||
|
88300
|
88300
88708-01N00 ﾌﾞﾂｼﾕ1989-07-01 ~ ; *S.XE; (C) W/ARMREST |
88708-01N00 |
US $2.16 |
||
|
88300E
|
88300E
8690132200 Clip1989-07-01 ~ ; S.XE; , |
8690132200 |
from US $0.22 |
||
|
88300E
|
88300E
8690132200 Clip1989-07-01 ~ ; S.XE; , |
8690132200 |
from US $0.22 |
||
|
88305M
|
88305M
88305-65E10
Pad & frame assy-cushion,rear seat
1989-07-01 ~ ; S.XE; , |
88305-65E10 |
— | ||
|
88310E
|
88310E
062121200P Grommet1989-07-01 ~ ; S.XE; , |
062121200P |
US $2.45 |
||
|
88320
|
88320
88320-65E05
Trim assy-rear seat cushion
1991-06-01 ~ ; *S.XE; (G) W/ARMREST |
88320-65E05 |
— | ||
|
88320
|
88320
88320-65E06
Trim assy-rear seat cushion
1991-06-01 ~ ; *S.XE; (B) W/ARMREST |
88320-65E06 |
— | ||
|
88320
|
88320
88320-65E07
Trim assy-rear seat cushion
1991-06-01 ~ ; *S.XE; (C) W/ARMREST |
88320-65E07 |
— | ||
|
88320
|
88320
88320-65E10
Trim assy-rear seat cushion
1989-07-01 ~ ; S.XE; (G) |
88320-65E10 |
— | ||
|
88320
|
88320
88320-65E11
Trim assy-rear seat cushion
1989-07-01 ~ ; S.XE; (B) |
88320-65E11 |
— | ||
|
88320
|
88320
88320-65E12
Trim assy-rear seat cushion
1989-07-01 ~ ; S.XE; (C) |
88320-65E12 |
— | ||
|
88320
|
88320
88320-65E15
Trim assy-rear seat cushion
1989-07-01 ~ 1991-06-01; *S.XE; (G) W/ARMREST |
88320-65E15 |
— | ||
|
88320
|
88320
88320-65E16
Trim assy-rear seat cushion
1989-07-01 ~ 1991-06-01; *S.XE; (B) W/ARMREST |
88320-65E16 |
— | ||
|
88320
|
88320
88320-65E17
Trim assy-rear seat cushion
1989-07-01 ~ 1991-06-01; *S.XE; (C) W/ARMREST |
88320-65E17 |
— | ||
|
88320
|
88320
88320-65E20
Trim assy-rear seat cushion
1991-06-01 ~ ; *S.XE; (G) F/SE |
88320-65E20 |
— | ||
|
88341
|
88341
8830451E00 HOOK-CUSHION,REAR SEAT1989-07-01 ~ ; S.XE; , |
8830451E00 |
from US $5.55 |
||
|
88354
|
88354
88302-01E00 HOOK-CUSHION,REAR SEAT1989-07-01 ~ ; S.XE; , |
88302-01E00 |
US $1.73 |
||
|
88600
|
88600
88600-65E05
Back assy-rear seat
1991-06-01 ~ ; *S.XE; (G) W/ARMREST |
88600-65E05 |
— | ||
|
88600
|
88600
88600-65E06
Back assy-rear seat
1991-06-01 ~ ; *S.XE; (B) W/ARMREST |
88600-65E06 |
— | ||
|
88600
|
88600
88600-65E07
Back assy-rear seat
1991-06-01 ~ ; *S.XE; (C) W/ARMREST |
88600-65E07 |
— | ||
|
88600
|
88600
88600-65E10
Back assy-rear seat
1989-07-01 ~ ; S.XE; (G) |
88600-65E10 |
— | ||
|
88600
|
88600
88600-65E11
Back assy-rear seat
1989-07-01 ~ ; S.XE; (B) |
88600-65E11 |
— | ||
|
88600
|
88600
88600-65E12
Back assy-rear seat
1989-07-01 ~ ; S.XE; (C) |
88600-65E12 |
— | ||
|
88600
|
88600
88600-65E15
Back assy-rear seat
1989-07-01 ~ 1991-06-01; *S.XE; (G) W/ARMREST |
88600-65E15 |
— | ||
|
88600
|
88600
88600-65E16
Back assy-rear seat
1989-07-01 ~ 1991-06-01; *S.XE; (B) W/ARMREST |
88600-65E16 |
— | ||
|
88600
|
88600
88600-65E17
Back assy-rear seat
1989-07-01 ~ 1991-06-01; *S.XE; (C) W/ARMREST |
88600-65E17 |
— | ||
|
88600
|
88600
88600-65E20
Back assy-rear seat
1991-06-01 ~ ; *S.XE; (G) F/SE |
88600-65E20 |
— | ||
|
88600
|
88600
01466-00011 SCREW1989-07-01 ~ ; S.XE; , |
01466-00011 |
US $2.45 |
||
|
88600A
|
88600A
01466-00011 SCREW1989-07-01 ~ ; S.XE; , |
01466-00011 |
US $2.45 |
||
|
88605M
|
88605M
88605-65E10
Pad & frame assy-back,rear seat
1989-07-01 ~ ; S.XE; , |
88605-65E10 |
— | ||
|
88605M
|
88605M
88605-65E15
Pad & frame assy-back,rear seat
1989-07-01 ~ ; *S.XE; W/ARMREST |
88605-65E15 |
— | ||
|
88620M
|
88620M
88620-65E05
Trim assy-rear seat back
1991-06-01 ~ ; *S.XE; (G) W/ARMREST |
88620-65E05 |
— | ||
|
88620M
|
88620M
88620-65E06
Trim assy-rear seat back
1991-06-01 ~ ; *S.XE; (B) W/ARMREST |
88620-65E06 |
— | ||
|
88620M
|
88620M
88620-65E07
Trim assy-rear seat back
1991-06-01 ~ ; *S.XE; (C) W/ARMREST |
88620-65E07 |
— | ||
|
88620M
|
88620M
88620-65E10
Trim assy-rear seat back
1989-07-01 ~ ; S.XE; (G) |
88620-65E10 |
— | ||
|
88620M
|
88620M
88620-65E11
Trim assy-rear seat back
1989-07-01 ~ ; S.XE; (B) |
88620-65E11 |
— | ||
|
88620M
|
88620M
88620-65E12
Trim assy-rear seat back
1989-07-01 ~ ; S.XE; (C) |
88620-65E12 |
— | ||
|
88620M
|
88620M
88620-65E15
Trim assy-rear seat back
1989-07-01 ~ 1991-06-01; *S.XE; (G) W/ARMREST |
88620-65E15 |
— | ||
|
88620M
|
88620M
88620-65E16
Trim assy-rear seat back
1989-07-01 ~ 1991-06-01; *S.XE; (B) W/ARMREST |
88620-65E16 |
— | ||
|
88620M
|
88620M
88620-65E17
Trim assy-rear seat back
1989-07-01 ~ 1991-06-01; *S.XE; (C) W/ARMREST |
88620-65E17 |
— | ||
|
88620M
|
88620M
88620-65E20
Trim assy-rear seat back
1991-06-01 ~ ; *S.XE; (G) F/SE |
88620-65E20 |
— | ||
|
88632E
|
88632E
24271-N1300
Protector-Flat Wire
1989-07-01 ~ ; S.XE; , |
24271-N1300 |
— | ||
| replacement | |||||
|
88632E
|
88632E
B4271U0100 Spacer1989-07-01 ~ ; S.XE; , |
B4271U0100 |
from US $3.68 |
||
