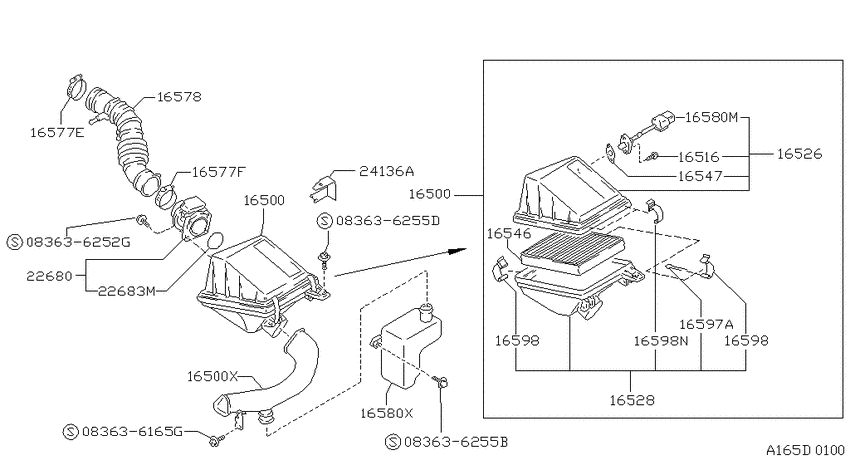

Air cleaner (1988-02-01 ~ ; ALL) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636252G
|
083636252G
083636252G SCREWMACHINE |
083636252G |
US $1.83 |
||
|
083636255B
|
083636255B
08363-6255B
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6255B |
— | ||
|
083636255D
|
083636255D
08363-6255D
Screw
|
08363-6255D |
— | ||
| replacement | |||||
|
083636255D
|
083636255D
08360-6255D SCREWMACHINE |
08360-6255D |
US $1.93 |
||
|
16500
|
16500
16500-65E00
AIR CLEANER
1989-07-01 ~ ; KA24E; , |
16500-65E00 |
— | ||
|
16500
|
16500
16554-65E00
AIR DUCT
1989-07-01 ~ ; KA24E; , |
16554-65E00 |
— | ||
|
16500
|
16500
16500-65E00
AIR CLEANER
1989-07-01 ~ ; KA24E; , |
16500-65E00 |
— | ||
|
16500
|
16500
16554-65E00
AIR DUCT
1989-07-01 ~ ; KA24E; , |
16554-65E00 |
— | ||
|
16500X
|
16500X
16554-65E00
AIR DUCT
1989-07-01 ~ ; KA24E; , |
16554-65E00 |
— | ||
|
16516
|
16516
16516-86G00 Bolt-Center1989-07-01 ~ ; KA24E; , |
16516-86G00 |
US $1.73 |
||
| replacement | |||||
|
16516
|
16516
08310-41625
SCREWMACHINE
1989-07-01 ~ ; KA24E; , |
08310-41625 |
— | ||
|
16526
|
16526
16526-65E00
AIR CLEANER HOUSING COVER
1989-07-01 ~ ; KA24E; , |
16526-65E00 |
— | ||
|
16528
|
16528
16528-65E00
AIR CLEANER HOUSING
1989-07-01 ~ ; KA24E; , |
16528-65E00 |
— | ||
|
16546
|
16546
16546-V0100 Air Cleaner Element1989-07-01 ~ ; KA24E; , |
16546-V0100 |
from US $24.74 |
||
|
16547
|
16547
16547-65E00
PACKING-AIR CLEANER
1989-07-01 ~ ; KA24E; , |
16547-65E00 |
— | ||
|
16577E
|
16577E
01555-00083
CLAMP-HOSE
1989-07-01 ~ ; KA24E; , |
01555-00083 |
— | ||
| replacement | |||||
|
16577E
|
16577E
0155500313 CLAMP-HOSE1989-07-01 ~ ; KA24E; , |
0155500313 |
US $4.99 |
||
|
16577F
|
16577F
14464-W1501 Clamp-Hose1989-07-01 ~ ; KA24E; , |
14464-W1501 |
US $11.81 |
||
| replacement | |||||
|
16577F
|
16577F
14464W150C
Clamp-Hose
1989-07-01 ~ ; KA24E; , |
14464W150C |
— | ||
|
16578
|
16578
16578-65E00
AIR DUCT
1989-07-01 ~ ; KA24E; , |
16578-65E00 |
— | ||
|
16580M
|
16580M
22630-95L00 Intake Air Temperature1989-07-01 ~ ; KA24E; , |
22630-95L00 |
US $113.18 |
||
|
16580X
|
16580X
16585-65E05
RESONATOR ASSY
1989-07-01 ~ ; KA24E; , |
16585-65E05 |
— | ||
|
16597A
|
16597A
16535-59S00
Pin
1989-07-01 ~ ; KA24E; , |
16535-59S00 |
— | ||
|
16598
|
16598
16598-65E00
CLIP
1989-07-01 ~ ; KA24E; , |
16598-65E00 |
— | ||
|
16598
|
16598
1659865E10
CLIP
1989-07-01 ~ ; KA24E; , |
1659865E10 |
— | ||
|
16598
|
16598
16598-65E00
CLIP
1989-07-01 ~ ; KA24E; , |
16598-65E00 |
— | ||
|
16598
|
16598
1659865E10
CLIP
1989-07-01 ~ ; KA24E; , |
1659865E10 |
— | ||
|
16598N
|
16598N
1659865E10
CLIP
1989-07-01 ~ ; KA24E; , |
1659865E10 |
— | ||
|
22680
|
22680
22680-40F00 Mass Air Flow1989-07-01 ~ ; KA24E; , |
22680-40F00 |
US $627.29 |
||
|
22683M
|
22683M
2268340F00 Seal-O Ring1989-07-01 ~ ; KA24E; , |
2268340F00 |
from US $2.02 |
||
|
24136A
|
24136A
24136-65E01
BRACKET-EGI HARNESS
1989-07-01 ~ ; KA24E; , |
24136-65E01 |
— | ||
