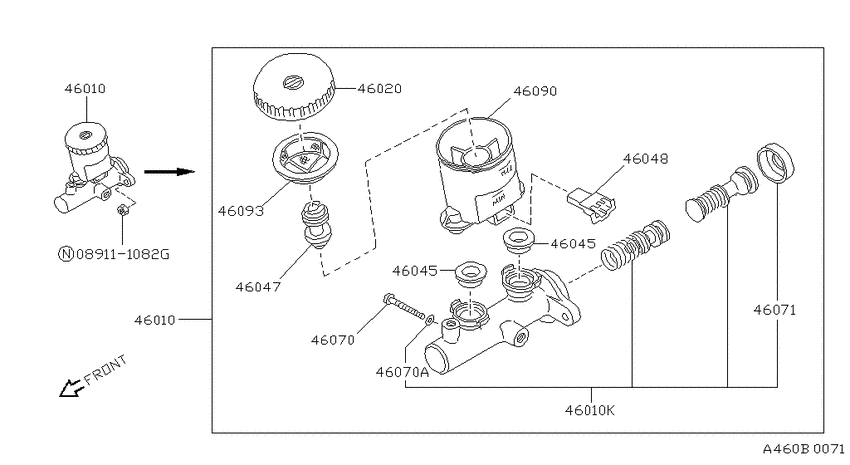

Brake master cylinder (1988-02-01 ~ ; ANTI SKID CONTROL; *KA24E.GXE.(MT+AT)) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
46010
|
46010
46010-66E00
CYLINDER ASSY-BRAKE MASTER
1989-07-01 ~ ; KA24E; NABCO 15/16 |
46010-66E00 |
— | ||
|
46010
|
46010
46010-88E21
CYLINDER ASSY-BRAKE MASTER
1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO 1 F/ANTI SKID CONT-4WHL |
46010-88E21 |
— | ||
|
46010
|
46010
46011-29R25 Piston Kit-Tandem Brake Master Cylinder1989-07-01 ~ ; KA24E; NABCO 15/16 |
46011-29R25 |
US $117.07 |
||
|
46010
|
46010
46011-88E25
PISTON KIT-TANDEM BRAKE MASTER CYLINDER
1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO 1 F/ANTI SKID CONT-4WHL |
46011-88E25 |
— | ||
|
46010
|
46010
46010-66E00
CYLINDER ASSY-BRAKE MASTER
1989-07-01 ~ ; KA24E; NABCO 15/16 |
46010-66E00 |
— | ||
|
46010
|
46010
46010-88E21
CYLINDER ASSY-BRAKE MASTER
1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO 1 F/ANTI SKID CONT-4WHL |
46010-88E21 |
— | ||
|
46010
|
46010
46011-29R25 Piston Kit-Tandem Brake Master Cylinder1989-07-01 ~ ; KA24E; NABCO 15/16 |
46011-29R25 |
US $117.07 |
||
|
46010
|
46010
46011-88E25
PISTON KIT-TANDEM BRAKE MASTER CYLINDER
1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO 1 F/ANTI SKID CONT-4WHL |
46011-88E25 |
— | ||
|
46010K
|
46010K
46011-29R25 Piston Kit-Tandem Brake Master Cylinder1989-07-01 ~ ; KA24E; NABCO 15/16 |
46011-29R25 |
US $117.07 |
||
|
46010K
|
46010K
46011-88E25
PISTON KIT-TANDEM BRAKE MASTER CYLINDER
1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO 1 F/ANTI SKID CONT-4WHL |
46011-88E25 |
— | ||
|
46020
|
46020
4602058E21 CAP ASSY-OIL RESERVOIR TANK1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
4602058E21 |
US $19.82 |
||
|
46045
|
46045
46045W1300 Seal-Reservoir Tank1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
46045W1300 |
US $5.42 |
||
|
46045
|
46045
46045W1300 Seal-Reservoir Tank1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
46045W1300 |
US $5.42 |
||
|
46047
|
46047
4604701F00 Float-Reservoir Tank1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
4604701F00 |
US $6.51 |
||
|
46048
|
46048
4604801F00 Indicator Assy-Level1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
4604801F00 |
US $38.12 |
||
|
46070
|
46070
46032-58E20 SCREW-STOPPER1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
46032-58E20 |
US $4.18 |
||
|
46070
|
46070
46079-W1300 Packing-Stopper Screw1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
46079-W1300 |
US $2.45 |
||
|
46070A
|
46070A
46079-W1300 Packing-Stopper Screw1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
46079-W1300 |
US $2.45 |
||
|
46071
|
46071
46082-R9000 Ring-Snap1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
46082-R9000 |
US $3.17 |
||
| replacement | |||||
|
46071
|
46071
46082R900A Retainer-Piston1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
46082R900A |
US $2.64 |
||
|
46090
|
46090
46091-51E20 TANK-OIL RESERVOIR1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
46091-51E20 |
US $29.95 |
||
|
46093
|
46093
4609301F00 Strainer-Brake Oil1989-07-01 ~ ; *KA24E.GXE.(MT+AT); NABCO F/ANTI SKID CONT-4WHL |
4609301F00 |
US $14.83 |
||
