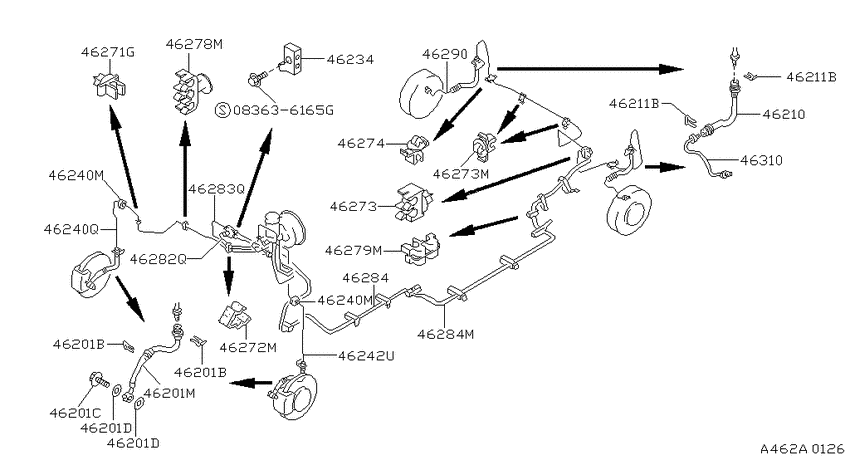

Brake piping & control (1988-02-01 ~ ; W/O ANTI SKID; KA24E) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
46201B
|
46201B
46206M0200 Spring-Lock1989-07-01 ~ ; S; , |
46206M0200 |
from US $0.74 |
||
|
46201B
|
46201B
46206M0200 Spring-Lock1989-07-01 ~ ; S; , |
46206M0200 |
from US $0.74 |
||
|
46201C
|
46201C
46356-01E01
BOLT-UNION,FRONT BRAKE HOSE
1989-07-01 ~ ; S; , |
46356-01E01 |
— | ||
| replacement | |||||
|
46201C
|
46201C
463560E00A Bolt-Union, Front Brake Hose1989-07-01 ~ ; S; , |
463560E00A |
from US $1.52 |
||
|
46201D
|
46201D
46237A4600 Gasket-Clutch Hose1989-07-01 ~ ; S; , |
46237A4600 |
from US $0.35 |
||
|
46201D
|
46201D
46237A4600 Gasket-Clutch Hose1989-07-01 ~ ; S; , |
46237A4600 |
from US $0.35 |
||
|
46201M
|
46201M
46210-51E00 HOSE ASSY-BRAKE,FRONT1989-07-01 ~ ; S; HITACHI |
46210-51E00 |
US $46.22 |
||
|
46201M
|
46201M
4621051E10 HOSE ASSY-BRAKE,FRONT1989-07-01 ~ ; S; NICHIRIN |
4621051E10 |
US $42.19 |
||
|
46210
|
46210
46210-56E00 HOSE ASSY-BRAKE,REAR1989-07-01 ~ ; *S.GXE; HITACHI F/ANTI SKID CONT-4WHL |
46210-56E00 |
US $23.04 |
||
|
46210
|
46210
46210-56E10 HOSE ASSY-BRAKE,REAR1989-07-01 ~ ; *S.GXE; NICHIRIN F/ANTI SKID CONT-4WHL |
46210-56E10 |
US $20.88 |
||
|
46210
|
46210
4621401A16 Hose Assy-Brake, Rear1989-07-01 ~ ; S; NICHIRIN |
4621401A16 |
US $20.88 |
||
|
46210
|
46210
46214-79916 Hose Assy-Brake, Rear1989-07-01 ~ ; S; HITACHI |
46214-79916 |
US $20.88 |
||
|
46211B
|
46211B
46206M0200 Spring-Lock1989-07-01 ~ ; S; , |
46206M0200 |
from US $0.74 |
||
|
46211B
|
46211B
46206M0200 Spring-Lock1989-07-01 ~ ; S; , |
46206M0200 |
from US $0.74 |
||
|
46234
|
46234
4631301E02 CONNECTOR-BRAKE TUBE1989-07-01 ~ ; S; , |
4631301E02 |
US $17.19 |
||
|
46240M
|
46240M
46366H5001 Grommet1989-07-01 ~ ; *S.GXE; F/ANTI SKID CONT-4WHL |
46366H5001 |
US $2.88 |
||
|
46240M
|
46240M
46366H5001 Grommet1989-07-01 ~ ; *S.GXE; F/ANTI SKID CONT-4WHL |
46366H5001 |
US $2.88 |
||
|
46240Q
|
46240Q
46240-85E01
TUBE ASSY-BRAKE,M/CYLINDER TO FRONT RH
1989-07-01 ~ 1990-07-01; S; , |
46240-85E01 |
— | ||
|
46240Q
|
46240Q
46240-85E02
TUBE ASSY-BRAKE,M/CYLINDER TO FRONT RH
1990-07-01 ~ ; S; , |
46240-85E02 |
— | ||
|
46240Q
|
46240Q
46244-86E01
TUBE ASSY-BRAKE,M/CYLINDER TO FRONT RH
1989-07-01 ~ ; *S.GXE; F/ANTI SKID CONT-4WHL |
46244-86E01 |
— | ||
|
46242U
|
46242U
46242-85E01
TUBE ASSY-BRAKE,M/CYLINDER TO FRONT LH
1989-07-01 ~ ; S; , |
46242-85E01 |
— | ||
|
46271G
|
46271G
46271-01E03 CLIP-TUBE,CLUTCH1989-07-01 ~ ; S; , |
46271-01E03 |
US $0.97 |
||
|
46272M
|
46272M
0156100241 CLAMP1989-07-01 ~ ; S; , |
0156100241 |
from US $0.57 |
||
|
46273
|
46273
46271-01B10
Clip
1989-07-01 ~ ; S; , |
46271-01B10 |
— | ||
| replacement | |||||
|
46273
|
46273
46271-01E00 CLAMP-BRAKE TUBE1989-07-01 ~ ; S; , |
46271-01E00 |
US $1.67 |
||
|
46273
|
46273
46271-01E00 CLAMP-BRAKE TUBE1989-07-01 ~ ; S; , |
46271-01E00 |
US $1.67 |
||
|
46273
|
46273
46271-01B00
Clamp
1989-07-01 ~ ; S; , |
46271-01B00 |
— | ||
| replacement | |||||
|
46273
|
46273
46271W1601 Clip-Tube, Clutch1989-07-01 ~ ; S; , |
46271W1601 |
from US $3.66 |
||
|
46273M
|
46273M
46271-01B00
Clamp
1989-07-01 ~ ; S; , |
46271-01B00 |
— | ||
| replacement | |||||
|
46273M
|
46273M
46271W1601 Clip-Tube, Clutch1989-07-01 ~ ; S; , |
46271W1601 |
from US $3.66 |
||
|
46274
|
46274
46271-08W10 Clamp-Brake Tube1989-07-01 ~ ; S; , |
46271-08W10 |
US $1.67 |
||
|
46274
|
46274
4627101E01 CLAMP-BRAKE TUBE1989-07-01 ~ ; S; , |
4627101E01 |
US $2.91 |
||
|
46278M
|
46278M
46289-85E00 CLAMP1989-07-01 ~ ; S; , |
46289-85E00 |
US $2.78 |
||
|
46279M
|
46279M
46272-01G00
Spacer
1989-07-01 ~ ; S; , |
46272-01G00 |
— | ||
| replacement | |||||
|
46279M
|
46279M
46272-2S400 Spacer-Brake Tube1989-07-01 ~ ; S; , |
46272-2S400 |
US $4.16 |
||
|
46282Q
|
46282Q
46282-85E01
TUBE ASSY-BRAKE,MASTER CYLINDER TO REAR
1989-07-01 ~ ; S; , |
46282-85E01 |
— | ||
|
46283Q
|
46283Q
46283-85E01
TUBE ASSY-BRAKE,MASTER CYLINDER TO REAR
1989-07-01 ~ ; S; , |
46283-85E01 |
— | ||
|
46284
|
46284
46284-51E00 TUBE ASSY-BRAKE,REAR1989-07-01 ~ ; S; RH |
46284-51E00 |
US $15.55 |
||
|
46284
|
46284
46284-55E00 TUBE ASSY-BRAKE,REAR1989-07-01 ~ ; *S.GXE; RH F/ANTI SKID CONT-4WHL |
46284-55E00 |
US $37.15 |
||
|
46284
|
46284
46285-51E00 TUBE ASSY-BRAKE,REAR1989-07-01 ~ ; S; LH |
46285-51E00 |
US $15.55 |
||
|
46284
|
46284
46285-55E00 TUBE ASSY-BRAKE,REAR1989-07-01 ~ ; *S.GXE; F/ANTI SKID CONT-4WHL |
46285-55E00 |
US $102.24 |
||
|
46284
|
46284
46283-65E00
TUBE ASSY-BRAKE
1989-07-01 ~ ; *S.GXE; F/ANTI SKID CONT-4WHL |
46283-65E00 |
— | ||
|
46284
|
46284
46282-65E00
TUBE ASSY-BRAKE,REAR RH
1989-07-01 ~ ; *S.GXE; F/ANTI SKID CONT-4WHL |
46282-65E00 |
— | ||
|
46284M
|
46284M
46285-51E00 TUBE ASSY-BRAKE,REAR1989-07-01 ~ ; S; LH |
46285-51E00 |
US $15.55 |
||
|
46284M
|
46284M
46285-55E00 TUBE ASSY-BRAKE,REAR1989-07-01 ~ ; *S.GXE; F/ANTI SKID CONT-4WHL |
46285-55E00 |
US $102.24 |
||
|
46290
|
46290
46315-65E00
TUBE ASSY-REAR BRAKE,RH
1989-07-01 ~ ; S; , |
46315-65E00 |
— | ||
|
46310
|
46310
46316-65E00
TUBE ASSY-REAR BRAKE,LH
1989-07-01 ~ ; S; , |
46316-65E00 |
— | ||
