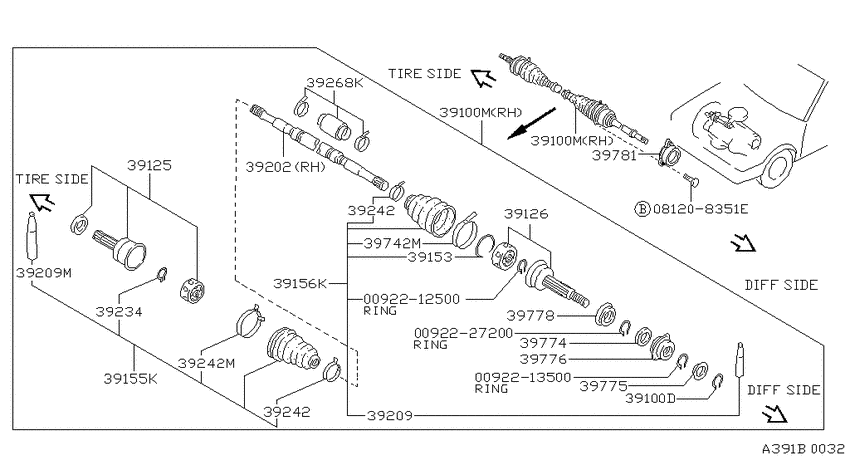

Front drive shaft (ff) (1988-02-01 ~ ; RH; ALL) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092212500
|
0092212500
00922-12500 RING-SNAP,B |
00922-12500 |
US $2.45 |
||
|
0092213500
|
0092213500
00922-13500
RING-SNAP
|
00922-13500 |
— | ||
|
0092227200
|
0092227200
00922-27200 RINGSNAP |
00922-27200 |
US $3.79 |
||
|
081208351E
|
081208351E
081208351E Bolt-hexagon |
081208351E |
US $0.54 |
||
|
39100D
|
39100D
3822530R00 Circlip-Side Gear1989-07-01 ~ ; KA24E; |
3822530R00 |
US $1.73 |
||
|
39100M
|
39100M
39100-55E02 SHAFT ASSY-FRONT DRIVE,RH1989-07-01 ~ ; KA24E.GXE.MT; , |
39100-55E02 |
US $1,141.30 |
||
|
39100M
|
39100M
39100-55E12 SHAFT ASSY-FRONT DRIVE,RH1989-07-01 ~ ; *KA24E.GXE.MT; F/LSD+ANTI SKID |
39100-55E12 |
US $1,141.30 |
||
|
39100M
|
39100M
39100-55E16
SHAFT ASSY-FRONT DRIVE,RH
1989-07-01 ~ ; *KA24E.GXE.MT; F/LSD+ANTI SKID |
39100-55E16 |
— | ||
|
39100M
|
39100M
39100-55E02 SHAFT ASSY-FRONT DRIVE,RH1989-07-01 ~ ; KA24E.GXE.MT; , |
39100-55E02 |
US $1,141.30 |
||
|
39100M
|
39100M
39100-55E12 SHAFT ASSY-FRONT DRIVE,RH1989-07-01 ~ ; *KA24E.GXE.MT; F/LSD+ANTI SKID |
39100-55E12 |
US $1,141.30 |
||
|
39100M
|
39100M
39100-55E16
SHAFT ASSY-FRONT DRIVE,RH
1989-07-01 ~ ; *KA24E.GXE.MT; F/LSD+ANTI SKID |
39100-55E16 |
— | ||
|
39125
|
39125
39211-58E10 JOINT ASSY-OUTER1989-07-01 ~ ; *KA24E.GXE.(MT+AT); W/SENSOR ROTOR F/LSD+ANTI SKID |
39211-58E10 |
US $545.16 |
||
| replacement | |||||
|
39125
|
39125
39211-58E15 JOINT ASSY-OUTER1989-07-01 ~ ; *KA24E.GXE.(MT+AT); W/SENSOR ROTOR F/LSD+ANTI SKID |
39211-58E15 |
US $416.30 |
||
|
39125
|
39125
39211-85E00 JOINT ASSY-OUTER1989-07-01 ~ ; KA24E; , |
39211-85E00 |
US $494.18 |
||
|
39126
|
39126
39711-55E06 JOINT ASSY-INNER1989-07-01 ~ ; KA24E.GXE.(MT+AT); LH |
39711-55E06 |
US $407.81 |
||
|
39126
|
39126
39771-55E06 JOINT ASSY-INNER1989-07-01 ~ 1990-09-01; KA24E.GXE.(MT+AT); RH |
39771-55E06 |
US $407.81 |
||
| replacement | |||||
|
39126
|
39126
39771-55E18
Joint assy-inner
1989-07-01 ~ 1990-09-01; KA24E.GXE.(MT+AT); RH |
39771-55E18 |
— | ||
|
39126
|
39126
39771-55E16 JOINT ASSY-INNER1990-09-01 ~ ; KA24E.GXE.(MT+AT); RH |
39771-55E16 |
US $455.95 |
||
| replacement | |||||
|
39126
|
39126
39771-55E18
Joint assy-inner
1990-09-01 ~ ; KA24E.GXE.(MT+AT); RH |
39771-55E18 |
— | ||
|
39153
|
39153
39735-03P00 Ring-Stopper1989-07-01 ~ ; KA24E; |
39735-03P00 |
US $2.45 |
||
|
39155K
|
39155K
39241-10E26 REPAIR KIT-DUST BOOT,OUTER1989-07-01 ~ ; KA24E; |
39241-10E26 |
US $65.66 |
||
| replacement | |||||
|
39155K
|
39155K
39241-10E88 REPAIR KIT-DUST BOOT,OUTER1989-07-01 ~ ; KA24E; |
39241-10E88 |
US $78.34 |
||
|
39156K
|
39156K
39741-16E25 REPAIR KIT-DUST B00T,INNER1990-01-01 ~ ; KA24E.GXE.MT; |
39741-16E25 |
US $69.84 |
||
|
39156K
|
39156K
39741-16E29
DUST BOOT KIT-REPAIR,INNER
1989-07-01 ~ 1990-01-01; *KA24E.GXE.MT; * F/ANTI SKID CONT-4WHL |
39741-16E29 |
— | ||
|
39156K
|
39156K
39741-16E85 REPAIR KIT-DUST B00T,INNER1989-07-01 ~ 1990-01-01; KA24E.MT +KA24E.XE.AT; , |
39741-16E85 |
US $82.08 |
||
|
39202
|
39202
39204-71E00 SHAFT-FRONT DRIVE,RH1989-07-01 ~ ; KA24E; RH |
39204-71E00 |
US $192.96 |
||
|
39202
|
39202
39205-55E06 SHAFT SUB ASSY-FRONT DRIVE1989-07-01 ~ ; KA24E.GXE.(MT+AT); LH |
39205-55E06 |
US $277.92 |
||
| replacement | |||||
|
39202
|
39202
39205-55E56
Shaft-front drive,lh
1989-07-01 ~ ; KA24E.GXE.(MT+AT); LH |
39205-55E56 |
— | ||
|
39209
|
39209
39709-55E25 GREASE-INNER1989-07-01 ~ ; KA24E; , |
39709-55E25 |
US $30.96 |
||
| replacement | |||||
|
39209
|
39209
C97092U618 Grease-Inner1989-07-01 ~ ; KA24E; , |
C97092U618 |
US $23.33 |
||
|
39209
|
39209
39209-01A27 Grease-Outer1989-07-01 ~ ; KA24E; |
39209-01A27 |
US $27.65 |
||
|
39209M
|
39209M
39209-01A27 Grease-Outer1989-07-01 ~ ; KA24E; |
39209-01A27 |
US $27.65 |
||
|
39234
|
39234
3923410E00 CIRCLIP-DRIVE SHAFT1989-07-01 ~ ; KA24E; |
3923410E00 |
from US $0.98 |
||
|
39242
|
39242
39242-01E10 BAND-BOOT,DRIVE SHAFT1989-07-01 ~ ; KA24E; |
39242-01E10 |
US $4.64 |
||
|
39242
|
39242
3924210E00 BAND-BOOT,DRIVE SHAFT OUTER1989-07-01 ~ ; KA24E; |
3924210E00 |
US $4.42 |
||
|
39242
|
39242
39242-01E10 BAND-BOOT,DRIVE SHAFT1989-07-01 ~ ; KA24E; |
39242-01E10 |
US $4.64 |
||
|
39242
|
39242
3924210E00 BAND-BOOT,DRIVE SHAFT OUTER1989-07-01 ~ ; KA24E; |
3924210E00 |
US $4.42 |
||
|
39242M
|
39242M
3924210E00 BAND-BOOT,DRIVE SHAFT OUTER1989-07-01 ~ ; KA24E; |
3924210E00 |
US $4.42 |
||
|
39268K
|
39268K
39268-55E25 DAMPER KIT-DYNAMIC,FRONT DRIVE SHAFT1989-07-01 ~ ; KA24E; FOR RH |
39268-55E25 |
US $57.60 |
||
|
39268K
|
39268K
39268-55E27 DAMPER KIT-DYNAMIC,FRONT DRIVE SHAFT1989-07-01 ~ ; KA24E.GXE.(MT+AT); FOR LH |
39268-55E27 |
US $48.38 |
||
| replacement | |||||
|
39268K
|
39268K
39268-55E28
Damper kit-dynamic,front drive shaft
1989-07-01 ~ ; KA24E.GXE.(MT+AT); FOR LH |
39268-55E28 |
— | ||
|
39742M
|
39742M
3974203P00 Band-Boot, Drive Shaft Inner1989-07-01 ~ ; KA24E; |
3974203P00 |
US $9.69 |
||
|
39774
|
39774
39774-80E00
BEARING-SUPPORT
1989-07-01 ~ ; KA24E; , |
39774-80E00 |
— | ||
| replacement | |||||
|
39774
|
39774
39774-5Y70E Bearing-Support1989-07-01 ~ ; KA24E; , |
39774-5Y70E |
from US $46.57 |
||
|
39775
|
39775
39775-10E03 SHIELD-DUST1989-07-01 ~ ; KA24E; , |
39775-10E03 |
US $4.03 |
||
|
39776
|
39776
3977610E03 RETAINER-BEARING,FRONT DRIVE SHAFT1989-07-01 ~ ; KA24E; , |
3977610E03 |
US $46.37 |
||
|
39778
|
39778
39778-10E03 SHIELD-DUST1989-07-01 ~ ; KA24E; , |
39778-10E03 |
US $4.75 |
||
|
39781
|
39781
39780-30R00 Bracket-Bearing Support, Fr Drive Shaft1989-07-01 ~ ; KA24E.MT; , |
39780-30R00 |
US $169.92 |
||
