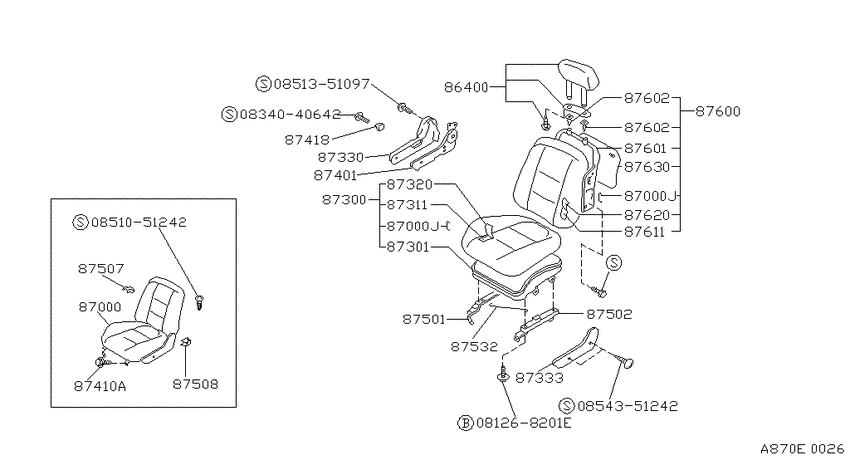

Front seat (1988-02-01 ~ ; RH SEAT(W/LIFTER); GXE) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268201E
|
081268201E
08126-8201E
Bolt-hexagon
|
08126-8201E |
— | ||
|
0834040642
|
0834040642
0834040642
ｽｸﾘﾕ-,ﾏｼﾝ
|
0834040642 |
— | ||
|
0851051242
|
0851051242
08510-51242 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ |
08510-51242 |
US $2.21 |
||
|
0851351097
|
0851351097
08513-51097
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-51097 |
— | ||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $0.54 |
||
|
86400
|
86400
86400-65E00
Head rest assy-front seat
1989-07-01 ~ 1991-06-01; S.GXE; (G) |
86400-65E00 |
— | ||
|
86400
|
86400
86400-65E01
Head rest assy-front seat
1989-07-01 ~ 1991-06-01; S.GXE; (B) |
86400-65E01 |
— | ||
|
86400
|
86400
86400-65E02
Head rest assy-front seat
1989-07-01 ~ 1991-06-01; S.GXE; (C) |
86400-65E02 |
— | ||
|
86400
|
86400
86400-65E05
Head rest assy-front seat
1991-06-01 ~ ; S.GXE; (G) |
86400-65E05 |
— | ||
|
86400
|
86400
86400-65E06
Head rest assy-front seat
1991-06-01 ~ ; S.GXE; (B) |
86400-65E06 |
— | ||
|
86400
|
86400
86400-65E07
Head rest assy-front seat
1991-06-01 ~ ; S.GXE; (C) |
86400-65E07 |
— | ||
|
87000
|
87000
87000-65E00
Seat assy-front,rh
1989-07-01 ~ 1991-06-01; S.GXE; (G) |
87000-65E00 |
— | ||
|
87000
|
87000
87000-65E01
Seat assy-front,rh
1989-07-01 ~ 1991-06-01; S.GXE; (B) |
87000-65E01 |
— | ||
|
87000
|
87000
87000-65E02
Seat assy-front,rh
1989-07-01 ~ 1991-06-01; S.GXE; (C) |
87000-65E02 |
— | ||
|
87000
|
87000
87000-65E05
Seat assy-front,rh
1991-06-01 ~ ; S.GXE; (G) |
87000-65E05 |
— | ||
|
87000
|
87000
87000-65E06
Seat assy-front,rh
1991-06-01 ~ ; S.GXE; (B) |
87000-65E06 |
— | ||
|
87000
|
87000
87000-65E07
Seat assy-front,rh
1991-06-01 ~ ; S.GXE; (C) |
87000-65E07 |
— | ||
|
87000
|
87000
8690132200 Clip1989-07-01 ~ ; S.GXE; , |
8690132200 |
from US $0.22 |
||
|
87000J
|
87000J
8690132200 Clip1989-07-01 ~ ; S.GXE; , |
8690132200 |
from US $0.22 |
||
|
87000J
|
87000J
8690132200 Clip1989-07-01 ~ ; S.GXE; , |
8690132200 |
from US $0.22 |
||
|
87300
|
87300
87300-65E00
Cushion assy-seat,rh
1989-07-01 ~ 1991-06-01; S.GXE; (G) |
87300-65E00 |
— | ||
|
87300
|
87300
87300-65E01
Cushion assy-seat,rh
1989-07-01 ~ 1991-06-01; S.GXE; (B) |
87300-65E01 |
— | ||
|
87300
|
87300
87300-65E02
Cushion assy-seat,rh
1989-07-01 ~ 1991-06-01; S.GXE; (C) |
87300-65E02 |
— | ||
|
87300
|
87300
87300-65E05
Cushion assy-seat,rh
1991-06-01 ~ ; S.GXE; (G) |
87300-65E05 |
— | ||
|
87300
|
87300
87300-65E06
Cushion assy-seat,rh
1991-06-01 ~ ; S.GXE; (B) |
87300-65E06 |
— | ||
|
87300
|
87300
87300-65E07
Cushion assy-seat,rh
1991-06-01 ~ ; S.GXE; (C) |
87300-65E07 |
— | ||
|
87301
|
87301
87301-85E00 ﾌﾚ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ1989-07-01 ~ ; S.GXE; , |
87301-85E00 |
US $169.92 |
||
|
87311
|
87311
87361-65E00
Pad-front seat cushion,rh
1989-07-01 ~ ; S.GXE; , |
87361-65E00 |
— | ||
|
87320
|
87320
87320-65E00
Trim assy-seat cushion,rh
1989-07-01 ~ 1991-06-01; S.GXE; (G) |
87320-65E00 |
— | ||
|
87320
|
87320
87320-65E01
Trim assy-seat cushion,rh
1989-07-01 ~ 1991-06-01; S.GXE; (B) |
87320-65E01 |
— | ||
|
87320
|
87320
87320-65E02
Trim assy-seat cushion,rh
1989-07-01 ~ 1991-06-01; S.GXE; (C) |
87320-65E02 |
— | ||
|
87320
|
87320
87320-65E05
Trim assy-seat cushion,rh
1991-06-01 ~ ; S.GXE; (G) |
87320-65E05 |
— | ||
|
87320
|
87320
87320-65E06
Trim assy-seat cushion,rh
1991-06-01 ~ ; S.GXE; (B) |
87320-65E06 |
— | ||
|
87320
|
87320
87320-65E07
Trim assy-seat cushion,rh
1991-06-01 ~ ; S.GXE; (C) |
87320-65E07 |
— | ||
|
87330
|
87330
87330-65E22
Finisher assy-cushion,front seat rh
1989-07-01 ~ ; S.GXE; (C) |
87330-65E22 |
— | ||
|
87330
|
87330
87330-85E20
Finisher assy-cushion,front seat rh
1989-07-01 ~ ; S.GXE; (B) |
87330-85E20 |
— | ||
|
87330
|
87330
87330-85E22
Finisher assy-cushion,front seat rh
1989-07-01 ~ ; S.GXE; (G) |
87330-85E22 |
— | ||
|
87333
|
87333
87406-65E00
Finisher-device,rh seat inside
1989-07-01 ~ ; S.GXE; (G) |
87406-65E00 |
— | ||
|
87333
|
87333
87406-65E01
Finisher-device,rh seat inside
1989-07-01 ~ ; S.GXE; (B) |
87406-65E01 |
— | ||
|
87333
|
87333
87406-65E02
Finisher-device,rh seat inside
1989-07-01 ~ ; S.GXE; (C) |
87406-65E02 |
— | ||
|
87401
|
87401
87401-65E00
Device-reclining,rh seat outside
1989-07-01 ~ ; S.GXE; , |
87401-65E00 |
— | ||
|
87410A
|
87410A
01121-03141 BOLT1989-07-01 ~ ; S; , |
01121-03141 |
US $1.73 |
||
|
87418
|
87418
87418-51E00 ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ1989-07-01 ~ ; S.GXE; (B) |
87418-51E00 |
US $5.04 |
||
|
87418
|
87418
87418-51E02 ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ1989-07-01 ~ ; S.GXE; (G) |
87418-51E02 |
US $5.90 |
||
|
87418
|
87418
87418-51E03 ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ1989-07-01 ~ ; S.GXE; (C) |
87418-51E03 |
US $5.04 |
||
|
87501
|
87501
87501-65E00
Slide-rh seat,outside
1989-07-01 ~ ; S.GXE; , |
87501-65E00 |
— | ||
|
87502
|
87502
87502-65E00
Slide-rh seat,inside
1989-07-01 ~ ; S.GXE; , |
87502-65E00 |
— | ||
|
87507
|
87507
87509-85E10
Cover-seat slide
1989-07-01 ~ ; S; (B) |
87509-85E10 |
— | ||
|
87507
|
87507
87509-85E12 ｶﾊﾞ-,ｼ-ﾄ ｽﾗｲﾄﾞ1989-07-01 ~ ; S; (G) |
87509-85E12 |
US $6.91 |
||
|
87507
|
87507
87509-85E13
Cover-seat slide outer,rh front
1989-07-01 ~ ; S; (C) |
87509-85E13 |
— | ||
|
87508
|
87508
87508-85E10
Cover-seat slide
1989-07-01 ~ ; S; (B) |
87508-85E10 |
— | ||
|
87508
|
87508
87508-85E12 ｶﾊﾞ-,ｼ-ﾄ ｽﾗｲﾄﾞ1989-07-01 ~ ; S; (G) |
87508-85E12 |
US $6.91 |
||
|
87508
|
87508
87508-85E13
Cover-seat slide inner,rh front
1989-07-01 ~ ; S; (C) |
87508-85E13 |
— | ||
|
87532
|
87532
87532-85E00 ﾜｲﾔ,ﾚﾘ-ｽﾞ1989-07-01 ~ ; S.GXE; , |
87532-85E00 |
US $5.62 |
||
|
87600
|
87600
87600-65E00
Back assy-front seat,rh
1989-07-01 ~ 1991-06-01; S.GXE; (G) |
87600-65E00 |
— | ||
|
87600
|
87600
87600-65E01
Back assy-front seat,rh
1989-07-01 ~ 1991-06-01; S.GXE; (B) |
87600-65E01 |
— | ||
|
87600
|
87600
87600-65E02
Back assy-front seat,rh
1989-07-01 ~ 1991-06-01; S.GXE; (C) |
87600-65E02 |
— | ||
|
87600
|
87600
87600-65E05
Back assy-front seat,rh
1991-06-01 ~ ; S.GXE; (G) |
87600-65E05 |
— | ||
|
87600
|
87600
87600-65E06
Back assy-front seat,rh
1991-06-01 ~ ; S.GXE; (B) |
87600-65E06 |
— | ||
|
87600
|
87600
87600-65E07
Back assy-front seat,rh
1991-06-01 ~ ; S.GXE; (C) |
87600-65E07 |
— | ||
|
87601
|
87601
87601-85E10 ﾌﾚ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ1989-07-01 ~ ; S.GXE; , |
87601-85E10 |
US $259.20 |
||
|
87602
|
87602
87602-10V01 Stay Assy-Headrest, Lh1989-07-01 ~ ; S.GXE; (C) LOCK TYPE |
87602-10V01 |
US $4.90 |
||
|
87602
|
87602
8760251E02 STAY ASSY-HEADREST,LH1989-07-01 ~ ; S.GXE; (G) LOCK TYPE |
8760251E02 |
US $4.03 |
||
|
87602
|
87602
87603-10V01 Stay Assy-Headrest, Lh1989-07-01 ~ ; S.GXE; (C) FREE TYPE |
87603-10V01 |
US $4.03 |
||
|
87602
|
87602
87603-51E02 STAY ASSY-HEADREST,LH1989-07-01 ~ ; S.GXE; (G) FREE TYPE |
87603-51E02 |
US $4.03 |
||
|
87602
|
87602
87602-10V01 Stay Assy-Headrest, Lh1989-07-01 ~ ; S.GXE; (C) LOCK TYPE |
87602-10V01 |
US $4.90 |
||
|
87602
|
87602
8760251E02 STAY ASSY-HEADREST,LH1989-07-01 ~ ; S.GXE; (G) LOCK TYPE |
8760251E02 |
US $4.03 |
||
|
87602
|
87602
87603-10V01 Stay Assy-Headrest, Lh1989-07-01 ~ ; S.GXE; (C) FREE TYPE |
87603-10V01 |
US $4.03 |
||
|
87602
|
87602
87603-51E02 STAY ASSY-HEADREST,LH1989-07-01 ~ ; S.GXE; (G) FREE TYPE |
87603-51E02 |
US $4.03 |
||
|
87611
|
87611
87611-65E00
Pad-front seat back,rh
1989-07-01 ~ ; S.GXE; RH&LH |
87611-65E00 |
— | ||
|
87620
|
87620
87620-65E00
Trim assy-back,front seat rh
1989-07-01 ~ 1991-06-01; S.GXE; (G) |
87620-65E00 |
— | ||
|
87620
|
87620
87620-65E01
Trim assy-back,front seat rh
1989-07-01 ~ 1991-06-01; S.GXE; (B) |
87620-65E01 |
— | ||
|
87620
|
87620
87620-65E02
Trim assy-back,front seat rh
1989-07-01 ~ 1991-06-01; S.GXE; (C) |
87620-65E02 |
— | ||
|
87620
|
87620
87620-65E05
Trim assy-back,front seat rh
1991-06-01 ~ ; S.GXE; (G) |
87620-65E05 |
— | ||
|
87620
|
87620
87620-65E06
Trim assy-back,front seat rh
1991-06-01 ~ ; S.GXE; (B) |
87620-65E06 |
— | ||
|
87620
|
87620
87620-65E07
Trim assy-back,front seat rh
1991-06-01 ~ ; S.GXE; (C) |
87620-65E07 |
— | ||
|
87630
|
87630
87640-65E00
Board assy-seat back,rh
1989-07-01 ~ 1991-06-01; S.GXE; (G) |
87640-65E00 |
— | ||
|
87630
|
87630
87640-65E01
Board assy-seat back,rh
1989-07-01 ~ 1991-06-01; S.GXE; (B) |
87640-65E01 |
— | ||
|
87630
|
87630
87640-65E02
Board assy-seat back,rh
1989-07-01 ~ 1991-06-01; S.GXE; (C) |
87640-65E02 |
— | ||
|
87630
|
87630
87640-65E05
Board assy-seat back,rh
1991-06-01 ~ ; S.GXE; (G) |
87640-65E05 |
— | ||
|
87630
|
87630
87640-65E06
Board assy-seat back,rh
1991-06-01 ~ ; S.GXE; (B) |
87640-65E06 |
— | ||
|
87630
|
87630
87640-65E07
Board assy-seat back,rh
1991-06-01 ~ ; S.GXE; (C) |
87640-65E07 |
— |
