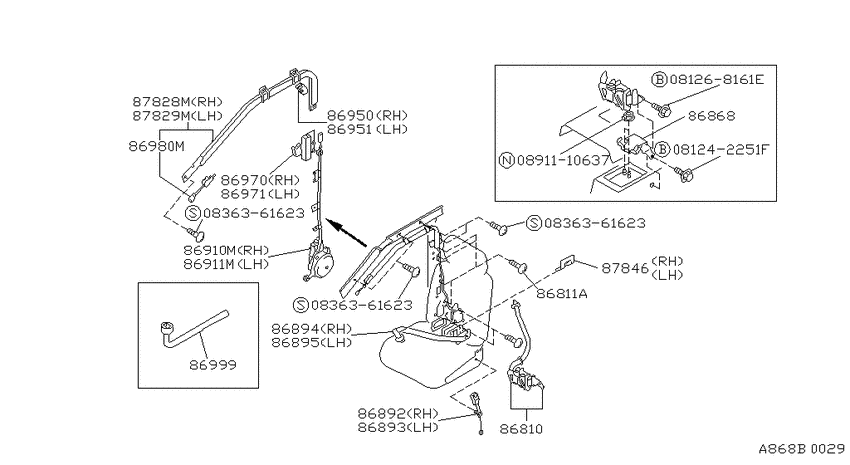

Front seat belt (1988-02-01 ~ ; ALL) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081242251F
|
081242251F
08124-2251F
Bolt-hexagon
|
08124-2251F |
— | ||
|
081268161E
|
081268161E
08126-8161E
Bolt-hexagon
|
08126-8161E |
— | ||
|
0836361623
|
0836361623
08363-61623
Болт
|
08363-61623 |
— | ||
|
0836361623
|
0836361623
08363-61623
Болт
|
08363-61623 |
— | ||
|
0836361623
|
0836361623
08363-61623
Болт
|
08363-61623 |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
86810
|
86810
86862-65E00
Belt-shoulder,front
1989-07-01 ~ ; S; (B) |
86862-65E00 |
— | ||
|
86810
|
86810
86862-65E02
Belt-shoulder,front
1989-07-01 ~ ; S; (G) |
86862-65E02 |
— | ||
|
86810
|
86810
86862-65E03
Belt-shoulder,front
1989-07-01 ~ ; S; (C) |
86862-65E03 |
— | ||
|
86811A
|
86811A
01466-00022 Bolt1989-07-01 ~ ; S; , |
01466-00022 |
from US $0.78 |
||
|
86868
|
86868
86868-65E00
Bracket assy-shoulder belt,rh
1989-07-01 ~ ; S; , |
86868-65E00 |
— | ||
|
86892
|
86892
86842-65E00
Belt assy-buckle,passive rh
1989-07-01 ~ ; S; (B) |
86842-65E00 |
— | ||
|
86892
|
86892
86842-65E02
Belt assy-buckle,passive rh
1989-07-01 ~ ; S; (G) |
86842-65E02 |
— | ||
|
86892
|
86892
86842-65E03
Belt assy-buckle,passive rh
1989-07-01 ~ ; S; (C) |
86842-65E03 |
— | ||
|
86893
|
86893
86843-65E00
Belt assy-buckle,passive lh
1989-07-01 ~ ; S; (B) |
86843-65E00 |
— | ||
|
86893
|
86893
86843-65E02
Belt assy-buckle,passive lh
1989-07-01 ~ ; S; (G) |
86843-65E02 |
— | ||
|
86893
|
86893
86843-65E03
Belt assy-buckle,passive lh
1989-07-01 ~ ; S; (C) |
86843-65E03 |
— | ||
|
86893
|
86893
86843-65E12
Belt assy-buckle,passive lh
1990-09-01 ~ ; S; (G) |
86843-65E12 |
— | ||
|
86893
|
86893
86843-65E13
Belt assy-buckle,passive lh
1990-09-01 ~ ; S; (C) |
86843-65E13 |
— | ||
|
86894
|
86894
86894-65E00
Belt assy-tongue,passive rh
1989-07-01 ~ ; S; (B) |
86894-65E00 |
— | ||
|
86894
|
86894
86894-65E02
Belt assy-tongue,passive rh
1989-07-01 ~ 1991-11-01; S; (G) |
86894-65E02 |
— | ||
|
86894
|
86894
86894-65E03
Belt assy-tongue,passive rh
1989-07-01 ~ 1991-11-01; S; (C) |
86894-65E03 |
— | ||
|
86894
|
86894
86894-65E11
Belt assy-tongue,passive rh
1991-11-01 ~ 1992-05-01; S; (G) |
86894-65E11 |
— | ||
|
86894
|
86894
86894-65E12
Belt assy-tongue,passive rh
1991-11-01 ~ ; S; (G) |
86894-65E12 |
— | ||
|
86894
|
86894
86894-65E13
Belt assy-tongue,passive rh
1992-05-01 ~ ; S; (C) |
86894-65E13 |
— | ||
|
86895
|
86895
86895-65E00
Belt assy-tongue,passive lh
1989-07-01 ~ ; S; (B) |
86895-65E00 |
— | ||
|
86895
|
86895
86895-65E02
Belt assy-tongue,passive lh
1989-07-01 ~ 1991-11-01; S; (G) |
86895-65E02 |
— | ||
|
86895
|
86895
86895-65E03
Belt assy-tongue,passive lh
1989-07-01 ~ 1991-11-01; S; (C) |
86895-65E03 |
— | ||
|
86895
|
86895
86895-65E11
Belt assy-tongue,passive lh
1991-11-01 ~ 1992-05-01; S; (G) |
86895-65E11 |
— | ||
|
86895
|
86895
86895-65E12
Belt assy-tongue,passive lh
1991-11-01 ~ ; S; (G) |
86895-65E12 |
— | ||
|
86895
|
86895
86895-65E13
Belt assy-tongue,passive lh
1992-05-01 ~ ; S; (C) |
86895-65E13 |
— | ||
|
86910M
|
86910M
86910-65E00
Motor assy-passive,rh
1989-07-01 ~ ; S; , |
86910-65E00 |
— | ||
|
86911M
|
86911M
86911-65E00
Motor assy-passive,lh
1989-07-01 ~ ; S; , |
86911-65E00 |
— | ||
|
86950
|
86950
86950-65E00
Buckle assy-passive belt,rh
1989-07-01 ~ ; S; , |
86950-65E00 |
— | ||
|
86951
|
86951
86951-65E00
Buckle assy-passive belt,lh
1989-07-01 ~ ; S; , |
86951-65E00 |
— | ||
|
86970
|
86970
86970-65E00
Latch assy-passive,rh
1989-07-01 ~ ; S; , |
86970-65E00 |
— | ||
|
86971
|
86971
86971-65E00
Latch assy-passive,lh
1989-07-01 ~ ; S; , |
86971-65E00 |
— | ||
|
86980M
|
86980M
86980-65E00
Switch assy-passive,rh
1989-07-01 ~ ; S; , |
86980-65E00 |
— | ||
|
86999
|
86999
86999-42E00
Wrench-motor,passive
1989-07-01 ~ ; S; , |
86999-42E00 |
— | ||
|
87828M
|
87828M
86920-65E00
Guide rail assy-passive,front rh
1989-07-01 ~ ; S; , |
86920-65E00 |
— | ||
|
87829M
|
87829M
86921-65E00
Guide rail assy-passive,front lh
1989-07-01 ~ ; S; , |
86921-65E00 |
— | ||
|
87846
|
87846
87846-65E03
Finisher-retractor,rh
1989-07-01 ~ ; S; (C) RH |
87846-65E03 |
— | ||
|
87846
|
87846
87846-85E00
Finisher-retractor,rh
1989-07-01 ~ ; S; (B) RH |
87846-85E00 |
— | ||
|
87846
|
87846
87846-85E02
Finisher-retractor,rh
1989-07-01 ~ ; S; (G) RH |
87846-85E02 |
— | ||
|
87846
|
87846
87847-65E03
Finisher-retractor,rh
1989-07-01 ~ ; S; (C) LH |
87847-65E03 |
— | ||
|
87846
|
87846
87847-85E00
Finisher-retractor,lh
1989-07-01 ~ ; S; (B) LH |
87847-85E00 |
— | ||
|
87846
|
87846
87847-85E02
Finisher-retractor,lh
1989-07-01 ~ ; S; (G) LH |
87847-85E02 |
— |
