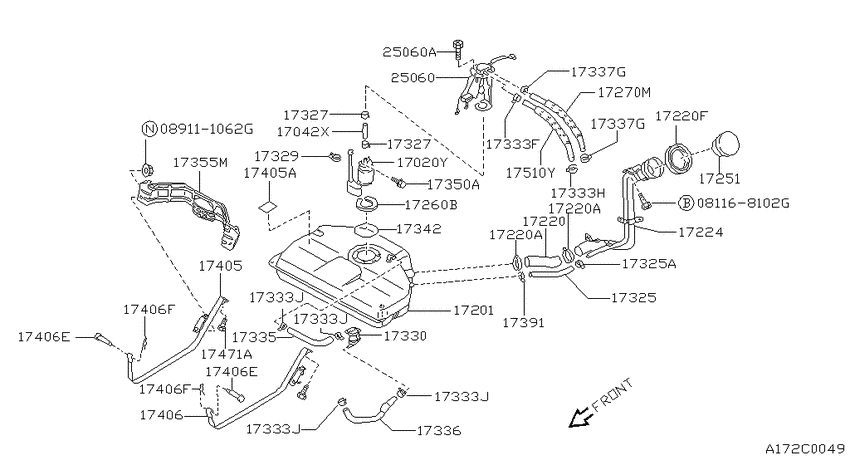

Fuel tank (1988-02-01 ~ ; KA24E) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.56 |
||
|
17020Y
|
17020Y
17042-62E00
FUEL PUMP
1989-07-01 ~ ; KA24E; , |
17042-62E00 |
— | ||
|
17042X
|
17042X
A874100039 Hose-Fuel1989-07-01 ~ ; KA24E; L=55 |
A874100039 |
from US $25.68 |
||
|
17201
|
17201
17202-65E00
TANK ASSY-FUEL
1989-07-01 ~ ; KA24E; , |
17202-65E00 |
— | ||
|
17220
|
17220
17228-51E00 HOSE-FILLER1989-07-01 ~ ; KA24E; , |
17228-51E00 |
US $44.77 |
||
|
17220
|
17220
01555-00311
CLAMP-HOSE
1989-07-01 ~ ; KA24E; , |
01555-00311 |
— | ||
| replacement | |||||
|
17220
|
17220
0155500951 CLAMP1989-07-01 ~ ; KA24E; , |
0155500951 |
from US $2.98 |
||
|
17220
|
17220
17240-50Y00 Grommet-Filler Base1989-07-01 ~ ; KA24E; , |
17240-50Y00 |
from US $18.99 |
||
|
17220
|
17220
17240-51E00 GROMMET-FILLER BASE1989-07-01 ~ ; KA24E; , |
17240-51E00 |
US $25.20 |
||
|
17220A
|
17220A
01555-00311
CLAMP-HOSE
1989-07-01 ~ ; KA24E; , |
01555-00311 |
— | ||
| replacement | |||||
|
17220A
|
17220A
0155500951 CLAMP1989-07-01 ~ ; KA24E; , |
0155500951 |
from US $2.98 |
||
|
17220A
|
17220A
01555-00311
CLAMP-HOSE
1989-07-01 ~ ; KA24E; , |
01555-00311 |
— | ||
| replacement | |||||
|
17220A
|
17220A
0155500951 CLAMP1989-07-01 ~ ; KA24E; , |
0155500951 |
from US $2.98 |
||
|
17220F
|
17220F
17240-50Y00 Grommet-Filler Base1989-07-01 ~ ; KA24E; , |
17240-50Y00 |
from US $18.99 |
||
|
17220F
|
17220F
17240-51E00 GROMMET-FILLER BASE1989-07-01 ~ ; KA24E; , |
17240-51E00 |
US $25.20 |
||
|
17224
|
17224
17221-65E00
TUBE ASSY-FILLER
1989-07-01 ~ ; KA24E; , |
17221-65E00 |
— | ||
| replacement | |||||
|
17224
|
17224
17221-65E60
Tube assy-filler
1989-07-01 ~ ; KA24E; , |
17221-65E60 |
— | ||
|
17251
|
17251
17251-79900
Cap Assy-Filler
1989-07-01 ~ 1990-12-01; KA24E; , |
17251-79900 |
— | ||
| replacement | |||||
|
17251
|
17251
1725179920 Cap Assy-Filler1989-07-01 ~ 1990-12-01; KA24E; , |
1725179920 |
from US $32.99 |
||
|
17251
|
17251
17251-79910
Cap Assy-Filler
1989-07-01 ~ 1990-12-01; KA24E; , |
17251-79910 |
— | ||
| replacement | |||||
|
17251
|
17251
1725179920 Cap Assy-Filler1989-07-01 ~ 1990-12-01; KA24E; , |
1725179920 |
from US $32.99 |
||
|
17251
|
17251
17251-79912 Cap Assy-Filler1990-12-01 ~ ; KA24E; , |
17251-79912 |
US $35.42 |
||
| replacement | |||||
|
17251
|
17251
17251-F9912 Cap Assy-Filler1990-12-01 ~ ; KA24E; , |
17251-F9912 |
US $35.02 |
||
|
17260B
|
17260B
1704351E00 SUPPORT-PUMP,RUBBER1989-07-01 ~ ; KA24E; , |
1704351E00 |
US $16.50 |
||
|
17270M
|
17270M
17551-51E00 HOSE-OUTLET1989-07-01 ~ ; KA24E; , |
17551-51E00 |
US $19.15 |
||
| replacement | |||||
|
17270M
|
17270M
A7551-51E00
Hose-outlet
1989-07-01 ~ ; KA24E; , |
A7551-51E00 |
— | ||
|
17325
|
17325
17226-51E00 HOSE-VENTILATION1989-07-01 ~ ; KA24E; , |
17226-51E00 |
US $14.69 |
||
| replacement | |||||
|
17325
|
17325
A7226-51E00
Hose-ventilation
1989-07-01 ~ ; KA24E; , |
A7226-51E00 |
— | ||
|
17325
|
17325
16439-V5000
Clamp-Hose A
1989-07-01 ~ ; KA24E; , |
16439-V5000 |
— | ||
| replacement | |||||
|
17325
|
17325
16439V500B Clamp-Hose A1989-07-01 ~ ; KA24E; , |
16439V500B |
from US $2.52 |
||
|
17325A
|
17325A
16439-V5000
Clamp-Hose A
1989-07-01 ~ ; KA24E; , |
16439-V5000 |
— | ||
| replacement | |||||
|
17325A
|
17325A
16439V500B Clamp-Hose A1989-07-01 ~ ; KA24E; , |
16439V500B |
from US $2.52 |
||
|
17327
|
17327
1643953A05 Clamp1989-07-01 ~ ; KA24E; , |
1643953A05 |
US $4.42 |
||
|
17327
|
17327
1643953A05 Clamp1989-07-01 ~ ; KA24E; , |
1643953A05 |
US $4.42 |
||
|
17329
|
17329
3645811C00 Clip1989-07-01 ~ ; KA24E; , |
3645811C00 |
US $4.03 |
||
|
17330
|
17330
17370-89910 Valve Assy-Check1989-07-01 ~ ; KA24E; , |
17370-89910 |
US $45.33 |
||
|
17333F
|
17333F
01558-00131
CLAMP-HOSE
1989-07-01 ~ ; KA24E; , |
01558-00131 |
— | ||
| replacement | |||||
|
17333F
|
17333F
0155800421 CLAMP-HOSE1989-07-01 ~ ; KA24E; , |
0155800421 |
from US $2.24 |
||
|
17333H
|
17333H
01555-00191 CLAMP1989-07-01 ~ ; KA24E; , |
01555-00191 |
US $2.45 |
||
| replacement | |||||
|
17333H
|
17333H
0155500801 CLAMP1989-07-01 ~ ; KA24E; , |
0155500801 |
US $3.06 |
||
|
17333J
|
17333J
0155800111
CLAMP
1989-07-01 ~ ; KA24E; , |
0155800111 |
— | ||
| replacement | |||||
|
17333J
|
17333J
01558-00401 CLAMP-HOSE1989-07-01 ~ ; KA24E; , |
01558-00401 |
from US $2.89 |
||
|
17333J
|
17333J
0155800111
CLAMP
1989-07-01 ~ ; KA24E; , |
0155800111 |
— | ||
| replacement | |||||
|
17333J
|
17333J
01558-00401 CLAMP-HOSE1989-07-01 ~ ; KA24E; , |
01558-00401 |
from US $2.89 |
||
|
17333J
|
17333J
0155800111
CLAMP
1989-07-01 ~ ; KA24E; , |
0155800111 |
— | ||
| replacement | |||||
|
17333J
|
17333J
01558-00401 CLAMP-HOSE1989-07-01 ~ ; KA24E; , |
01558-00401 |
from US $2.89 |
||
|
17333J
|
17333J
0155800111
CLAMP
1989-07-01 ~ ; KA24E; , |
0155800111 |
— | ||
| replacement | |||||
|
17333J
|
17333J
01558-00401 CLAMP-HOSE1989-07-01 ~ ; KA24E; , |
01558-00401 |
from US $2.89 |
||
|
17335
|
17335
17335-51E10 HOSE-BREATHER1989-07-01 ~ ; KA24E; , |
17335-51E10 |
US $12.47 |
||
|
17336
|
17336
17336-85E10
HOSE-BREATHER
1989-07-01 ~ ; KA24E; , |
17336-85E10 |
— | ||
|
17337G
|
17337G
1643953A00 Clamp-Hose1989-07-01 ~ 1990-08-01; KA24E; , |
1643953A00 |
from US $2.37 |
||
|
17337G
|
17337G
1643953A00 Clamp-Hose1989-07-01 ~ 1990-08-01; KA24E; , |
1643953A00 |
from US $2.37 |
||
|
17342
|
17342
1734201A00 Seal-O Ring, Fuel Gauge1989-07-01 ~ ; KA24E; , |
1734201A00 |
from US $16.50 |
||
|
17350A
|
17350A
01431-00351 SCREW1989-07-01 ~ ; KA24E; , |
01431-00351 |
US $2.21 |
||
|
17355M
|
17355M
17285-85E00 PROTECTOR-FUEL TANK1989-07-01 ~ ; KA24E; , |
17285-85E00 |
US $41.04 |
||
|
17391
|
17391
16439-V5000
Clamp-Hose A
1989-07-01 ~ ; KA24E; , |
16439-V5000 |
— | ||
| replacement | |||||
|
17391
|
17391
16439V500B Clamp-Hose A1989-07-01 ~ ; KA24E; , |
16439V500B |
from US $2.52 |
||
|
17405
|
17405
17406-65E00
BAND ASSY-FUEL TANK MOUNTING
1989-07-01 ~ ; KA24E; , |
17406-65E00 |
— | ||
|
17405
|
17405
17243-51E00
SHIM-FUEL TANK
1989-07-01 ~ ; KA24E; , |
17243-51E00 |
— | ||
|
17405A
|
17405A
17243-51E00
SHIM-FUEL TANK
1989-07-01 ~ ; KA24E; , |
17243-51E00 |
— | ||
|
17406
|
17406
17407-65E00
BAND ASSY-FUEL TANK MOUNTING
1989-07-01 ~ ; KA24E; , |
17407-65E00 |
— | ||
|
17406
|
17406
46123-51E00 PIN-CLEVIS1989-07-01 ~ ; KA24E; , |
46123-51E00 |
US $5.81 |
||
|
17406
|
17406
0153200022 PIN1989-07-01 ~ ; KA24E; , |
0153200022 |
US $1.73 |
||
|
17406E
|
17406E
46123-51E00 PIN-CLEVIS1989-07-01 ~ ; KA24E; , |
46123-51E00 |
US $5.81 |
||
|
17406E
|
17406E
46123-51E00 PIN-CLEVIS1989-07-01 ~ ; KA24E; , |
46123-51E00 |
US $5.81 |
||
|
17406F
|
17406F
0153200022 PIN1989-07-01 ~ ; KA24E; , |
0153200022 |
US $1.73 |
||
|
17406F
|
17406F
0153200022 PIN1989-07-01 ~ ; KA24E; , |
0153200022 |
US $1.73 |
||
|
17471A
|
17471A
01121-03471 Plug-Drain1989-07-01 ~ ; KA24E; , |
01121-03471 |
US $4.18 |
||
|
17510Y
|
17510Y
17555-51E00 HOSE-RETURN1989-07-01 ~ ; KA24E; , |
17555-51E00 |
US $15.26 |
||
|
25060
|
25060
25060-51E60 GAUGE ASSY-UNIT,FUEL TANK1989-07-01 ~ ; KA24E; , |
25060-51E60 |
US $372.41 |
||
|
25060
|
25060
0143600291 SCREW1989-07-01 ~ ; KA24E; , |
0143600291 |
from US $0.72 |
||
|
25060A
|
25060A
0143600291 SCREW1989-07-01 ~ ; KA24E; , |
0143600291 |
from US $0.72 |
||
