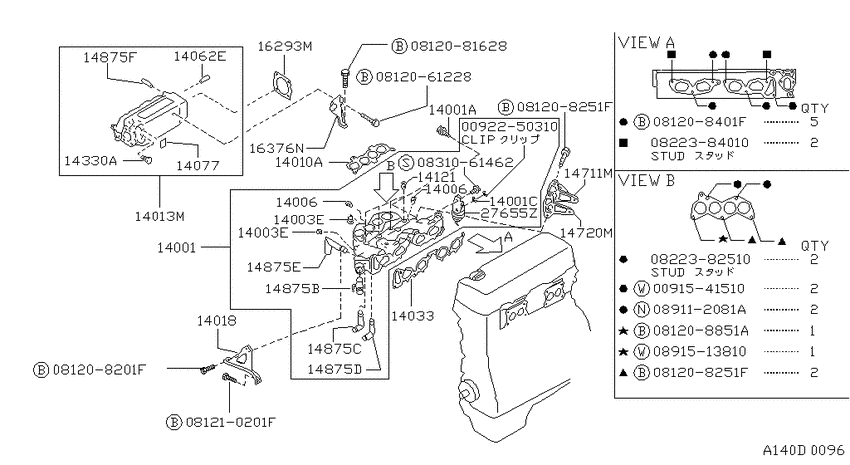

Manifold (1988-02-01 ~ ; INTAKE PARTS; KA24E) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0091541510
|
0091541510
00915-41510 WASHER-PLAIN |
00915-41510 |
US $1.93 |
||
|
0092250310
|
0092250310
00922-50310
RINGSNAP
|
00922-50310 |
— | ||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812081628
|
0812081628
08120-81628
Bolt-hexagon
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208201F
|
081208201F
081208201F
Bolt-hexagon
|
081208201F |
— | ||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208401F
|
081208401F
08120-8401F Bolt-hexagon |
08120-8401F |
US $0.57 |
||
|
081208851A
|
081208851A
08120-8851A Bolt-hexagon |
08120-8851A |
US $3.06 |
||
|
081210201F
|
081210201F
08121-0201F
Bolt-hexagon
|
08121-0201F |
— | ||
|
0822382510
|
0822382510
0822382510
STUD
|
0822382510 |
— | ||
|
0822384010
|
0822384010
0822384010
STUD
|
0822384010 |
— | ||
|
0831061462
|
0831061462
08310-61462
SCREWMACHINE
|
08310-61462 |
— | ||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
14001
|
14001
14001-65E01
MANIFOLD ASSY-INTAKE
1989-07-01 ~ ; KA24E; , |
14001-65E01 |
— | ||
|
14001
|
14001
14663-12G00 Bolt1989-07-01 ~ ; KA24E; , |
14663-12G00 |
US $2.45 |
||
| replacement | |||||
|
14001
|
14001
14663-12G0B
Bolt
1989-07-01 ~ ; KA24E; , |
14663-12G0B |
— | ||
|
14001
|
14001
16084-22000 Washer-Plain1989-07-01 ~ ; KA24E; , |
16084-22000 |
US $2.88 |
||
| replacement | |||||
|
14001
|
14001
16084-2200A Washer-Plain1989-07-01 ~ ; KA24E; , |
16084-2200A |
US $2.88 |
||
|
14001A
|
14001A
14663-12G00 Bolt1989-07-01 ~ ; KA24E; , |
14663-12G00 |
US $2.45 |
||
| replacement | |||||
|
14001A
|
14001A
14663-12G0B
Bolt
1989-07-01 ~ ; KA24E; , |
14663-12G0B |
— | ||
|
14001C
|
14001C
16084-22000 Washer-Plain1989-07-01 ~ ; KA24E; , |
16084-22000 |
US $2.88 |
||
| replacement | |||||
|
14001C
|
14001C
16084-2200A Washer-Plain1989-07-01 ~ ; KA24E; , |
16084-2200A |
US $2.88 |
||
|
14003E
|
14003E
14088-V5000 Plug-Blind1989-07-01 ~ ; KA24E; |
14088-V5000 |
US $3.31 |
||
|
14003E
|
14003E
14088-V5000 Plug-Blind1989-07-01 ~ ; KA24E; |
14088-V5000 |
US $3.31 |
||
|
14006
|
14006
14088-V5001 Blind Plug1989-07-01 ~ ; KA24E; |
14088-V5001 |
US $3.46 |
||
|
14006
|
14006
14088-V5001 Blind Plug1989-07-01 ~ ; KA24E; |
14088-V5001 |
US $3.46 |
||
|
14010A
|
14010A
14032-30R00
Gasket-Intake & Exhaust Manifold
1989-07-01 ~ ; KA24E; , |
14032-30R00 |
— | ||
| replacement | |||||
|
14010A
|
14010A
14032-30R10
Gasket-intake manifold
1989-07-01 ~ ; KA24E; , |
14032-30R10 |
— | ||
|
14013M
|
14013M
14010-65E00
COLLECTOR-INTAKE MANIFOLD
1989-07-01 ~ ; KA24E; , |
14010-65E00 |
— | ||
|
14018
|
14018
14018-30R01
Support-Manifold
1989-07-01 ~ ; KA24E; , |
14018-30R01 |
— | ||
|
14033
|
14033
14035-40F00 Gasket-Manifold1989-07-01 ~ ; KA24E; , |
14035-40F00 |
US $5.04 |
||
|
14062E
|
14062E
14876-30R00
Connector-Straight
1989-07-01 ~ ; KA24E; , |
14876-30R00 |
— | ||
|
14077
|
14077
1407726E00 LABEL-CAUTION,AIR RELIEF1989-07-01 ~ ; KA24E; , |
1407726E00 |
US $3.75 |
||
|
14121
|
14121
14088-V5002 Blind Plug1989-07-01 ~ ; KA24E; |
14088-V5002 |
US $4.57 |
||
|
14330A
|
14330A
14053-42L00
Plug Assy-Air Relief
1989-07-01 ~ ; KA24E; , |
14053-42L00 |
— | ||
| replacement | |||||
|
14330A
|
14330A
1405342L0A Plug Assy-Air Relief1989-07-01 ~ ; KA24E; , |
1405342L0A |
US $3.89 |
||
|
14711M
|
14711M
14711-30R00
Egr Passage
1989-07-01 ~ ; KA24E; , |
14711-30R00 |
— | ||
|
14720M
|
14720M
14720-30R00
Gasket-Egr Cover
1989-07-01 ~ ; KA24E; , |
14720-30R00 |
— | ||
| replacement | |||||
|
14720M
|
14720M
14720-30R10
Gasket-egr passage
1989-07-01 ~ ; KA24E; , |
14720-30R10 |
— | ||
|
14875B
|
14875B
14876-30R03
Connector-Intake Manifold Water
1989-07-01 ~ ; KA24E; |
14876-30R03 |
— | ||
|
14875C
|
14875C
14876-30R05 Connector-Intake Manifold Water1989-07-01 ~ ; KA24E; |
14876-30R05 |
US $9.36 |
||
|
14875D
|
14875D
14876-30R06 Connector-Intake Manifold Water1989-07-01 ~ ; KA24E; |
14876-30R06 |
US $15.41 |
||
|
14875E
|
14875E
14876-30R04 Connector-Intake Manifold Water1989-07-01 ~ ; KA24E; |
14876-30R04 |
US $26.78 |
||
|
14875F
|
14875F
14875-60U01 Connector-Vacuum Hose1989-07-01 ~ ; KA24E; , |
14875-60U01 |
US $16.13 |
||
|
16293M
|
16293M
16175-79S00 Gasket-Throttle Chamber1989-07-01 ~ 1990-05-01; KA24E; , |
16175-79S00 |
US $6.34 |
||
| replacement | |||||
|
16293M
|
16293M
1617579S71 Gasket-Throttle Chamber1989-07-01 ~ 1990-05-01; KA24E; , |
1617579S71 |
from US $7.18 |
||
|
16293M
|
16293M
16175-79S70 Gasket-Throttle Chamber1990-05-01 ~ ; KA24E; , |
16175-79S70 |
US $6.48 |
||
| replacement | |||||
|
16293M
|
16293M
1617579S71 Gasket-Throttle Chamber1990-05-01 ~ ; KA24E; , |
1617579S71 |
from US $7.18 |
||
|
16376N
|
16376N
16165-30R01
Bracket-Accelerator Cable
1989-07-01 ~ 1990-10-01; KA24E; , |
16165-30R01 |
— | ||
|
16376N
|
16376N
16165-30R05
Bracket-Accelerator Cable
1990-10-01 ~ ; KA24E; , |
16165-30R05 |
— | ||
|
27655Z
|
27655Z
14517-40F01
Actuator-Ficd
1989-07-01 ~ ; KA24E; , |
14517-40F01 |
— | ||
