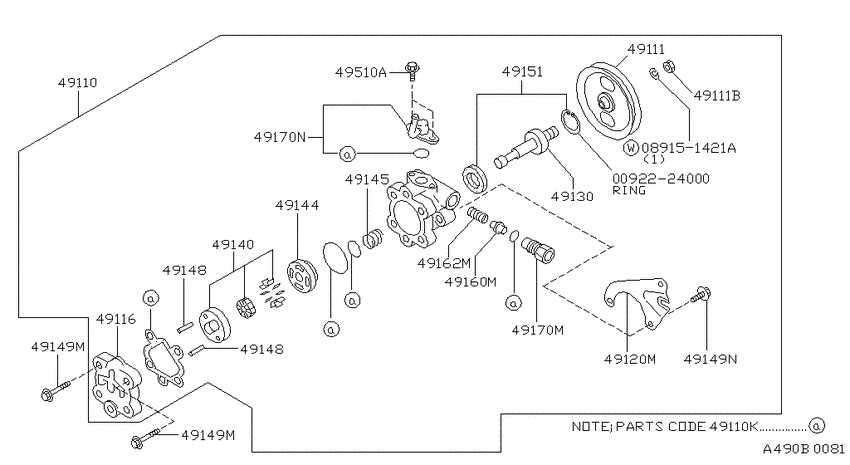

Power steering pump (1988-02-01 ~ ; KA24E) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092224000
|
0092224000
00922-24000 RING-SNAP |
00922-24000 |
US $2.45 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
49110
|
49110
49110-65E00
PUMP ASSY-POWER STEERING
1989-07-01 ~ ; KA24E; , |
49110-65E00 |
— | ||
|
49110
|
49110
4959150L26 Seal Kit-Power Steering Pump1989-07-01 ~ ; KA24E; , |
4959150L26 |
from US $15.11 |
||
|
49110K
|
49110K
4959150L26 Seal Kit-Power Steering Pump1989-07-01 ~ ; KA24E; , |
4959150L26 |
from US $15.11 |
||
|
49111
|
49111
49132-65E00
PULLEY-POWER STEERING PUMP
1989-07-01 ~ ; KA24E; , |
49132-65E00 |
— | ||
|
49111
|
49111
49133-50L00 Nut-Pulley, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111
|
49111
4913350L0A Nut-Pulley, Power Steering Pump1989-07-01 ~ ; KA24E; , |
4913350L0A |
US $1.73 |
||
|
49111B
|
49111B
49133-50L00 Nut-Pulley, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111B
|
49111B
4913350L0A Nut-Pulley, Power Steering Pump1989-07-01 ~ ; KA24E; , |
4913350L0A |
US $1.73 |
||
|
49116
|
49116
49116-15V00 Cover-Rear, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49116-15V00 |
US $31.68 |
||
|
49120M
|
49120M
49120-65E00
BRACKET ASSY-POWER STEERING PUMP
1989-07-01 ~ ; KA24E; , |
49120-65E00 |
— | ||
|
49130
|
49130
49130-28N00 Shaft-Drive, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49130-28N00 |
US $72.86 |
||
|
49130
|
49130
49130-30R00 Shaft-Drive, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49130-30R00 |
US $44.50 |
||
|
49140
|
49140
49140-15V00 Rotor & Camring Set-Power Steering Pump1989-07-01 ~ ; KA24E; , |
49140-15V00 |
from US $116.21 |
||
|
49144
|
49144
49144-15V00 Plate-Side, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49144-15V00 |
US $31.68 |
||
|
49145
|
49145
49145-19V00 Spring-Side Plate1989-07-01 ~ ; KA24E; , |
49145-19V00 |
US $11.09 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49148-15V00 |
US $2.49 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49148-15V00 |
US $2.49 |
||
|
49149M
|
49149M
49149-F6601 Bolt-Bracket, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49149-F6601 |
US $4.32 |
||
|
49149M
|
49149M
49149-F6601 Bolt-Bracket, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49149-F6601 |
US $4.32 |
||
|
49149N
|
49149N
49149-15V00 Bolt-Bracket, Power Steering Pump1989-07-01 ~ ; KA24E; , |
49149-15V00 |
US $6.19 |
||
|
49151
|
49151
49119-20N25 Seal Set-Drive Shaft1989-07-01 ~ 1990-08-01; KA24E; , |
49119-20N25 |
US $10.51 |
||
|
49151
|
49151
49119-30R25
Seal Kit-Drive Shaft, Power Steering Pump
1990-08-01 ~ ; KA24E; , |
49119-30R25 |
— | ||
| replacement | |||||
|
49151
|
49151
4911930R27 Seal Kit-Drive Shaft, Power Steering Pump1990-08-01 ~ ; KA24E; , |
4911930R27 |
from US $10.69 |
||
|
49160M
|
49160M
49165-F6400 Valve Assy-Flow Control1989-07-01 ~ ; KA24E; , |
49165-F6400 |
US $44.50 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve1989-07-01 ~ 1990-08-01; KA24E; , |
4916719V00 |
US $10.94 |
||
|
49162M
|
49162M
49167-63U00 Spring-Flow Control Valve1990-08-01 ~ ; KA24E; , |
49167-63U00 |
US $6.34 |
||
|
49170M
|
49170M
49170-10V00 Bolt-Connector1989-07-01 ~ ; KA24E; , |
49170-10V00 |
US $16.85 |
||
|
49170N
|
49170N
49161-65E00
CONNECTOR ASSY-POWER STEERING PUMP
1989-07-01 ~ ; KA24E; , |
49161-65E00 |
— | ||
|
49510A
|
49510A
49164-16V00 Bolt-Power Steering Pump1989-07-01 ~ ; KA24E; , |
49164-16V00 |
US $4.90 |
||
