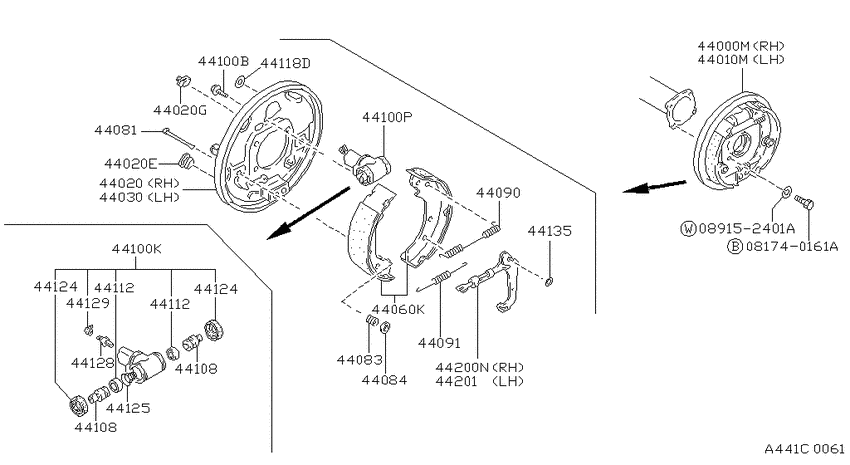

Rear brake (1988-02-01 ~ ; KA24E) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081740161A
|
081740161A
08174-0161A
Bolt-hexagon
|
08174-0161A |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
44000M
|
44000M
44000-65E10
BRAKE ASSY-DRUM,REAR RH
1989-07-01 ~ ; KA24E; , |
44000-65E10 |
— | ||
|
44010M
|
44010M
44010-65E10
BRAKE ASSY-DRUM,REAR LH
1989-07-01 ~ ; KA24E; , |
44010-65E10 |
— | ||
|
44020
|
44020
44020-32R10 Plate Assy-Back, Rear Brake Rh1989-07-01 ~ ; KA24E; , |
44020-32R10 |
US $103.25 |
||
|
44020
|
44020
4109808G10 Plug1989-07-01 ~ ; KA24E; , |
4109808G10 |
from US $1.81 |
||
|
44020
|
44020
4109870A10 Plug1989-07-01 ~ ; KA24E; , |
4109870A10 |
US $4.42 |
||
|
44020E
|
44020E
4109808G10 Plug1989-07-01 ~ ; KA24E; , |
4109808G10 |
from US $1.81 |
||
|
44020G
|
44020G
4109870A10 Plug1989-07-01 ~ ; KA24E; , |
4109870A10 |
US $4.42 |
||
|
44030
|
44030
44030-32R10 Plate Assy-Back, Rear Brake Lh1989-07-01 ~ ; KA24E; , |
44030-32R10 |
US $103.25 |
||
|
44060K
|
44060K
44060-65E25 SHOE SET-REAR BRAKE1989-07-01 ~ ; KA24E; F/RH & LH |
44060-65E25 |
US $94.03 |
||
|
44081
|
44081
44081-U9201 Pin-Anti Shoe Rattle1989-07-01 ~ ; KA24E; , |
44081-U9201 |
US $0.86 |
||
|
44083
|
44083
44083-56E10 SPRING-ANTI SHOE RATTLE1989-07-01 ~ ; KA24E; , |
44083-56E10 |
US $1.67 |
||
|
44084
|
44084
44084-U9200
Retainer-Spring, Anti Shoe Rattle
1989-07-01 ~ ; KA24E; , |
44084-U9200 |
— | ||
| replacement | |||||
|
44084
|
44084
44084U920A Retainer-Spring, Anti Shoe Rattle1989-07-01 ~ ; KA24E; , |
44084U920A |
from US $1.67 |
||
|
44090
|
44090
4409047L10 Spring-Return, Rear Brake Shoe1989-07-01 ~ ; KA24E; , |
4409047L10 |
from US $3.33 |
||
|
44090
|
44090
44081-35F00 Cover-Spring1989-07-01 ~ ; *KA24E.GXE.(MT+AT); * F/ANTI SKID CONT-4WHL |
44081-35F00 |
US $4.18 |
||
|
44090
|
44090
44090-01P04 Spring1989-07-01 ~ ; *KA24E.GXE.(MT+AT); * F/ANTI SKID CONT-4WHL |
44090-01P04 |
US $10.80 |
||
|
44091
|
44091
44091-47L10 Spring-Return, Rear Brake Shoe1989-07-01 ~ ; KA24E; , |
44091-47L10 |
from US $2.11 |
||
|
44091
|
44091
44091-01P04 Spring1989-07-01 ~ ; *KA24E.GXE.(MT+AT); * F/ANTI SKID CONT-4WHL |
44091-01P04 |
US $10.80 |
||
|
44100B
|
44100B
0143600052 BOLT1989-07-01 ~ ; KA24E; , |
0143600052 |
US $2.91 |
||
|
44100K
|
44100K
D4100-17C90
Cup Kit-Brake Wheel Cylinder, Rear
1989-07-01 ~ ; KA24E; NABCO 13/16 |
D4100-17C90 |
— | ||
| replacement | |||||
|
44100K
|
44100K
D4100-17C92 Cup kit-brake wheel cylinder,rear1989-07-01 ~ ; KA24E; NABCO 13/16 |
D4100-17C92 |
US $23.03 |
||
|
44100K
|
44100K
D4100-U9293
Cup Kit-Brake Wheel Cylinder, Rear
1989-07-01 ~ ; KA24E; TOKICO 13/16 |
D4100-U9293 |
— | ||
| replacement | |||||
|
44100K
|
44100K
D4100-U9285 Cup Kit-Brake Wheel Cylinder, Rear1989-07-01 ~ ; KA24E; TOKICO 13/16 |
D4100-U9285 |
US $24.86 |
||
|
44100P
|
44100P
44100-17C10
Cylinder Assy-Rear Wheel
1989-07-01 ~ ; KA24E; NABCO TOKICO 13/16 |
44100-17C10 |
— | ||
| replacement | |||||
|
44100P
|
44100P
44100-17C11 Cylinder Assy-Rear Wheel1989-07-01 ~ ; KA24E; NABCO TOKICO 13/16 |
44100-17C11 |
US $125.86 |
||
|
44108
|
44108
44108-U9200 Piston-Cylinder1989-07-01 ~ ; KA24E; NABCO |
44108-U9200 |
US $17.57 |
||
| replacement | |||||
|
44108
|
44108
44108-U9201 Piston-Cylinder1989-07-01 ~ ; KA24E; NABCO |
44108-U9201 |
US $13.39 |
||
|
44108
|
44108
44108-U9210 Piston-Cylinder1989-07-01 ~ ; KA24E; TOKICO |
44108-U9210 |
US $11.81 |
||
| replacement | |||||
|
44108
|
44108
44108-U9211 Piston-Cylinder1989-07-01 ~ ; KA24E; TOKICO |
44108-U9211 |
US $15.26 |
||
|
44108
|
44108
44108-U9200 Piston-Cylinder1989-07-01 ~ ; KA24E; NABCO |
44108-U9200 |
US $17.57 |
||
| replacement | |||||
|
44108
|
44108
44108-U9201 Piston-Cylinder1989-07-01 ~ ; KA24E; NABCO |
44108-U9201 |
US $13.39 |
||
|
44108
|
44108
44108-U9210 Piston-Cylinder1989-07-01 ~ ; KA24E; TOKICO |
44108-U9210 |
US $11.81 |
||
| replacement | |||||
|
44108
|
44108
44108-U9211 Piston-Cylinder1989-07-01 ~ ; KA24E; TOKICO |
44108-U9211 |
US $15.26 |
||
|
44112
|
44112
44112-U4000
Cup-Piston
1989-07-01 ~ ; KA24E; NABCO |
44112-U4000 |
— | ||
|
44112
|
44112
44112-U4010
Cup-Piston
1989-07-01 ~ ; KA24E; TOKICO |
44112-U4010 |
— | ||
|
44112
|
44112
44112-U4000
Cup-Piston
1989-07-01 ~ ; KA24E; NABCO |
44112-U4000 |
— | ||
|
44112
|
44112
44112-U4010
Cup-Piston
1989-07-01 ~ ; KA24E; TOKICO |
44112-U4010 |
— | ||
|
44118D
|
44118D
44085U8700 Washer-Lock1989-07-01 ~ ; KA24E; , |
44085U8700 |
US $4.03 |
||
|
44124
|
44124
44124-17C10 Cover-Dust1989-07-01 ~ ; KA24E; TOKICO |
44124-17C10 |
US $2.45 |
||
|
44124
|
44124
44124-D5500 Cover-Dust1989-07-01 ~ ; KA24E; NABCO |
44124-D5500 |
US $2.45 |
||
|
44124
|
44124
44124-17C10 Cover-Dust1989-07-01 ~ ; KA24E; TOKICO |
44124-17C10 |
US $2.45 |
||
|
44124
|
44124
44124-D5500 Cover-Dust1989-07-01 ~ ; KA24E; NABCO |
44124-D5500 |
US $2.45 |
||
|
44125
|
44125
44125-M7010 Spring1989-07-01 ~ ; KA24E; TOKICO |
44125-M7010 |
US $4.03 |
||
|
44125
|
44125
44125-U9200 Spring1989-07-01 ~ ; KA24E; NABCO |
44125-U9200 |
US $4.61 |
||
|
44128
|
44128
41128-21010
Screw-Bleeder
1989-07-01 ~ 1991-05-01; *KA24E.GXE.(MT+AT); * F/ANTI SKID CONT-4WHL |
41128-21010 |
— | ||
|
44128
|
44128
4112888E01
SCREW-BLEEDER
1991-05-01 ~ ; *KA24E.GXE.(MT+AT); F/ANTI SKID CONT-4WHL |
4112888E01 |
— | ||
| replacement | |||||
|
44128
|
44128
41128AW70A Screw-Bleeder1991-05-01 ~ ; *KA24E.GXE.(MT+AT); F/ANTI SKID CONT-4WHL |
41128AW70A |
from US $7.63 |
||
|
44128
|
44128
41128-B5012 Screw-Bleeder1989-07-01 ~ ; KA24E; TOKICO |
41128-B5012 |
US $6.91 |
||
|
44128
|
44128
41128-U5200 Screw-Bleeder, Clutch Damper1989-07-01 ~ ; KA24E; NABCO |
41128-U5200 |
US $9.02 |
||
|
44129
|
44129
41129-A2410
Cap-Bleeder Screw
1989-07-01 ~ ; KA24E; TOKICO |
41129-A2410 |
— | ||
| replacement | |||||
|
44129
|
44129
4112940F00 Cap-Bleeder Screw1989-07-01 ~ ; KA24E; TOKICO |
4112940F00 |
from US $1.07 |
||
|
44129
|
44129
41129U0201 Cap-Bleeder1989-07-01 ~ ; KA24E; NABCO |
41129U0201 |
US $1.07 |
||
|
44135
|
44135
44082-U8700
Ring-Snap
1989-07-01 ~ ; KA24E; , |
44082-U8700 |
— | ||
| replacement | |||||
|
44135
|
44135
4422237G1A Ring-Retaining1989-07-01 ~ ; KA24E; , |
4422237G1A |
US $2.78 |
||
|
44200N
|
44200N
44200-56E11 ADJUSTER ASSY-REAR BRAKE,RH1989-07-01 ~ ; KA24E; , |
44200-56E11 |
US $54.58 |
||
|
44201
|
44201
4420156E11 ADJUSTER ASSY-REAR BRAKE,LH1989-07-01 ~ ; KA24E; , |
4420156E11 |
US $54.58 |
||
