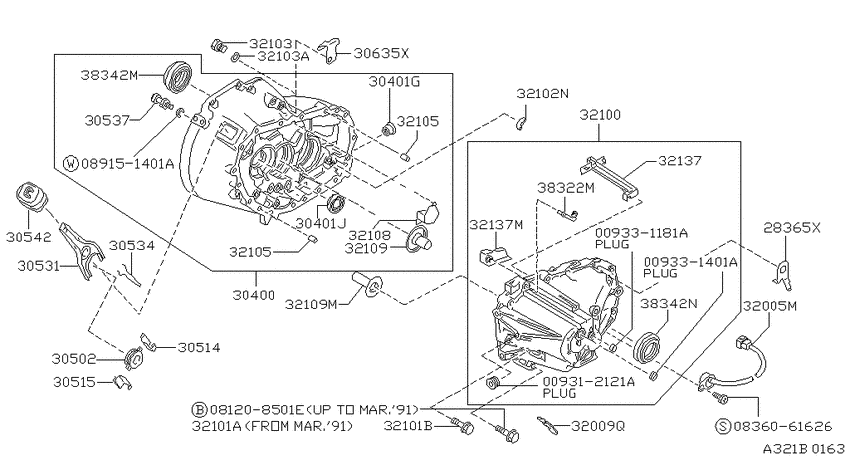

Transmission case & clutch release (1988-02-01 ~ ; KA24E.MT.F5 (RS5F50A/V)) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.76 |
||
|
009331181A
|
009331181A
00933-1181A Plug-Welch |
00933-1181A |
US $0.48 |
||
|
009331401A
|
009331401A
009331401A Plug-Welch |
009331401A |
from US $1.13 |
||
|
081208501E
|
081208501E
08120-8501E
Bolt-hexagon
|
08120-8501E |
— | ||
|
0836061626
|
0836061626
0836061626
SCREW
|
0836061626 |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
28365X
|
28365X
28365-71E00 TERMINAL-EARTH1989-07-01 ~ ; MT; , |
28365-71E00 |
US $0.86 |
||
|
30400
|
30400
30400-65E00
HOUSING ASSY-CLUTCH
1989-07-01 ~ 1990-10-01; GXE.MT; F/DIFF-NON SLIP F/HI SPD |
30400-65E00 |
— | ||
|
30400
|
30400
30400-65E01
HOUSING ASSY-CLUTCH
1990-10-01 ~ ; GXE.MT; F/DIFF-NON SLIP F/HI SPD |
30400-65E01 |
— | ||
|
30401G
|
30401G
32858-03E00 SEAL-OIL,STRIKING ROD1989-07-01 ~ ; MT; , |
32858-03E00 |
from US $6.40 |
||
|
30401J
|
30401J
32113-03E00 SEAL-OIL,INPUT1989-07-01 ~ ; MT; , |
32113-03E00 |
from US $4.01 |
||
|
30502
|
30502
30502-28E14 BEARING-CLUTCH RELEASE1992-02-01 ~ ; MT; , |
30502-28E14 |
US $81.19 |
||
| replacement | |||||
|
30502
|
30502
30502-0W724 Bearing-Clutch Release1992-02-01 ~ ; MT; , |
30502-0W724 |
US $69.26 |
||
|
30502
|
30502
30502-28E24 BEARING-CLUTCH RELEASE1989-07-01 ~ 1992-02-01; MT; |
30502-28E24 |
US $69.26 |
||
| replacement | |||||
|
30502
|
30502
30502-0W724 Bearing-Clutch Release1989-07-01 ~ 1992-02-01; MT; |
30502-0W724 |
US $69.26 |
||
|
30514
|
30514
30514-03E01 SPRING-HOLDER,CLUTCH RELEASE BEARING1989-07-01 ~ 1989-12-01; MT; , |
30514-03E01 |
US $4.03 |
||
|
30514
|
30514
3051403E10 SPRING-HOLDER,CLUTCH RELEASE BEARING1989-12-01 ~ ; MT; , |
3051403E10 |
from US $2 |
||
|
30515
|
30515
3051403E11 SPRING-HOLDER,CLUTCH RELEASE BEARING1989-12-01 ~ ; MT; , |
3051403E11 |
from US $2.09 |
||
|
30515
|
30515
30515-03E01 SPRING-HOLDER,BEARING SLEEVE1989-07-01 ~ 1989-12-01; MT; , |
30515-03E01 |
US $4.90 |
||
|
30531
|
30531
30531-03E10 LEVER-WITHDRAWAL,CLUTCH1989-07-01 ~ ; MT; |
30531-03E10 |
US $83.38 |
||
|
30534
|
30534
3053403E00 SPRING-RETAINER,WITHDRAWAL LEVER1989-07-01 ~ ; MT; |
3053403E00 |
from US $1.85 |
||
|
30537
|
30537
3053703E00 PIN-BALL,WITHDRAWAL LEVER1989-07-01 ~ ; MT; |
3053703E00 |
US $5.81 |
||
|
30542
|
30542
30542-03E10 COVER-DUST,WITHDRAWAL LEVER1989-07-01 ~ ; MT; |
30542-03E10 |
from US $11.51 |
||
|
30635X
|
30635X
30635-86E00 BRACKET-CLUTCH HOSE1989-07-01 ~ ; MT; , |
30635-86E00 |
US $34.85 |
||
|
32005M
|
32005M
32005-17E01 SWITCH ASSY-POSITION1989-07-01 ~ ; MT; , |
32005-17E01 |
US $86.69 |
||
|
32009Q
|
32009Q
32009-51E00 BRACKET-SWITCH CONNECTOR1989-07-01 ~ ; MT; , |
32009-51E00 |
US $6.34 |
||
| replacement | |||||
|
32009Q
|
32009Q
32009-51E11
Bracket-switch connector
1989-07-01 ~ ; MT; , |
32009-51E11 |
— | ||
|
32100
|
32100
32100-65E01 CASE ASSY-TRANSMISSION1989-07-01 ~ 1990-08-01; GXE.MT; , |
32100-65E01 |
US $409.22 |
||
| replacement | |||||
|
32100
|
32100
32100-65E15
Case assy-transmission
1989-07-01 ~ 1990-08-01; GXE.MT; , |
32100-65E15 |
— | ||
|
32100
|
32100
32100-65E02 CASE ASSY-TRANSMISSION1990-08-01 ~ 1991-03-01; GXE.MT; , |
32100-65E02 |
US $409.22 |
||
| replacement | |||||
|
32100
|
32100
32100-65E15
Case assy-transmission
1990-08-01 ~ 1991-03-01; GXE.MT; , |
32100-65E15 |
— | ||
|
32100
|
32100
32100-65E03 CASE ASSY-TRANSMISSION1991-03-01 ~ ; GXE.MT; , |
32100-65E03 |
US $409.22 |
||
| replacement | |||||
|
32100
|
32100
32100-65E15
Case assy-transmission
1991-03-01 ~ ; GXE.MT; , |
32100-65E15 |
— | ||
|
32101A
|
32101A
31377-01X03 Bolt1991-03-01 ~ ; MT; , |
31377-01X03 |
US $2.45 |
||
|
32101B
|
32101B
01121-04611 BOLT1989-07-01 ~ 1991-03-01; MT; , |
01121-04611 |
US $1.73 |
||
|
32101B
|
32101B
31377-01X05 Bolt1991-03-01 ~ ; MT; , |
31377-01X05 |
US $2.45 |
||
|
32102N
|
32102N
32105-03E01 MAGNET-TRANSAXLE1989-07-01 ~ ; MT; , |
32105-03E01 |
US $3.46 |
||
|
32103
|
32103
32103-03E01 Plug-Drain1989-07-01 ~ ; MT; , |
32103-03E01 |
US $4.18 |
||
|
32103
|
32103
18151-10600 Washer-Drain Plug1989-07-01 ~ ; MT; , |
18151-10600 |
US $1.73 |
||
|
32103A
|
32103A
18151-10600 Washer-Drain Plug1989-07-01 ~ ; MT; , |
18151-10600 |
US $1.73 |
||
|
32105
|
32105
32105-C6900 Pin1989-07-01 ~ ; MT; , |
32105-C6900 |
US $4.18 |
||
|
32105
|
32105
32105-C6900 Pin1989-07-01 ~ ; MT; , |
32105-C6900 |
US $4.18 |
||
|
32108
|
32108
32108-03E00 POCKET-OIL,CLUTCH HOUSING1989-07-01 ~ ; MT; , |
32108-03E00 |
US $2.45 |
||
|
32109
|
32109
32109-03E00 CHANNEL-OIL,MAIN SHAFT FRONT1989-07-01 ~ ; MT; , |
32109-03E00 |
US $1.67 |
||
|
32109
|
32109
32106-03E02 Channel-Oil, Input Shaft Rear1989-07-01 ~ ; MT; , |
32106-03E02 |
US $2.36 |
||
|
32109M
|
32109M
32106-03E02 Channel-Oil, Input Shaft Rear1989-07-01 ~ ; MT; , |
32106-03E02 |
US $2.36 |
||
|
32137
|
32137
32107-03E01 GUTTER-OIL,ADAPTER1989-07-01 ~ 1990-08-01; MT; , |
32107-03E01 |
US $5.18 |
||
|
32137
|
32137
32107-79E01 GUTTER-OIL,ADAPTER1990-08-01 ~ ; MT; |
32107-79E01 |
US $5.18 |
||
|
32137
|
32137
32107-79E00 BOX-BREATER1990-08-01 ~ ; MT; , |
32107-79E00 |
US $4.18 |
||
|
32137M
|
32137M
32107-79E00 BOX-BREATER1990-08-01 ~ ; MT; , |
32107-79E00 |
US $4.18 |
||
|
38322M
|
38322M
38322-70A01 Breather-Transmission Case1989-07-01 ~ 1990-01-01; MT; , |
38322-70A01 |
US $4.75 |
||
|
38322M
|
38322M
38322-70A03 Breather-Transmission Case1990-01-01 ~ ; MT; , |
38322-70A03 |
US $12.38 |
||
|
38342M
|
38342M
38342-03E01
SEAL-OIL,DIFFERENTIAL CLUTCH HOUSING
1989-07-01 ~ ; MT; , |
38342-03E01 |
— | ||
| replacement | |||||
|
38342M
|
38342M
3834281X01 Seal-Oil, Differential Converter Housing1989-07-01 ~ ; MT; , |
3834281X01 |
from US $6.85 |
||
|
38342N
|
38342N
38342-51E00 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE1989-07-01 ~ ; GXE.MT; F/DIFF-NON SLIP F/HI SPD |
38342-51E00 |
US $8.35 |
||
