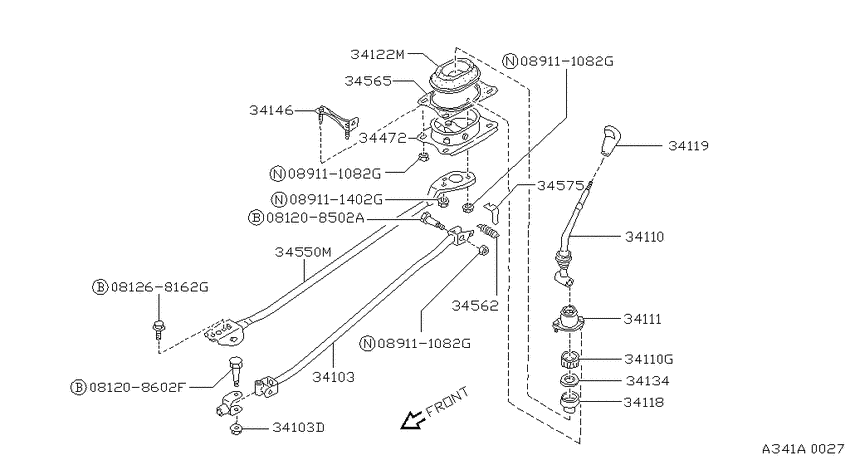

Transmission control & linkage (1988-02-01 ~ ; MT) Diagram Nissan STANZA
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- KA24E
- transmission
- MT
- body
- S
- trim lvl
- GXE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208502A
|
081208502A
08120-8502A
Bolt-hexagon
|
08120-8502A |
— | ||
|
081208602F
|
081208602F
08120-8602F
Bolt-hexagon
|
08120-8602F |
— | ||
|
081268162G
|
081268162G
08126-8162G
Bolt-hexagon
|
08126-8162G |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111402G
|
089111402G
089111402G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111402G |
— | ||
|
34103
|
34103
34103-55E00
ROD ASSY-CONTROL
1989-07-01 ~ ; KA24E.MT; , |
34103-55E00 |
— | ||
|
34103
|
34103
0122500102 NUT1989-07-01 ~ ; KA24E.MT; , |
0122500102 |
from US $0.57 |
||
|
34103D
|
34103D
0122500102 NUT1989-07-01 ~ ; KA24E.MT; , |
0122500102 |
from US $0.57 |
||
|
34110
|
34110
34110-66E00
LEVER ASSY-CONTROL
1989-07-01 ~ ; KA24E.MT; , |
34110-66E00 |
— | ||
|
34110
|
34110
34116-51E00 BEARING-HAND LEVER1989-07-01 ~ ; KA24E.MT; , |
34116-51E00 |
US $40.90 |
||
|
34110G
|
34110G
34116-51E00 BEARING-HAND LEVER1989-07-01 ~ ; KA24E.MT; , |
34116-51E00 |
US $40.90 |
||
|
34111
|
34111
34553-30P00 Socket Assy-Hand Lever1989-07-01 ~ ; KA24E.MT; , |
34553-30P00 |
US $26.06 |
||
|
34118
|
34118
3412251E00 COVER-SOCKET1989-07-01 ~ ; KA24E.MT; , |
3412251E00 |
US $15.11 |
||
|
34119
|
34119
32865-68E00 KNOB-HAND LEVER1989-07-01 ~ ; KA24E.MT; (B) |
32865-68E00 |
US $59.47 |
||
|
34119
|
34119
32865-68E01
KNOB-HAND LEVER
1989-07-01 ~ ; KA24E.MT; (A) |
32865-68E01 |
— | ||
|
34119
|
34119
32865-68E02 KNOB-HAND LEVER1989-07-01 ~ ; KA24E.MT; (G) |
32865-68E02 |
from US $43.51 |
||
|
34119
|
34119
32865-68E03 KNOB-HAND LEVER1989-07-01 ~ ; KA24E.MT; (C) |
32865-68E03 |
US $59.47 |
||
|
34122M
|
34122M
34118-55E00 BOOT-DUST,HAND LEVER1989-07-01 ~ ; KA24E.MT; , |
34118-55E00 |
US $13.10 |
||
|
34134
|
34134
34134-51E00
WASHER-HAND LEVER BEARING
1989-07-01 ~ ; KA24E.MT; , |
34134-51E00 |
— | ||
|
34146
|
34146
34146-50A00
Plate-Bolt, Transmission
1989-07-01 ~ ; KA24E.MT; |
34146-50A00 |
— | ||
|
34472
|
34472
34560-51E00 HOLDER-RUBBER,HAND LEVER1989-07-01 ~ ; KA24E.MT; , |
34560-51E00 |
US $64.22 |
||
|
34550M
|
34550M
34550-55E00 SUPPORT ASSY-CONTROL ROD1989-07-01 ~ ; KA24E.MT; , |
34550-55E00 |
US $109.58 |
||
|
34562
|
34562
34573-55E00
SPRING-RETURN
1989-07-01 ~ ; KA24E.MT; , |
34573-55E00 |
— | ||
|
34565
|
34565
34565-51E00 SEAL-RUBBER,TRANSMISSION HOLE1989-07-01 ~ ; KA24E.MT; , |
34565-51E00 |
US $11.38 |
||
|
34575
|
34575
34575-51E00 BRACKET-RETURN SPRING1989-07-01 ~ ; KA24E.MT; , |
34575-51E00 |
US $4.75 |
