Component List STANZA
Alternator (1994-07-01 ~ ; HAP; KA24DE)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
23100	23100 23100-1E400 Generator 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23100-1E400	—
23100	23100 23100-1E410 Alternator assy 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23100-1E410	—
23100	23100 23100-1E800 Generator 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23100-1E800	—
23100	23100 1192812G01 Bolt 1992-06-01 ~ ; KA24DE; ,	1192812G01	US $2.45
23100	23100 01221-00241 NUT 1992-06-01 ~ 1994-07-01; KA24DE; ,	01221-00241	US $1.73
23100	23100 0122100381 NUT 1994-07-01 ~ ; KA24DE; ,	0122100381	from US $5.37
23102	23102 23102-0M800 Stator Assy 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23102-0M800	US $311.52
23102	23102 23102-25V10 Stator Assy 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23102-25V10	US $243.36
23102	23102 23102-64J00 Stator Assy 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23102-64J00	US $286.56
23108	23108 23108-64J00 Rotor Assy 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23108-64J00	US $331.34
	replacement
23108	23108 23108-4P00A Rotor Assy 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23108-4P00A	US $407.81
23108	23108 23108-64J10 Rotor Assy 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23108-64J10	US $331.34
23108	23108 23108-65F00 Rotor Assy 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23108-65F00	US $339.84
	replacement
23108	23108 23108-4P00A Rotor Assy 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23108-4P00A	US $407.81
23118	23118 23118-1E400 Cover Assy-Front 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23118-1E400	—
23118	23118 23118-1E800 Cover Assy-Front 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23118-1E800	—
23118	23118 23118-30R70 Cover Assy-Front 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23118-30R70	US $148.32
23120M	23120M 23120-0M000 Bearing-Ball 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23120-0M000	US $42.34
23120M	23120M 23120-30R10 Bearing-Ball 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23120-30R10	—
	replacement
23120M	23120M 2312051E10 BEARING-BALL 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	2312051E10	from US $34.67
23120M	23120M 23120-58S01 Bearing-Ball 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23120-58S01	from US $22.75
23120M	23120M 23120-0M005 Bearing-Ball 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23120-0M005	US $40.61
23120M	23120M 23120-60U00 Bearing-Ball 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23120-60U00	US $22.75
23120M	23120M 23120-64J11 Bearing-Ball 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23120-64J11	US $30.24
23120MA	23120MA 23120-0M005 Bearing-Ball 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23120-0M005	US $40.61
23120MA	23120MA 23120-60U00 Bearing-Ball 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23120-60U00	US $22.75
23120MA	23120MA 23120-64J11 Bearing-Ball 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23120-64J11	US $30.24
23124	23124 23124-0M800 Rectifier Assy 1996-07-01 ~ ; KA24DE; HITACHI	23124-0M800	US $247.68
23124	23124 23124-35F10 Rectifier Assy 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23124-35F10	US $240.48
23127	23127 23127-1E400 Cover Assy-Rear 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23127-1E400	—
23127	23127 23127-1E410 Cover assy-rear 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23127-1E410	—
23127	23127 23127-1E800 Cover Assy-Rear 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23127-1E800	—
23127	23127 23131-20P10 Bolt-Through 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23131-20P10	US $5.04
23127	23127 23131-58S00 Bolt-Through 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23131-58S00	US $6.05
23133	23133 23133-0M000 Holder Assy-Brush 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23133-0M000	US $50.11
23150	23150 23150-1E400 Pulley Assy 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23150-1E400	—
23150	23150 23150-1E800 Pulley Assy 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23150-1E800	—
23150	23150 23150-30R70 Pulley Assy 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23150-30R70	US $62.35
23150	23150 23153-60U00 Nut Assy-Pulley 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23153-60U00	US $5.76
23156	23156 23156-0M800 Terminal Assy-B 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23156-0M800	US $17.28
23156	23156 23156-64J00 Terminal Assy-B 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23156-64J00	US $14.26
23156	23156 23156-64J10 Terminal Assy-B 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23156-64J10	US $14.26
23200	23200 23115-20P10 Screw Set 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23115-20P10	US $5.04
23200	23200 23200-0M000 Screw Set 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23200-0M000	US $8.50
23200	23200 23200-Q4601 Screw Set 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23200-Q4601	US $4.18
23215	23215 23215-0M800 Regulator Assy-Ic 1995-08-01 ~ 1996-07-01; KA24DE; HAP	23215-0M800	US $352.58
23215	23215 23215-1E410 Regulator Assy-Ic 1999-96-01 ~ 1999-97-01; KA24DE; MELMAC	23215-1E410	US $335.59
23215	23215 2321564J02 Regulator Assy-Ic 1992-06-01 ~ 1994-07-01; KA24DE; HAP	2321564J02	US $224.64
23230	23230 23230-0M800 Diode Assy 1994-07-01 ~ 1996-07-01; KA24DE; HAP	23230-0M800	US $250.56
23230	23230 23230-1E400 Diode Assy 1992-06-01 ~ 1994-07-01; KA24DE; HAP	23230-1E400	US $321.43

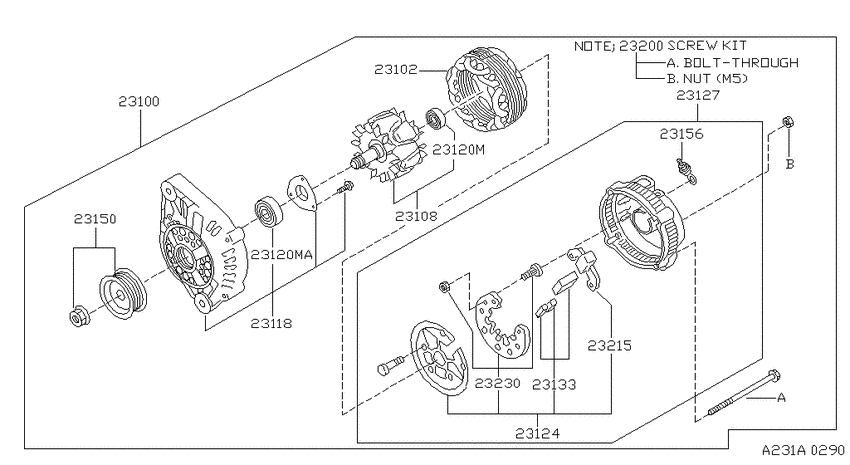

Alternator (1994-07-01 ~ ; HAP; KA24DE) Diagram Nissan STANZA U.S.A. 2308429-182467

Alternator (1994-07-01 ~ ; HAP; KA24DE) Diagram Nissan STANZA U.S.A. 2308429-182467
