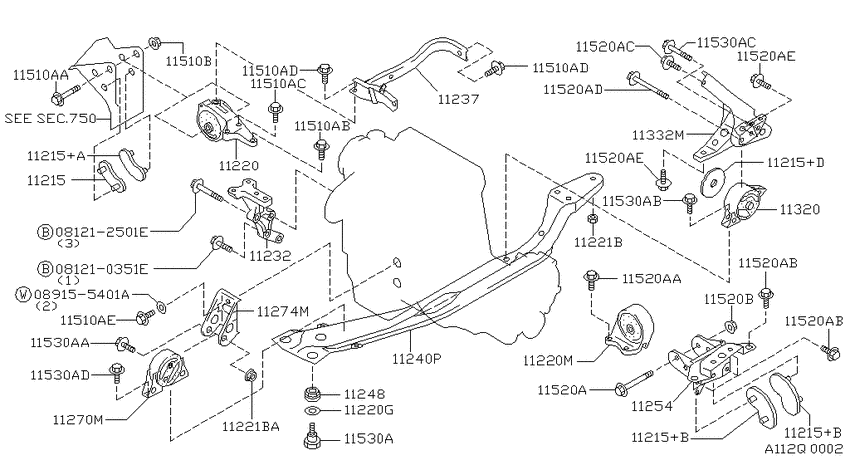

Engine & transmission mounting (1994-07-01 ~ ; KA24DE.MT) Diagram Nissan STANZA
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210351E
|
081210351E
081210351E Bolt-hexagon |
081210351E |
US $1.13 |
||
|
081212501E
|
081212501E
08121-2501E
Bolt-hexagon
|
08121-2501E |
— | ||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-1E800 Stopper-Engine Mounting1992-06-01 ~ 1994-04-01; KA24DE.MT; , |
11215-1E800 |
US $9.94 |
||
|
11215
|
11215
11215-1E801
Stopper-Rubber, Engine Mounting
1994-04-01 ~ 1994-07-01; KA24DE.MT; , |
11215-1E801 |
— | ||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11215-50A15 |
US $20.92 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
1121550A00 |
US $11.38 |
||
|
11215+A
|
11215+A
11215-1E800 Stopper-Engine Mounting1992-06-01 ~ 1994-04-01; KA24DE.MT; , |
11215-1E800 |
US $9.94 |
||
|
11215+A
|
11215+A
11215-1E801
Stopper-Rubber, Engine Mounting
1994-04-01 ~ 1994-07-01; KA24DE.MT; , |
11215-1E801 |
— | ||
|
11215+B
|
11215+B
11215-50A15 Stopper-Engine Mounting1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11215-50A15 |
US $20.92 |
||
|
11215+B
|
11215+B
11215-50A15 Stopper-Engine Mounting1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11215-50A15 |
US $20.92 |
||
|
11215+D
|
11215+D
1121550A00 Stopper-Engine Mounting1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
1121550A00 |
US $11.38 |
||
|
11220
|
11220
11210-1E803
Insulator Assy-Engine Mounting, Front Rh
1994-07-01 ~ 1996-02-01; KA24DE.MT; , |
11210-1E803 |
— | ||
|
11220
|
11220
11210-5B600
Insulator-Engine Mounting, Front
1996-02-01 ~ ; KA24DE.MT; , |
11210-5B600 |
— | ||
|
11220
|
11220
01311-01401 WASHER-PLAIN1994-07-01 ~ ; KA24DE.MT; , |
01311-01401 |
US $2.21 |
||
|
11220
|
11220
11220-1E800 Insulator Assy-Engine Mounting, Front Lh1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11220-1E800 |
US $80.70 |
||
|
11220
|
11220
11220-5B600
Insulator Assy-Engine Mounting, Front Lh
1996-02-01 ~ ; KA24DE.MT; , |
11220-5B600 |
— | ||
|
11220G
|
11220G
01311-01401 WASHER-PLAIN1994-07-01 ~ ; KA24DE.MT; , |
01311-01401 |
US $2.21 |
||
|
11220M
|
11220M
11220-1E800 Insulator Assy-Engine Mounting, Front Lh1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11220-1E800 |
US $80.70 |
||
|
11220M
|
11220M
11220-5B600
Insulator Assy-Engine Mounting, Front Lh
1996-02-01 ~ ; KA24DE.MT; , |
11220-5B600 |
— | ||
|
11221B
|
11221B
0122500491 NUT ASSY-BEARING LOCK1994-07-01 ~ ; KA24DE.MT; , |
0122500491 |
from US $3.06 |
||
|
11221B
|
11221B
11258D0101 Nut1994-07-01 ~ ; KA24DE.MT; , |
11258D0101 |
from US $2.41 |
||
|
11221BA
|
11221BA
11258D0101 Nut1994-07-01 ~ ; KA24DE.MT; , |
11258D0101 |
from US $2.41 |
||
|
11232
|
11232
11231-1E801 Bracket-Engine Mounting1994-07-01 ~ ; KA24DE.MT; , |
11231-1E801 |
US $79.78 |
||
|
11237
|
11237
11237-2B000 Stay-Engine Mounting, Rh1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11237-2B000 |
US $66.24 |
||
|
11240P
|
11240P
11240-2B000 Member Assy-Engine Mounting1994-07-01 ~ ; KA24DE.MT; , |
11240-2B000 |
US $305.86 |
||
|
11248
|
11248
11248-0E001
PAD-ENGINE MOUNTING MEMBER
1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11248-0E001 |
— | ||
| replacement | |||||
|
11248
|
11248
112480E002 PAD-ENGINE MOUNTING MEMBER1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
112480E002 |
from US $5.29 |
||
|
11248
|
11248
112480E002 PAD-ENGINE MOUNTING MEMBER1995-08-01 ~ ; KA24DE.MT; , |
112480E002 |
from US $5.29 |
||
|
11254
|
11254
11253-2B001
Support-Engine Mounting, Lh
1994-07-01 ~ ; KA24DE.MT; , |
11253-2B001 |
— | ||
|
11270M
|
11270M
11270-2B000
Insulator Assy-Engine Mounting, Front
1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11270-2B000 |
— | ||
|
11274M
|
11274M
11274-2B000 Bracket-Engine Mounting Block, Center1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11274-2B000 |
US $36.14 |
||
|
11320
|
11320
11320-2B000
Insulator-Engine Mounting, Rear
1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11320-2B000 |
— | ||
|
11332M
|
11332M
11332-2B000
Bracket-Engine Mounting, Rear
1992-06-01 ~ 1994-07-01; KA24DE.MT; , |
11332-2B000 |
— | ||
|
11510AA
|
11510AA
01125-01671 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-01671 |
US $2.45 |
||
|
11510AB
|
11510AB
01121-06421 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01121-06421 |
US $3.46 |
||
|
11510AC
|
11510AC
01121-06441 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01121-06441 |
US $3.46 |
||
|
11510AD
|
11510AD
01125-02151 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02151 |
US $2.45 |
||
|
11510AD
|
11510AD
01125-02151 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02151 |
US $2.45 |
||
|
11510AE
|
11510AE
01125-01211 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-01211 |
US $4.18 |
||
|
11510B
|
11510B
11258D0101 Nut1994-07-01 ~ ; KA24DE.MT; , |
11258D0101 |
from US $2.41 |
||
|
11520A
|
11520A
01125-02491
Bolt
1994-07-01 ~ ; KA24DE.MT; , |
01125-02491 |
— | ||
|
11520A
|
11520A
01121-06421 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01121-06421 |
US $3.46 |
||
|
11520A
|
11520A
01125-02721 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02721 |
US $2.45 |
||
|
11520A
|
11520A
01125-02531 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02531 |
US $2.45 |
||
|
11520A
|
11520A
01121-05161 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01121-05161 |
US $4.18 |
||
|
11520A
|
11520A
01125-02521 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02521 |
US $2.45 |
||
|
11520AA
|
11520AA
01121-06421 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01121-06421 |
US $3.46 |
||
|
11520AB
|
11520AB
01125-02721 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02721 |
US $2.45 |
||
|
11520AB
|
11520AB
01125-02721 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02721 |
US $2.45 |
||
|
11520AC
|
11520AC
01125-02531 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02531 |
US $2.45 |
||
|
11520AD
|
11520AD
01121-05161 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01121-05161 |
US $4.18 |
||
|
11520AE
|
11520AE
01125-02521 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02521 |
US $2.45 |
||
|
11520AE
|
11520AE
01125-02521 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02521 |
US $2.45 |
||
|
11520B
|
11520B
11258D0101 Nut1994-07-01 ~ ; KA24DE.MT; , |
11258D0101 |
from US $2.41 |
||
|
11530A
|
11530A
01125-02431 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01125-02431 |
US $3.06 |
||
|
11530A
|
11530A
01125-00831 BOLT1994-07-01 ~ 1996-03-01; KA24DE.MT; , |
01125-00831 |
US $3.31 |
||
|
11530A
|
11530A
11298-2J201 Bolt1996-03-01 ~ ; KA24DE.MT; , |
11298-2J201 |
US $3.46 |
||
|
11530A
|
11530A
01121-07011 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01121-07011 |
US $3.46 |
||
|
11530A
|
11530A
01125-00831 BOLT1994-07-01 ~ 1996-03-01; KA24DE.MT; , |
01125-00831 |
US $3.31 |
||
|
11530A
|
11530A
11298-2J201 Bolt1996-03-01 ~ ; KA24DE.MT; , |
11298-2J201 |
US $3.46 |
||
|
11530A
|
11530A
01121-07011 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01121-07011 |
US $3.46 |
||
|
11530AA
|
11530AA
01125-00831 BOLT1994-07-01 ~ 1996-03-01; KA24DE.MT; , |
01125-00831 |
US $3.31 |
||
|
11530AA
|
11530AA
11298-2J201 Bolt1996-03-01 ~ ; KA24DE.MT; , |
11298-2J201 |
US $3.46 |
||
|
11530AB
|
11530AB
01121-07011 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01121-07011 |
US $3.46 |
||
|
11530AC
|
11530AC
01125-00831 BOLT1994-07-01 ~ 1996-03-01; KA24DE.MT; , |
01125-00831 |
US $3.31 |
||
|
11530AC
|
11530AC
11298-2J201 Bolt1996-03-01 ~ ; KA24DE.MT; , |
11298-2J201 |
US $3.46 |
||
|
11530AD
|
11530AD
01121-07011 BOLT1994-07-01 ~ ; KA24DE.MT; , |
01121-07011 |
US $3.46 |
||
