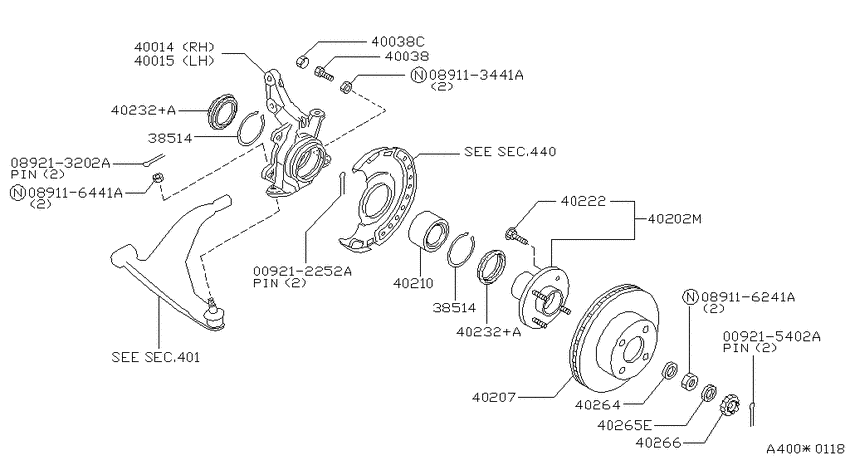

Front axle (1992-06-01 ~ ; KA24DE) Diagram Nissan STANZA
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009212252A
|
009212252A
00921-2252A
ﾋﾟﾝ,ｽﾌﾟﾘﾂﾄ ｺﾂﾀ-
|
00921-2252A |
— | ||
|
009215402A
|
009215402A
009215402A PINCOTTERSPLI |
009215402A |
from US $0.50 |
||
|
089113441A
|
089113441A
08911-3441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-3441A |
— | ||
|
089116241A
|
089116241A
089116241A NUTHEX |
089116241A |
US $4.85 |
||
|
089116441A
|
089116441A
089116441A NUT-HEX |
089116441A |
from US $0.94 |
||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
38514
|
38514
4021430R00 Ring-Snap1992-06-01 ~ ; KA24DE; , |
4021430R00 |
US $4.18 |
||
|
38514
|
38514
4021430R00 Ring-Snap1992-06-01 ~ ; KA24DE; , |
4021430R00 |
US $4.18 |
||
|
40014
|
40014
40014-0E000 SPINDLE-KNUCKLE,RH1992-06-01 ~ 1993-10-01; KA24DE; , |
40014-0E000 |
US $468.70 |
||
|
40014
|
40014
400140E010 SPINDLE-KNUCKLE,RH1992-06-01 ~ 1993-08-01; *KA24DE; F/ABS |
400140E010 |
US $423.38 |
||
|
40014
|
40014
40014-2B000
Knuckle Spindle-Rh
1996-07-01 ~ ; *KA24DE; F/LOCAL MAKE-NMMC |
40014-2B000 |
— | ||
|
40014
|
40014
40014-2B010
Knuckle Spindle-Rh
1993-10-01 ~ 1994-07-01; *KA24DE; F/ANTI SKID CONT-4WHL |
40014-2B010 |
— | ||
|
40015
|
40015
40015-0E000 SPINDLE-KNUCKLE,LH1992-06-01 ~ 1993-10-01; KA24DE; , |
40015-0E000 |
US $468.70 |
||
|
40015
|
40015
40015-0E010 SPINDLE-KNUCKLE,LH1992-06-01 ~ 1993-08-01; *KA24DE; F/ABS |
40015-0E010 |
US $423.38 |
||
|
40015
|
40015
40015-2B000
Knuckle Spindle-Lh
1996-07-01 ~ ; *KA24DE; F/LOCAL MAKE-NMMC |
40015-2B000 |
— | ||
|
40015
|
40015
40015-2B010
Knuckle Spindle-Lh
1996-02-01 ~ 1996-07-01; *KA24DE; 'F/LOCAL MAKE-NMMC F/ANTI SKID CONT-4WHL |
40015-2B010 |
— | ||
|
40038
|
40038
40038-01E11 BOLT-STOPPER1992-06-01 ~ 1992-11-01; KA24DE; , |
40038-01E11 |
US $4.18 |
||
| replacement | |||||
|
40038
|
40038
40038-01E6C Bolt1992-06-01 ~ 1992-11-01; KA24DE; , |
40038-01E6C |
US $4.18 |
||
|
40038
|
40038
40038-D0102 Bolt-Stopper1992-11-01 ~ ; KA24DE; , |
40038-D0102 |
US $5.47 |
||
| replacement | |||||
|
40038
|
40038
40038D016C
ﾎﾞﾙﾄ
1992-11-01 ~ ; KA24DE; , |
40038D016C |
— | ||
|
40038
|
40038
40039D0100 Cap-Stopper Bolt1992-06-01 ~ ; KA24DE; , |
40039D0100 |
from US $0.72 |
||
|
40038C
|
40038C
40039D0100 Cap-Stopper Bolt1992-06-01 ~ ; KA24DE; , |
40039D0100 |
from US $0.72 |
||
|
40202M
|
40202M
40202-50J00 Hub Assy-Road Wheel, Front Rh1992-06-01 ~ 1995-10-01; KA24DE; , |
40202-50J00 |
US $249.12 |
||
| replacement | |||||
|
40202M
|
40202M
4020250J10 Hub Assy-Road Wheel, Front1992-06-01 ~ 1995-10-01; KA24DE; , |
4020250J10 |
US $231.84 |
||
|
40202M
|
40202M
40202-50J01 Hub Assy-Road Wheel, Front1995-10-01 ~ ; KA24DE; , |
40202-50J01 |
US $190.08 |
||
| replacement | |||||
|
40202M
|
40202M
4020250J10 Hub Assy-Road Wheel, Front1995-10-01 ~ ; KA24DE; , |
4020250J10 |
US $231.84 |
||
|
40207
|
40207
40206-55F03 Rotor-Disc Brake, Front1992-06-01 ~ 1994-07-01; KA24DE.SE.(MT+AT); , |
40206-55F03 |
US $187.20 |
||
| replacement | |||||
|
40207
|
40207
402067J101 Rotor-Disc Brake, Front1992-06-01 ~ 1994-07-01; KA24DE.SE.(MT+AT); , |
402067J101 |
US $181.44 |
||
|
40210
|
40210
40210-30R06
Bearing Assy-Front Wheel
1992-06-01 ~ ; KA24DE; , |
40210-30R06 |
— | ||
| replacement | |||||
|
40210
|
40210
4021030R01 Bearing Assy-Front Wheel1992-06-01 ~ ; KA24DE; , |
4021030R01 |
from US $46.66 |
||
|
40222
|
40222
43222-21B60 Bolt-Hub1992-06-01 ~ 1993-08-01; KA24DE; , |
43222-21B60 |
US $3.31 |
||
|
40222
|
40222
4322270T00 Bolt-Hub1993-08-01 ~ ; KA24DE; , |
4322270T00 |
from US $1.30 |
||
|
40232+A
|
40232+A
40232-33P10
Seal-Grease, Front Hub
1992-06-01 ~ ; KA24DE; , |
40232-33P10 |
— | ||
| replacement | |||||
|
40232+A
|
40232+A
4023233P00 Seal-Grease, Front Hub1992-06-01 ~ ; KA24DE; , |
4023233P00 |
from US $10.28 |
||
|
40232+A
|
40232+A
40232-33P10
Seal-Grease, Front Hub
1992-06-01 ~ ; KA24DE; , |
40232-33P10 |
— | ||
| replacement | |||||
|
40232+A
|
40232+A
4023233P00 Seal-Grease, Front Hub1992-06-01 ~ ; KA24DE; , |
4023233P00 |
from US $10.28 |
||
|
40264
|
40264
4003701E00 WASHER-FRONT WHEEL BEARING1992-06-01 ~ ; KA24DE; , |
4003701E00 |
from US $3.06 |
||
|
40265E
|
40265E
4026801E00 INSULATOR-ADJUSTING CAP1992-06-01 ~ 1995-08-01; KA24DE; , |
4026801E00 |
from US $1.35 |
||
|
40266
|
40266
40263-51E00 CAP-ADJUSTING,LH1992-06-01 ~ 1995-08-01; KA24DE; , |
40263-51E00 |
from US $2.37 |
||
