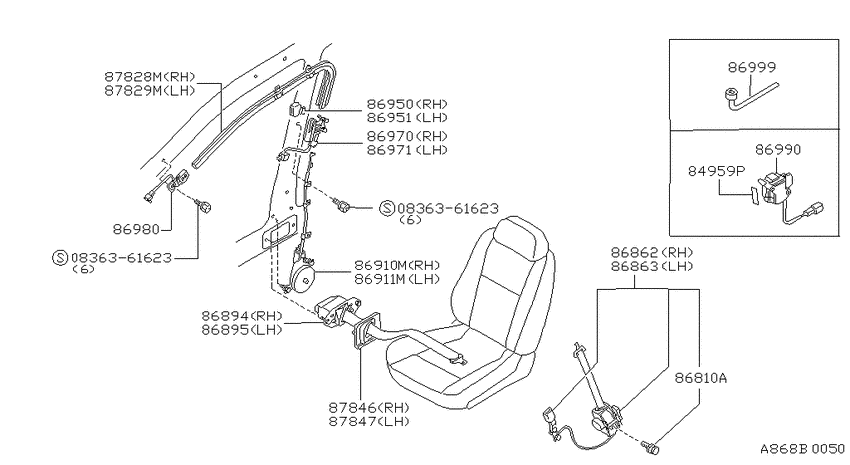

Front seat belt (1992-06-01 ~ 1993-08-01; PASSIVE BELT; S) Diagram Nissan STANZA
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361623
|
0836361623
08363-61623
Болт
|
08363-61623 |
— | ||
|
0836361623
|
0836361623
08363-61623
Болт
|
08363-61623 |
— | ||
|
84959P
|
84959P
84959-1E400
Foam-pad
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
84959-1E400 |
— | ||
|
86810A
|
86810A
01121-05101
Bolt
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
01121-05101 |
— | ||
|
86862
|
86862
86862-1E410
Belt set-shoulder,passive rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86862-1E410 |
— | ||
|
86862
|
86862
86862-1E411
Belt set-shoulder,passive rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86862-1E411 |
— | ||
|
86862
|
86862
86862-1E412
Belt set-shoulder,passive rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86862-1E412 |
— | ||
|
86862
|
86862
86862-1E414
Belt set-shoulder,passive rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86862-1E414 |
— | ||
|
86863
|
86863
86863-1E410
Belt set-shoulder,passive lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86863-1E410 |
— | ||
|
86863
|
86863
86863-1E411
Belt set-shoulder,passive lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86863-1E411 |
— | ||
|
86863
|
86863
86863-1E412
Belt set-shoulder,passive lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86863-1E412 |
— | ||
|
86863
|
86863
86863-1E414
Belt set-shoulder,passive lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86863-1E414 |
— | ||
|
86894
|
86894
86894-1E400
Belt assy-tongue,passive rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86894-1E400 |
— | ||
|
86894
|
86894
86894-1E401
Belt assy-tongue,passive rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86894-1E401 |
— | ||
|
86894
|
86894
86894-1E402
Belt assy-tongue,passive rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86894-1E402 |
— | ||
|
86894
|
86894
86894-1E404
Belt assy-tongue,passive rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86894-1E404 |
— | ||
|
86895
|
86895
86895-1E400
Belt assy-tongue,passive lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86895-1E400 |
— | ||
|
86895
|
86895
86895-1E401
Belt assy-tongue,passive lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86895-1E401 |
— | ||
|
86895
|
86895
86895-1E402
Belt assy-tongue,passive lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86895-1E402 |
— | ||
|
86895
|
86895
86895-1E404
Belt assy-tongue,passive lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86895-1E404 |
— | ||
|
86910M
|
86910M
86910-1E400
Motor assy-passive,rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86910-1E400 |
— | ||
|
86911M
|
86911M
86911-1E400
Motor assy-passive,lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86911-1E400 |
— | ||
|
86950
|
86950
86950-62J00
Buckle assy-passive belt,rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86950-62J00 |
— | ||
|
86951
|
86951
86951-62J00
Buckle assy-passive belt,lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86951-62J00 |
— | ||
|
86970
|
86970
86970-1E400
Latch assy-passive,rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86970-1E400 |
— | ||
|
86971
|
86971
86971-1E400
Latch assy-passive,lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86971-1E400 |
— | ||
|
86980
|
86980
86980-62J00
Switch assy-passive
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86980-62J00 |
— | ||
|
86990
|
86990
86990-1E400
Sensor assy-passive
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86990-1E400 |
— | ||
|
86999
|
86999
86999-42E00
Wrench-motor,passive
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86999-42E00 |
— | ||
|
87828M
|
87828M
86920-1E400
Guide rail assy-passive,front rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86920-1E400 |
— | ||
|
87829M
|
87829M
86921-1E400
Guide rail assy-passive,front lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
86921-1E400 |
— | ||
|
87846
|
87846
87846-1E400
Finisher-retractor,rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
87846-1E400 |
— | ||
|
87846
|
87846
87846-1E401
Finisher-retractor,rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
87846-1E401 |
— | ||
|
87846
|
87846
87846-1E402
Finisher-retractor,rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
87846-1E402 |
— | ||
|
87846
|
87846
87846-1E404
Finisher-retractor,rh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
87846-1E404 |
— | ||
|
87847
|
87847
87847-1E400
Finisher-retractor,lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
87847-1E400 |
— | ||
|
87847
|
87847
87847-1E401
Finisher-retractor,lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
87847-1E401 |
— | ||
|
87847
|
87847
87847-1E402
Finisher-retractor,lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
87847-1E402 |
— | ||
|
87847
|
87847
87847-1E404
Finisher-retractor,lh
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
87847-1E404 |
— |
