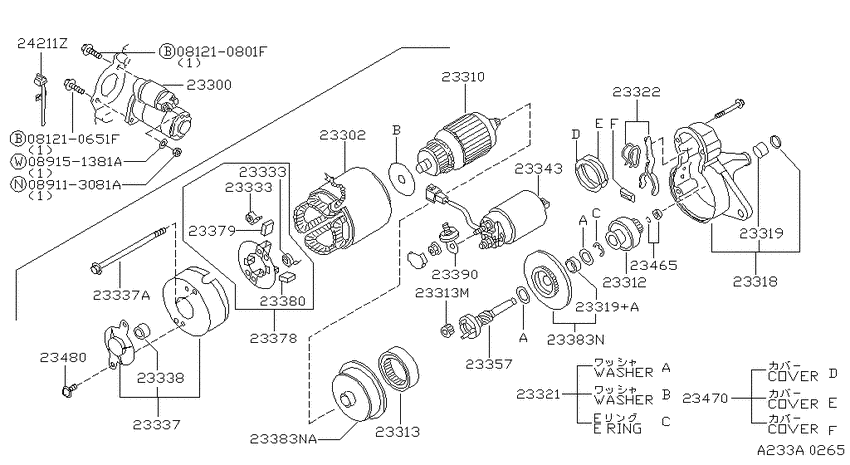

Starter motor (1992-06-01 ~ ; HAP; KA24DE.MT) Diagram Nissan STANZA
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210651F
|
081210651F
08121-0651F
Bolt-hexagon
|
08121-0651F |
— | ||
|
081210801F
|
081210801F
08121-0801F
Bolt-hexagon
|
08121-0801F |
— | ||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
23300
|
23300
23300-1E400
Motor Assy-Starter
1996-02-01 ~ ; KA24DE.MT; , |
23300-1E400 |
— | ||
|
23302
|
23302
23302-50Y01 Yoke Assy1992-06-01 ~ ; KA24DE.MT; HAP |
23302-50Y01 |
US $207.36 |
||
|
23310
|
23310
23310-50Y01 Armature Assy1992-06-01 ~ ; KA24DE.MT; HAP |
23310-50Y01 |
US $412.06 |
||
|
23312
|
23312
23312-1E400
Pinion Assy
1992-06-01 ~ ; KA24DE.MT; HAP |
23312-1E400 |
— | ||
|
23313
|
23313
23361-1P100 Gear1992-06-01 ~ ; KA24DE.MT; HAP |
23361-1P100 |
US $15.12 |
||
|
23313
|
23313
23367-1P100 Planet Gear1992-06-01 ~ ; KA24DE.MT; HAP |
23367-1P100 |
US $10.80 |
||
|
23313M
|
23313M
23367-1P100 Planet Gear1992-06-01 ~ ; KA24DE.MT; HAP |
23367-1P100 |
US $10.80 |
||
|
23318
|
23318
23318-1E401
Case Assy-Gear
1992-06-01 ~ ; KA24DE.MT; HAP |
23318-1E401 |
— | ||
|
23319
|
23319
23338-N3301
Metal-Gear Case
1992-06-01 ~ ; KA24DE.MT; HAP |
23338-N3301 |
— | ||
|
23319
|
23319
23319-0B001
Metal-Gear Case
1992-06-01 ~ ; KA24DE.MT; HAP |
23319-0B001 |
— | ||
|
23319+A
|
23319+A
23319-0B001
Metal-Gear Case
1992-06-01 ~ ; KA24DE.MT; HAP |
23319-0B001 |
— | ||
|
23321
|
23321
23369-1E400 Washer Set-Thrust1992-06-01 ~ ; KA24DE.MT; HAP |
23369-1E400 |
US $6.19 |
||
|
23322
|
23322
23322-52F05 Lever Set-Shift1993-06-01 ~ ; KA24DE.MT; HAP |
23322-52F05 |
US $18.86 |
||
|
23322
|
23322
23322-97E00 LEVER SET-SHIFT1992-06-01 ~ 1993-06-01; KA24DE.MT; HAP |
23322-97E00 |
US $28.08 |
||
|
23333
|
23333
23333-1P101 Spring-Brush1992-06-01 ~ ; KA24DE.MT; HAP |
23333-1P101 |
US $10.37 |
||
|
23333
|
23333
23333-1P101 Spring-Brush1992-06-01 ~ ; KA24DE.MT; HAP |
23333-1P101 |
US $10.37 |
||
|
23337
|
23337
23337-1E400
Cover Assy-Rear
1992-06-01 ~ 1993-06-01; KA24DE.MT; HAP |
23337-1E400 |
— | ||
|
23337
|
23337
23337-1E405
Cover Assy-Rear
1993-06-01 ~ ; KA24DE.MT; HAP |
23337-1E405 |
— | ||
|
23337
|
23337
23340N5900 Bolt-Through1992-06-01 ~ ; KA24DE.MT; HAP |
23340N5900 |
US $4.61 |
||
|
23337A
|
23337A
23340N5900 Bolt-Through1992-06-01 ~ ; KA24DE.MT; HAP |
23340N5900 |
US $4.61 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER1992-06-01 ~ ; KA24DE.MT; HAP |
2333897E00 |
US $10.37 |
||
|
23343
|
23343
23343-1E401
Switch Assy-Magnetic
1992-06-01 ~ 1995-08-01; KA24DE.MT; HAP |
23343-1E401 |
— | ||
|
23343
|
23343
23343-30R02
Switch Assy-Magnetic
1996-02-01 ~ ; KA24DE.MT; , |
23343-30R02 |
— | ||
|
23357
|
23357
23357-1E401
Shaft-Pinion
1992-06-01 ~ ; KA24DE.MT; HAP |
23357-1E401 |
— | ||
|
23378
|
23378
23378-1E401 Holder Assy-Brush1992-06-01 ~ ; KA24DE.MT; HAP |
23378-1E401 |
US $72 |
||
|
23379
|
23379
23379-1P100 Brush-Minus1992-06-01 ~ ; KA24DE.MT; HAP |
23379-1P100 |
US $5.62 |
||
|
23380
|
23380
23380-1E400 Brush-Plus1992-06-01 ~ ; KA24DE.MT; HAP |
23380-1E400 |
US $15.98 |
||
|
23383N
|
23383N
23383-0B001
Bracket Assy-Center
1992-06-01 ~ ; KA24DE.MT; HAP |
23383-0B001 |
— | ||
|
23383N
|
23383N
23383-1P101 Bracket Assy-Center1992-06-01 ~ ; KA24DE.MT; HAP |
23383-1P101 |
US $10.51 |
||
|
23383NA
|
23383NA
23383-1P101 Bracket Assy-Center1992-06-01 ~ ; KA24DE.MT; HAP |
23383-1P101 |
US $10.51 |
||
|
23390
|
23390
23390-1E400
Bolt
1992-06-01 ~ ; KA24DE.MT; HAP |
23390-1E400 |
— | ||
|
23465
|
23465
23465-80W00 Stopper Set-Pinion1992-06-01 ~ ; KA24DE.MT; HAP |
23465-80W00 |
US $7.49 |
||
|
23470
|
23470
23470-1P100 Cover Set-Dust1992-06-01 ~ ; KA24DE.MT; HAP |
23470-1P100 |
US $9.94 |
||
|
23480
|
23480
23480-M0100 Screw Set1992-06-01 ~ ; KA24DE.MT; HAP |
23480-M0100 |
US $4.18 |
||
|
24211Z
|
24211Z
24346-79981
Clip-Wiring Harness
1992-06-01 ~ 1993-08-01; KA24DE.MT; , |
24346-79981 |
— | ||
| replacement | |||||
|
24211Z
|
24211Z
2434627N05 Clip-Connector1992-06-01 ~ 1993-08-01; KA24DE.MT; , |
2434627N05 |
US $4.16 |
||
|
24211Z
|
24211Z
24346-79985 Clip1993-08-01 ~ ; KA24DE.MT; , |
24346-79985 |
US $4.32 |
||
| replacement | |||||
|
24211Z
|
24211Z
2434627N05 Clip-Connector1993-08-01 ~ ; KA24DE.MT; , |
2434627N05 |
US $4.16 |
||
