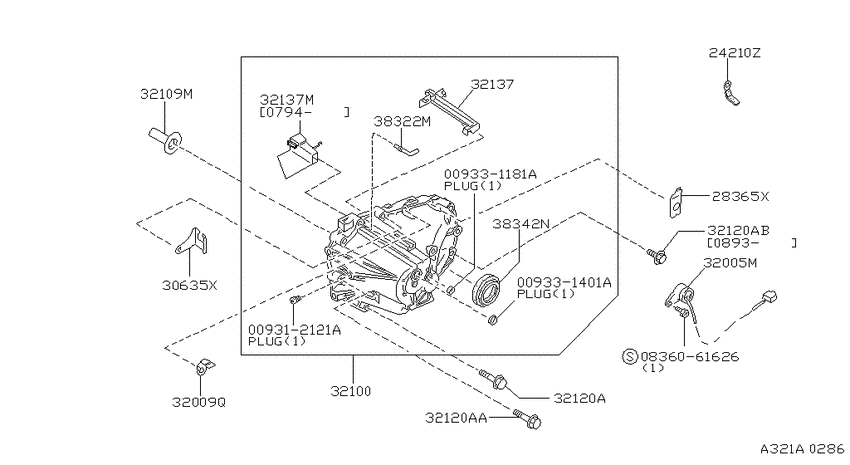

Transmission case & clutch release (1992-06-01 ~ ; TRANSMISSION CASE RS5F50A/V; MT) Diagram Nissan STANZA
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.92 |
||
|
009331181A
|
009331181A
00933-1181A Plug-Welch |
00933-1181A |
US $0.48 |
||
|
009331401A
|
009331401A
009331401A Plug-Welch |
009331401A |
from US $1.13 |
||
|
0836061626
|
0836061626
0836061626
SCREW
|
0836061626 |
— | ||
|
24210Z
|
24210Z
24210-89922 Clip-Wire1992-06-01 ~ ; MT; , |
24210-89922 |
US $3.46 |
||
|
28365X
|
28365X
28365-41L00 Terminal-Earth1993-03-01 ~ 1993-08-01; MT; , |
28365-41L00 |
US $0.86 |
||
|
28365X
|
28365X
28365-71E00 TERMINAL-EARTH1992-06-01 ~ 1993-03-01; MT; , |
28365-71E00 |
US $0.86 |
||
|
28365X
|
28365X
28365-D0100 Terminal-Earth1993-08-01 ~ ; MT; , |
28365-D0100 |
US $0.86 |
||
|
30635X
|
30635X
30635-86E00 BRACKET-CLUTCH HOSE1992-06-01 ~ 1993-08-01; MT; , |
30635-86E00 |
US $34.85 |
||
|
30635X
|
30635X
30635-86E01 BRACKET-CLUTCH HOSE1993-08-01 ~ ; MT; , |
30635-86E01 |
US $42.91 |
||
|
32005M
|
32005M
32005-17E01 SWITCH ASSY-POSITION1992-06-01 ~ 1994-12-01; MT; , |
32005-17E01 |
US $86.69 |
||
|
32005M
|
32005M
32005-17E11 SWITCH ASSY-POSITION1994-12-01 ~ ; MT; , |
32005-17E11 |
US $48.38 |
||
|
32009Q
|
32009Q
32009-51E00 BRACKET-SWITCH CONNECTOR1992-06-01 ~ 1993-08-01; MT; , |
32009-51E00 |
US $6.34 |
||
| replacement | |||||
|
32009Q
|
32009Q
32009-51E11
Bracket-switch connector
1992-06-01 ~ 1993-08-01; MT; , |
32009-51E11 |
— | ||
|
32009Q
|
32009Q
32009-51E01 BRACKET-SWITCH CONNECTOR1993-08-01 ~ 1994-07-01; MT; , |
32009-51E01 |
US $7.06 |
||
|
32009Q
|
32009Q
32009-51E10 BRACKET-SWITCH CONNECTOR1994-07-01 ~ ; MT; , |
32009-51E10 |
US $7.06 |
||
|
32100
|
32100
32100-0E002
CASE ASSY-TRANSMISSION
1992-06-01 ~ 1993-04-01; MT; , |
32100-0E002 |
— | ||
| replacement | |||||
|
32100
|
32100
32100-31U02
Case assy-transmission
1992-06-01 ~ 1993-04-01; MT; , |
32100-31U02 |
— | ||
|
32100
|
32100
32100-0E003
CASE ASSY-TRANSMISSION
1992-06-01 ~ 1993-08-01; *(GXE+SE).MT; F/LSD F/HI SPD |
32100-0E003 |
— | ||
| replacement | |||||
|
32100
|
32100
32100-31U03
Case assy-transmission
1992-06-01 ~ 1993-08-01; *(GXE+SE).MT; F/LSD F/HI SPD |
32100-31U03 |
— | ||
|
32100
|
32100
32100-0E007
CASE ASSY-TRANSMISSION
1993-04-01 ~ 1993-08-01; MT; , |
32100-0E007 |
— | ||
| replacement | |||||
|
32100
|
32100
32100-31U02
Case assy-transmission
1993-04-01 ~ 1993-08-01; MT; , |
32100-31U02 |
— | ||
|
32100
|
32100
32100-31U00
Case Assy-Transmission
1993-08-01 ~ 1994-07-01; MT; , |
32100-31U00 |
— | ||
| replacement | |||||
|
32100
|
32100
32100-31U02
Case assy-transmission
1993-08-01 ~ 1994-07-01; MT; , |
32100-31U02 |
— | ||
|
32100
|
32100
32100-31U01
Case Assy-Transmission
1993-08-01 ~ 1994-07-01; *(GXE+SE).MT; F/LSD F/HI SPD |
32100-31U01 |
— | ||
| replacement | |||||
|
32100
|
32100
32100-31U03
Case assy-transmission
1993-08-01 ~ 1994-07-01; *(GXE+SE).MT; F/LSD F/HI SPD |
32100-31U03 |
— | ||
|
32100
|
32100
321A0-31U04
Case Assy-Transmission
1994-07-01 ~ ; MT; , |
321A0-31U04 |
— | ||
|
32109M
|
32109M
32106-03E02 Channel-Oil, Input Shaft Rear1992-06-01 ~ ; MT; , |
32106-03E02 |
US $2.36 |
||
|
32120A
|
32120A
31377-01X03 Bolt1993-08-01 ~ ; MT; , |
31377-01X03 |
US $2.45 |
||
|
32120A
|
32120A
31377-01X05 Bolt1992-06-01 ~ ; MT; , |
31377-01X05 |
US $2.45 |
||
|
32120A
|
32120A
31377-31U00 Bolt1993-08-01 ~ ; MT; , |
31377-31U00 |
US $2.45 |
||
|
32120AA
|
32120AA
31377-01X05 Bolt1992-06-01 ~ ; MT; , |
31377-01X05 |
US $2.45 |
||
|
32120AB
|
32120AB
31377-31U00 Bolt1993-08-01 ~ ; MT; , |
31377-31U00 |
US $2.45 |
||
|
32137
|
32137
32107-79E01 GUTTER-OIL,ADAPTER1992-06-01 ~ ; MT; , |
32107-79E01 |
US $5.18 |
||
|
32137
|
32137
32107-79E00 BOX-BREATER1994-07-01 ~ ; MT; , |
32107-79E00 |
US $4.18 |
||
|
32137M
|
32137M
32107-79E00 BOX-BREATER1994-07-01 ~ ; MT; , |
32107-79E00 |
US $4.18 |
||
|
38322M
|
38322M
38322-70A03 Breather-Transmission Case1992-06-01 ~ ; MT; , |
38322-70A03 |
US $12.38 |
||
|
38342N
|
38342N
3834203E00 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE1992-06-01 ~ ; MT; , |
3834203E00 |
US $10.04 |
||
|
38342N
|
38342N
38342-51E00 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE1992-06-01 ~ 1994-07-01; *(GXE+SE).MT; F/LSD F/HI SPD |
38342-51E00 |
from US $8.35 |
||
