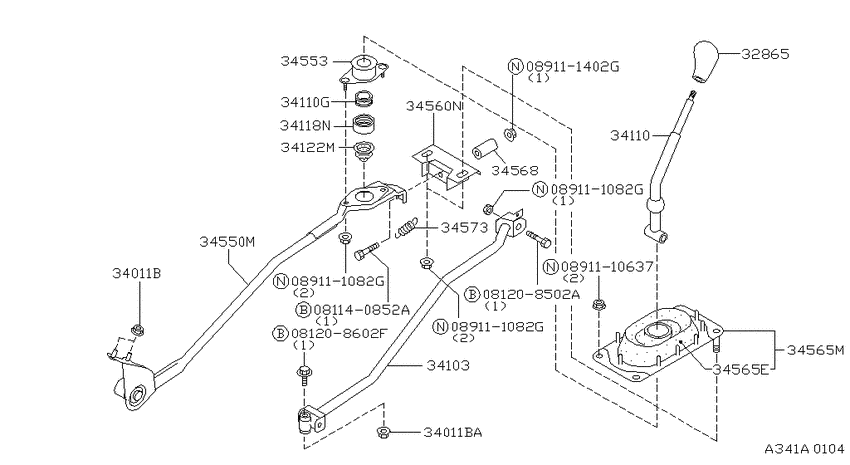

Transmission control & linkage (1992-06-01 ~ ; RS5F50A/V; KA24DE.MT) Diagram Nissan STANZA
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081140852A
|
081140852A
08114-0852A
Bolt-hexagon
|
08114-0852A |
— | ||
|
081208502A
|
081208502A
08120-8502A
Bolt-hexagon
|
08120-8502A |
— | ||
|
081208602F
|
081208602F
08120-8602F
Bolt-hexagon
|
08120-8602F |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111402G
|
089111402G
089111402G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111402G |
— | ||
|
32865
|
32865
32865-1E000 KNOB-CONTROL LEVER1992-06-01 ~ 1996-03-01; KA24DE.SE.MT; , |
32865-1E000 |
US $67.10 |
||
|
32865
|
32865
32865-40U10 Knob-Control Lever1996-03-01 ~ 1996-07-01; KA24DE.SE.MT; , |
32865-40U10 |
US $68.40 |
||
|
34011B
|
34011B
0122500102 NUT1992-06-01 ~ ; KA24DE.MT; , |
0122500102 |
from US $0.56 |
||
|
34011B
|
34011B
0122500102 NUT1992-06-01 ~ ; KA24DE.MT; , |
0122500102 |
from US $0.56 |
||
|
34011BA
|
34011BA
0122500102 NUT1992-06-01 ~ ; KA24DE.MT; , |
0122500102 |
from US $0.56 |
||
|
34103
|
34103
34103-0E500 Rod Assy-Control1992-06-01 ~ ; KA24DE.MT; , |
34103-0E500 |
US $187.20 |
||
|
34110
|
34110
34110-0E710
Lever Assy-Control
1992-06-01 ~ ; KA24DE.MT; , |
34110-0E710 |
— | ||
|
34110
|
34110
34116-50C00 Bearing-Hand Lever1992-06-01 ~ ; KA24DE.MT; , |
34116-50C00 |
US $11.23 |
||
|
34110G
|
34110G
34116-50C00 Bearing-Hand Lever1992-06-01 ~ ; KA24DE.MT; , |
34116-50C00 |
US $11.23 |
||
|
34118N
|
34118N
34118-50C00 Seat-Bearing Set1992-06-01 ~ ; KA24DE.MT; , |
34118-50C00 |
US $13.25 |
||
|
34122M
|
34122M
34122-0E000 BOOT-DUST,HAND LEVER1992-06-01 ~ ; KA24DE.MT; , |
34122-0E000 |
US $37.30 |
||
|
34550M
|
34550M
34550-0E500 Support Assy-Control Rod1992-06-01 ~ ; KA24DE.MT; , |
34550-0E500 |
US $110.45 |
||
|
34553
|
34553
34553-0E000 SOCKET ASSY-HAND LEVER1992-06-01 ~ ; KA24DE.MT; , |
34553-0E000 |
US $18.43 |
||
|
34560N
|
34560N
34560-0E000 BRACKET ASSY-HOLDER RUBBER1992-06-01 ~ ; KA24DE.MT; , |
34560-0E000 |
US $18.43 |
||
|
34565E
|
34565E
74960-0E500 Boot-Dust, Hole Cover1992-06-01 ~ ; KA24DE.MT; , |
74960-0E500 |
US $12.14 |
||
| replacement | |||||
|
34565E
|
34565E
74965-0E510 Cover-Transmission Hole1992-06-01 ~ ; KA24DE.MT; , |
74965-0E510 |
US $24.54 |
||
|
34565M
|
34565M
74965-0E500 Cover-Transmission Hole1992-06-01 ~ 1993-08-01; KA24DE.MT; , |
74965-0E500 |
US $16.70 |
||
|
34565M
|
34565M
74965-0E510 Cover-Transmission Hole1993-08-01 ~ ; KA24DE.MT; , |
74965-0E510 |
US $24.54 |
||
|
34568
|
34568
34568-50C00 Damper-Mass1992-06-01 ~ ; KA24DE.MT; , |
34568-50C00 |
US $37.30 |
||
|
34573
|
34573
34573-0E500 Spring-Return, Lever1992-06-01 ~ ; KA24DE.MT; , |
34573-0E500 |
US $11.23 |
||
