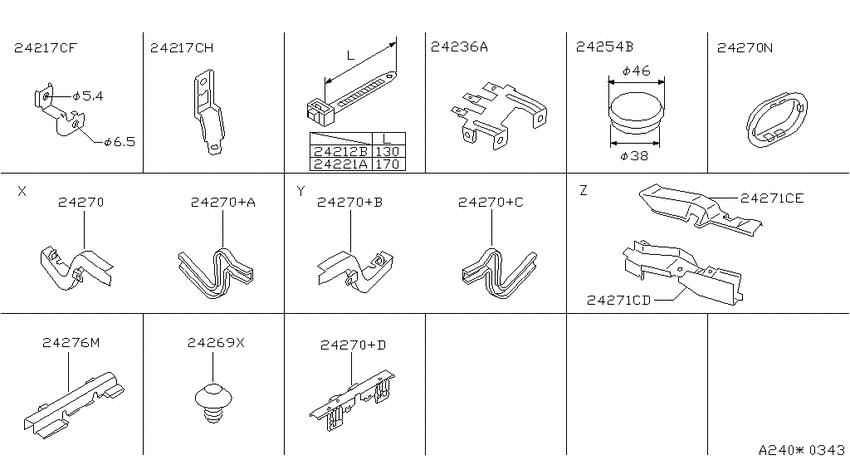

Wiring (1992-06-01 ~ ; ENGINE ROOM FITTING PARTS (2); S) Diagram Nissan STANZA
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24212B
|
24212B
01552-00033 CLIP-HARNESS1992-06-01 ~ 1996-02-01; FED.S +CAL.S; , |
01552-00033 |
US $4.85 |
||
|
24212B
|
24212B
01552-00043
CLIP
1996-02-01 ~ 1996-07-01; FED.S +CAL.S; L=170 |
01552-00043 |
— | ||
| replacement | |||||
|
24212B
|
24212B
2421610Y80 Clamp1996-02-01 ~ 1996-07-01; FED.S +CAL.S; L=170 |
2421610Y80 |
from US $4.61 |
||
|
24217CF
|
24217CF
24239-1E800
Bracket-Harness Clip
1996-02-01 ~ ; &FED.S.(GXE+GLE+SE) +CAL.S.(GXE+GLE+SE); , |
24239-1E800 |
— | ||
|
24217CH
|
24217CH
24239-0E500 Bracket-Harness Clip1992-06-01 ~ 1992-07-01; FED.S +CAL.S; , |
24239-0E500 |
US $12.96 |
||
|
24217CH
|
24217CH
24239-0E501 Bracket-Harness Clip1996-02-01 ~ ; &FED.S.(GXE+GLE+SE) +CAL.S.(GXE+GLE+SE); , |
24239-0E501 |
US $11.23 |
||
|
24221A
|
24221A
01552-00043
CLIP
1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
01552-00043 |
— | ||
| replacement | |||||
|
24221A
|
24221A
2421610Y80 Clamp1992-06-01 ~ 1993-08-01; FED.S +CAL.S; , |
2421610Y80 |
from US $4.61 |
||
|
24236A
|
24236A
24236-1E800
Bracket-Harness Connector
1992-06-01 ~ ; FED.S +CAL.S; , |
24236-1E800 |
— | ||
|
24254B
|
24254B
77700-89915 Plug-Rubber, Rear Plate1992-06-01 ~ 1993-08-01; FED.S +CAL.S; F/AIR BAG LESS |
77700-89915 |
US $1.93 |
||
|
24269X
|
24269X
0165801481 PLUG1992-08-01 ~ ; FED.S +CAL.S; , |
0165801481 |
US $3.18 |
||
|
24270
|
24270
24291-0E000 PROTECTOR-HARNESS1992-06-01 ~ ; FED.S +CAL.S; , |
24291-0E000 |
US $6.05 |
||
|
24270
|
24270
24291-0E001 PROTECTOR-HARNESS1992-06-01 ~ ; FED.S +CAL.S; , |
24291-0E001 |
US $6.05 |
||
|
24270
|
24270
24291-0E010 PROTECTOR-HARNESS1992-06-01 ~ ; FED.S +CAL.S; , |
24291-0E010 |
US $6.05 |
||
|
24270
|
24270
24291-0E011 PROTECTOR-HARNESS1992-06-01 ~ 1996-02-01; FED.S +CAL.S; , |
24291-0E011 |
US $6.05 |
||
|
24270
|
24270
24293-1E400
Protector-Harness
1992-06-01 ~ 1994-07-01; FED.S +CAL.S; , |
24293-1E400 |
— | ||
|
24270
|
24270
2427650Y00 Protector-Harness1992-06-01 ~ ; FED.S +CAL.S; , |
2427650Y00 |
US $7.92 |
||
|
24270+A
|
24270+A
24291-0E001 PROTECTOR-HARNESS1992-06-01 ~ ; FED.S +CAL.S; , |
24291-0E001 |
US $6.05 |
||
|
24270+B
|
24270+B
24291-0E010 PROTECTOR-HARNESS1992-06-01 ~ ; FED.S +CAL.S; , |
24291-0E010 |
US $6.05 |
||
|
24270+C
|
24270+C
24291-0E011 PROTECTOR-HARNESS1992-06-01 ~ 1996-02-01; FED.S +CAL.S; , |
24291-0E011 |
US $6.05 |
||
|
24270+D
|
24270+D
24293-1E400
Protector-Harness
1992-06-01 ~ 1994-07-01; FED.S +CAL.S; , |
24293-1E400 |
— | ||
|
24270N
|
24270N
2427650Y00 Protector-Harness1992-06-01 ~ ; FED.S +CAL.S; , |
2427650Y00 |
US $7.92 |
||
|
24271CD
|
24271CD
24271-1E400
Protector-Harness
1992-06-01 ~ ; FED.S +CAL.S; , |
24271-1E400 |
— | ||
|
24271CE
|
24271CE
24271-1E401
Protector-Harness
1992-06-01 ~ ; FED.S +CAL.S; , |
24271-1E401 |
— | ||
|
24276M
|
24276M
24296-1E400 Protector-Harness1993-08-01 ~ ; FED.S +CAL.S; , |
24296-1E400 |
US $8.50 |
||
