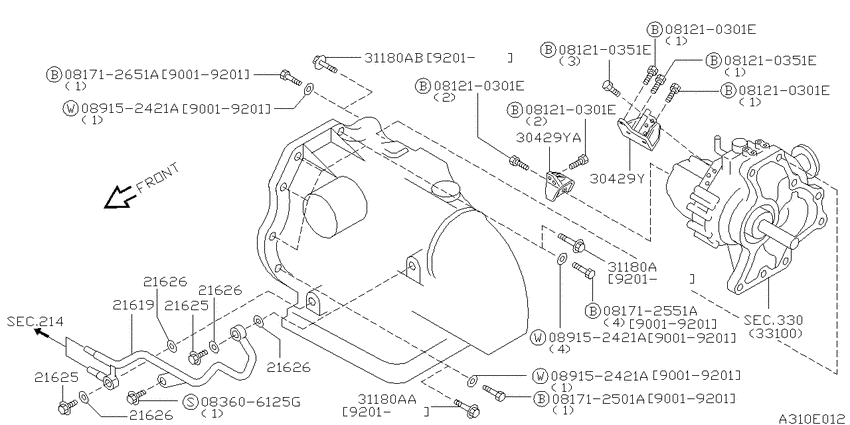

Auto transmission,transaxle & fitting (1990-01-01 ~ ; ﾄﾗﾝｽﾐｯｼｮﾝ ﾌｨｯﾃｨﾝｸﾞ ﾊﾟｰﾂ; 4WD.SR18DE.AT) Diagram Nissan SUNNY/LUCHINO
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 4WD
- transmission
- AT
- grade
- GT/S
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210351E
|
081210351E
081210351E Bolt-hexagon |
081210351E |
US $1.13 |
||
|
081210351E
|
081210351E
081210351E Bolt-hexagon |
081210351E |
US $1.13 |
||
|
081712501A
|
081712501A
08171-2501A
Bolt-hexagon
|
08171-2501A |
— | ||
|
081712551A
|
081712551A
08171-2551A
Bolt-hexagon
|
08171-2551A |
— | ||
|
081712651A
|
081712651A
081712651A Bolt-hexagon |
081712651A |
US $1 |
||
|
083606125G
|
083606125G
083606125G SCREWMACHINE |
083606125G |
US $0.57 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
21619
|
21619
2161954J02 Tube Assy-Oil Cooler9001--01 ~ ; 4WD.SR18DE.AT |
2161954J02 |
US $64.66 |
||
|
21625
|
21625
21625-54J00 Bolt-Connector9001--01 ~ 9201--01; 4WD.SR18DE.AT |
21625-54J00 |
US $7.20 |
||
|
21625
|
21625
21625-54J01 Bolt-Connector9201--01 ~ ; 4WD.SR18DE.AT |
21625-54J01 |
US $7.20 |
||
|
21625
|
21625
21625-54J00 Bolt-Connector9001--01 ~ 9201--01; 4WD.SR18DE.AT |
21625-54J00 |
US $7.20 |
||
|
21625
|
21625
21625-54J01 Bolt-Connector9201--01 ~ ; 4WD.SR18DE.AT |
21625-54J01 |
US $7.20 |
||
|
21626
|
21626
2162664U00 Washer-Seal9201--01 ~ ; 4WD.SR18DE.AT |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
21626-P2600 Washer-Seal9001--01 ~ 9201--01; 4WD.SR18DE.AT |
21626-P2600 |
US $1.73 |
||
|
21626
|
21626
2162664U00 Washer-Seal9201--01 ~ ; 4WD.SR18DE.AT |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
21626-P2600 Washer-Seal9001--01 ~ 9201--01; 4WD.SR18DE.AT |
21626-P2600 |
US $1.73 |
||
|
21626
|
21626
2162664U00 Washer-Seal9201--01 ~ ; 4WD.SR18DE.AT |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
21626-P2600 Washer-Seal9001--01 ~ 9201--01; 4WD.SR18DE.AT |
21626-P2600 |
US $1.73 |
||
|
21626
|
21626
2162664U00 Washer-Seal9201--01 ~ ; 4WD.SR18DE.AT |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
21626-P2600 Washer-Seal9001--01 ~ 9201--01; 4WD.SR18DE.AT |
21626-P2600 |
US $1.73 |
||
|
30429Y
|
30429Y
30441-80E00 Gusset-Transmission To Engine9001--01 ~ ; 4WD.SR18DE.AT; ﾌﾛﾝﾄ ﾖｳ |
30441-80E00 |
US $45.94 |
||
|
30429Y
|
30429Y
30441-80E01 Gusset-Transmission To Engine9001--01 ~ ; 4WD.SR18DE.AT; ﾘﾔ ﾖｳ |
30441-80E01 |
US $30.53 |
||
|
30429YA
|
30429YA
30441-80E01 Gusset-Transmission To Engine9001--01 ~ ; 4WD.SR18DE.AT; ﾘﾔ ﾖｳ |
30441-80E01 |
US $30.53 |
||
|
31180A
|
31180A
31377-0E003
BOLT
9201--01 ~ ; 4WD.SR18DE.AT |
31377-0E003 |
— | ||
| replacement | |||||
|
31180A
|
31180A
31377-0E00D Bolt9201--01 ~ ; 4WD.SR18DE.AT |
31377-0E00D |
from US $1.04 |
||
|
31180A
|
31180A
31377-0E002 BOLT9201--01 ~ ; 4WD.SR18DE.AT |
31377-0E002 |
US $2.45 |
||
|
31180A
|
31180A
31377-0E004
BOLT
9201--01 ~ ; 4WD.SR18DE.AT |
31377-0E004 |
— | ||
| replacement | |||||
|
31180A
|
31180A
31377-JL00A Bolt9201--01 ~ ; 4WD.SR18DE.AT |
31377-JL00A |
from US $1.09 |
||
|
31180AA
|
31180AA
31377-0E002 BOLT9201--01 ~ ; 4WD.SR18DE.AT |
31377-0E002 |
US $2.45 |
||
|
31180AB
|
31180AB
31377-0E004
BOLT
9201--01 ~ ; 4WD.SR18DE.AT |
31377-0E004 |
— | ||
| replacement | |||||
|
31180AB
|
31180AB
31377-JL00A Bolt9201--01 ~ ; 4WD.SR18DE.AT |
31377-JL00A |
from US $1.09 |
||
