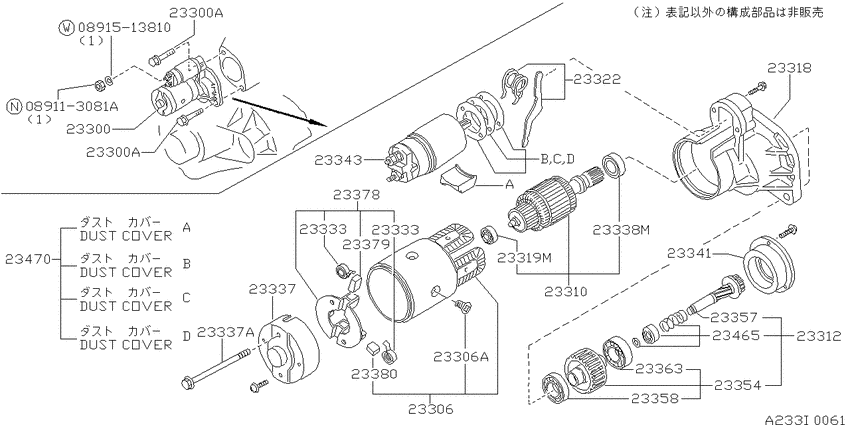

Starter motor (1990-07-01 ~ ; 日立; 4WD.CD17) Diagram Nissan SUNNY/LUCHINO
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- CD17
- drive
- 4WD
- transmission
- MT
- grade
- JX
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-60Y00 Motor Assy-Starter9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23300-60Y00 |
US $1,568 |
||
|
23300
|
23300
01121-00981 BOLT9007--01 ~ 9201--01; 4WD.CD17; L=85 |
01121-00981 |
US $2.45 |
||
|
23300A
|
23300A
01121-00981 BOLT9007--01 ~ 9201--01; 4WD.CD17; L=85 |
01121-00981 |
US $2.45 |
||
|
23300A
|
23300A
01121-00981 BOLT9007--01 ~ 9201--01; 4WD.CD17; L=85 |
01121-00981 |
US $2.45 |
||
|
23306
|
23306
23306-54A00 Coil Assy-Field9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23306-54A00 |
US $162.72 |
||
|
23306
|
23306
23305-09500 Screw-Pole Core Set9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23305-09500 |
US $1.11 |
||
|
23306A
|
23306A
23305-09500 Screw-Pole Core Set9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23305-09500 |
US $1.11 |
||
|
23310
|
23310
23310-54A00 Armature Assy9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23310-54A00 |
US $431.88 |
||
|
23312
|
23312
23312-60Y00 Pinion Assy9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23312-60Y00 |
US $358.25 |
||
|
23318
|
23318
23318-60Y00 Case Assy-Gear9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23318-60Y00 |
US $145.44 |
||
|
23319M
|
23319M
23319-M4900 Metal-Gear Case9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23319-M4900 |
US $21.46 |
||
|
23322
|
23322
23322-H9100 Lever Set-Shift9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23322-H9100 |
US $8.64 |
||
|
23333
|
23333
23333-W2500 Spring-Brush9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23333-W2500 |
US $5.04 |
||
|
23333
|
23333
23333-W2500 Spring-Brush9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23333-W2500 |
US $5.04 |
||
|
23337
|
23337
23337-60Y00 Cover Assy-Rear9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23337-60Y00 |
US $61.92 |
||
|
23337
|
23337
23340N5900 Bolt-Through9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23340N5900 |
US $4.61 |
||
|
23337A
|
23337A
23340N5900 Bolt-Through9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23340N5900 |
US $4.61 |
||
|
23338M
|
23338M
23338-M4900 Metal-Rear Cover9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23338-M4900 |
from US $52.13 |
||
|
23341
|
23341
23359-W2800 Retainer-Bearing9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23359-W2800 |
US $52.42 |
||
|
23343
|
23343
23343-54A00 Switch Assy-Magnetic9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23343-54A00 |
US $168.48 |
||
|
23354
|
23354
23354-60Y00 Clutch Assy9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23354-60Y00 |
US $277.92 |
||
|
23357
|
23357
23357-60Y00 Shaft-Pinion9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23357-60Y00 |
US $165.60 |
||
|
23358
|
23358
23358-M4900 Bearing9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23358-M4900 |
US $38.88 |
||
|
23363
|
23363
23363-M4900 Bearing9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23363-M4900 |
US $17.57 |
||
|
23378
|
23378
23378-54A00 Holder Assy-Brush9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23378-54A00 |
US $55.87 |
||
|
23379
|
23379
23379-54A00 Brush-Minus9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23379-54A00 |
US $12.67 |
||
|
23380
|
23380
23380-W2500 Brush-Plus9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23380-W2500 |
US $7.78 |
||
| replacement | |||||
|
23380
|
23380
23331-T9000 Brush-Plus9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23331-T9000 |
US $9.50 |
||
|
23465
|
23465
23465-M4900 Stopper Set-Pinion9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23465-M4900 |
US $9.50 |
||
|
23470
|
23470
23470-54A00 Cover Set-Dust9007--01 ~ ; 4WD.CD17; ﾋﾀﾁ |
23470-54A00 |
US $17.28 |
||
