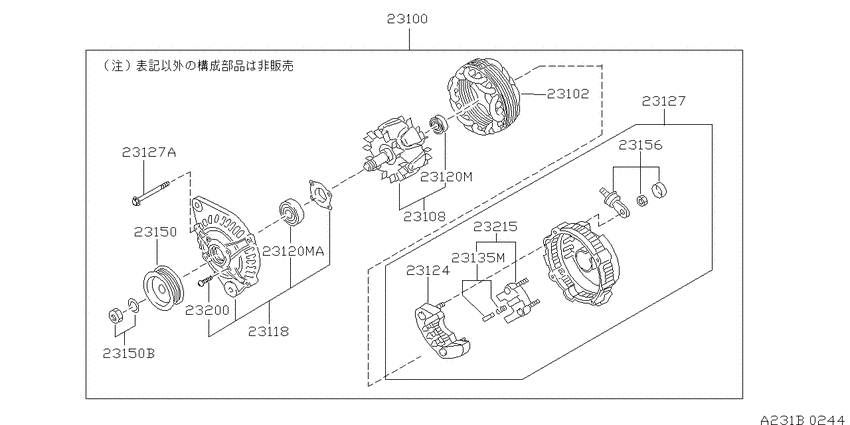

Alternator (1994-01-01 ~ 1994-05-01; SR18DE) Diagram Nissan SUNNY/LUCHINO
- Year
- 1994 - 1997
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 2WD
- transmission
- AT
- grade
- S/T
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-0M810 Alternator Assy9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23100-0M810 |
US $1,414 |
||
|
23100
|
23100
0122100381 NUT9401--01 ~ 9405--01; SR18DE |
0122100381 |
from US $5.85 |
||
|
23102
|
23102
23102-85L10 Stator Assy9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23102-85L10 |
US $311.52 |
||
|
23108
|
23108
23108-0P010 Rotor Assy9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23108-0P010 |
US $480.02 |
||
|
23108
|
23108
23108-0P610 Rotor Assy9505--01 ~ 9705--01; SR18DE; ﾐﾂﾋﾞｼ |
23108-0P610 |
US $339.84 |
||
|
23118
|
23118
23118-64J15 Cover Assy-Front9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23118-64J15 |
US $136.80 |
||
|
23120M
|
23120M
23120-30R10
Bearing-Ball
9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23120-30R10 |
— | ||
| replacement | |||||
|
23120M
|
23120M
2312051E10 BEARING-BALL9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
2312051E10 |
from US $34.67 |
||
|
23120M
|
23120M
23120-22J20 Bearing-Ball9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23120MA
|
23120MA
23120-22J20 Bearing-Ball9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23124
|
23124
23124-5C010 Rectifier Assy9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23124-5C010 |
US $243.36 |
||
|
23127
|
23127
23127-0M810 Cover Assy-Rear9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23127-0M810 |
US $730.66 |
||
|
23127
|
23127
23131-20P10 Bolt-Through9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23127A
|
23127A
23131-20P10 Bolt-Through9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23135M
|
23135M
231420B000 Brush-F9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
231420B000 |
from US $13.54 |
||
|
23150
|
23150
2315064J16 Pulley Assy9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
2315064J16 |
US $133.78 |
||
|
23150
|
23150
23153-70T12 Plate-Terminal9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23153-70T12 |
US $4.42 |
||
|
23150B
|
23150B
23153-70T12 Plate-Terminal9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23153-70T12 |
US $4.42 |
||
|
23156
|
23156
231560M810 Terminal Assy-B9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
231560M810 |
from US $6.07 |
||
|
23200
|
23200
23200-20P10 Screw Set9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23200-20P10 |
US $5.04 |
||
|
23215
|
23215
23215-0P611 Regulator Assy-Ic9401--01 ~ 9405--01; SR18DE; ﾐﾂﾋﾞｼ |
23215-0P611 |
US $322.85 |
||
