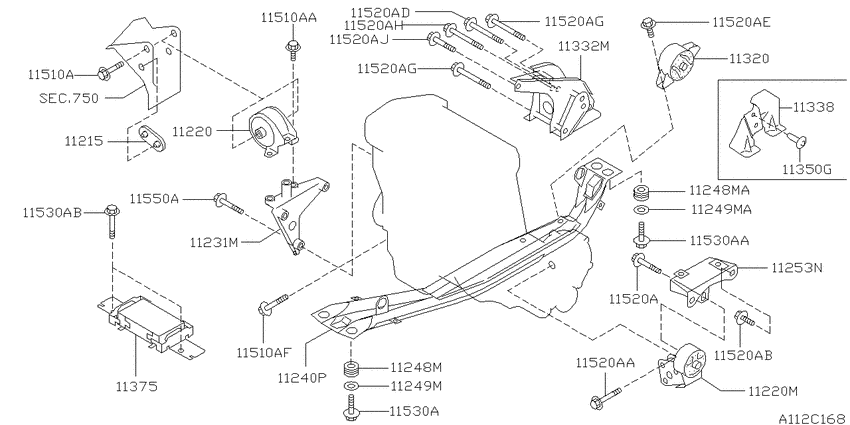

Engine & transmission mounting (1994-01-01 ~ 1994-05-01; SR18DE.AT) Diagram Nissan SUNNY/LUCHINO
- Year
- 1994 - 1997
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 2WD
- transmission
- AT
- grade
- S/T
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11215
|
11215
11215-50Y10 Stopper-Engine Mounting9401--01 ~ 9405--01; SR18DE.AT |
11215-50Y10 |
US $13.59 |
||
|
11220
|
11220
11210-0M800 Insulator Assy-Engine Mounting, Front Rh9401--01 ~ 9405--01; SR18DE.AT |
11210-0M800 |
US $139.36 |
||
|
11220
|
11220
11220-0M810 Insulator Assy-Engine Mounting, Front Lh9401--01 ~ 9405--01; SR18DE.AT |
11220-0M810 |
US $95.04 |
||
|
11220M
|
11220M
11220-0M810 Insulator Assy-Engine Mounting, Front Lh9401--01 ~ 9405--01; SR18DE.AT |
11220-0M810 |
US $95.04 |
||
|
11231M
|
11231M
11231-0M800 Bracket-Engine Mounting9401--01 ~ 9405--01; SR18DE.AT |
11231-0M800 |
US $91.73 |
||
|
11240P
|
11240P
11240-0M310 Member Assy-Engine Mounting9401--01 ~ 9405--01; SR18DE.AT |
11240-0M310 |
US $154.08 |
||
|
11248M
|
11248M
11248-0M900 Pad-Engine Mounting Member9408--01 ~ 9705--01; SR18DE.AT |
11248-0M900 |
from US $6.70 |
||
|
11248M
|
11248M
11248-60R00 Pad-Engine Mounting Member9401--01 ~ 9405--01; SR18DE.AT |
11248-60R00 |
US $6.77 |
||
|
11248M
|
11248M
11248-50Y05 Pad-Engine Mounting Member9401--01 ~ 9405--01; SR18DE.AT |
11248-50Y05 |
from US $5.27 |
||
|
11248MA
|
11248MA
11248-50Y05 Pad-Engine Mounting Member9401--01 ~ 9405--01; SR18DE.AT |
11248-50Y05 |
from US $5.27 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting9401--01 ~ 9405--01; SR18DE.AT |
11249-50Y00 |
from US $1.67 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting9401--01 ~ 9405--01; SR18DE.AT |
11249-50Y00 |
from US $1.67 |
||
|
11249MA
|
11249MA
11249-50Y00 Collar-Engine Mounting9401--01 ~ 9405--01; SR18DE.AT |
11249-50Y00 |
from US $1.67 |
||
|
11253N
|
11253N
11253-50Y11 Bracket-Engine Mounting, Lh9401--01 ~ 9405--01; SR18DE.AT |
11253-50Y11 |
US $50.40 |
||
|
11320
|
11320
11320-0M810 Insulator-Engine Mounting, Rear9401--01 ~ 9404--01; SR18DE.AT |
11320-0M810 |
US $155.52 |
||
|
11320
|
11320
11320-0M812 Insulator-Engine Mounting, Rear9404--01 ~ 9405--01; SR18DE.AT |
11320-0M812 |
US $142.13 |
||
|
11332M
|
11332M
11332-0M810 Bracket-Engine Mounting, Rear9401--01 ~ 9405--01; SR18DE.AT |
11332-0M810 |
US $96.91 |
||
|
11332M
|
11332M
11332-0M811 Bracket-Engine Mounting, Rear9509--01 ~ 9705--01; SR18DE.AT |
11332-0M811 |
US $97.49 |
||
|
11338
|
11338
11338-58Y20 Guide-Air, Engine Mounting9509--01 ~ 9606--01; 4S.SR18DE.AT |
11338-58Y20 |
US $13.82 |
||
|
11350G
|
11350G
6387801E10 CLIP9509--01 ~ 9606--01; 4S.SR18DE.AT |
6387801E10 |
US $1.11 |
||
|
11375
|
11375
11375-0M805 Damper Assy-Dynamic9401--01 ~ 9405--01; SR18DE.AT |
11375-0M805 |
US $135.65 |
||
|
11510A
|
11510A
01125-01991 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01991 |
US $3.46 |
||
|
11510A
|
11510A
01125-02991 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-02991 |
US $4.18 |
||
|
11510A
|
11510A
01125-01811 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01811 |
US $3.46 |
||
|
11510AA
|
11510AA
01125-02991 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-02991 |
US $4.18 |
||
|
11510AF
|
11510AF
01125-01811 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01811 |
US $3.46 |
||
|
11520A
|
11520A
01125-01931 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01931 |
US $2.45 |
||
|
11520A
|
11520A
11298-0M000 Bolt9505--01 ~ 9705--01; SR18DE.AT |
11298-0M000 |
US $3.46 |
||
|
11520A
|
11520A
01125-01861 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01861 |
US $2.45 |
||
|
11520A
|
11520A
0112501951 BOLT9401--01 ~ 9405--01; SR18DE.AT |
0112501951 |
US $3.46 |
||
|
11520A
|
11520A
01125-03221 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-03221 |
US $3.46 |
||
|
11520A
|
11520A
01125-01941 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01941 |
US $4.18 |
||
|
11520A
|
11520A
01125-01881 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01881 |
US $2.45 |
||
|
11520A
|
11520A
01125-02741 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-02741 |
US $2.45 |
||
|
11520A
|
11520A
01125-01921 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01921 |
US $4.18 |
||
|
11520AA
|
11520AA
01125-01861 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01861 |
US $2.45 |
||
|
11520AB
|
11520AB
0112501951 BOLT9401--01 ~ 9405--01; SR18DE.AT |
0112501951 |
US $3.46 |
||
|
11520AD
|
11520AD
01125-03221 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-03221 |
US $3.46 |
||
|
11520AE
|
11520AE
01125-01941 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01941 |
US $4.18 |
||
|
11520AG
|
11520AG
01125-01881 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01881 |
US $2.45 |
||
|
11520AG
|
11520AG
01125-01881 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01881 |
US $2.45 |
||
|
11520AH
|
11520AH
01125-02741 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-02741 |
US $2.45 |
||
|
11520AJ
|
11520AJ
01125-01921 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01921 |
US $4.18 |
||
|
11530A
|
11530A
01125-01911 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01911 |
US $2.45 |
||
|
11530A
|
11530A
54459-0M013 Bolt9505--01 ~ 9509--01; SR18DE.AT |
54459-0M013 |
US $3.46 |
||
|
11530A
|
11530A
54459-0M011 Bolt9401--01 ~ 9405--01; SR18DE.AT |
54459-0M011 |
US $3.46 |
||
|
11530A
|
11530A
54459-0M013 Bolt9505--01 ~ 9705--01; SR18DE.AT |
54459-0M013 |
US $3.46 |
||
|
11530A
|
11530A
01125-01941 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01941 |
US $4.18 |
||
|
11530AA
|
11530AA
54459-0M011 Bolt9401--01 ~ 9405--01; SR18DE.AT |
54459-0M011 |
US $3.46 |
||
|
11530AA
|
11530AA
54459-0M013 Bolt9505--01 ~ 9705--01; SR18DE.AT |
54459-0M013 |
US $3.46 |
||
|
11530AB
|
11530AB
01125-01941 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01941 |
US $4.18 |
||
|
11550A
|
11550A
01125-01871 BOLT9401--01 ~ 9405--01; SR18DE.AT |
01125-01871 |
US $2.45 |
||
| replacement | |||||
|
11550A
|
11550A
01125-03051
Bolt
9401--01 ~ 9405--01; SR18DE.AT |
01125-03051 |
— | ||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
