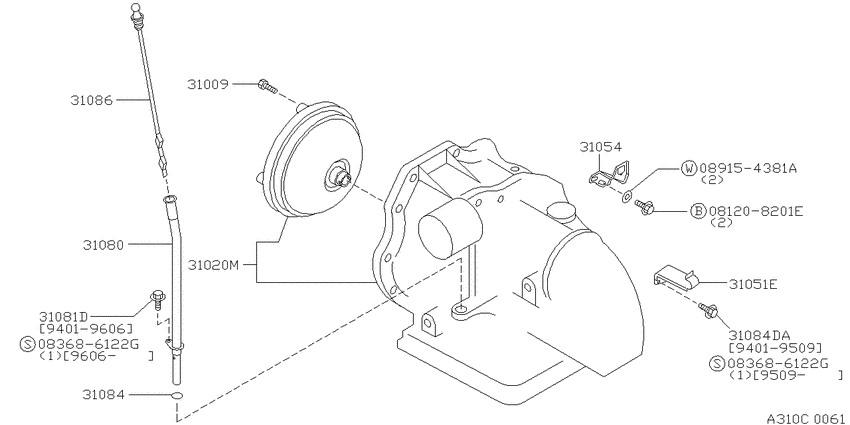

Auto transmission,transaxle & fitting (1994-01-01 ~ ; # ｱｯｾﾝﾌﾞﾘｰ&ｵｲﾙﾁｬｰｼﾞﾝｸﾞﾊﾟｰﾂ (RL4F03A); CD20.AT) Diagram Nissan SUNNY/LUCHINO
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- AT
- grade
- FE
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
083686122G
|
083686122G
083686122G
SCRHEX HDPP W
|
083686122G |
— | ||
|
083686122G
|
083686122G
083686122G
SCRHEX HDPP W
|
083686122G |
— | ||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock9401--01 ~ ; CD20.AT |
3100921X00 |
from US $4.85 |
||
|
31020M
|
31020M
31020-34X04 Transaxle Assy-Automatic9401--01 ~ 9409--01; CD20.AT |
31020-34X04 |
US $4,368 |
||
|
31020M
|
31020M
31020-35X13 Transaxle Assy-Automatic9409--01 ~ 9501--01; CD20.AT |
31020-35X13 |
US $4,368 |
||
|
31020M
|
31020M
31020-35X18 Transaxle Assy-Automatic9501--01 ~ ; CD20.AT |
31020-35X18 |
US $4,368 |
||
|
31051E
|
31051E
24210-59Y01 Clip-Throttle Wire9401--01 ~ 9402--01; CD20.AT |
24210-59Y01 |
US $4.18 |
||
|
31051E
|
31051E
24210-59Y02 Clip-Throttle Wire9402--01 ~ ; CD20.AT |
24210-59Y02 |
US $4.18 |
||
|
31054
|
31054
31054-57J00 Bracket-Auto Transmission Throttle Wire9401--01 ~ 9409--01; CD20.AT |
31054-57J00 |
US $13.68 |
||
|
31054
|
31054
31054-57J10 Bracket-Auto Transmission Throttle Wire9409--01 ~ 9705--01; CD20.AT |
31054-57J10 |
US $14.98 |
||
|
31054
|
31054
31054-8E100 BRACKET-AUTO TRANSMISSION THROTTLE WIRE9705--01 ~ ; CD20.AT |
31054-8E100 |
US $9.07 |
||
|
31080
|
31080
31080-0M901 Pipe Assy-Oil Charging9401--01 ~ 9412--01; CD20.AT |
31080-0M901 |
US $70.42 |
||
|
31080
|
31080
31080-0M910 Pipe Assy-Oil Charging9412--01 ~ 9601--01; CD20.AT |
31080-0M910 |
US $59.18 |
||
|
31080
|
31080
31080-2J305 Pipe Assy-Oil Charging9601--01 ~ 9605--01; CD20.AT |
31080-2J305 |
US $58.61 |
||
|
31080
|
31080
31080-2J306 Pipe Assy-Oil Charging9605--01 ~ ; CD20.AT |
31080-2J306 |
US $59.04 |
||
|
31081D
|
31081D
0143601141 SCREW9401--01 ~ 9509--01; CD20.AT |
0143601141 |
US $2.36 |
||
|
31084
|
31084
31084M7500 Seal-O Ring9401--01 ~ ; CD20.AT |
31084M7500 |
US $1.15 |
||
|
31084
|
31084
0143601141 SCREW9401--01 ~ 9509--01; CD20.AT |
0143601141 |
US $2.36 |
||
|
31084DA
|
31084DA
0143601141 SCREW9401--01 ~ 9509--01; CD20.AT |
0143601141 |
US $2.36 |
||
|
31086
|
31086
31086-0M901 Gauge Assy-Oil Level9401--01 ~ ; CD20.AT |
31086-0M901 |
US $16.85 |
