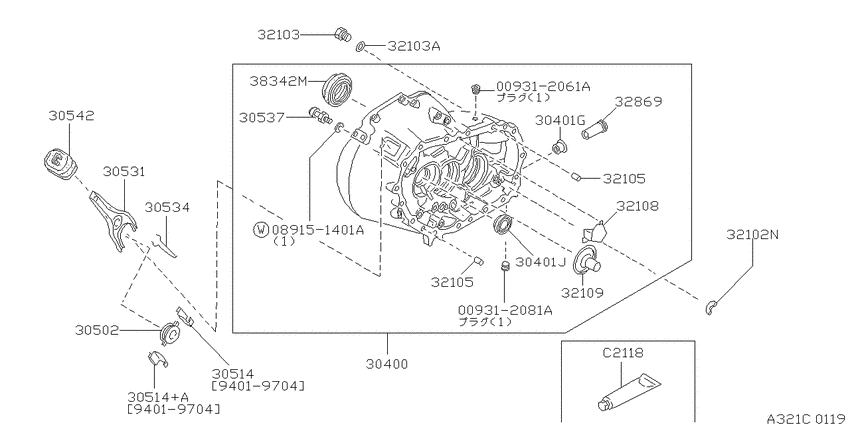

Transmission case & clutch release (1995-09-01 ~ ; クラッチ ハウジング; 4WD.CD20.MT) Diagram Nissan SUNNY/LUCHINO
- Year
- 1995 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 4WD
- transmission
- MT
- grade
- S/S
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312061A
|
009312061A
00931-2061A
PLUGTAPER
|
00931-2061A |
— | ||
|
009312081A
|
009312081A
009312081A Plug-Drain |
009312081A |
US $3.06 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30400
|
30400
30400-0E011 HOUSING ASSY-CLUTCH9509--01 ~ ; 4WD.CD20.MT |
30400-0E011 |
US $821.28 |
||
|
30401G
|
30401G
3285806R00 Seal-Oil, Striking Rod9509--01 ~ ; 4WD.CD20.MT |
3285806R00 |
US $13.47 |
||
|
30401J
|
30401J
32113-03E00 SEAL-OIL,INPUT9509--01 ~ ; 4WD.CD20.MT |
32113-03E00 |
from US $4.01 |
||
|
30502
|
30502
30502-0W716 Bearing-Clutch Release9704--01 ~ ; 4WD.CD20.MT |
30502-0W716 |
US $52.99 |
||
|
30502
|
30502
30502-28E17 BEARING-CLUTCH RELEASE9509--01 ~ 9704--01; 4WD.CD20.MT; [B106] |
30502-28E17 |
US $58.46 |
||
| replacement | |||||
|
30502
|
30502
30502-0W716 Bearing-Clutch Release9509--01 ~ 9704--01; 4WD.CD20.MT; [B106] |
30502-0W716 |
US $52.99 |
||
|
30514
|
30514
3051403E10 SPRING-HOLDER,CLUTCH RELEASE BEARING9509--01 ~ 9704--01; 4WD.CD20.MT |
3051403E10 |
from US $2 |
||
|
30514
|
30514
3051403E11 SPRING-HOLDER,CLUTCH RELEASE BEARING9509--01 ~ 9704--01; 4WD.CD20.MT |
3051403E11 |
from US $2.09 |
||
|
30514+A
|
30514+A
3051403E11 SPRING-HOLDER,CLUTCH RELEASE BEARING9509--01 ~ 9704--01; 4WD.CD20.MT |
3051403E11 |
from US $2.09 |
||
|
30531
|
30531
3053103E11 LEVER-WITHDRAWAL,CLUTCH9509--01 ~ 9604--01; 4WD.CD20.MT |
3053103E11 |
US $84.24 |
||
|
30531
|
30531
305319E000 LEVER-WITHDRAWAL,CLUTCH9604--01 ~ ; 4WD.CD20.MT |
305319E000 |
from US $48.67 |
||
|
30534
|
30534
3053403E00 SPRING-RETAINER,WITHDRAWAL LEVER9509--01 ~ ; 4WD.CD20.MT |
3053403E00 |
from US $1.79 |
||
|
30537
|
30537
305370H601 Pin-Ball, Withdrawal Lever9509--01 ~ ; 4WD.CD20.MT |
305370H601 |
from US $3.66 |
||
|
30542
|
30542
30542-03E10 COVER-DUST,WITHDRAWAL LEVER9509--01 ~ ; 4WD.CD20.MT |
30542-03E10 |
from US $11.51 |
||
|
32102N
|
32102N
32105-03E01 MAGNET-TRANSAXLE9509--01 ~ ; 4WD.CD20.MT |
32105-03E01 |
US $3.46 |
||
|
32103
|
32103
32103-03E01 Plug-Drain9509--01 ~ ; 4WD.CD20.MT |
32103-03E01 |
US $4.18 |
||
|
32103
|
32103
18151-10600 Washer-Drain Plug9509--01 ~ ; 4WD.CD20.MT |
18151-10600 |
US $1.73 |
||
|
32103A
|
32103A
18151-10600 Washer-Drain Plug9509--01 ~ ; 4WD.CD20.MT |
18151-10600 |
US $1.73 |
||
|
32105
|
32105
32105-C6900 Pin9509--01 ~ ; 4WD.CD20.MT |
32105-C6900 |
US $4.18 |
||
|
32105
|
32105
32105-C6900 Pin9509--01 ~ ; 4WD.CD20.MT |
32105-C6900 |
US $4.18 |
||
|
32108
|
32108
32108-03E00 POCKET-OIL,CLUTCH HOUSING9509--01 ~ ; 4WD.CD20.MT |
32108-03E00 |
US $2.45 |
||
|
32109
|
32109
32109-03E00 CHANNEL-OIL,MAIN SHAFT FRONT9509--01 ~ ; 4WD.CD20.MT |
32109-03E00 |
US $1.67 |
||
|
32109
|
32109
32106-03E02 Channel-Oil, Input Shaft Rear9509--01 ~ ; 4WD.CD20.MT |
32106-03E02 |
US $2.36 |
||
|
32869
|
32869
3286906R00 Boot-Oil Seal, Striking Rod9509--01 ~ ; 4WD.CD20.MT |
3286906R00 |
US $8.73 |
||
|
38342M
|
38342M
3311156E00 SEAL-OIL,RING GEAR9509--01 ~ 9606--01; 4WD.CD20.MT; NOK, |
3311156E00 |
from US $10.39 |
||
|
38342M
|
38342M
33111-56E01 SEAL-OIL,DIFFERENTIAL CLUTCH HOUSING9509--01 ~ 9606--01; 4WD.CD20.MT; NDK |
33111-56E01 |
US $12.82 |
||
|
C2118
|
C2118
KP610-00250 Sealant-Fluid9509--01 ~ ; 4WD.CD20.MT; [K504] |
KP610-00250 |
US $35.66 |
||
