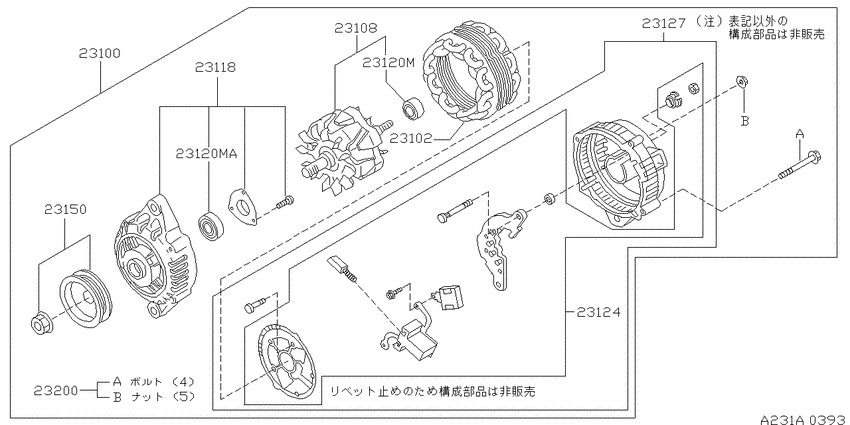

Alternator (2002-05-01 ~ ; 日立; QG13DE) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG13DE
- drive
- 2WD
- transmission
- MT
- grade
- FE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-4M400 Alternator Assy9810--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23100-4M400 |
US $1,428 |
||
|
23100
|
23100
0122100381 NUT9810--01 ~ 0205--01; QG13DE |
0122100381 |
from US $5.85 |
||
|
23102
|
23102
23102-0M005 Stator Assy9810--01 ~ 0002--01; QG13DE; ﾋﾀﾁ |
23102-0M005 |
US $417.72 |
||
|
23102
|
23102
23102-0M009 Stator Assy0002--01 ~ 0103--01; QG13DE; ﾋﾀﾁ |
23102-0M009 |
US $380.90 |
||
|
23102
|
23102
23102-86R00 Stator Assy0103--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23102-86R00 |
from US $545.16 |
||
|
23108
|
23108
23108-0M000 Rotor Assy9810--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23108-0M000 |
US $416.30 |
||
| replacement | |||||
|
23108
|
23108
23108-4M40A Rotor Assy9810--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23108-4M40A |
US $416.30 |
||
|
23118
|
23118
23118-0M000 Cover Assy-Front9810--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23118-0M000 |
US $135.65 |
||
|
23120M
|
23120M
23120-0M000 Bearing-Ball9810--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23120-0M000 |
US $42.34 |
||
|
23120M
|
23120M
23120-0M005 Bearing-Ball9810--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23120MA
|
23120MA
23120-0M005 Bearing-Ball9810--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23124
|
23124
23124-4M400 Rectifier Assy9810--01 ~ 0103--01; QG13DE; ﾋﾀﾁ |
23124-4M400 |
US $525.34 |
||
|
23124
|
23124
23124-4M401 Rectifier Assy0103--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23124-4M401 |
from US $573.48 |
||
|
23127
|
23127
23127-4M400 Cover Assy-Rear9810--01 ~ 0103--01; QG13DE; ﾋﾀﾁ |
23127-4M400 |
US $621.62 |
||
|
23127
|
23127
23127-4M401 Cover Assy-Rear0103--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23127-4M401 |
US $675.43 |
||
|
23150
|
23150
23150-0M000 Pulley Assy9810--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23150-0M000 |
US $134.21 |
||
|
23200
|
23200
23200-0M000 Screw Set9810--01 ~ 0205--01; QG13DE; ﾋﾀﾁ |
23200-0M000 |
US $8.50 |
||
