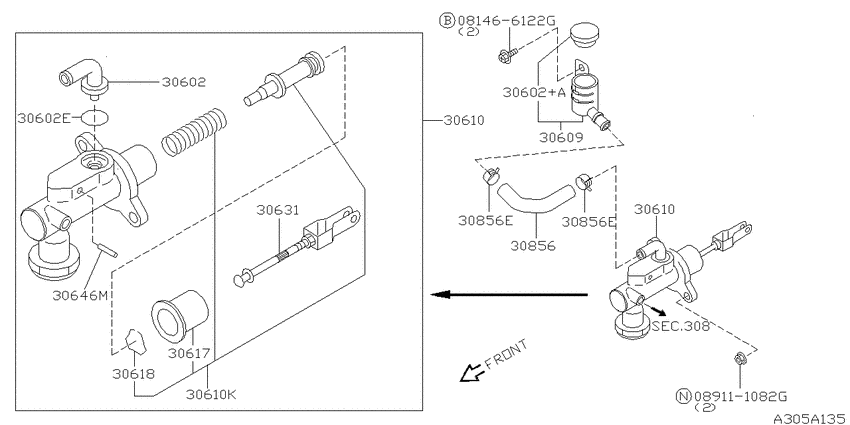

Clutch master cylinder (2002-05-01 ~ ; QG13DE.MT +QG15DE.MT) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- EX/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
from US $0.68 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
30602
|
30602
46020-2N500 Cap Assy-Reservoir9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO |
46020-2N500 |
US $14.83 |
||
|
30602
|
30602
46020-2N510 Cap Assy-Reservoir0111--01 ~ 0205--01; 'QG13DE.MT +QG15DE.MT +SR16VE +YD22DD.MT; NABCO |
46020-2N510 |
US $11.38 |
||
|
30602
|
30602
460203S501 Cap Assy-Reservoir9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE |
460203S501 |
from US $11.79 |
||
|
30602
|
30602
3064421U00 Seal-O Ring, Reservoir Cap9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO |
3064421U00 |
US $2.91 |
||
|
30602+A
|
30602+A
460203S501 Cap Assy-Reservoir9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE |
460203S501 |
from US $11.79 |
||
|
30602E
|
30602E
3064421U00 Seal-O Ring, Reservoir Cap9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO |
3064421U00 |
US $2.91 |
||
|
30609
|
30609
30617-4M400 Reservoir-Oil, Clutch9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE |
30617-4M400 |
US $53.71 |
||
|
30610
|
30610
30610-4M400
Cylinder Assy-Clutch Master
9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO 5/8(15.87) |
30610-4M400 |
— | ||
| replacement | |||||
|
30610
|
30610
30610-4M40C Cylinder Assy-Clutch Master9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO 5/8(15.87) |
30610-4M40C |
US $237.02 |
||
|
30610
|
30610
30610-4M407 Cylinder Assy-Clutch Master0205--01 ~ ; QG13DE.MT +QG15DE.MT; NABCO 5/8(15.87) |
30610-4M407 |
US $178.56 |
||
|
30610
|
30610
30611-21U25
Piston Kit-Clutch Master Cylinder
9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO 5/8(15.87) |
30611-21U25 |
— | ||
| replacement | |||||
|
30610
|
30610
30611AA025 Piston Kit-Clutch Master Cylinder9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO 5/8(15.87) |
30611AA025 |
from US $18.72 |
||
|
30610
|
30610
306115N325 Piston Kit-Clutch Master Cylinder0205--01 ~ ; QG13DE.MT +QG15DE.MT; NABCO 5/8(15.87) |
306115N325 |
from US $18.72 |
||
|
30610
|
30610
30610-4M400
Cylinder Assy-Clutch Master
9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO 5/8(15.87) |
30610-4M400 |
— | ||
| replacement | |||||
|
30610
|
30610
30610-4M40C Cylinder Assy-Clutch Master9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO 5/8(15.87) |
30610-4M40C |
US $237.02 |
||
|
30610
|
30610
30610-4M407 Cylinder Assy-Clutch Master0205--01 ~ ; QG13DE.MT +QG15DE.MT; NABCO 5/8(15.87) |
30610-4M407 |
US $178.56 |
||
|
30610
|
30610
30611-21U25
Piston Kit-Clutch Master Cylinder
9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO 5/8(15.87) |
30611-21U25 |
— | ||
| replacement | |||||
|
30610
|
30610
30611AA025 Piston Kit-Clutch Master Cylinder9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO 5/8(15.87) |
30611AA025 |
from US $18.72 |
||
|
30610
|
30610
306115N325 Piston Kit-Clutch Master Cylinder0205--01 ~ ; QG13DE.MT +QG15DE.MT; NABCO 5/8(15.87) |
306115N325 |
from US $18.72 |
||
|
30610K
|
30610K
30611-21U25
Piston Kit-Clutch Master Cylinder
9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO 5/8(15.87) |
30611-21U25 |
— | ||
| replacement | |||||
|
30610K
|
30610K
30611AA025 Piston Kit-Clutch Master Cylinder9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO 5/8(15.87) |
30611AA025 |
from US $18.72 |
||
|
30610K
|
30610K
306115N325 Piston Kit-Clutch Master Cylinder0205--01 ~ ; QG13DE.MT +QG15DE.MT; NABCO 5/8(15.87) |
306115N325 |
from US $18.72 |
||
|
30617
|
30617
30618-15R00 Cover-Dust9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO |
30618-15R00 |
US $5.90 |
||
|
30618
|
30618
4607027260 Ring-Stopper9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO |
4607027260 |
US $1.58 |
||
|
30631
|
30631
30631-2J060 Rod Assy-Push9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO |
30631-2J060 |
US $14.54 |
||
|
30646M
|
30646M
30655-21U00 Cap9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE; NABCO |
30655-21U00 |
US $4.18 |
||
|
308
|
Clutch piping
308
|
||||
|
308
|
Clutch piping
308
|
||||
|
30856
|
30856
30856-4M400 Hose-Clutch Reservoir9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE |
30856-4M400 |
US $10.22 |
||
|
30856
|
30856
30856-4M401 Hose-Clutch Reservoir0007--01 ~ 0009--01; 'QG13DE.MT +QG15DE.MT +SR16VE +YD22DD.MT |
30856-4M401 |
US $10.22 |
||
|
30856
|
30856
30856-4M402 Hose-Clutch Reservoir0009--01 ~ 0205--01; 'QG13DE.MT +QG15DE.MT +SR16VE +YD22DD.MT |
30856-4M402 |
US $10.22 |
||
|
30856
|
30856
16439-V5000
Clamp-Hose A
9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE |
16439-V5000 |
— | ||
| replacement | |||||
|
30856
|
30856
16439V500B Clamp-Hose A9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE |
16439V500B |
from US $2.52 |
||
|
30856E
|
30856E
16439-V5000
Clamp-Hose A
9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE |
16439-V5000 |
— | ||
| replacement | |||||
|
30856E
|
30856E
16439V500B Clamp-Hose A9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE |
16439V500B |
from US $2.52 |
||
|
30856E
|
30856E
16439-V5000
Clamp-Hose A
9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE |
16439-V5000 |
— | ||
| replacement | |||||
|
30856E
|
30856E
16439V500B Clamp-Hose A9810--01 ~ 9909--01; QG13DE.MT +QG15DE.MT +SR16VE |
16439V500B |
from US $2.52 |
||
