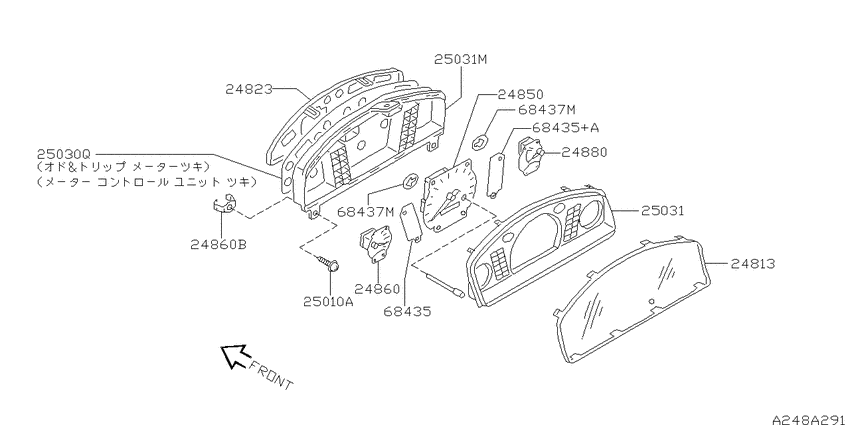

meter & gauge (1998-10-01 ~ 1999-09-01; フロント ビュー; S.QG13DE +S.QG15DE.(FE+EX/S)) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- EX/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24813
|
24813
24813-4M400 Cover-Front Meter9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
24813-4M400 |
US $37.30 |
||
|
24813
|
24813
24813-4M500 Cover-Front Meter0009--01 ~ 0205--01; *S.2WD.QG15DE.EX/S |
24813-4M500 |
US $31.25 |
||
|
24823
|
24823
248234M400 Cover-Unit9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
248234M400 |
US $53.14 |
||
|
24850
|
24850
248204M400 Speedometer Assy9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
248204M400 |
US $370.99 |
||
|
24850
|
24850
24820-VJ200 Speedometer Assy9909--01 ~ 0009--01; %S.QG13DE +S.(QG15DE+YD22DD).(FE+EX/S) |
24820-VJ200 |
US $370.99 |
||
|
24850
|
24850
248204M473 Speedometer Assy-With Odo & Fuel Meter0009--01 ~ 0205--01; *S.EX/S.MT |
248204M473 |
US $1,554 |
||
|
24850
|
24850
24820-4M571 Speedometer Assy-With Odo & Fuel Meter0009--01 ~ 0205--01; *S.2WD.QG15DE.EX/S.MT |
24820-4M571 |
US $1,554 |
||
|
24850
|
24850
24820-8N001 Speedometer Assy-With Odo & Fuel Meter0205--01 ~ 0402--01; 4S.2WD.EX/S.MT +S.4WD.MT +S.QG13DE.MT +S.QG15DE.FE.MT |
24820-8N001 |
US $1,205.02 |
||
|
24850
|
24850
24820-8N006 Speedometer Assy-With Odo & Fuel Meter0402--01 ~ ; 4S.2WD.EX/S.MT +S.4WD.MT +S.QG13DE.MT +S.QG15DE.FE.MT |
24820-8N006 |
US $1,554 |
||
|
24860
|
24860
24830-4M400 Meter Assy-Fuel9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
24830-4M400 |
US $148.32 |
||
|
24860
|
24860
68191-51E00
NUT
9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
68191-51E00 |
— | ||
| replacement | |||||
|
24860
|
24860
6819151E0A Nut9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
6819151E0A |
US $1.39 |
||
|
24860
|
24860
24860-4M400 Socket & Bulb9810--01 ~ 9909--01; S |
24860-4M400 |
US $18.14 |
||
|
24860
|
24860
24860-4M410 Socket & Bulb0007--01 ~ 0205--01; S |
24860-4M410 |
US $22.75 |
||
|
24860
|
24860
2486040F01 Socket & Bulb Assy9810--01 ~ 9909--01; S.FE +S.EX/S.MT |
2486040F01 |
from US $5.68 |
||
|
24860
|
24860
24860C9910 Socket & Bulb Assy0205--01 ~ ; S.QG13DE +S.QG15DE.FE +S.EX/S |
24860C9910 |
from US $7.20 |
||
|
24860
|
24860
24860C9900 Socket & Bulb Assy0205--01 ~ ; S.QG13DE +S.QG15DE.FE +S.EX/S |
24860C9900 |
from US $12.24 |
||
|
24860
|
24860
2626201P40 Socket & Bulb Assy9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
2626201P40 |
from US $3.87 |
||
|
24860B
|
24860B
68191-51E00
NUT
9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
68191-51E00 |
— | ||
| replacement | |||||
|
24860B
|
24860B
6819151E0A Nut9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
6819151E0A |
US $1.39 |
||
|
24880
|
24880
248354M400 Meter Assy-Water Temperature9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
248354M400 |
US $132.62 |
||
|
25010A
|
25010A
0145100581 SCREW9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
0145100581 |
from US $0.72 |
||
|
25010A
|
25010A
24869AA000 Bolt9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
24869AA000 |
US $3.46 |
||
|
25030Q
|
25030Q
24814-4M403 Circuit Assy-Printed With Odo & Trip9810--01 ~ 9909--01; S.EX/S.MT |
24814-4M403 |
US $379.49 |
||
|
25030Q
|
25030Q
24814-4M463 Circuit Assy-Printed With Odo & Trip9909--01 ~ 0009--01; S.EX/S.MT |
24814-4M463 |
US $379.49 |
||
|
25031
|
25031
248124M400 Housing-Meter Comb, Upper9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
248124M400 |
US $61.20 |
||
|
25031
|
25031
24812-4M470 Housing-Meter Comb, Upper0009--01 ~ 0205--01; '*S.QG13DE +*S.(QG15DE+YD22DD).(FE+EX/S) |
24812-4M470 |
US $61.20 |
||
|
25031
|
25031
24812-6N010 Housing-Meter Comb, Upper0009--01 ~ 0205--01; *S.2WD.QG15DE.EX/S.MT |
24812-6N010 |
US $50.98 |
||
|
25031
|
25031
248114M400 Housing-Meter Comb, Lower9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
248114M400 |
US $61.20 |
||
|
25031M
|
25031M
248114M400 Housing-Meter Comb, Lower9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
248114M400 |
US $61.20 |
||
|
68435
|
68435
24880-4M403 Lens-Warning Lamp9810--01 ~ 9909--01; "S.QG13DE.MT +S.QG15DE.(FE+EX/S).MT |
24880-4M403 |
US $21.46 |
||
|
68435
|
68435
24885-4M400 Lens-Warning Lamp9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
24885-4M400 |
US $21.17 |
||
|
68435
|
68435
24885-4M460 Lens-Warning Lamp9909--01 ~ 0009--01; %S.QG13DE +S.(QG15DE+YD22DD).(FE+EX/S) |
24885-4M460 |
US $25.63 |
||
|
68435+A
|
68435+A
24885-4M400 Lens-Warning Lamp9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
24885-4M400 |
US $21.17 |
||
|
68435+A
|
68435+A
24885-4M460 Lens-Warning Lamp9909--01 ~ 0009--01; %S.QG13DE +S.(QG15DE+YD22DD).(FE+EX/S) |
24885-4M460 |
US $25.63 |
||
|
68437M
|
68437M
248160M000 Lens-Warning Lamp9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
248160M000 |
US $16.13 |
||
|
68437M
|
68437M
248160M000 Lens-Warning Lamp9810--01 ~ 9909--01; S.QG13DE +S.QG15DE.(FE+EX/S) |
248160M000 |
US $16.13 |
||
