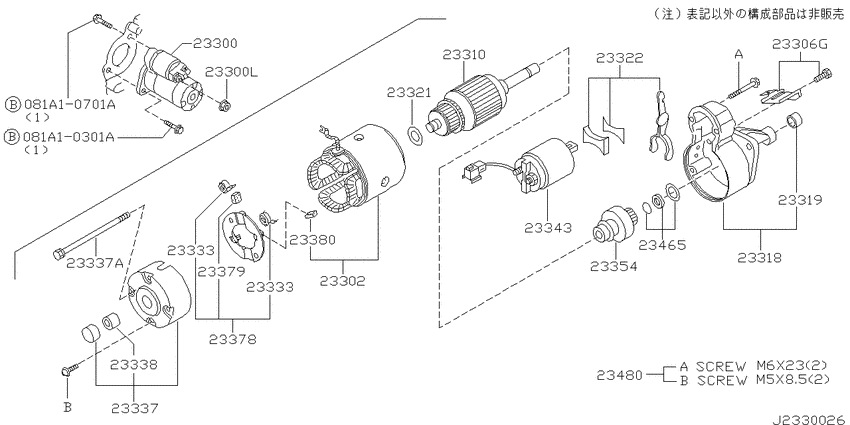

Starter motor (1998-10-01 ~ 1999-09-01; 三菱; QG15DE) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- EX/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A10301A
|
081A10301A
081A10301A ﾎﾞﾙﾄ |
081A10301A |
US $3.22 |
||
|
081A10701A
|
081A10701A
081A1-0701A
ﾎﾞﾙﾄ
|
081A1-0701A |
— | ||
|
23300
|
23300
23300-73Y10 Motor Assy-Starter9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23300-73Y10 |
US $634.37 |
||
|
23300
|
23300
0122100381 NUT9810--01 ~ 9909--01; 52WD.QG15DE.(EX/S+S/S).MT +4WD.QG15DE.MT +QG15DE.AT.F4; ﾐﾂﾋﾞｼ |
0122100381 |
from US $5.37 |
||
|
23300L
|
23300L
0122100381 NUT9810--01 ~ 9909--01; 52WD.QG15DE.(EX/S+S/S).MT +4WD.QG15DE.MT +QG15DE.AT.F4; ﾐﾂﾋﾞｼ |
0122100381 |
from US $5.37 |
||
|
23302
|
23302
23302-73Y10 Yoke Assy9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23302-73Y10 |
US $233.28 |
||
|
23306G
|
23306G
23347-81N10 Plate-Connecting9810--01 ~ 9909--01; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23347-81N10 |
US $26.21 |
||
|
23310
|
23310
23310-41B70 Armature Assy9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23310-41B70 |
US $298.78 |
||
|
23318
|
23318
23318-73Y12 Case Assy-Gear9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23318-73Y12 |
US $111.74 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case9810--01 ~ 9909--01; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23321
|
23321
23460-M8011 Washer Set-Thrust9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23460-M8011 |
US $7.92 |
||
|
23322
|
23322
23322-06E10 LEVER SET-SHIFT9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23322-06E10 |
US $11.23 |
||
|
23333
|
23333
23333M1510 Spring-Brush9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333M1510 Spring-Brush9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23337
|
23337
23337M8011 Cover Assy-Rear9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23337M8011 |
US $34.99 |
||
|
23337
|
23337
23340-M8011 Bolt-Through9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23340-M8011 |
US $4.61 |
||
|
23337A
|
23337A
23340-M8011 Bolt-Through9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23340-M8011 |
US $4.61 |
||
|
23338
|
23338
23338-M8011 Metal-Rear Cover9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23338-M8011 |
US $5.76 |
||
|
23343
|
23343
23343-73Y10 Switch Assy-Magnetic9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23343-73Y10 |
US $141.98 |
||
|
23354
|
23354
23354-42L11 Clutch Assy9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23354-42L11 |
US $110.45 |
||
|
23378
|
23378
23378-M8011 Holder Assy-Brush9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23378-M8011 |
US $37.87 |
||
|
23379
|
23379
23380M8311 Brush-Minus9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23380M8311 |
US $11.09 |
||
|
23380
|
23380
23380M8310 Brush-Plus9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23380M8310 |
US $9.36 |
||
|
23465
|
23465
23465M8011 Stopper Set-Pinion9810--01 ~ ; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23465M8011 |
US $8.35 |
||
|
23480
|
23480
23480-M0110 Screw Set9810--01 ~ 9909--01; 2WD.QG15DE; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
