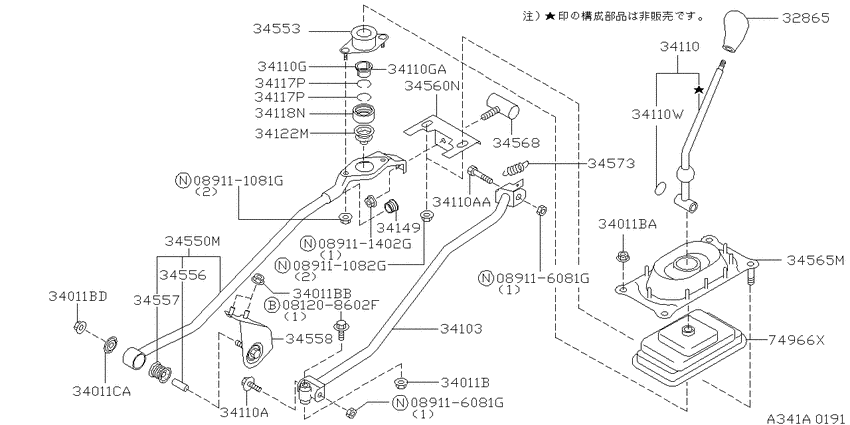

Transmission control & linkage (1998-10-01 ~ 1999-09-01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- EX/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208602F
|
081208602F
08120-8602F
Bolt-hexagon
|
08120-8602F |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111402G
|
089111402G
089111402G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111402G |
— | ||
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
32865
|
32865
32865-4M400 Knob-Control Lever9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
32865-4M400 |
US $29.23 |
||
|
34011B
|
34011B
0122500102 NUT9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
0122500102 |
from US $0.56 |
||
|
34011B
|
34011B
0122500371 NUT9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
0122500371 |
US $1.73 |
||
|
34011B
|
34011B
0122500102 NUT9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
0122500102 |
from US $0.56 |
||
|
34011B
|
34011B
0122500261 NUT9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
0122500261 |
from US $0.57 |
||
|
34011BA
|
34011BA
0122500371 NUT9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
0122500371 |
US $1.73 |
||
|
34011BB
|
34011BB
0122500102 NUT9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
0122500102 |
from US $0.56 |
||
|
34011BD
|
34011BD
0122500261 NUT9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
0122500261 |
from US $0.57 |
||
|
34011CA
|
34011CA
34555-D4000 Washer9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34555-D4000 |
US $3.46 |
||
| replacement | |||||
|
34011CA
|
34011CA
34555D400A Washer9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34555D400A |
from US $1.35 |
||
|
34103
|
34103
34103-5M400 Rod Assy-Control9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT |
34103-5M400 |
from US $87.98 |
||
|
34110
|
34110
34110-5M400 Lever Assy-Control9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34110-5M400 |
US $62.79 |
||
|
34110
|
34110
34136-0M000 Bolt9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34136-0M000 |
US $1.73 |
||
| replacement | |||||
|
34110
|
34110
341362Y00A Bolt9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
341362Y00A |
US $1.73 |
||
|
34110
|
34110
34136-50J00 Bolt9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34136-50J00 |
US $2.45 |
||
| replacement | |||||
|
34110
|
34110
34136-2Y00B Bolt9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34136-2Y00B |
US $2.45 |
||
|
34110
|
34110
34116-0M000 Bearing-Hand Lever9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34116-0M000 |
from US $7.20 |
||
|
34110
|
34110
34116-0M000 Bearing-Hand Lever9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34116-0M000 |
from US $7.20 |
||
|
34110
|
34110
3416350J00 Seal-O Ring9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
3416350J00 |
US $3.75 |
||
|
34110A
|
34110A
34136-0M000 Bolt9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34136-0M000 |
US $1.73 |
||
| replacement | |||||
|
34110A
|
34110A
341362Y00A Bolt9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
341362Y00A |
US $1.73 |
||
|
34110A
|
34110A
34136-50J00 Bolt9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34136-50J00 |
US $2.45 |
||
| replacement | |||||
|
34110A
|
34110A
34136-2Y00B Bolt9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34136-2Y00B |
US $2.45 |
||
|
34110AA
|
34110AA
34136-50J00 Bolt9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34136-50J00 |
US $2.45 |
||
| replacement | |||||
|
34110AA
|
34110AA
34136-2Y00B Bolt9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34136-2Y00B |
US $2.45 |
||
|
34110G
|
34110G
34116-0M000 Bearing-Hand Lever9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34116-0M000 |
from US $7.20 |
||
|
34110G
|
34110G
34116-0M000 Bearing-Hand Lever9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34116-0M000 |
from US $7.20 |
||
|
34110GA
|
34110GA
34116-0M000 Bearing-Hand Lever9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34116-0M000 |
from US $7.20 |
||
|
34110W
|
34110W
3416350J00 Seal-O Ring9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
3416350J00 |
US $3.75 |
||
|
34117P
|
34117P
34117-0M000 Spring-Bearing Set9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34117-0M000 |
US $3.74 |
||
|
34117P
|
34117P
34117-0M000 Spring-Bearing Set9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34117-0M000 |
US $3.74 |
||
|
34118N
|
34118N
34118-0M000 Seat-Bearing Set9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34118-0M000 |
US $8.35 |
||
|
34118N
|
34118N
34118-5M400 Seat-Bearing Set0205--01 ~ ; 2WD.QG15DE.MT +QG13DE.MT |
34118-5M400 |
from US $9.22 |
||
|
34149
|
34149
34149-2J200 Cap-Control Lever9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34149-2J200 |
US $8.21 |
||
|
34550M
|
34550M
34550-5M400 Support Assy-Control Rod9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT |
34550-5M400 |
US $69.98 |
||
|
34553
|
34553
34553-0M000 Socket Assy-Hand Lever9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34553-0M000 |
US $13.29 |
||
|
34556
|
34556
34556-D4000 Tube-Control Rod Support Bush9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34556-D4000 |
US $5.04 |
||
| replacement | |||||
|
34556
|
34556
345562Y00A Tube-Control Rod Support Bush9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
345562Y00A |
US $5.62 |
||
|
34557
|
34557
34557-50J00 Bush-Control Rod Support9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT |
34557-50J00 |
from US $6.60 |
||
|
34558
|
34558
34558-5M400 Bracket-Support Rod9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT |
34558-5M400 |
US $23.33 |
||
|
34560N
|
34560N
34560-5M400 Bracket Assy-Holder Rubber9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34560-5M400 |
from US $45.79 |
||
|
34565M
|
34565M
74965-5M400 Cover-Transmission Hole9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
74965-5M400 |
from US $15.93 |
||
|
34568
|
34568
34568-9E010 DAMPER-MASS9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
34568-9E010 |
US $26.34 |
||
|
34573
|
34573
34573-5M400 Spring-Return, Lever9810--01 ~ 0205--01; 2WD.QG15DE.MT +QG13DE.MT |
34573-5M400 |
US $10.37 |
||
|
34573
|
34573
34573-5M405 Spring-Return, Lever0307--01 ~ ; 2WD.QG15DE.MT +QG13DE.MT |
34573-5M405 |
US $7.92 |
||
|
74966X
|
74966X
74966-6J000 Cover-Transmission Hole9810--01 ~ 9909--01; 2WD.QG15DE.MT +QG13DE.MT +SR16VE |
74966-6J000 |
US $35.14 |
||
