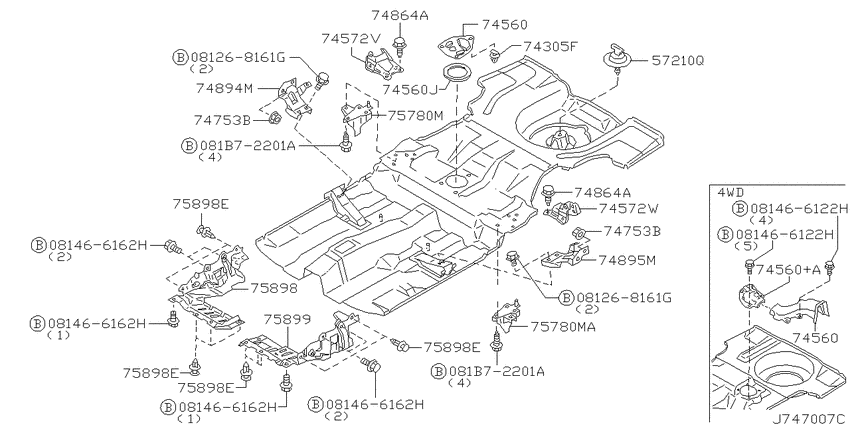

Floor fitting (2002-05-01 ~ ; S) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268161G
|
081268161G
08126-8161G
Bolt-hexagon
|
08126-8161G |
— | ||
|
081268161G
|
081268161G
08126-8161G
Bolt-hexagon
|
08126-8161G |
— | ||
|
081466122H
|
081466122H
081466122H
Bolt-hexagon
|
081466122H |
— | ||
|
081466122H
|
081466122H
081466122H
Bolt-hexagon
|
081466122H |
— | ||
|
081466162H
|
081466162H
081466162H Bolt-hexagon |
081466162H |
from US $0.72 |
||
|
081466162H
|
081466162H
081466162H Bolt-hexagon |
081466162H |
from US $0.72 |
||
|
081466162H
|
081466162H
081466162H Bolt-hexagon |
081466162H |
from US $0.72 |
||
|
081466162H
|
081466162H
081466162H Bolt-hexagon |
081466162H |
from US $0.72 |
||
|
081B72201A
|
081B72201A
081B7-2201A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081B7-2201A |
— | ||
|
081B72201A
|
081B72201A
081B7-2201A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081B7-2201A |
— | ||
|
57210Q
|
57210Q
74810-4M400
Clamp-Spare Tire
9810--01 ~ 9909--01; S |
74810-4M400 |
— | ||
| replacement | |||||
|
57210Q
|
57210Q
748104M40A Clamp-Spare Tire9810--01 ~ 9909--01; S |
748104M40A |
US $8.18 |
||
|
57210Q
|
57210Q
74810-5M000 Clamp-Spare Tire9810--01 ~ 9909--01; (*S.2WD.QG15DE +*S.(QG13DE+SR16VE+QG18DD) |
74810-5M000 |
US $7.20 |
||
| replacement | |||||
|
57210Q
|
57210Q
74810-5M00A
Clamp-Spare Tire, Luggage Room
9810--01 ~ 9909--01; (*S.2WD.QG15DE +*S.(QG13DE+SR16VE+QG18DD) |
74810-5M00A |
— | ||
|
74305F
|
74305F
62318-4M400 Clip9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
62318-4M400 |
from US $1.74 |
||
|
74305F
|
74305F
623184M401 Clip0009--01 ~ 0205--01; -S.2WD.QG15DE +S.(QG13DE+YD22DD+SR16VE+QG18DD) |
623184M401 |
US $2.45 |
||
|
74560
|
74560
74848-4M430
Cover-Inspection Hole
9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74848-4M430 |
— | ||
|
74560
|
74560
74847-4M400
Seal-Inspection Hole Cover
9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74847-4M400 |
— | ||
| replacement | |||||
|
74560
|
74560
74847-6N60A
Seal-Inspection Hole Cover
9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74847-6N60A |
— | ||
|
74560
|
74560
74560-4M420 Bracket-Muffler Mounting9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74560-4M420 |
US $13.54 |
||
|
74560
|
74560
74848-4M430
Cover-Inspection Hole
9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74848-4M430 |
— | ||
|
74560
|
74560
74847-4M400
Seal-Inspection Hole Cover
9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74847-4M400 |
— | ||
| replacement | |||||
|
74560
|
74560
74847-6N60A
Seal-Inspection Hole Cover
9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74847-6N60A |
— | ||
|
74560
|
74560
74560-4M420 Bracket-Muffler Mounting9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74560-4M420 |
US $13.54 |
||
|
74560J
|
74560J
74847-4M400
Seal-Inspection Hole Cover
9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74847-4M400 |
— | ||
| replacement | |||||
|
74560J
|
74560J
74847-6N60A
Seal-Inspection Hole Cover
9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74847-6N60A |
— | ||
|
74572V
|
74572V
74520-4M400 Support-Rear Seat Back Lower, Rh9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74520-4M400 |
US $22.90 |
||
|
74572W
|
74572W
74521-4M400 Support-Rear Seat Back Lower, Lh9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74521-4M400 |
US $24.19 |
||
|
74753B
|
74753B
0122500701 NUT9810--01 ~ 9909--01; S |
0122500701 |
from US $0.81 |
||
|
74753B
|
74753B
0122500701 NUT9810--01 ~ 9909--01; S |
0122500701 |
from US $0.81 |
||
|
74864A
|
74864A
74397-4U000 Bolt9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74397-4U000 |
US $1.73 |
||
|
74864A
|
74864A
74397-4U000 Bolt9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
74397-4U000 |
US $1.73 |
||
|
74894M
|
74894M
74894-4M400 Brace-Front Seat Mounting, Rh9810--01 ~ 9909--01; S |
74894-4M400 |
US $9.79 |
||
|
74895M
|
74895M
74895-4M400 Brace-Front Seat Mounting, Lh9810--01 ~ 9909--01; S |
74895-4M400 |
US $9.79 |
||
|
75780M
|
75780M
75780-4M400 Bracket9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
75780-4M400 |
US $33.41 |
||
|
75780M
|
75780M
75780-4M420 Bracket0209--01 ~ ; S.2WD.QG15DE +S.QG13DE |
75780-4M420 |
US $36.72 |
||
|
75780M
|
75780M
75781-4M400 Bracket9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
75781-4M400 |
US $33.41 |
||
|
75780M
|
75780M
75781-4M420 Bracket0209--01 ~ ; S.2WD.QG15DE +S.QG13DE |
75781-4M420 |
US $36.72 |
||
|
75780MA
|
75780MA
75781-4M400 Bracket9810--01 ~ 9909--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
75781-4M400 |
US $33.41 |
||
|
75780MA
|
75780MA
75781-4M420 Bracket0209--01 ~ ; S.2WD.QG15DE +S.QG13DE |
75781-4M420 |
US $36.72 |
||
|
75898
|
75898
758934M400 Cover-Front Under, Rh9810--01 ~ 9906--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
758934M400 |
US $66.38 |
||
|
75898
|
75898
758934M420 Cover-Front Under, Rh0008--01 ~ 0205--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
758934M420 |
US $46.22 |
||
|
75898
|
75898
75893-WD000 Cover-Front Under, Rh9906--01 ~ 0008--01; &S.2WD.QG15DE +S.(QG13DE+SR16VE+QG18DD) |
75893-WD000 |
US $56.02 |
||
|
75898
|
75898
0155309321 CLIP9810--01 ~ 9909--01; S |
0155309321 |
US $0.97 |
||
|
75898E
|
75898E
0155309321 CLIP9810--01 ~ 9909--01; S |
0155309321 |
US $0.97 |
||
|
75898E
|
75898E
0155309321 CLIP9810--01 ~ 9909--01; S |
0155309321 |
US $0.97 |
||
|
75898E
|
75898E
0155309321 CLIP9810--01 ~ 9909--01; S |
0155309321 |
US $0.97 |
||
|
75898E
|
75898E
0155309321 CLIP9810--01 ~ 9909--01; S |
0155309321 |
US $0.97 |
||
|
75899
|
75899
75894-4M400 Cover-Front Under, Lh9810--01 ~ 9906--01; S.2WD.QG15DE +S.(QG13DE+SR16VE) |
75894-4M400 |
US $60.91 |
||
|
75899
|
75899
758944M420 Cover-Front Under, Lh0008--01 ~ 0205--01; S.2WD.QG15DE +S.(QG13DE+SR16VE) |
758944M420 |
US $46.22 |
||
|
75899
|
75899
75894-WD000 Cover-Front Under, Lh9906--01 ~ 0008--01; S.2WD.QG15DE +S.(QG13DE+SR16VE) |
75894-WD000 |
US $56.02 |
||
