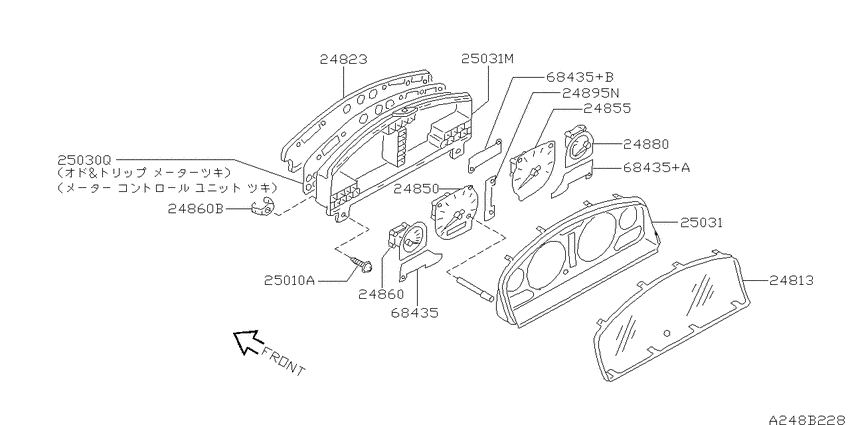

meter & gauge (1998-10-01 ~ 1999-09-01; フロント ビュー; S.QG15DE.S/S +S.(SR16VE+QG18DD)) Diagram Nissan SUNNY/LUCHINO
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- S/S
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24813
|
24813
24813-4M500 Cover-Front Meter9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
24813-4M500 |
US $31.25 |
||
|
24823
|
24823
24823-AD000 Cover-Unit9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
24823-AD000 |
US $53.57 |
||
|
24850
|
24850
24820-4M500 Speedometer Assy9810--01 ~ 9909--01; S.QG15DE.S/S +S.QG18DD |
24820-4M500 |
US $489.94 |
||
|
24850
|
24850
24820-4M560 Speedometer Assy9909--01 ~ 0009--01; S.QG15DE.S/S +S.QG18DD |
24820-4M560 |
US $1,736 |
||
|
24850
|
24850
24820-4M570 Speedometer Assy-With Odo & Fuel Meter0009--01 ~ 0205--01; *S.QG15DE.S/S.AT.F4 |
24820-4M570 |
US $1,554 |
||
|
24850
|
24850
24820-8N400 Speedometer Assy-With Odo & Fuel Meter0205--01 ~ 0402--01; S.2WD.S/S.AT.F4 +S.4WD.S/S |
24820-8N400 |
US $1,554 |
||
|
24850
|
24850
24820-8N405 Speedometer Assy-With Odo & Fuel Meter0402--01 ~ ; S.2WD.S/S.AT.F4 +S.4WD.S/S |
24820-8N405 |
US $1,554 |
||
|
24855
|
24855
24825-4M500 Tachometer Assy9810--01 ~ 0009--01; S.QG15DE.S/S +S.QG18DD |
24825-4M500 |
US $603.22 |
||
|
24860
|
24860
248304M500 Meter Assy-Fuel9810--01 ~ 9908--01; S.QG15DE.S/S +S.QG18DD |
248304M500 |
US $161.28 |
||
|
24860
|
24860
68191-51E00
NUT
9810--01 ~ 9909--01; S.QG15DE.S/S +S.SR16VE |
68191-51E00 |
— | ||
| replacement | |||||
|
24860
|
24860
6819151E0A Nut9810--01 ~ 9909--01; S.QG15DE.S/S +S.SR16VE |
6819151E0A |
US $1.39 |
||
|
24860
|
24860
24860-4M400 Socket & Bulb9810--01 ~ 9909--01; S |
24860-4M400 |
US $18.14 |
||
|
24860
|
24860
24860-4M410 Socket & Bulb0007--01 ~ 0205--01; S |
24860-4M410 |
US $22.75 |
||
|
24860
|
24860
2486040F01 Socket & Bulb Assy9810--01 ~ 9909--01; S.QG18DD +S.S/S.AT.F4; 14V-1.4W |
2486040F01 |
from US $5.68 |
||
|
24860
|
24860
24860C9910 Socket & Bulb Assy0205--01 ~ ; S.S/S |
24860C9910 |
from US $7.20 |
||
|
24860
|
24860
24860C9900 Socket & Bulb Assy0205--01 ~ ; S.S/S |
24860C9900 |
from US $12.24 |
||
|
24860
|
24860
2626201P40 Socket & Bulb Assy9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD); 14V-3W |
2626201P40 |
from US $3.87 |
||
|
24860B
|
24860B
68191-51E00
NUT
9810--01 ~ 9909--01; S.QG15DE.S/S +S.SR16VE |
68191-51E00 |
— | ||
| replacement | |||||
|
24860B
|
24860B
6819151E0A Nut9810--01 ~ 9909--01; S.QG15DE.S/S +S.SR16VE |
6819151E0A |
US $1.39 |
||
|
24880
|
24880
24835-4M500 Meter Assy-Water Temperature9810--01 ~ 9909--01; S.QG15DE.S/S +S.QG18DD |
24835-4M500 |
US $146.88 |
||
|
24895N
|
24895N
24895-4M500 Lens9810--01 ~ 9909--01; S.S/S.AT.F4 |
24895-4M500 |
US $13.39 |
||
|
25010A
|
25010A
0145100581 SCREW9810--01 ~ 9909--01; S.QG15DE.S/S +S.SR16VE |
0145100581 |
from US $0.74 |
||
|
25010A
|
25010A
24869AA000 Bolt9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
24869AA000 |
US $3.46 |
||
|
25030Q
|
25030Q
24814-4M500 Circuit Assy-Printed With Odo & Trip9810--01 ~ 9909--01; S.S/S.AT.F4 |
24814-4M500 |
US $379.49 |
||
|
25030Q
|
25030Q
24814-4M560 Circuit Assy-Printed With Odo & Trip9909--01 ~ 0009--01; S.QG15DE.S/S.AT.F4 |
24814-4M560 |
US $379.49 |
||
|
25031
|
25031
24812-4M500 Housing-Meter Comb, Upper9810--01 ~ 9909--01; S.QG18DD +S.S/S.AT.F4 |
24812-4M500 |
US $61.63 |
||
|
25031
|
25031
24812-6N000 Housing-Meter Comb, Upper0009--01 ~ 0205--01; *S.QG18DD +*S.S/S.AT.F4 |
24812-6N000 |
US $50.98 |
||
|
25031
|
25031
24811-AD000 Housing-Meter Comb, Lower9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
24811-AD000 |
US $61.49 |
||
|
25031M
|
25031M
24811-AD000 Housing-Meter Comb, Lower9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
24811-AD000 |
US $61.49 |
||
|
68435
|
68435
24880-4M500 Lens-Warning Lamp9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
24880-4M500 |
US $19.58 |
||
|
68435
|
68435
24885-4M560 Lens-Warning Lamp9909--01 ~ 0009--01; S.QG15DE.S/S +S.QG18DD |
24885-4M560 |
US $25.63 |
||
|
68435
|
68435
24885-4M705 Lens-Warning Lamp9810--01 ~ 9909--01; S.QG15DE.S/S +S.QG18DD |
24885-4M705 |
US $25.63 |
||
|
68435
|
68435
24890-4M500 Lens-Warning Lamp9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
24890-4M500 |
US $25.63 |
||
|
68435
|
68435
24890-AD000 Lens-Warning Lamp9909--01 ~ 0009--01; (S.(QG15DE+YD22DD).S/S +S.(SR16VE+QG18DD) |
24890-AD000 |
US $19.58 |
||
|
68435+A
|
68435+A
24885-4M560 Lens-Warning Lamp9909--01 ~ 0009--01; S.QG15DE.S/S +S.QG18DD |
24885-4M560 |
US $25.63 |
||
|
68435+A
|
68435+A
24885-4M705 Lens-Warning Lamp9810--01 ~ 9909--01; S.QG15DE.S/S +S.QG18DD |
24885-4M705 |
US $25.63 |
||
|
68435+B
|
68435+B
24890-4M500 Lens-Warning Lamp9810--01 ~ 9909--01; S.QG15DE.S/S +S.(SR16VE+QG18DD) |
24890-4M500 |
US $25.63 |
||
|
68435+B
|
68435+B
24890-AD000 Lens-Warning Lamp9909--01 ~ 0009--01; (S.(QG15DE+YD22DD).S/S +S.(SR16VE+QG18DD) |
24890-AD000 |
US $19.58 |
||
